◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#33001) — 15 parça

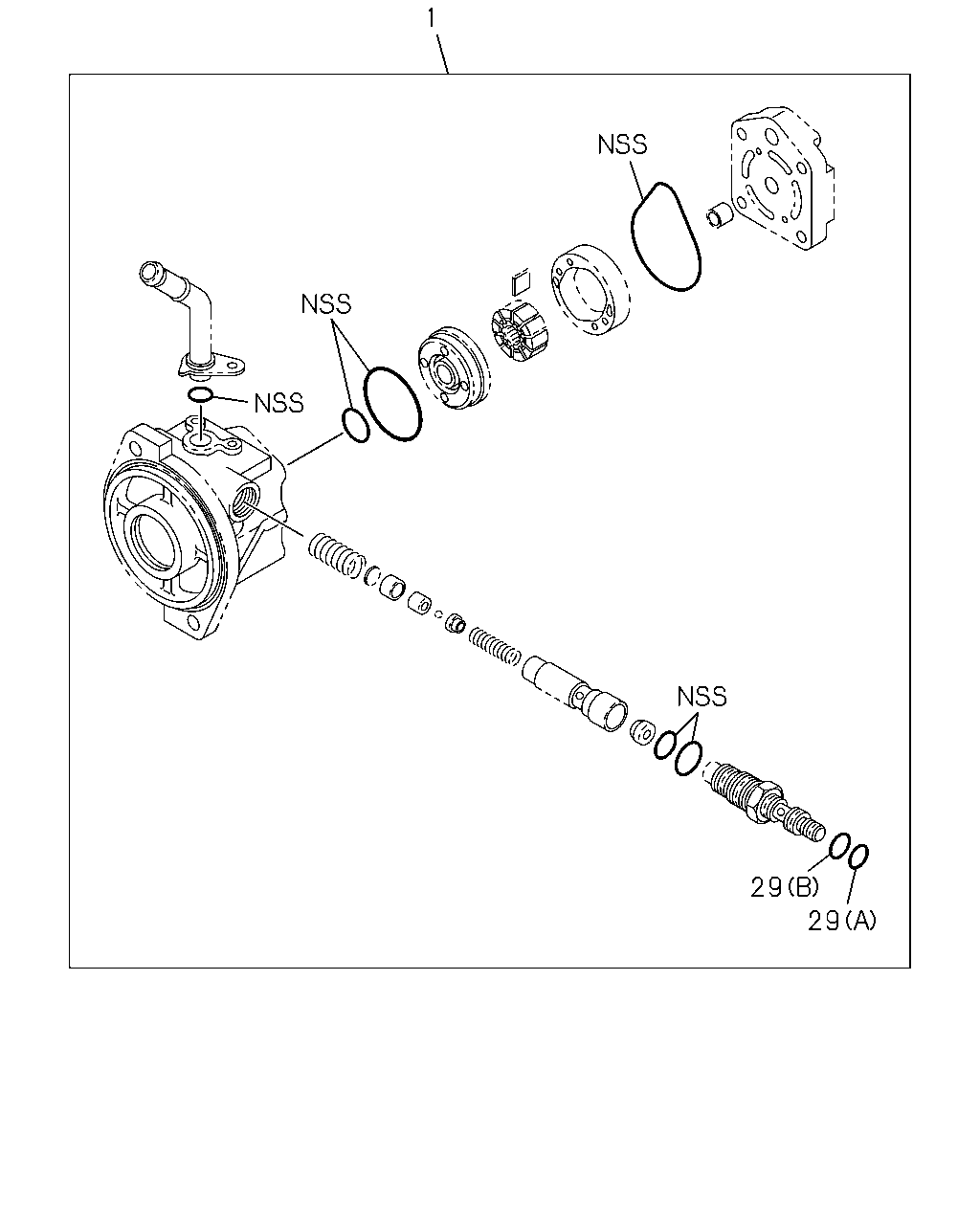

çizim 121902
1 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 8-98006-793-4 		8-98058-096-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-793-4 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98006-793-4 		8-97075-581-0 01 1 -

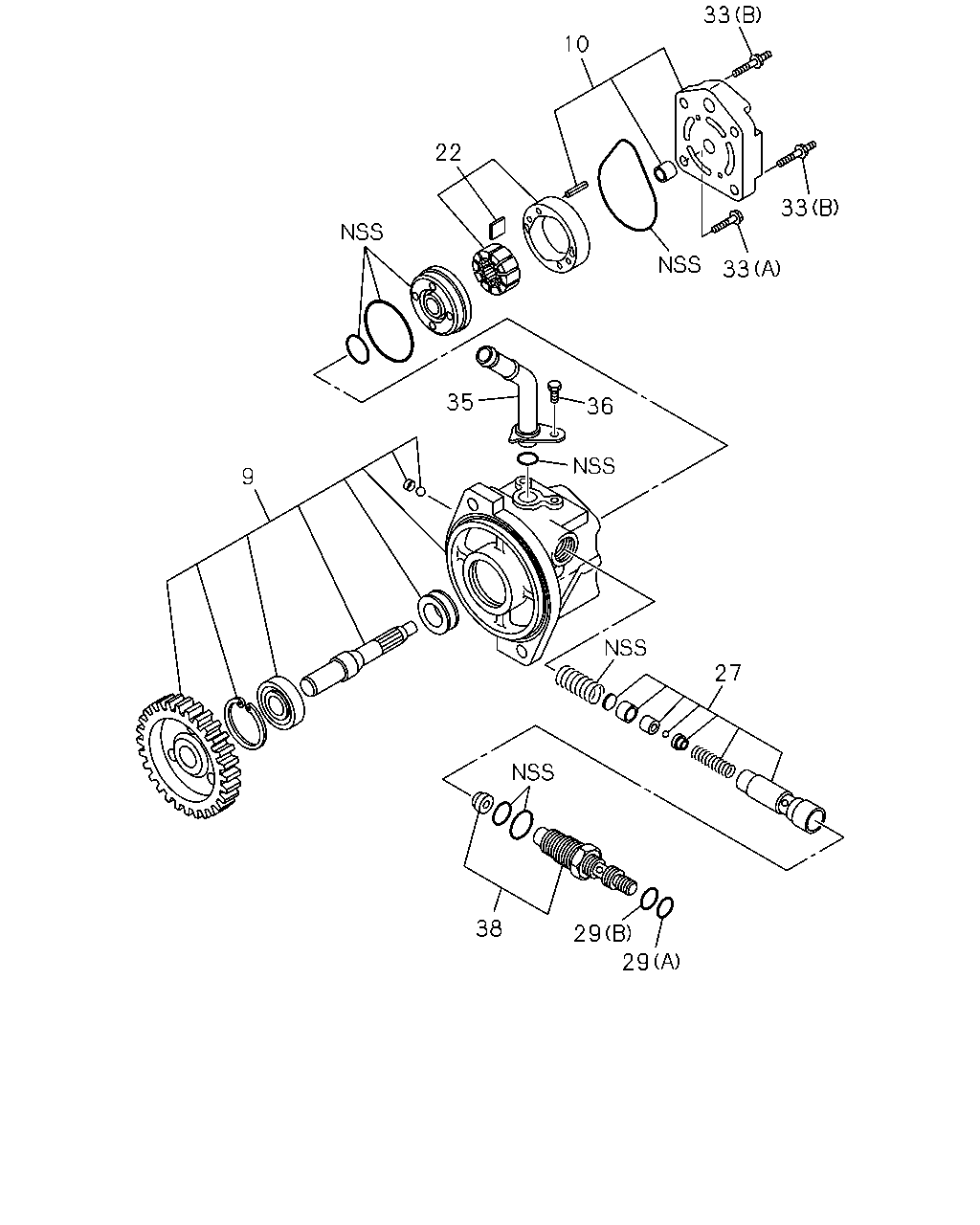

çizim 121906
33 10 22 33 33 35 36 9 27 38 29 29
BalonParca AdiParca NoAdetTipApplied Date
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-98006-793-4 		8-98058-097-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-98006-793-4 		8-98116-059-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98006-793-4 		8-98058-088-0 01 1 -1004
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98006-793-4 		8-98216-517-0 01 1 1005-
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-98006-793-4 		8-98058-091-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-793-4 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98006-793-4 		8-97075-581-0 01 1 -
33 BOLT; COVER
(A) ASM PART: A = 8-98006-793-4 		8-97184-761-0 02 1 -
33 BOLT; COVER
(B) ASM PART: A = 8-98006-793-4 		8-97184-762-0 02 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-98006-793-4 		8-98058-094-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: A = 8-98006-793-4 		8-97184-763-0 01 1 -
38 CONNECTOR; OIL PUMP
ASM PART: A = 8-98006-793-4 		8-97093-504-0 01 1 -
