2-53 — TRANSMISSION OIL COOLER SYSTEM (#3300) — 61 parça

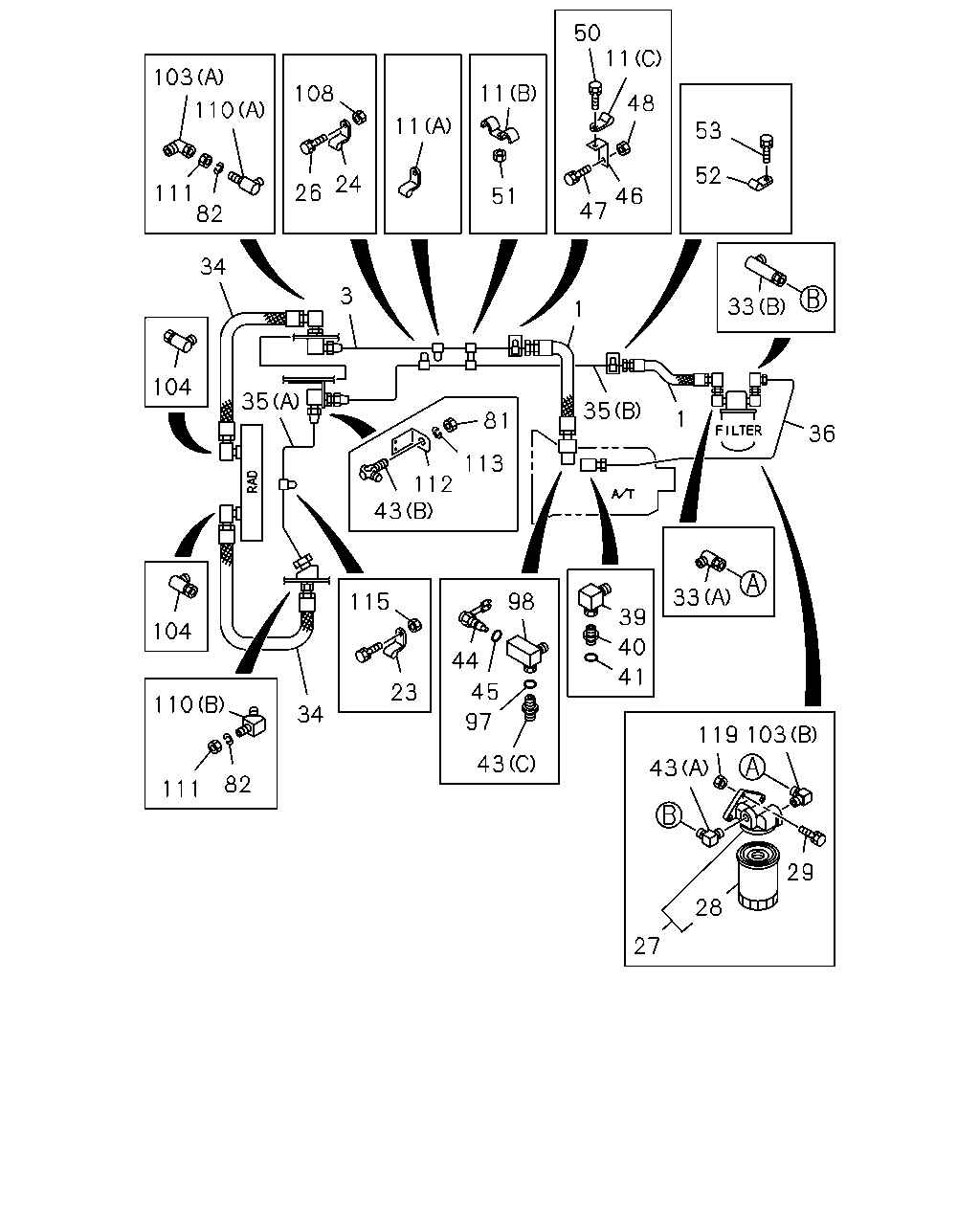

çizim 4793
50 11 103 11 108 48 110 11 53 52 24 26 111 82 51 46 47 34 3 33 1 104 35 35 1 81 36 113 112 43 33 115 98 39 104 40 44 41 45 23 110 34 97 119 103 43 43 82 111 29 28 27
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF 1-09364-748-1 02 1 9101-9711
1 HOSE; ATF
L=395 		1-09364-830-0 02 1 9712-
3 PIPE; OIL,A/T TO OIL COOLER 1-21112-998-0 01 1 9101-9711
3 PIPE; OIL,A/T TO OIL COOLER 1-21115-967-0 01 1 9712-
11 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9101-
11 CLIP; PIPE
(B) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 9101-
11 CLIP; PIPE
(C) ID=16 		9-09525-525-0 01 1 9101-
23 CLIP; OIL PIPE 1-09700-606-0 01 1 9101-
24 CLIP; OIL PIPE 1-09700-606-0 01 1 9101-
26 BOLT; PIPE CLIP 9-01900-820-0 01 1 9101-9204
26 BOLT; PIPE CLIP 0-50040-820-0 01 1 9205-
27 FILTER ASM; OIL 1-32569-024-0 01 1 9101-
28 CARTRIDGE; OIL FILTER 1-32569-025-0 01 1 9101-
29 BOLT; FILTER TO BRKT 0-50140-835-0 03 1 9101-
33 UNION; OIL FILTER
(A) 		1-09660-047-0 01 1 9101-9711
33 UNION; OIL FILTER
(A) 		1-09661-043-0 01 1 9712-
33 UNION; OIL FILTER
(B) 		1-09660-144-0 01 1 9101-
34 HOSE; FLEX,RAD TO OIL COOLER PIPE 1-09364-750-1 01 1 9101-9711
34 HOSE; FLEX,RAD TO OIL COOLER PIPE
L=500 		1-09365-002-0 01 1 9712-
34 HOSE; FLEX,RAD TO OIL COOLER PIPE 1-09364-752-1 01 1 9101-9711
34 HOSE; FLEX,RAD TO OIL COOLER PIPE
L=450 		1-09365-003-0 01 1 9712-
35 PIPE; OIL,OIL COOLER TO FILTER
(A) 		1-21112-999-0 01 1 9101-9711
35 PIPE; OIL,OIL COOLER TO FILTER
(A) 		1-21115-968-0 01 1 9712-
35 PIPE; OIL,OIL COOLER TO FILTER
(B) 		1-21113-109-0 01 1 9101-
36 PIPE; OIL,FILTER TO A/T 1-21111-998-0 01 1 9101-
39 CONNECTOR; FLEX HOSE,A/T 1-09660-047-0 01 1 9101-
40 CONNECTOR; FLEX HOSE,A/T 1-09654-063-0 01 1 9101-
41 GASKET; FLEX HOSE,A/T 9-09562-217-0 01 1 9101-
43 CONNECTOR; FLEX HOSE,A/T
(C) M27 & SAE3/4 		1-09654-063-0 01 1 9101-
43 CONNECTOR; FLEX HOSE,A/T
(A) M27 & NPTF3/4 ELBOW 		1-09660-127-0 01 1 9101-
43 CONNECTOR; FLEX HOSE,A/T
(B) M22 		9-09225-015-1 01 1 9101-
44 SWITCH; OIL THERMO 1-82450-025-0 01 1 9101-
45 GASKET; OIL THERMO SW
ID=26.8 		1-09623-058-0 01 1 9101-
46 BRACKET; OIL PIPE 1-34656-009-0 02 1 9101-
47 BOLT; BRKT TO FRAME 9-01900-820-0 04 1 9101-9204
47 BOLT; BRKT TO FRAME 0-50040-820-0 04 1 9205-
48 NUT; BRKT 9-09110-408-0 05 1 9101-
50 BOLT; CLIP 9-01900-820-0 04 1 9101-9204
50 BOLT; CLIP 0-50040-820-0 04 1 9205-
51 NUT; CLIP TO BRKT 9-09110-408-0 02 1 9101-
52 CLIP; FLEX HOSE,A/T 9-09525-525-0 01 1 9101-
53 BOLT; CLIP,FLEX HOSE,A/T 9-01900-820-0 01 1 9101-9204
53 BOLT; CLIP,FLEX HOSE,A/T 0-50040-820-0 01 1 9205-
81 NUT; UNION 9-09111-522-0 01 1 9101-
82 WASHER; LK,UNION
ID=27.5 		9-09150-527-0 02 1 9101-
97 GASKET; CONNECTOR 9-09562-217-0 01 1 9101-
98 CONNECTOR; HOSE & SW 1-09664-031-1 01 1 9101-9711
98 CONNECTOR; HOSE & SW 1-09664-204-1 01 1 9712-
103 CONNECTOR; OIL PIPE
(A) 		1-09660-047-0 02 1 9101-
103 CONNECTOR; OIL PIPE
(B) 		1-09660-127-0 01 1 9101-
104 CONNECTOR; COOLER 1-09660-047-0 02 1 9101-9711
104 CONNECTOR; COOLER 1-09661-043-0 02 1 9712-
108 NUT; PIPE CLIP 9-09110-408-0 01 1 9101-
110 UNION; OIL PIPE
(A) 		1-09650-124-0 01 1 9101-
110 UNION; OIL PIPE
(B) 		1-09664-044-0 01 1 9101-9711
110 UNION; OIL PIPE
(B) 		1-09664-244-0 01 1 9712-
111 NUT; UNION 9-09840-159-0 02 1 9101-
112 BRACKET; ELBOW 1-47475-243-2 01 1 9101-
113 WASHER; LK,ELBOW 9-09150-522-0 01 1 9101-9312
115 NUT; CLIP 9-09110-408-0 01 1 9101-
119 NUT; FILTER TO BRKT 9-09110-408-0 03 1 9101-
