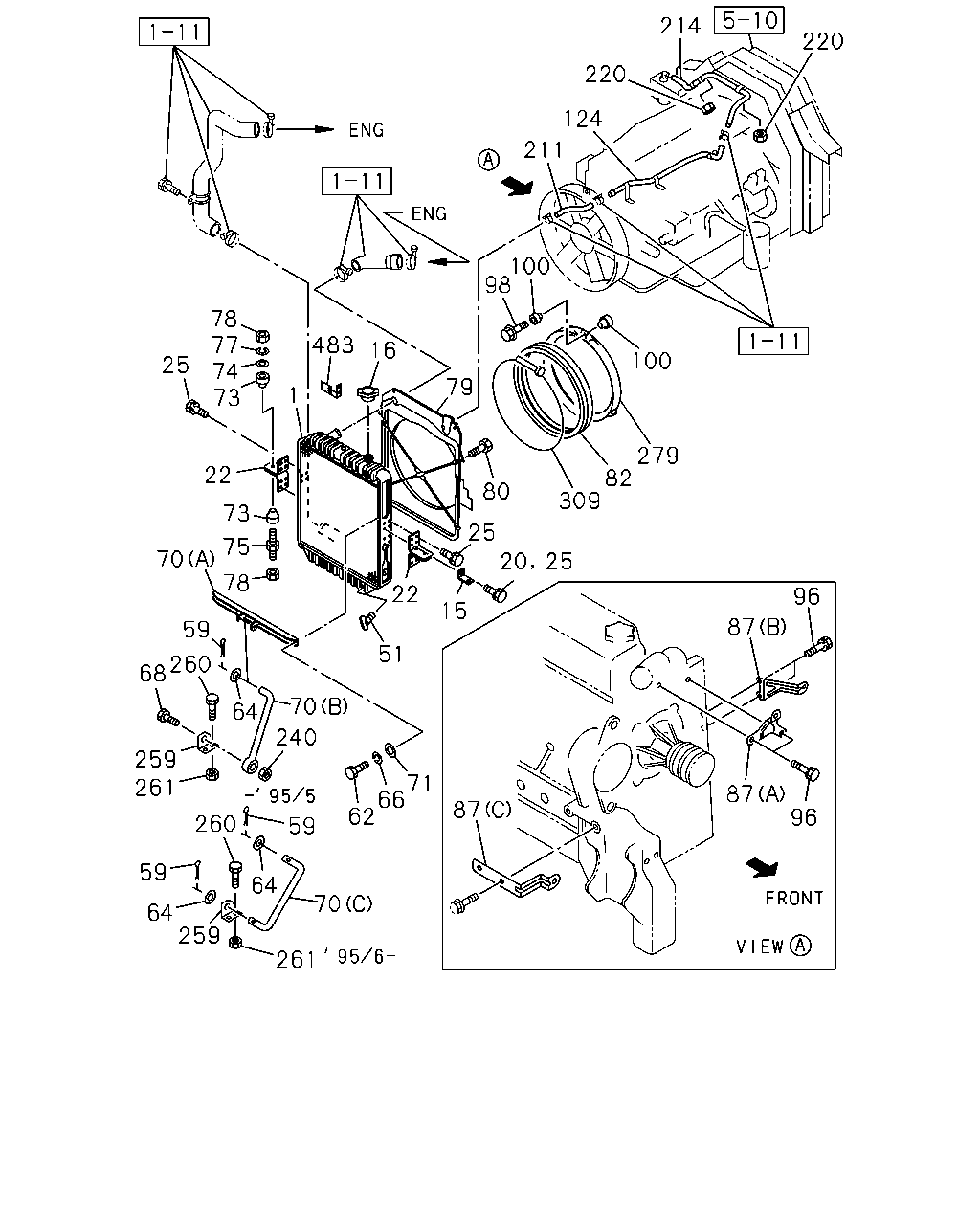

1-10 — RADIATOR (#330) — 103 parça

214 220 220 124 211 100 98 78 77 74 73 483 16 100 25 79 1 279 82 309 22 80 73 25 75 78 70 20 25 22 96 15 87 59 51 260 68 70 64 240 259 261 71 66 62 87 87 96 260 59 59 64 64 259 70 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM	1-21410-677-1	01	1	9202-	●
1	RADIATOR ASM EXC. FIRE TRUCK<RA9>	1-21410-677-1	01	1	9202-		●
1	RADIATOR ASM FIRE TRUCK<RA9>	1-21410-626-3	01	1	9202-		●
15	BRACKET; PIPE,RAD FIRE TRUCK<RA9>	1-21464-266-0	01	1	9202-9208		●
16	CAP; RAD	1-21450-053-1	01	1	9202-	●	●
20	BOLT; PIPE BRKT,RAD FIRE TRUCK<RA9> M8X18 W/LK&PL WASHER	9-01960-818-0	01	1	9202-9208		●
22	BRACKET; RAD MTG	1-21464-131-2	01	1	9202-	●
22	BRACKET; RAD MTG EXC. FIRE TRUCK<RA9>	1-21464-131-2	01	1	9202-		●
22	BRACKET; RAD MTG	1-21464-130-2	01	1	9202-	●
22	BRACKET; RAD MTG EXC. FIRE TRUCK<RA9>	1-21464-130-2	01	1	9202-		●
22	BRACKET; RAD MTG FIRE TRUCK<RA9>	1-21464-308-0	01	1	9202-		●
22	BRACKET; RAD MTG FIRE TRUCK<RA9>	1-21464-307-0	01	1	9202-		●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	16	1	9202-	●
25	BOLT; BRKT EXC. FIRE TRUCK<RA9> M8X16 W/LK WASHER	9-01900-816-0	16	1	9202-		●
25	BOLT; BRKT FIRE TRUCK<RA9> M8X16 W/LK&PL WASHER	9-01960-816-0	15	1	9202-9208		●
25	BOLT; BRKT FIRE TRUCK<RA9> M8X16 W/LK&PL WASHER	0-50140-816-0	15	1	9209-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9202-	●	●
59	PIN; SNAP,STAY	1-09987-158-1	01	1	9202-9505	●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9506-	●	●
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9202-9208	●	●
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9209-	●
62	BOLT; STAY EXC. FIRE TRUCK<RA9> M10X16	9-02041-016-0	02	1	9209-		●
62	BOLT; STAY FIRE TRUCK<RA9> M10X16	0-20801-016-0	02	1	9209-		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	01	1	9202-9505	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9506-	●	●
66	WASHER; LK,STAY ID=10.2	9-09150-510-0	02	1	9202-	●	●
68	BOLT; STAY TO BRKT M8X40 FLANGE	0-28080-840-0	01	1	9202-9506	●	●
70	STAY; RAD (A)	1-21522-040-1	01	1	9202-	●
70	STAY; RAD EXC. FIRE TRUCK<RA9> (A)	1-21522-040-1	01	1	9202-		●
70	STAY; RAD (B)	1-21522-053-0	01	1	9202-9505	●	●
70	STAY; RAD (C)	1-21522-069-0	01	1	9506-	●	●
70	STAY; RAD FIRE TRUCK<RA9> (A)	1-21522-044-0	01	1	9202-		●
71	WASHER; PL,STAY ID=10.5 OD=22	9-09160-610-0	02	1	9202-	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	02	1	9202-	●	●
73	RUBBER; CUSHION,RAD MTG T=24	1-21467-011-1	02	1	9202-	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9202-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9202-	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9202-	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	5-09440-006-0	02	1	9202-	●	●
78	NUT; CUSHION RUBBER M12	9-99110-512-0	02	1	9202-	●	●
79	GUIDE; FAN,RAD	1-21551-341-2	01	1	9202-	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9202-9208	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9209-	●
80	BOLT; FAN GUIDE EXC. FIRE TRUCK<RA9> M6X14	8-94114-024-0	04	1	9209-		●
80	BOLT; FAN GUIDE FIRE TRUCK<RA9> M6X14 FLANGE	0-28080-614-0	04	1	9209-		●
82	COVER; FAN,RAD	1-21559-157-0	01	1	9202-	●	●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9202-	●	●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9202-	●	●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9202-	●	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9202-	●	●
98	BOLT; RAD FAN GUIDE M8X28 FLANGE	0-28080-828-0	03	1	9202-9308	●	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9309-	●	●
100	RUBBER; MTG	1-09337-006-0	06	1	9202-9307	●	●
100	RUBBER; MTG	1-09337-027-0	06	1	9308-	●	●
124	PIPE; WATER,TANK TO RAD	8-94396-222-1	01	1	9202-	●	●
211	HOSE; RAD TO PIPE L=200 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●	●
214	HOSE; PIPE TO RESERVE TANK L=1050 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●	●
220	NUT; CLIP M8	9-09110-408-0	03	1	9206-	●	●
240	NUT; STAY M8	9-09110-408-0	01	1	9202-9505	●	●
259	BRACKET; RAD STAY	1-21523-007-0	01	1	9202-9505	●	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9506-	●	●
260	BOLT; BRKT M8X18	0-28010-818-0	02	1	9202-9204	●	●
260	BOLT; BRKT M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9208-	●	●
261	NUT; BRKT M8	9-09110-408-0	02	1	9202-	●	●
279	BELL MOUTH	8-94397-008-1	01	1	9202-	●	●
309	WIRE; FAN COVER	1-09704-088-0	01	1	9202-	●	●
483	BRACKET; SEAL	1-21559-343-0	01	1	9202-	●	●

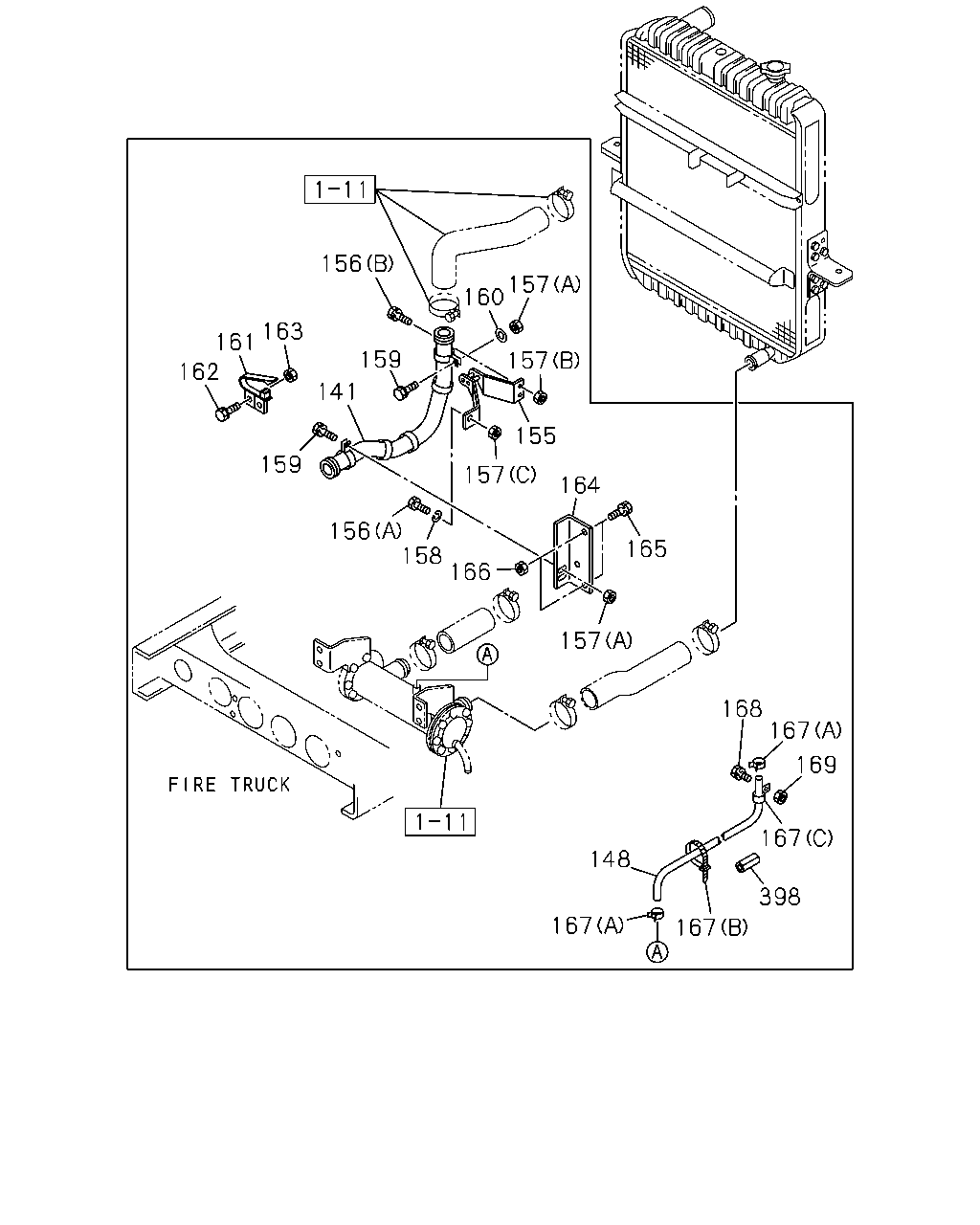

156 157 160 163 161 159 157 162 141 155 159 157 164 156 158 166 165 157 168 167 169 167 148 398 167 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
141	PIPE; RAD,INL FIRE TRUCK<RA9>	1-21431-448-1	01	1	9202-	●
148	HOSE; WATER,BYPASS,SUB RAD FIRE TRUCK<RA9> L=900 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●
155	BRACKET; RAD PIPE FIRE TRUCK<RA9>	1-21439-080-1	01	1	9202-	●
156	BOLT; BRKT TO RAD PIPE FIRE TRUCK<RA9> (A) M14X30	0-20801-430-0	01	1	9202-	●
156	BOLT; BRKT TO RAD PIPE FIRE TRUCK<RA9> (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9202-	●
157	NUT; BRKT TO PIPE FIRE TRUCK<RA9> (A) M8	9-09110-408-0	04	1	9202-	●
157	NUT; BRKT TO PIPE FIRE TRUCK<RA9> (B) M10	9-09110-510-0	02	1	9202-	●
157	NUT; BRKT TO PIPE FIRE TRUCK<RA9> (C) M14	9-99110-414-0	01	1	9202-	●
158	WASHER; LK,CLIP BRKT FIRE TRUCK<RA9> ID=14.2	9-09150-514-0	01	1	9202-	●
159	BOLT; BRKT TO PIPE FIRE TRUCK<RA9> M8X45 FLANGE	0-28080-845-0	04	1	9202-	●
160	WASHER; PL,BRKT TO PIPE FIRE TRUCK<RA9> ID=8.4 OD=18	9-09160-608-0	02	1	9202-9207	●
161	CLIP; CABLE FIRE TRUCK<RA9>	1-09700-780-1	01	1	9202-9207	●
162	BOLT; CABLE CLIP FIRE TRUCK<RA9> M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9202-9204	●
162	BOLT; CABLE CLIP FIRE TRUCK<RA9> M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9205-9207	●
163	NUT; CABLE CLIP FIRE TRUCK<RA9> M8	9-09110-408-0	02	1	9202-9207	●
164	BRACKET; RAD PIPE TO C/MBR FIRE TRUCK<RA9>	1-21439-081-0	01	1	9202-	●
165	BOLT; BRKT TO C/MBR FIRE TRUCK<RA9> M8X22 FLANGE	0-28080-822-0	01	1	9202-9207	●
165	BOLT; BRKT TO C/MBR FIRE TRUCK<RA9> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●
165	BOLT; BRKT TO C/MBR FIRE TRUCK<RA9> M10X25 W/LK WASHER	0-50041-025-0	02	1	9202-	●
166	NUT; BRKT TO C/MBR FIRE TRUCK<RA9> M10	9-09110-510-0	02	1	9202-	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> (B) L=240	1-09707-117-0	01	1	9202-	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> (A) ID=12	8-94238-610-0	02	1	9202-	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	02	1	9202-9207	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> (C) ID=13 L=20	9-09525-235-0	02	1	9202-9207	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> (C) ID=13 L=20	9-09525-235-0	02	1	9208-	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13 H=75 L=25	1-09700-601-0	01	1	9202-9207	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9202-9207	●
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> M8X18	0-28010-818-0	01	1	9202-9204	●
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> M8X18 FLANGE	0-28080-818-0	01	1	9205-9207	●
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> M8X20 FLANGE	0-28080-820-0	01	1	9208-	●
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	01	1	9202-9204	●
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-	●
169	NUT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9202-	●
169	NUT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> M8	9-09110-408-0	01	1	9202-	●
398	SLEEVE; RUBBER,BYPASS FIRE TRUCK<RA9> ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-	●
