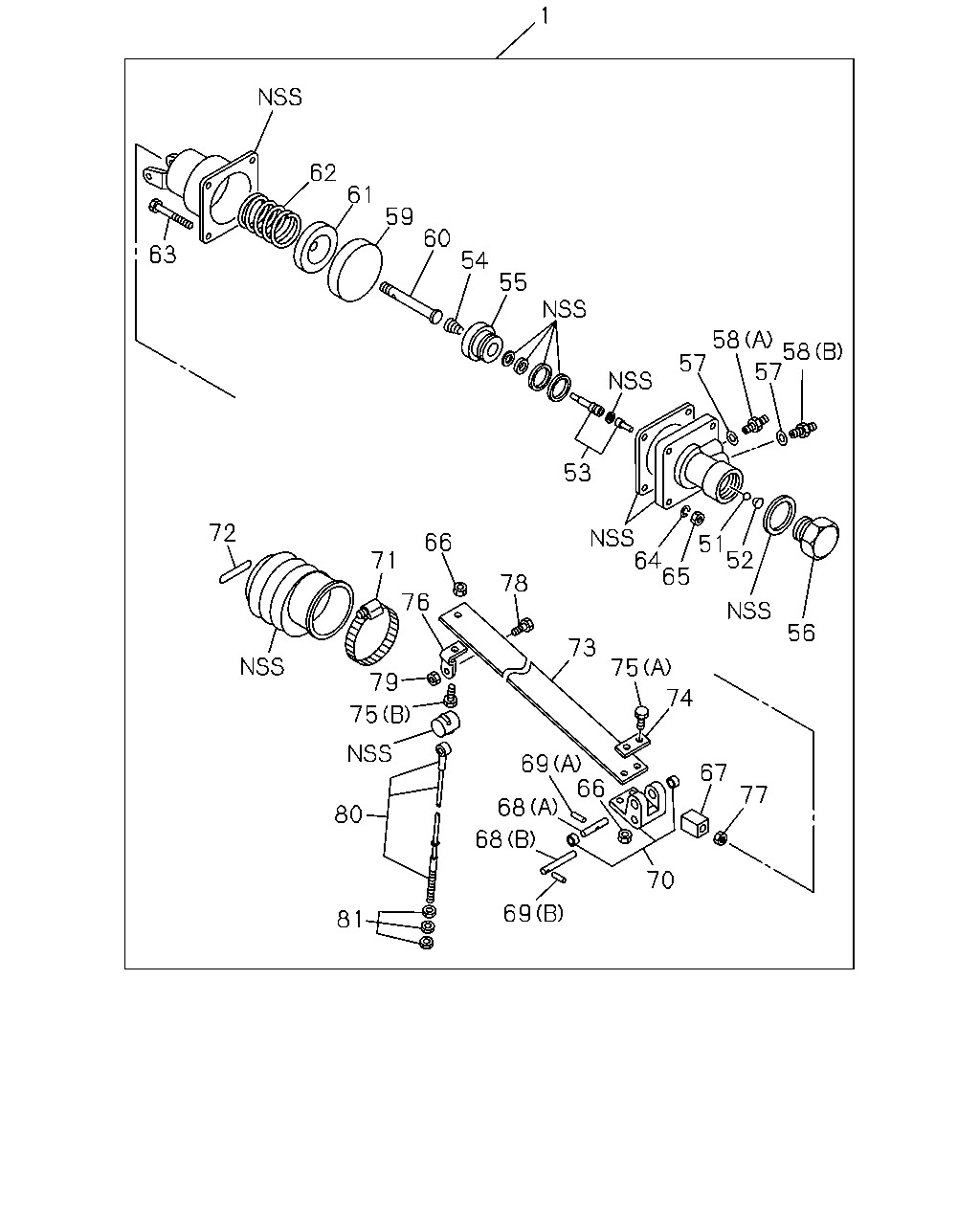

3-45 — LOAD SENSING PROPORTIONING VALVE (#33) — 54 parça

1 62 61 59 60 63 54 55 58 57 58 57 53 51 52 72 64 65 66 71 78 76 56 73 75 79 74 75 69 66 67 77 68 80 68 70 69 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47710-018-0	01	1	9202-	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47710-010-0	01	1	9202-	●	●
51	BALL; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-010-0	01	1	9202-	●	●
52	SPRING; BALL LOAD SENSING PROPORTIONING VALVE<JR7>	1-47714-001-0	01	1	9202-	●	●
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47719-038-0	01	1	9202-	●	●
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47719-012-0	01	1	9202-	●	●
54	SPRING; RET,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47714-002-0	01	1	9202-	●	●
55	RETAINER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-015-0	01	1	9202-	●	●
56	PLUG; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-011-0	01	1	9202-	●	●
57	GASKET; CONNECTOR LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-039-0	02	1	9202-	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47719-035-0	01	1	9202-	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47719-040-0	01	1	9202-	●	●
59	SPACER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-019-0	01	1	9202-	●	●
60	ROD; ACTUATOR LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-020-0	01	1	9202-	●	●
61	RETAINER; SPRING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-021-0	01	1	9202-	●	●
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47714-003-0	01	1	9202-	●	●
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-31829-015-0	04	1	9202-	●	●
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.2	9-09150-508-0	04	1	9202-	●	●
65	NUT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	9-83315-085-0	04	1	9202-	●	●
66	NUT; LEAF SPR,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47819-021-0	03	1	9202-	●	●
67	CLEVIS; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-023-0	01	1	9202-	●	●
68	PIN; LEVER LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47719-024-0	01	1	9202-	●	●
68	PIN; LEVER LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47719-026-0	01	1	9202-	●	●
69	PIN; SPR LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47719-025-0	01	1	9202-	●	●
69	PIN; SPR LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47719-027-0	01	1	9202-	●	●
70	LEVER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47711-001-0	01	1	9202-	●	●
71	CLAMP; BOOT LOAD SENSING PROPORTIONING VALVE<JR7>	9-44519-012-0	01	1	9202-	●	●
72	CLIP; BOOT LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-029-0	01	1	9202-	●	●
73	SPRING; LEAF,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47714-005-0	01	1	9202-	●	●
73	SPRING; LEAF,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47714-004-0	01	1	9202-	●	●
74	PLATE; LEAF SPRING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-030-0	01	1	9202-	●	●
75	BOLT; LEAF SPRING LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47719-031-0	02	1	9202-	●	●
75	BOLT; LEAF SPRING LOAD SENSING PROPORTIONING VALVE<JR7> (B)	9-88510-122-0	01	1	9202-	●	●
76	BRACKET; WIRE LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-032-0	01	1	9202-	●	●
77	NUT; CLEVIS LOAD SENSING PROPORTIONING VALVE<JR7>	1-47819-021-0	01	1	9202-	●	●
78	BOLT; WIRE BRKT LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-033-0	01	1	9202-	●	●
79	NUT; WIRE BRKT LOAD SENSING PROPORTIONING VALVE<JR7>	1-47819-021-0	01	1	9202-	●	●
80	WIRE; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-034-0	01	1	9202-	●	●
81	NUT; WIRE LOAD SENSING PROPORTIONING VALVE<JR7>	9-83315-085-0	03	1	9202-	●	●

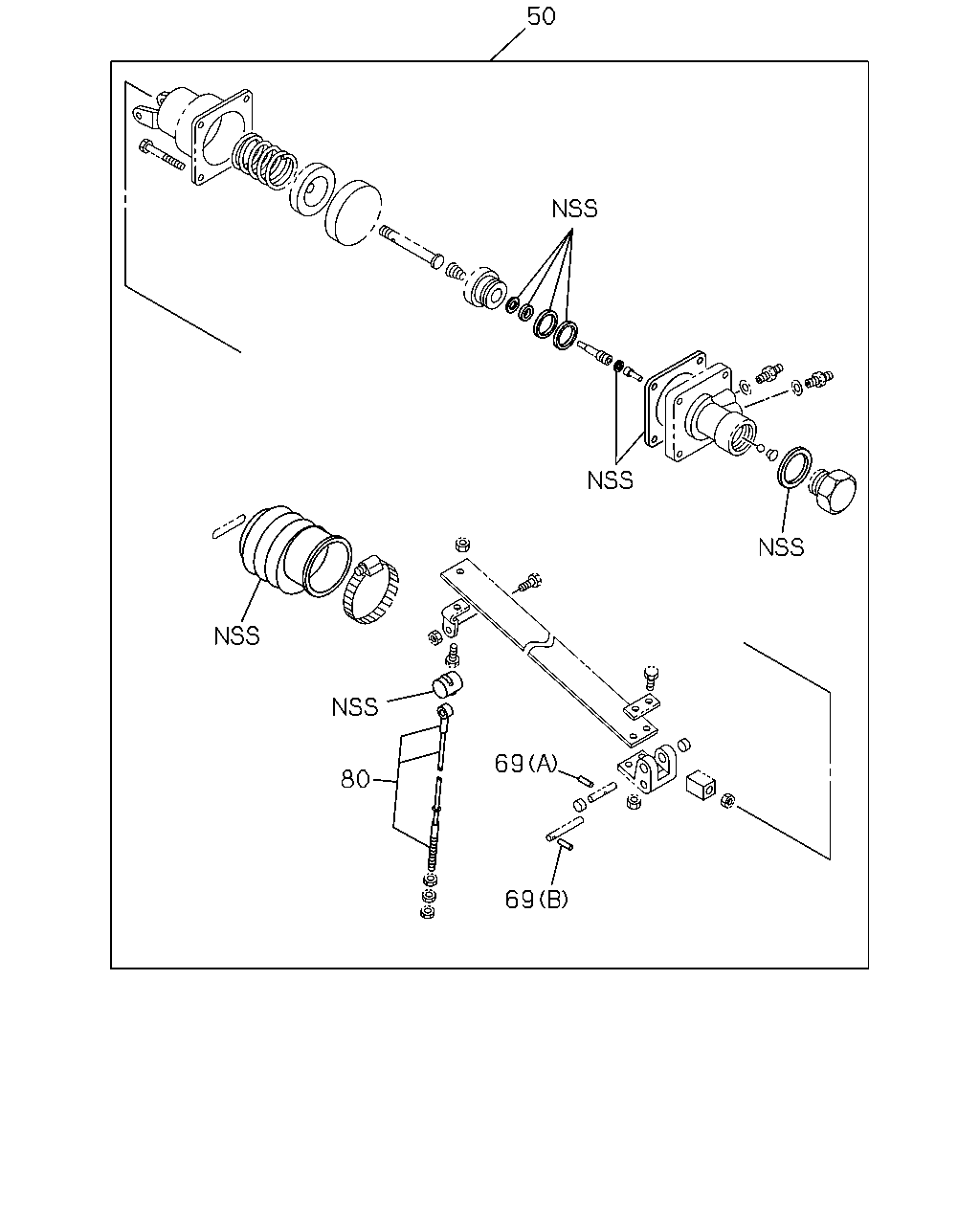

50 69 80 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85576-009-0	01	1	9202-	●	●
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-87830-354-0	01	1	9202-	●	●
69	PIN; SPR LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47719-025-0	01	1	9202-	●	●
69	PIN; SPR LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47719-027-0	01	1	9202-	●	●
80	WIRE; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47719-034-0	01	1	9202-	●	●

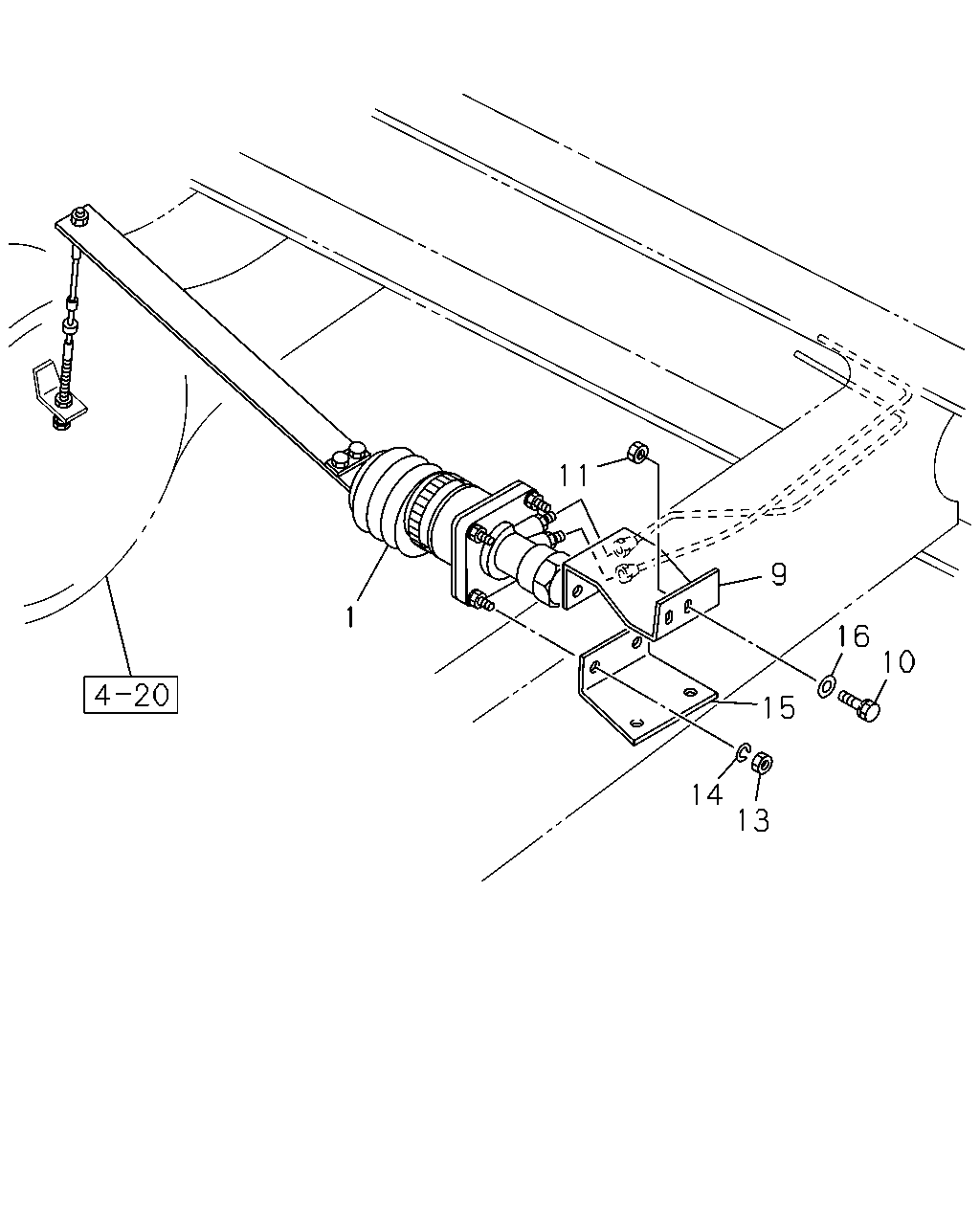

11 9 16 1 10 15 14 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47710-018-0	01	1	9202-	●	●
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47710-010-0	01	1	9202-	●	●
9	BRACKET; UPR,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47475-469-0	01	1	9202-	●	●
10	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●	●
10	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X25 FLANGE	0-28080-825-0	04	1	9205-	●	●
11	NUT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8	9-09110-408-0	04	1	9202-	●	●
13	NUT; LSPV TO BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8	9-09110-408-0	04	1	9202-	●	●
14	WASHER; LK,LSPV TO BRKT LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.2	9-09150-508-0	04	1	9202-	●	●
15	BRACKET; LWR,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47465-585-1	01	1	9202-	●	●
16	WASHER; PL,BRKT LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4 OD=22	9-09160-708-0	04	1	9202-	●	●
