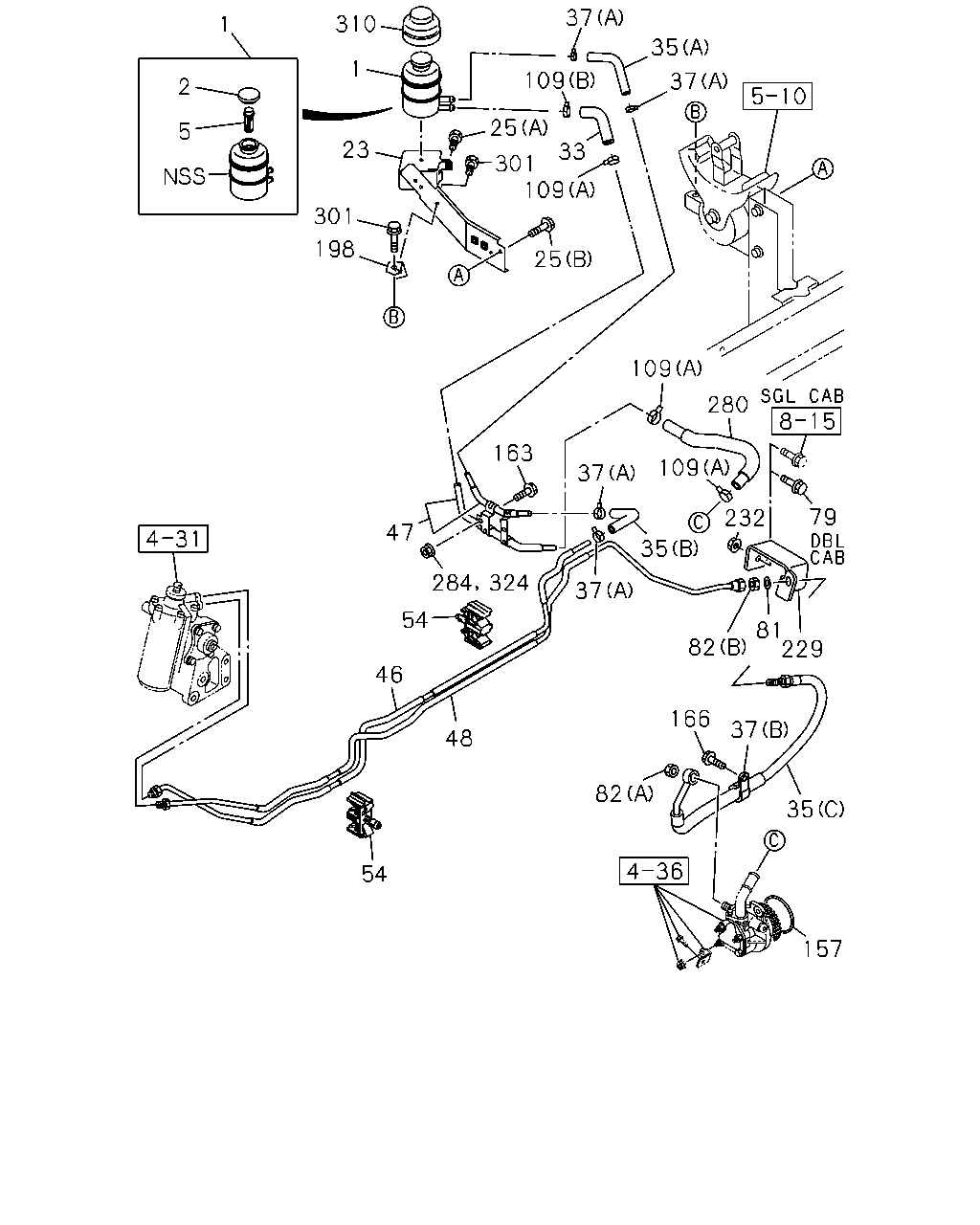

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#32998) — 69 parça

37 310 1 35 1 109 37 2 25 5 23 33 301 109 301 198 25 109 280 163 109 37 79 232 35 47 37 54 81 82 229 46 166 37 48 82 35 54 157 284 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-1004	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1005-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0804-1004	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1005-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-1004	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1005-	●	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0804-1004	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1005-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-1004	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1005-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-1004	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1005-	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0804-1004	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1005-	●	●
35	HOSE; RETURN,P/S TANK (C)	8-98043-490-3	01	1	1005-		●
35	HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0804-	●
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0804-1004	●
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1005-	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0804-1004	●
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1005-	●	●
37	CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	0804-1004	●
37	CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1005-	●	●
37	CLIP; HOSE,P/S (A) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	0912-1004	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	1005-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	0804-1004	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	1005-	●	●
47	PIPE; RETURN	8-98083-166-1	01	1	0804-1004	●
47	PIPE; RETURN	8-98083-166-1	01	1	1005-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	1005-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	0804-	●
54	CLIP; OIL PIPE ID=10X2 H=37.5	8-97018-546-0	02	1	0804-1004	●
54	CLIP; OIL PIPE ID=10X2 H=37.5	8-97018-546-0	02	1	1005-	●	●
79	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	01	1	1005-		●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0804-1004	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1005-	●	●
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	0804-1004	●
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	1005-	●	●
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	0804-1004	●
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	1005-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0911	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-1004	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1005-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0804-0911	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	02	1	0912-1004	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	02	1	1005-	●	●
109	CLIP; RUBBER HOSE (B) ID=22 SOU	8-94382-401-0	01	1	0804-1003	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-1004	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1005-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0804-1004	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1005-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-1004	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	1005-	●	●
166	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-1004	●
166	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	1005-	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0804-1004	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1005-	●	●
229	BRACKET; HOSE,POWER STRG	8-98043-418-2	01	1	1005-		●
229	BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	0804-	●
232	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	0804-1004	●
232	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	1005-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98082-973-0	01	1	0804-1004	●
280	HOSE; P/S OIL PUMP,INL	8-98082-973-0	01	1	1005-	●	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	0804-1004	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1005-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-1004	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	1005-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0804-	●
324	NUT; OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1005-		●
