Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#32994) — 254 parça

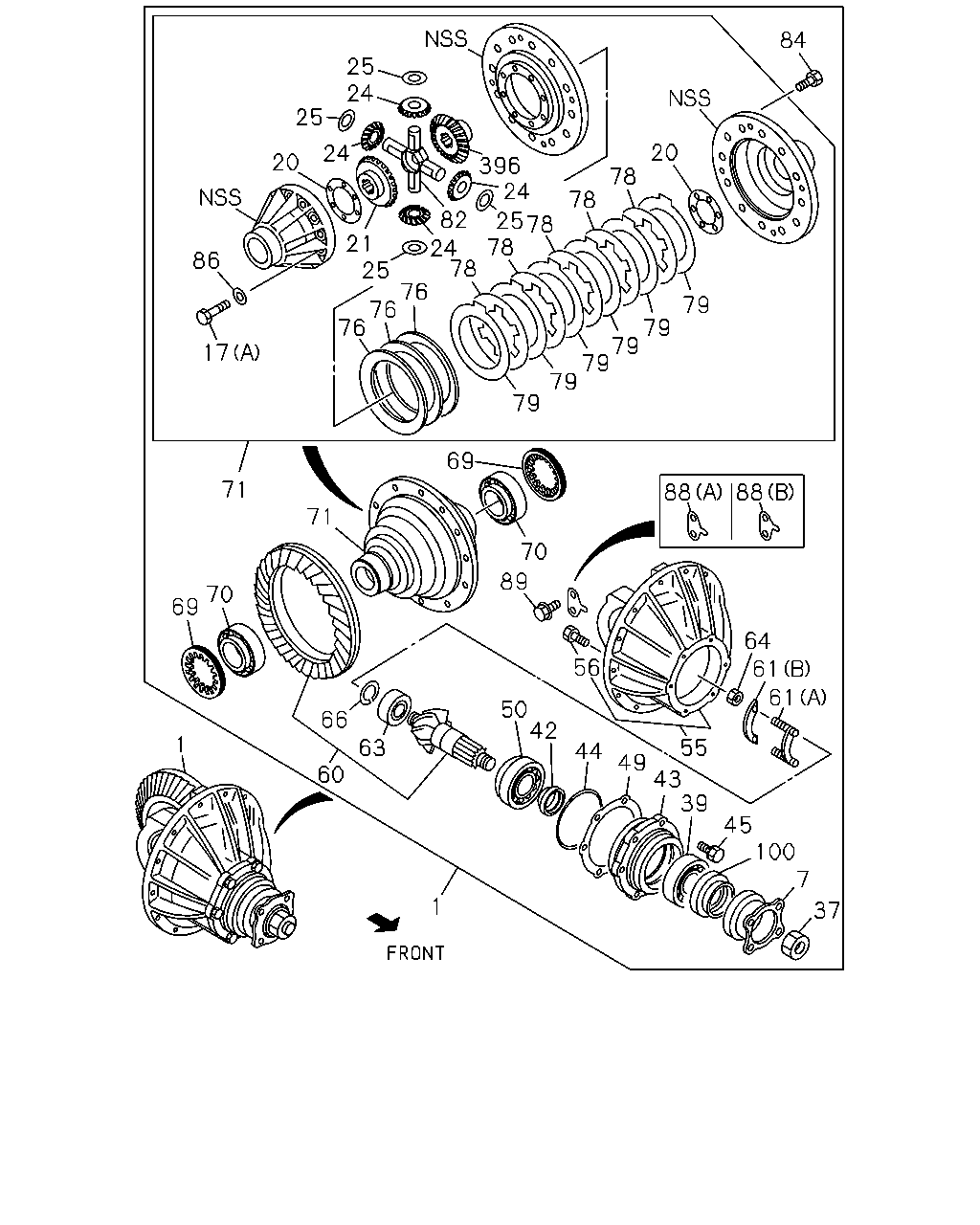

37 7 45 100 39 43 49 44 42 50 1 1 63 66 69 70 55 61 61 64 56 89 60 88 88 88 88 24 25 21 20 25 82 24 21 84 69 70 85 86 20 25 24 25 24 83 71 86 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98093-377-0	01	1	0804-1004	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98093-377-0	01	1	1005-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97388-705-0	01	1	0804-1004	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97388-705-0	01	1	1005-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-98065-974-0	01	1	0804-1004	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-98065-974-0	01	1	1005-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97388-704-0	01	1	0804-1004	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97388-704-0	01	1	1005-	●	●
7	FLANGE; FINAL	8-97047-095-2	01	1	0804-1004	●
7	FLANGE; FINAL	8-97047-095-2	01	1	1005-	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	0804-1004	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	1005-	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	0804-1004	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	1005-1208	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (B) M12X90	8-98219-448-0	12	1	1209-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1005-	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0804-1004	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	1005-1005	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0804-1004	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	1005-1005	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0804-1004	●
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	1005-1005	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	0804-1004	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	1005-	●	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0804-1004	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1005-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-1004	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1005-	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0804-1002	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-1004	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1005-	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0804-1004	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1005-	●	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	0804-1004	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	1005-	●	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	0804-1004	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	1005-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0804-0909	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1004	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	1005-1209	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0804-1004	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1005-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0804-1004	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1005-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0804-1004	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1005-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0804-1004	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1005-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	0804-1004	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	1005-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0804-1004	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1005-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0804-1004	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1005-	●	●
55	CARRIER; DIFF	8-97094-637-0	01	1	0804-1004	●
55	CARRIER; DIFF	8-97094-637-0	01	1	1005-	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0804-1004	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1005-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	0804-1004	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1005-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0804-1004	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	1005-1505	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-	●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0804-1004	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1005-	●	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0804-1004	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1005-	●	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0804-1004	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1005-	●	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0804-1004	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1005-	●	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	0804-1004	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	1005-	●	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0804-1004	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1005-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0804-1004	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1005-	●	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0804-1004	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1005-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0804-1004	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	1005-1005	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-2	01	1	1005-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0804-1004	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-4	01	1	1005-	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	0804-1004	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1005-1005	●	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-	●	●
83	CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0804-1004	●
83	CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-2	01	1	1005-1208	●	●
83	CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-98219-707-0	01	1	1209-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0804-1004	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1005-	●	●
85	NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0804-1004	●
85	NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	1005-	●	●
86	WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0804-1004	●
86	WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	1005-	●	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0804-1004	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	1005-1208	●	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0804-1004	●
88	PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	1005-	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0804-1004	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1005-	●	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	0804-1004	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	1005-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0804-1004	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1005-	●	●

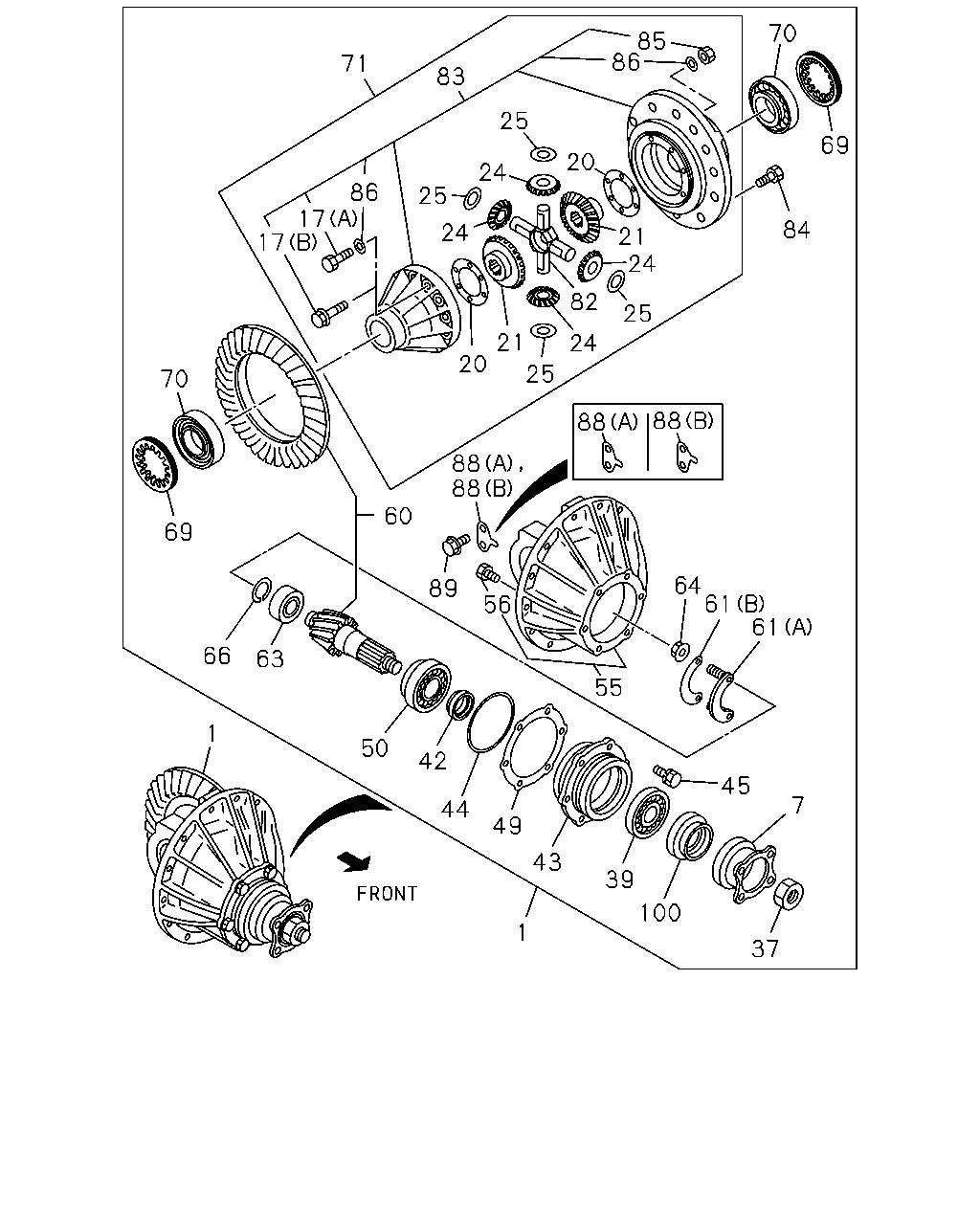

71 71 69 70 89 88 88 64 56 61 61 55 37 7 100 45 39 43 49 44 42 50 1 60 1 69 70 66 63 79 79 79 79 79 79 84 20 78 78 78 78 78 76 76 79 86 20 24 25 24 25 17 396 24 82 21 25 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98093-377-0	01	1	0804-1004	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98093-377-0	01	1	1005-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97388-705-0	01	1	0804-1004	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97388-705-0	01	1	1005-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-98065-974-0	01	1	0804-1004	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-98065-974-0	01	1	1005-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97388-704-0	01	1	0804-1004	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97388-704-0	01	1	1005-	●	●
7	FLANGE; FINAL	8-97047-095-2	01	1	0804-1004	●
7	FLANGE; FINAL	8-97047-095-2	01	1	1005-	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	0804-1004	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	1005-	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	0804-1004	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	1005-1208	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (B) M12X90	8-98219-448-0	12	1	1209-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1005-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0804-1004	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1005-	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0804-1004	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	1005-1005	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0804-1004	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	1005-1005	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0804-1004	●
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	1005-1005	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	0804-1004	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	1005-	●	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0804-1004	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1005-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-1004	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1005-	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0804-1002	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-1004	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1005-	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0804-1004	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1005-	●	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	0804-1004	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	1005-	●	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	0804-1004	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	1005-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0804-0909	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1004	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	1005-1209	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0804-1004	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1005-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0804-1004	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1005-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0804-1004	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1005-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0804-1004	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1005-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	0804-1004	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	1005-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0804-1004	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1005-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0804-1004	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1005-	●	●
55	CARRIER; DIFF	8-97094-637-0	01	1	0804-1004	●
55	CARRIER; DIFF	8-97094-637-0	01	1	1005-	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0804-1004	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1005-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	0804-1004	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1005-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0804-1004	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	1005-1505	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-	●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0804-1004	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1005-	●	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0804-1004	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1005-	●	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0804-1004	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1005-	●	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0804-1004	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1005-	●	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	0804-1004	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	1005-	●	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0804-1004	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1005-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0804-1004	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1005-	●	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0804-1004	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1005-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0804-1004	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	1005-1005	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-2	01	1	1005-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0804-1004	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-4	01	1	1005-	●	●
76	DISC; BEVEL LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0804-1004	●
76	DISC; BEVEL LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	1005-	●	●
78	DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0804-1004	●
78	DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	1005-	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0804-1004	●
79	PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	1005-	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	0804-1004	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1005-1005	●	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0804-1004	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1005-	●	●
86	WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0804-1004	●
86	WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	1005-	●	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0804-1004	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	1005-1208	●	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0804-1004	●
88	PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	1005-	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0804-1004	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1005-	●	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	0804-1004	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	1005-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0804-1004	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1005-	●	●
396	GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-97142-805-0	01	1	0804-1004	●
396	GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-97142-805-0	01	1	1005-1005	●	●
396	GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-98169-195-0	01	1	1005-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
