◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#32993) — 71 parça

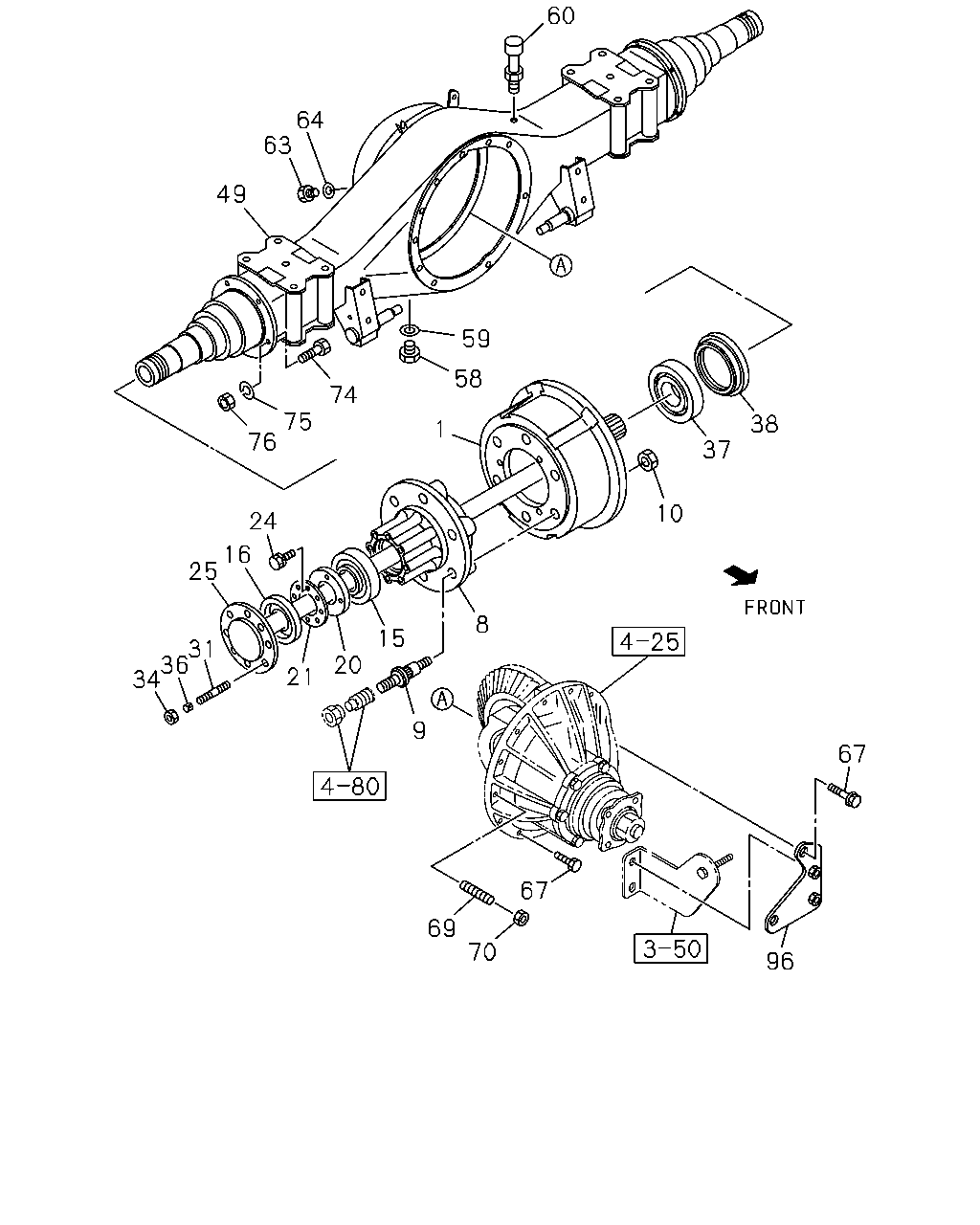

çizim 121909
60 64 63 49 59 58 74 75 76 38 1 37 10 24 16 25 8 15 31 36 34 20 21 9 67 67 69 70 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR 8-97081-219-2 02 1 0804-1004 ●
1 DRUM; BRK,RR 8-97081-219-2 02 1 1005- ● ●
8 HUB; RR AXLE 8-97081-323-2 02 1 0804-1004 ●
8 HUB; RR AXLE 8-97081-323-2 02 1 1005- ● ●
9 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-3 06 1 0804-1004 ●
9 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1005- ● ●
9 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-3 06 1 0804-1004 ●
9 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1005- ● ●
10 NUT; WHEEL PIN,RR AXLE
M22 		0-91110-522-0 12 1 0804-1004 ●
10 NUT; WHEEL PIN,RR AXLE
M22 		0-91110-522-0 12 1 1005- ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-607-0 02 1 0804-1004 ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-607-0 02 1 1005- ● ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-139-0 02 1 0804-1004 ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-139-0 02 1 1005- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-317-2 02 1 0804-1004 ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-317-2 02 1 1005-1207 ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-912-0 02 1 1208- ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-960-1 02 1 0804-1004 ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-960-1 02 1 1005-1106 ● ●
20 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 0804-1004 ●
20 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 1005- ● ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-0 02 1 0804-1004 ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-0 02 1 1005- ● ●
24 BOLT; LK WASHER
M6X10 FLANGE SOU 		0-28050-610-0 04 1 0804-1004 ●
24 BOLT; LK WASHER
M6X10 FLANGE SOU 		0-28050-610-0 04 1 1005- ● ●
25 SHAFT; AXLE,RR
L=885 		8-97134-439-0 02 1 0804-1004 ●
25 SHAFT; AXLE,RR
L=885 		8-97134-439-0 02 1 1005- ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0804-1004 ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 1005- ● ●
34 NUT; AXLE SHAFT
M10 FLANGE SOU 		0-91180-210-0 16 1 0804-1004 ●
34 NUT; AXLE SHAFT
M10 FLANGE SOU 		0-91180-210-0 16 1 1005- ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0804-1004 ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 1005- ● ●
37 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-624-0 02 1 0804-1004 ●
37 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-624-0 02 1 1005- ● ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-141-0 02 1 0804-1004 ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-141-0 02 1 1005- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-316-1 02 1 0804-1004 ●
38 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-316-1 02 1 1005- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-958-0 02 1 0804-1004 ●
38 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-958-0 02 1 1005- ● ●
49 CASE; RR AXLE 8-97222-080-3 01 1 0804-1004 ●
49 CASE; RR AXLE 8-97222-080-3 01 1 1005- ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 SOU 		8-97307-060-0 01 1 0804-1004 ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 SOU 		8-97307-060-0 01 1 1005- ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0804-1004 ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 1005- ● ●
60 BREATHER; RR AXLE CASE
L=29 SOU 		8-98006-960-0 01 1 0804-1004 ●
60 BREATHER; RR AXLE CASE
L=29 SOU 		8-98006-960-0 01 1 1005- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0804-1004 ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 1005- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 SOU 		8-94462-734-0 01 1 0804-1004 ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 SOU 		8-94462-734-0 01 1 1005- ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 07 1 0804-0909 ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 07 1 0910-1004 ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 07 1 1005- ● ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50061-050-0 04 1 0804-0909 ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50561-050-0 04 1 0910-1004 ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50561-050-0 04 1 1005- ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0804-1004 ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 1005- ● ●
70 NUT; CARRIER
M10 FLANGE SOU 		0-91180-210-0 02 1 0804-1004 ●
70 NUT; CARRIER
M10 FLANGE SOU 		0-91180-210-0 02 1 1005- ● ●
74 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 0804-1004 ●
74 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 1005- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-812-0 12 1 0804-1004 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-812-0 12 1 1005- ● ●
76 NUT; RR BRK ASM SETTING
M12 SOU 		0-91110-512-0 12 1 0804-1004 ●
76 NUT; RR BRK ASM SETTING
M12 SOU 		0-91110-512-0 12 1 1005- ● ●
96 BRACKET; LSPV,AXLE CASE 8-98049-286-0 01 1 0804-1004 ●
96 BRACKET; LSPV,AXLE CASE 8-98049-286-0 01 1 1005- ● ●
