4-15 — FRONT FINAL DRIVE (#32991) — 80 parça

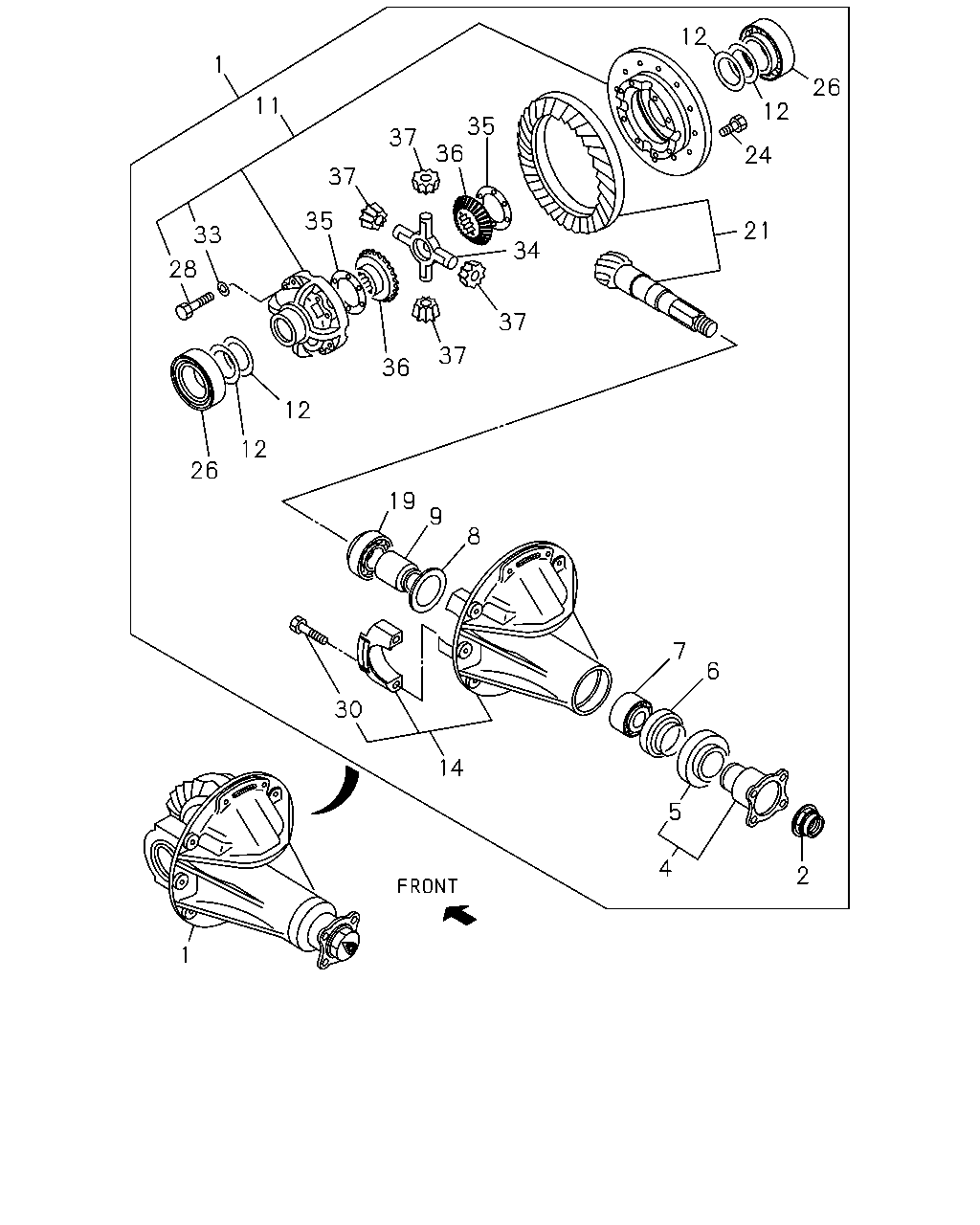

çizim 121920
12 1 26 11 12 35 36 37 24 37 35 21 33 34 28 37 37 36 12 12 26 19 9 8 7 6 30 14 5 4 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 39/7(GV1) 39/7 		8-97330-386-0 01 1 0804-1004 ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 39/7(GV1) 39/7 		8-97330-386-0 01 1 1005- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97377-818-0 01 1 0804-1004 ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97377-818-0 01 1 1005- ● ●
2 NUT; FINAL DRIVE PINION
M24 FLANGE SOU 		8-94376-261-1 01 1 0804-1004 ●
2 NUT; FINAL DRIVE PINION
M24 FLANGE SOU 		8-94376-261-1 01 1 1005- ● ●
4 COUPLING; FINAL DRIVE PINION 8-97303-538-0 01 1 0804-1004 ●
4 COUPLING; FINAL DRIVE PINION 8-97303-538-0 01 1 1005- ● ●
5 COVER; DUST,PINION,FINAL DRIVE 8-94317-615-0 01 1 0804-1004 ●
5 COVER; DUST,PINION,FINAL DRIVE 8-94317-615-0 01 1 1005- ● ●
6 SEAL; OIL,FINAL PINION
NOK SOU 		8-97328-648-0 01 1 0804-1004 ●
6 SEAL; OIL,FINAL PINION
NOK SOU 		8-97328-648-0 01 1 1005- ● ●
7 BEARING; PINION,OUTER
NSK SOU 		9-00093-078-0 01 1 0804-1004 ●
7 BEARING; PINION,OUTER
NSK SOU 		9-00093-078-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.12 		9-41219-608-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.12 		9-41219-608-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.16 		9-41219-610-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.16 		9-41219-610-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.20 		9-41219-612-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.20 		9-41219-612-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.24 		9-41219-614-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.24 		9-41219-614-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.28 		9-41219-616-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.28 		9-41219-616-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.32 		9-41219-618-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.32 		9-41219-618-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.36 		9-41219-620-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.36 		9-41219-620-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.40 		9-41219-622-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.40 		9-41219-622-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.44 		9-41219-624-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.44 		9-41219-624-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.48 		9-41219-626-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.48 		9-41219-626-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.52 		9-41219-628-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.52 		9-41219-628-0 01 1 1005- ● ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.56 		9-41219-630-0 01 1 0804-1004 ●
8 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.56 		9-41219-630-0 01 1 1005- ● ●
9 COLLAR; DIST,PINION
L=53.35 		9-41219-634-1 01 1 0804-1004 ●
9 COLLAR; DIST,PINION
L=53.35 		9-41219-634-1 01 1 1005- ● ●
11 CAGE; FINAL PINION 9-41510-610-0 01 1 0804-1004 ●
11 CAGE; FINAL PINION 9-41510-610-0 01 1 1005- ● ●
12 SHIM; FINAL PINION CAGE
T=0.50 		9-41519-009-0 AR 1 0804-1004 ●
12 SHIM; FINAL PINION CAGE
T=0.50 		9-41519-009-0 AR 1 1005- ● ●
12 SHIM; FINAL PINION CAGE
T=0.25 		9-41519-010-0 AR 1 0804-1004 ●
12 SHIM; FINAL PINION CAGE
T=0.25 		9-41519-010-0 AR 1 1005- ● ●
12 SHIM; FINAL PINION CAGE
T=0.30 		9-41519-601-0 AR 1 0804-1004 ●
12 SHIM; FINAL PINION CAGE
T=0.30 		9-41519-601-0 AR 1 1005- ● ●
12 SHIM; FINAL PINION CAGE
T=0.35 		9-41519-602-0 AR 1 0804-1004 ●
12 SHIM; FINAL PINION CAGE
T=0.35 		9-41519-602-0 AR 1 1005- ● ●
14 CARRIER ASM; FINAL DRIVE,FRT AXLE 8-97078-083-2 01 1 0804-1004 ●
14 CARRIER ASM; FINAL DRIVE,FRT AXLE 8-97078-083-2 01 1 1005- ● ●
19 BEARING; PINION,INNER
JTEKT 		9-00093-079-1 01 1 0804-1004 ●
19 BEARING; PINION,INNER
JTEKT 		9-00093-079-1 01 1 1005- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 39/7(GV1) 39/7 		8-97035-433-0 01 1 0804-1004 ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 39/7(GV1) 39/7 		8-97035-433-0 01 1 1005- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97076-962-0 01 1 0804-1004 ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97076-962-0 01 1 1005- ● ●
24 BOLT; FINAL DRIVE GEAR
M12X25 		9-09606-505-2 12 1 0804-1004 ●
24 BOLT; FINAL DRIVE GEAR
M12X25 		9-09606-505-2 12 1 1005- ● ●
26 BEARING; DIFF CAGE
JTEKT 		8-98003-043-0 02 1 0804-1004 ●
26 BEARING; DIFF CAGE
JTEKT 		8-98003-043-0 02 1 1005- ● ●
26 BEARING; DIFF CAGE
NSK 		9-00032-211-0 02 1 0804-1004 ●
26 BEARING; DIFF CAGE
NSK 		9-00032-211-0 02 1 1005- ● ●
28 BOLT; DIFF CAGE SETTING
M12X58 		8-97314-497-0 08 1 0804-1004 ●
28 BOLT; DIFF CAGE SETTING
M12X58 		8-97314-497-0 08 1 1005- ● ●
30 BOLT; DIFF CAGE SETTING
M14X80 		8-94365-377-3 04 1 0804-1004 ●
30 BOLT; DIFF CAGE SETTING
M14X80 		8-94365-377-3 04 1 1005- ● ●
33 WASHER; LK,DIFF CAGE
ID=12.2 SOU 		0-91510-612-0 08 1 0804-1004 ●
33 WASHER; LK,DIFF CAGE
ID=12.2 SOU 		0-91510-612-0 08 1 1005- ● ●
34 PIN; CROSS,DIFF PINION 9-41521-611-0 01 1 0804-1004 ●
34 PIN; CROSS,DIFF PINION 9-41521-611-0 01 1 1005- ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.00 SOU 		9-41562-602-0 02 1 0804-1004 ●
35 WASHER; THRUST,SIDE GEAR
T=1.00 SOU 		9-41562-602-0 02 1 1005- ● ●
36 GEAR; SIDE,DIFF
Z=18 		8-97226-764-0 02 1 0804-1004 ●
36 GEAR; SIDE,DIFF
Z=18 		8-97226-764-0 02 1 1005-1105 ● ●
36 GEAR; SIDE,DIFF
Z=18 		8-98190-383-1 02 1 1106- ● ●
37 GEAR; PINION DIFF
Z=10 SOU 		8-97226-762-0 04 1 0804-1004 ●
37 GEAR; PINION DIFF
Z=10 SOU 		8-97226-762-0 04 1 1005-1105 ● ●
37 GEAR; PINION DIFF
Z=10 SOU 		8-98186-829-0 04 1 1106- ● ●
