4-01 — PROPELLER SHAFT (#32987) — 70 parça

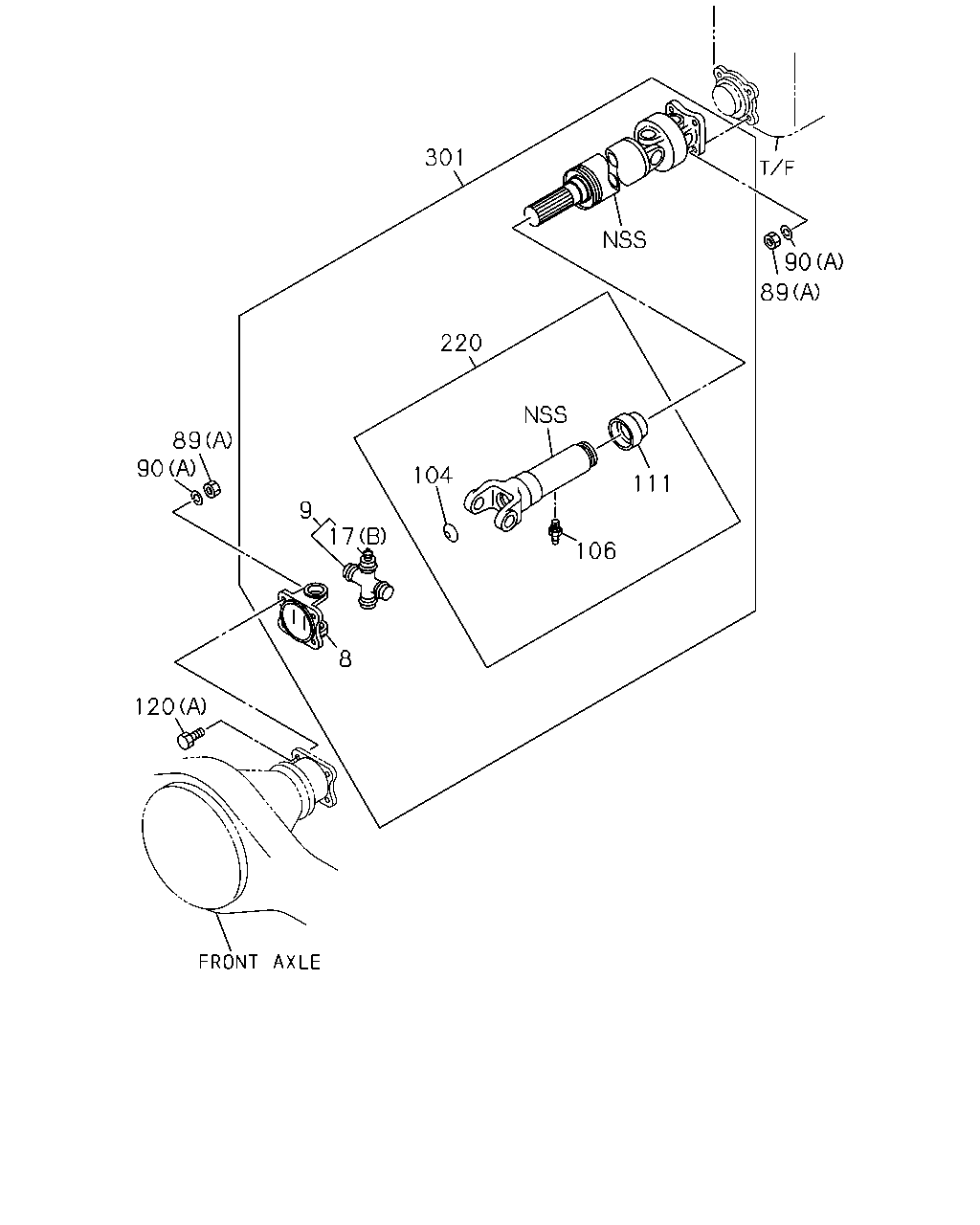

301 90 89 220 89 90 104 111 9 17 106 8 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT REAR D=80	1-37211-037-4	02	1	0804-1004	●
8	YOKE; FLANGE,PROP SHAFT REAR D=80	1-37211-037-4	02	1	1005-	●	●
8	YOKE; FLANGE,PROP SHAFT FRONT SOU	8-97178-365-0	01	1	0804-1004	●
8	YOKE; FLANGE,PROP SHAFT FRONT SOU	8-97178-365-0	01	1	1005-	●	●
9	JOURNAL ASM; PROP SHAFT FRONT SOU	8-97167-317-0	01	1	0804-1004	●
9	JOURNAL ASM; PROP SHAFT FRONT SOU	8-97167-317-0	01	1	1005-	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-98020-789-1	02	1	0804-1004	●
9	JOURNAL ASM; PROP SHAFT REAR	8-98020-789-1	02	1	1005-	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT SOU	0-90301-406-0	01	1	0804-1004	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT SOU	0-90301-406-0	01	1	1005-	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0804-1004	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1005-	●	●
89	NUT; YOKE TO RR AXLE (B) M12	8-97365-450-1	12	1	0804-1004	●
89	NUT; YOKE TO RR AXLE (B) M12	8-97365-450-1	12	1	1005-	●	●
89	NUT; YOKE TO RR AXLE (A) M10	8-98056-949-0	08	1	0804-1004	●
89	NUT; YOKE TO RR AXLE (A) M10	8-98056-949-0	08	1	1005-	●	●
90	WASHER; LK,YOKE TO RR AXLE (A) ID=10.2 SOU	0-91510-610-0	08	1	0804-1004	●
90	WASHER; LK,YOKE TO RR AXLE (A) ID=10.2 SOU	0-91510-610-0	08	1	1005-	●	●
90	WASHER; LK,YOKE TO RR AXLE (B) ID=12.2	0-91510-812-0	12	1	0804-1004	●
90	WASHER; LK,YOKE TO RR AXLE (B) ID=12.2	0-91510-812-0	12	1	1005-	●	●
104	PLUG; SLEEVE YOKE	8-97020-598-0	01	1	0804-1004	●
104	PLUG; SLEEVE YOKE	8-97020-598-0	01	1	1005-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT SOU	0-90301-406-0	01	1	0804-1004	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT SOU	0-90301-406-0	01	1	1005-	●	●
111	RING; SLEEVE SOU	8-97020-597-1	01	1	0804-1004	●
111	RING; SLEEVE SOU	8-97020-597-1	01	1	1005-	●	●
120	BOLT; YOKE TO RR AXLE (B) M12X35	8-97365-451-1	08	1	0804-1004	●
120	BOLT; YOKE TO RR AXLE (B) M12X35	8-97365-451-1	08	1	1005-	●	●
120	BOLT; YOKE TO RR AXLE (A) M10X29	8-98056-948-0	04	1	0804-1004	●
120	BOLT; YOKE TO RR AXLE (A) M10X29	8-98056-948-0	04	1	1005-	●	●
220	YOKE; SPLINED	8-97167-316-0	01	1	0804-1004	●
220	YOKE; SPLINED	8-97167-316-0	01	1	1005-	●	●
301	SHAFT ASM; PROP,FRT L=774	8-98090-720-0	01	1	0804-1004	●
301	SHAFT ASM; PROP,FRT L=774	8-98090-720-0	01	1	1005-	●	●

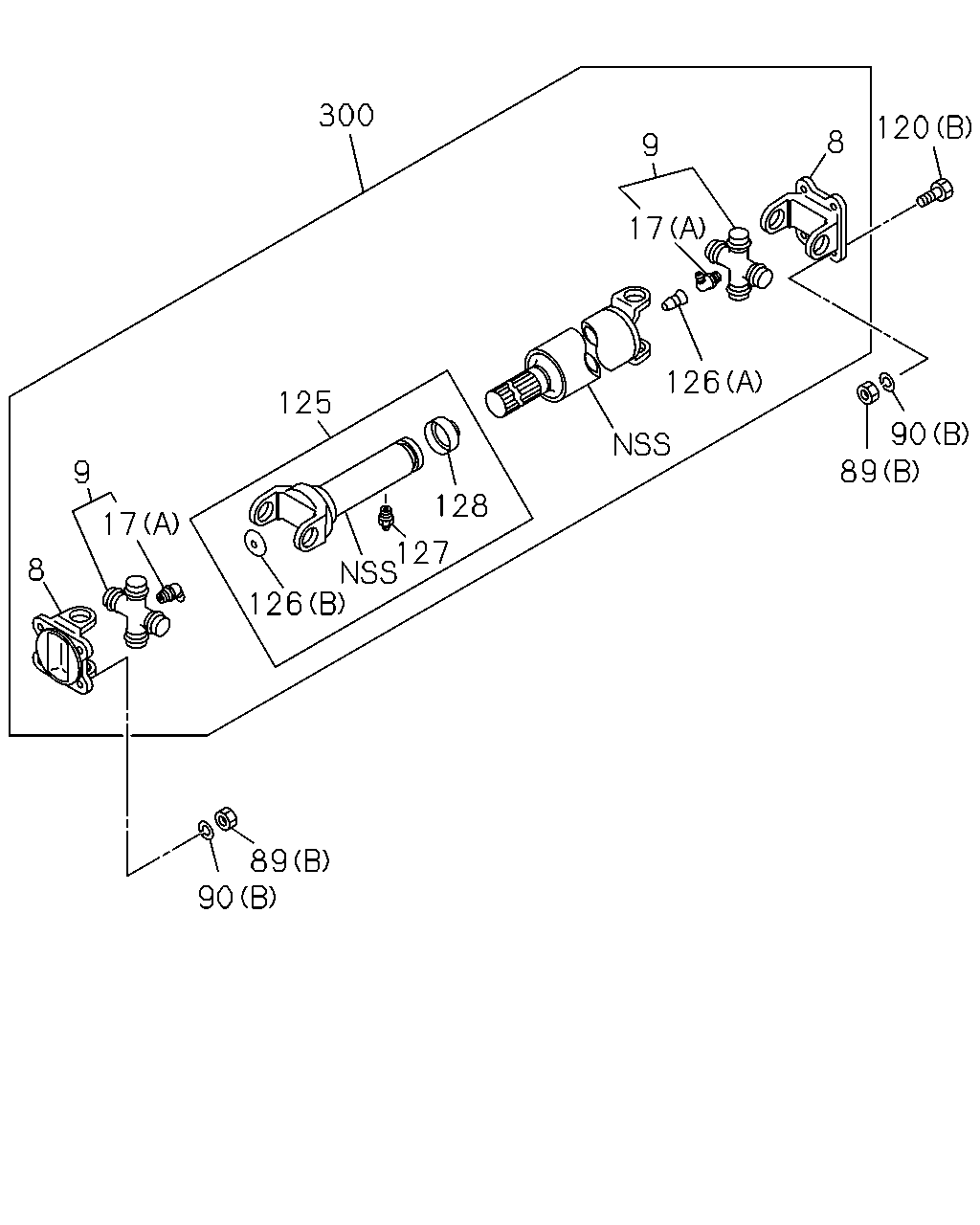

300 120 8 9 17 126 125 90 89 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT REAR D=80	1-37211-037-4	02	1	0804-1004	●
8	YOKE; FLANGE,PROP SHAFT REAR D=80	1-37211-037-4	02	1	1005-	●	●
8	YOKE; FLANGE,PROP SHAFT FRONT SOU	8-97178-365-0	01	1	0804-1004	●
8	YOKE; FLANGE,PROP SHAFT FRONT SOU	8-97178-365-0	01	1	1005-	●	●
9	JOURNAL ASM; PROP SHAFT FRONT SOU	8-97167-317-0	01	1	0804-1004	●
9	JOURNAL ASM; PROP SHAFT FRONT SOU	8-97167-317-0	01	1	1005-	●	●
9	JOURNAL ASM; PROP SHAFT REAR	8-98020-789-1	02	1	0804-1004	●
9	JOURNAL ASM; PROP SHAFT REAR	8-98020-789-1	02	1	1005-	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT SOU	0-90301-406-0	01	1	0804-1004	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT SOU	0-90301-406-0	01	1	1005-	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0804-1004	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1005-	●	●
89	NUT; YOKE TO RR AXLE (B) M12	8-97365-450-1	12	1	0804-1004	●
89	NUT; YOKE TO RR AXLE (B) M12	8-97365-450-1	12	1	1005-	●	●
89	NUT; YOKE TO RR AXLE (A) M10	8-98056-949-0	08	1	0804-1004	●
89	NUT; YOKE TO RR AXLE (A) M10	8-98056-949-0	08	1	1005-	●	●
90	WASHER; LK,YOKE TO RR AXLE (A) ID=10.2 SOU	0-91510-610-0	08	1	0804-1004	●
90	WASHER; LK,YOKE TO RR AXLE (A) ID=10.2 SOU	0-91510-610-0	08	1	1005-	●	●
90	WASHER; LK,YOKE TO RR AXLE (B) ID=12.2	0-91510-812-0	12	1	0804-1004	●
90	WASHER; LK,YOKE TO RR AXLE (B) ID=12.2	0-91510-812-0	12	1	1005-	●	●
120	BOLT; YOKE TO RR AXLE (B) M12X35	8-97365-451-1	08	1	0804-1004	●
120	BOLT; YOKE TO RR AXLE (B) M12X35	8-97365-451-1	08	1	1005-	●	●
120	BOLT; YOKE TO RR AXLE (A) M10X29	8-98056-948-0	04	1	0804-1004	●
120	BOLT; YOKE TO RR AXLE (A) M10X29	8-98056-948-0	04	1	1005-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	0804-1004	●
125	YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	1005-	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0804-1004	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1005-	●	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0804-1004	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1005-	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT SOU	0-90301-406-0	01	1	0804-1004	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT SOU	0-90301-406-0	01	1	1005-	●	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	0804-1004	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	1005-	●	●
300	SHAFT ASM; PROP,RR L=1506	8-98049-839-1	01	1	0804-1004	●
300	SHAFT ASM; PROP,RR L=1506	8-98049-839-1	01	1	1005-	●	●
