◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#32986) — 437 parça
çizim 121882
39 116 39 165 184 165 184 165 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 0912-1004 ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 1005-1205 ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0804-1004 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1005- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 0912-1004 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1005- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 04 1 0804-1004 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 04 1 1005- ● ●
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-1004 ●
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1005- ● ●
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
(E) 		8-98034-276-2 01 1 0804-0911 ●
116 HOSE; VAC,M/VAC
(E) 		8-98158-378-0 01 1 0912-1004 ●
116 HOSE; VAC,M/VAC
(E) 		8-98158-378-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1005- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 0804-1001 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1002-1004 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1005- ● ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ● ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0804-1004 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1005- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1002-1004 ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1005-1102 ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1103- ● ●
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0804-1001 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1004 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1005-1102 ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0804-1004 ●
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 1005- ● ●

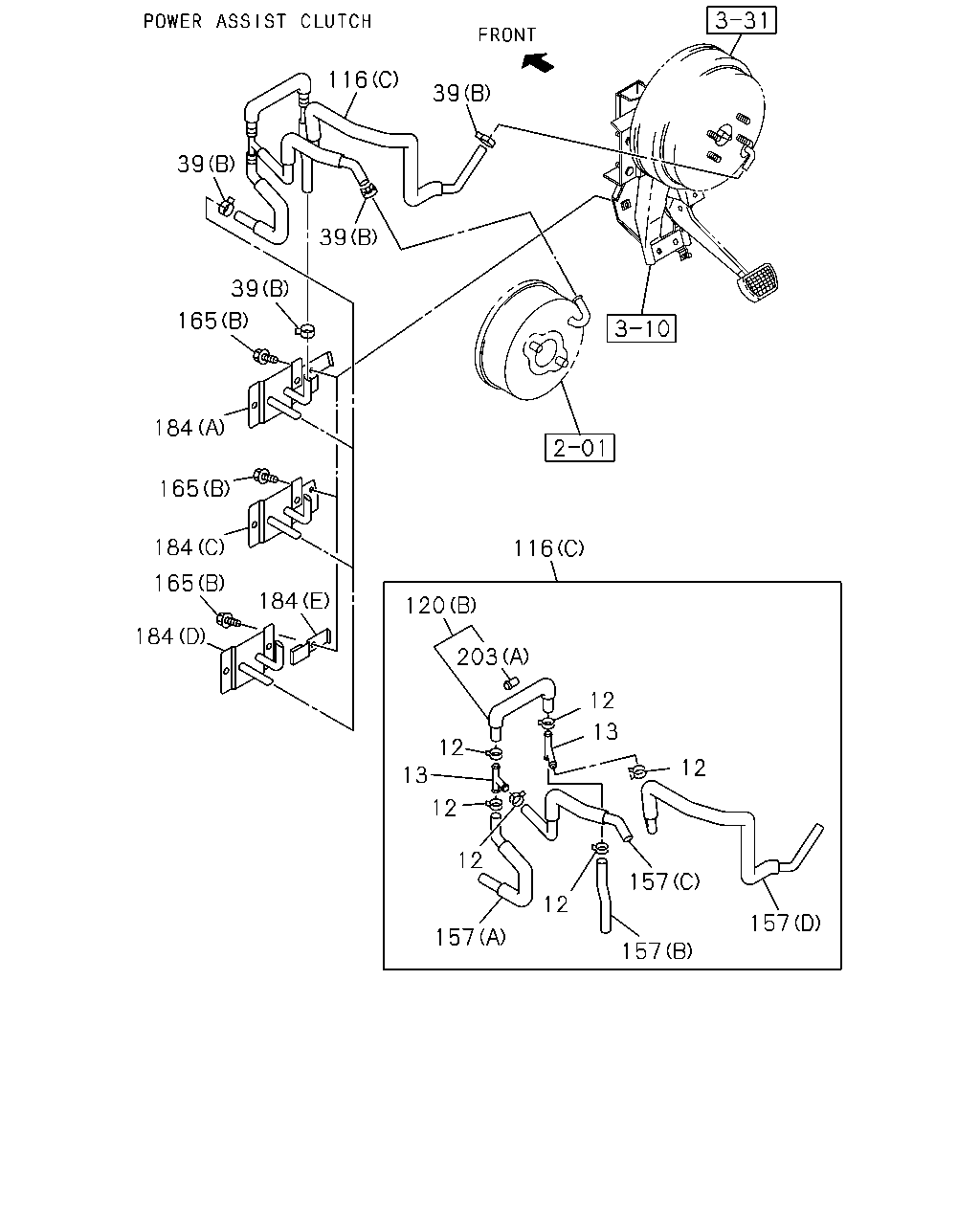

çizim 121884
39 39 116 39 39 165 184 165 184 165 184 184 120 116 203 12 12 13 12 12 12 157 157 157 12 13 157
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 0804-1004 ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 1005- ● ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 0804-1004 ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1005- ● ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0804-1004 ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1005- ● ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0804-1004 ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1005- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 0912-1004 ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 1005-1205 ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0804-1004 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1005- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 0912-1004 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1005- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 04 1 0804-1004 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 04 1 1005- ● ●
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-1004 ●
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1005- ● ●
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
(E) 		8-98034-276-2 01 1 0804-0911 ●
116 HOSE; VAC,M/VAC
(E) 		8-98158-378-0 01 1 0912-1004 ●
116 HOSE; VAC,M/VAC
(E) 		8-98158-378-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1005- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0804-1004 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1005- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0804-1004 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1005- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0804-1004 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1005- ● ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0804-1004 ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1005- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 0804-1001 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1002-1004 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1005- ● ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ● ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0804-1004 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1005- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1002-1004 ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1005-1102 ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1103- ● ●
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0804-1001 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1004 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1005-1102 ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0804-1004 ●
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 1005- ● ●
203 VALVE; CHECK
(A) SOU 		8-94386-540-0 01 1 0804-1004 ●
203 VALVE; CHECK
(A) SOU 		8-94386-540-0 01 1 1005- ● ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) SOU 		8-94104-021-0 01 1 0804-1004 ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) SOU 		8-94104-021-0 01 1 1005- ● ●

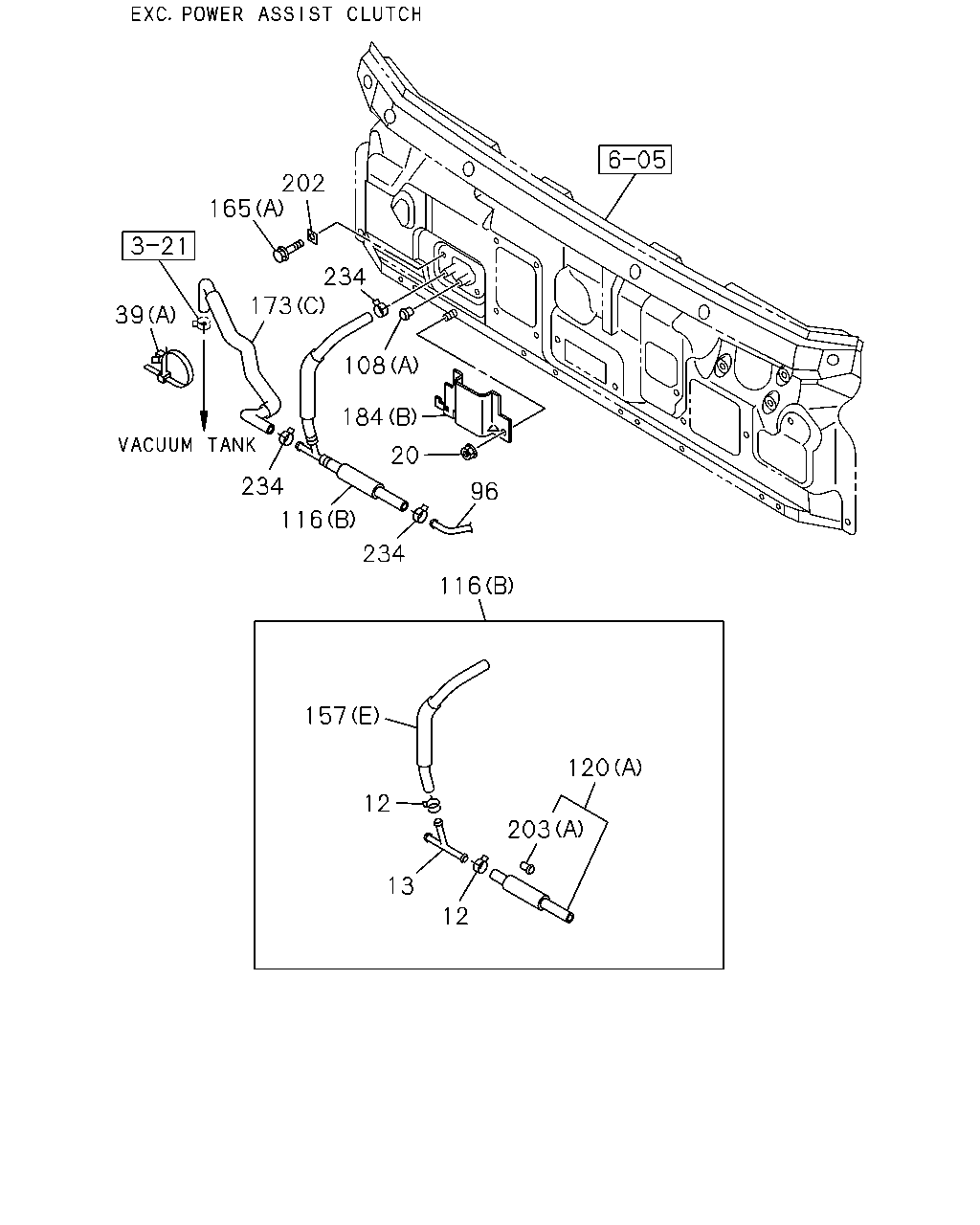

çizim 121886
202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 0804-1004 ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 1005- ● ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 0804-1004 ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1005- ● ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0804-1004 ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1005- ● ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0804-1004 ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1005- ● ●
20 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 01 1 0804-1004 ●
20 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 01 1 1005- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 0912-1004 ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 1005-1205 ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0804-1004 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1005- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 0912-1004 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1005- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 04 1 0804-1004 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 04 1 1005- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0804-1004 ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 1005-1205 ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ● ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 0804-1004 ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1005- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		9-09956-353-0 01 1 0804-1004 ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		9-09956-353-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-1004 ●
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1005- ● ●
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
(E) 		8-98034-276-2 01 1 0804-0911 ●
116 HOSE; VAC,M/VAC
(E) 		8-98158-378-0 01 1 0912-1004 ●
116 HOSE; VAC,M/VAC
(E) 		8-98158-378-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1005- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0804-1004 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1005- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0804-1004 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1005- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0804-1004 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1005- ● ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0804-1004 ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1005- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 0804-1001 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1002-1004 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1005- ● ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ● ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0804-1004 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1005- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98055-936-1 01 1 0804-1004 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98055-936-1 01 1 1005-1012 ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1101- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98055-937-1 01 1 0804-1004 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98055-937-1 01 1 1005-1012 ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1101- ● ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-1 01 1 0804-1004 ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-1 01 1 1005-1012 ● ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1101- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1002-1004 ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1005-1102 ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1103- ● ●
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0804-1001 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1004 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1005-1102 ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0804-1004 ●
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 1005- ● ●
202 SEAL
SOU 		8-97856-616-0 02 1 0804-1004 ●
202 SEAL
SOU 		8-97856-616-0 02 1 1005- ● ●
203 VALVE; CHECK
(A) SOU 		8-94386-540-0 01 1 0804-1004 ●
203 VALVE; CHECK
(A) SOU 		8-94386-540-0 01 1 1005- ● ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) SOU 		8-94104-021-0 01 1 0804-1004 ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) SOU 		8-94104-021-0 01 1 1005- ● ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 04 1 0804-1004 ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 04 1 1005- ● ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 03 1 0804-1004 ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 03 1 1005- ● ●

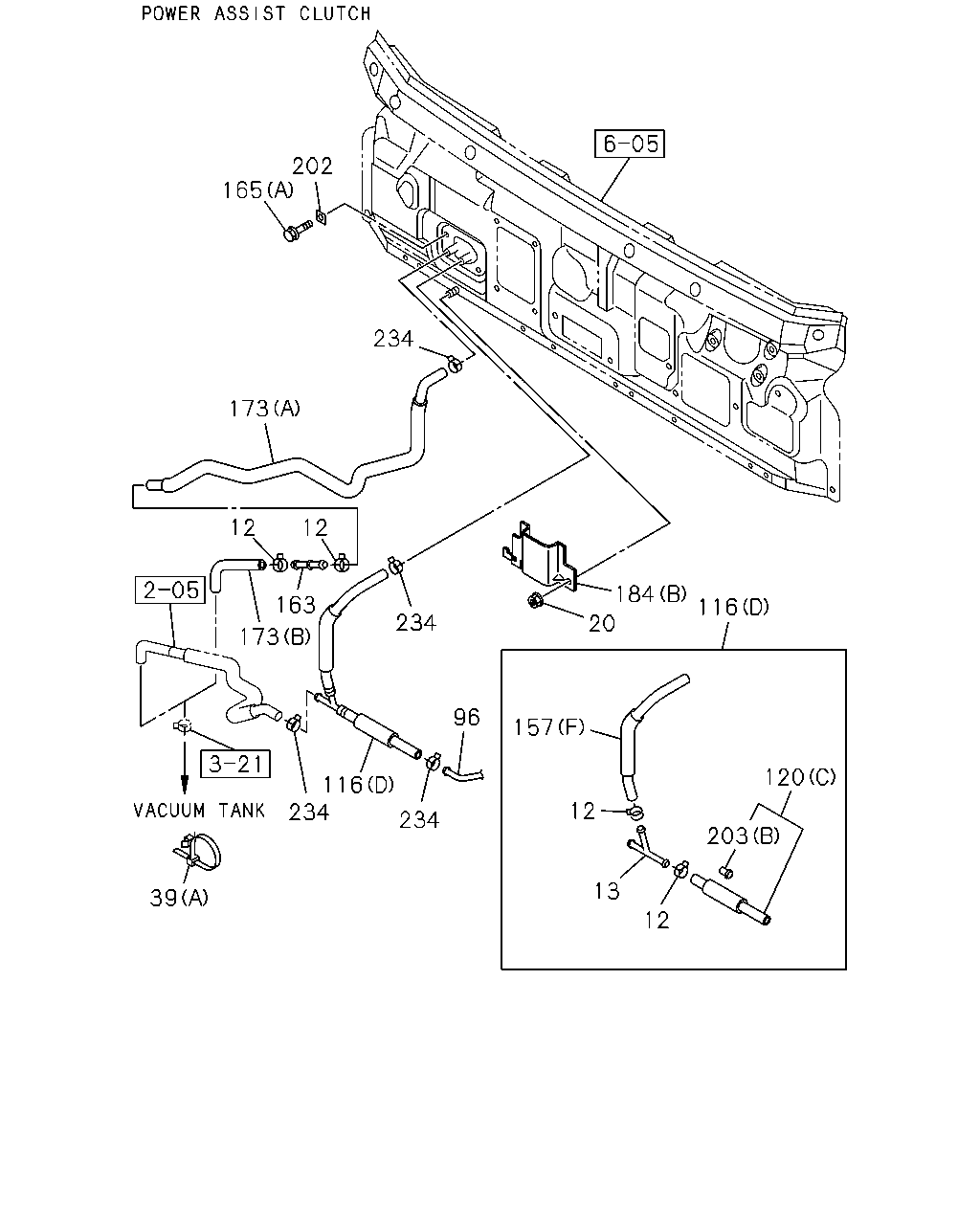

çizim 121891
202 165 234 173 12 12 184 163 116 234 20 173 96 157 120 116 234 12 234 203 13 39 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 0804-1004 ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 1005- ● ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 0804-1004 ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1005- ● ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0804-1004 ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1005- ● ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0804-1004 ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1005- ● ●
20 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 01 1 0804-1004 ●
20 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 01 1 1005- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 0912-1004 ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 1005-1205 ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0804-1004 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1005- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 0912-1004 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1005- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 04 1 0804-1004 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 04 1 1005- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0804-1004 ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 1005-1205 ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ● ●
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-1004 ●
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1005- ● ●
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
(E) 		8-98034-276-2 01 1 0804-0911 ●
116 HOSE; VAC,M/VAC
(E) 		8-98158-378-0 01 1 0912-1004 ●
116 HOSE; VAC,M/VAC
(E) 		8-98158-378-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1005- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0804-1004 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1005- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0804-1004 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1005- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0804-1004 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1005- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0804-1004 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1005- ● ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0804-1004 ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1005- ● ●
163 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 		8-97353-668-0 01 1 0804-1004 ●
163 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 		8-97353-668-0 01 1 1005- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 0804-1001 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1002-1004 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1005- ● ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ● ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0804-1004 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1005- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98055-936-1 01 1 0804-1004 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98055-936-1 01 1 1005-1012 ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1101- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98055-937-1 01 1 0804-1004 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98055-937-1 01 1 1005-1012 ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1101- ● ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-1 01 1 0804-1004 ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-1 01 1 1005-1012 ● ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1101- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1002-1004 ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1005-1102 ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1103- ● ●
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0804-1001 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1004 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1005-1102 ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0804-1004 ●
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 1005- ● ●
202 SEAL
SOU 		8-97856-616-0 02 1 0804-1004 ●
202 SEAL
SOU 		8-97856-616-0 02 1 1005- ● ●
203 VALVE; CHECK
(A) SOU 		8-94386-540-0 01 1 0804-1004 ●
203 VALVE; CHECK
(A) SOU 		8-94386-540-0 01 1 1005- ● ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) SOU 		8-94104-021-0 01 1 0804-1004 ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) SOU 		8-94104-021-0 01 1 1005- ● ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 04 1 0804-1004 ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 04 1 1005- ● ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 03 1 0804-1004 ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 03 1 1005- ● ●

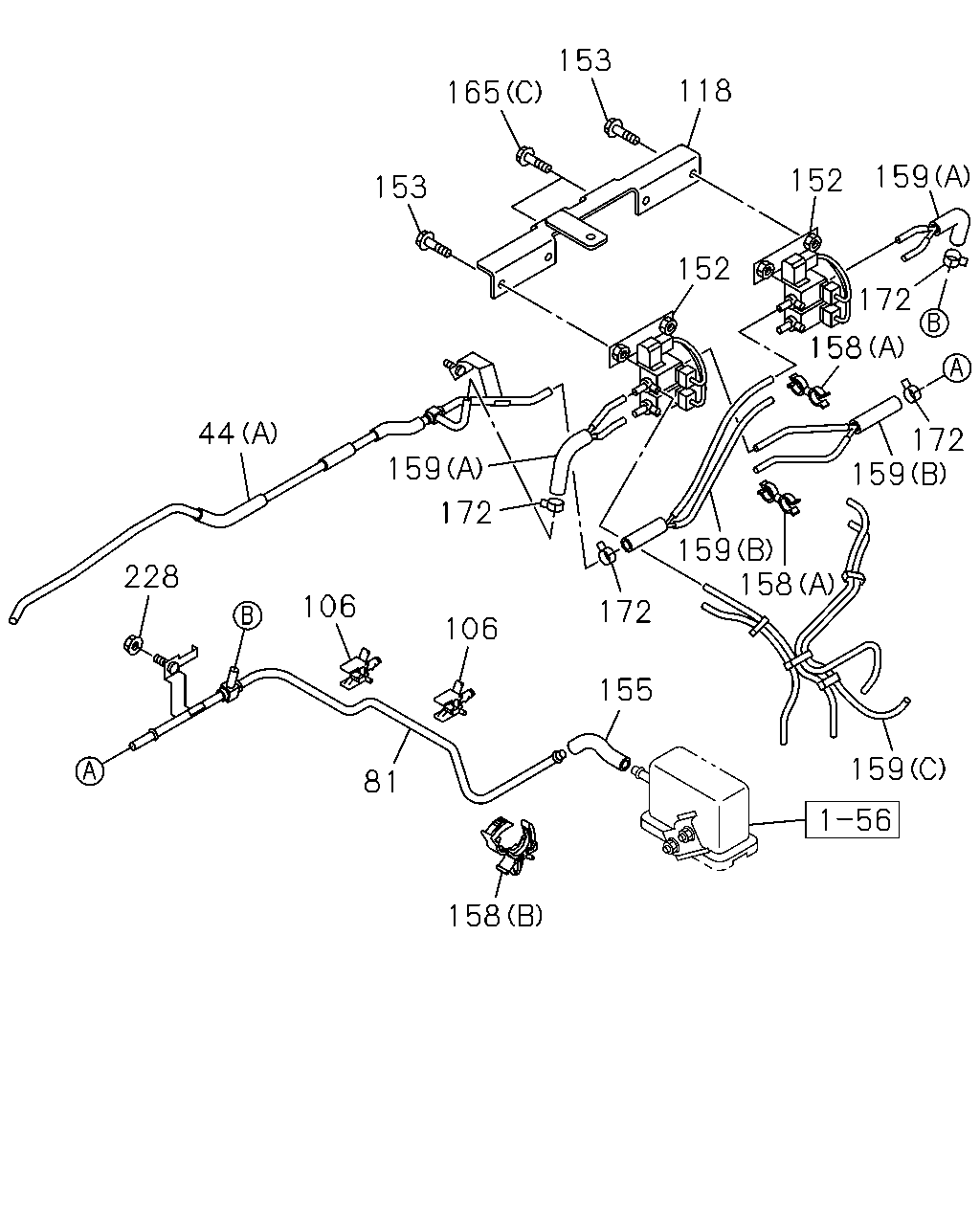

çizim 121896
153 118 165 159 152 153 152 172 158 44 172 159 159 172 159 158 228 106 172 106 155 159 81 158
BalonParca AdiParca NoAdetTipApplied Date A B
44 PIPE; VAC,MAG VLV
(B) 		8-98040-634-0 01 1 1005- ●
44 PIPE; VAC,MAG VLV
(B) 		8-98070-194-0 01 1 0804- ●
44 PIPE; VAC,MAG VLV
(A) 		8-98103-009-0 01 1 0804-1004 ●
44 PIPE; VAC,MAG VLV
(A) 		8-98103-009-0 01 1 1005- ● ●
81 PIPE; VAC,VSV 8-98060-407-3 01 1 0804-1004 ●
81 PIPE; VAC,VSV 8-98060-407-3 01 1 1005- ● ●
106 CLIP; PIPE
ID=10 H=40 		8-94462-219-0 02 1 0804-1004 ●
106 CLIP; PIPE
ID=10 H=40 		8-94462-219-0 02 1 1005- ● ●
118 BRACKET; VSV 8-98090-281-1 01 1 1005- ●
118 BRACKET; VSV 8-98069-541-3 01 1 0804- ●
152 VALVE; VAC SWITCHING,TRANSFER CONT 8-94481-999-4 02 1 0804-1004 ●
152 VALVE; VAC SWITCHING,TRANSFER CONT 8-94481-999-4 02 1 1005-1302 ● ●
152 VALVE; VAC SWITCHING,TRANSFER CONT 8-98222-432-0 02 1 1303- ● ●
153 BOLT; VSV
M10X25 FLANGE SOU 		0-28651-025-0 04 1 0804-1004 ●
153 BOLT; VSV
M10X25 FLANGE SOU 		0-28651-025-0 04 1 1005- ● ●
155 HOSE; VAC,AIR FILTER
L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-1004 ●
155 HOSE; VAC,AIR FILTER
L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 1005- ● ●
158 CLIP; HOSE
(A) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-1004 ●
158 CLIP; HOSE
(A) ID=16.5 & 16.5 		8-94468-380-0 01 1 1005- ● ●
158 CLIP; HOSE
(B) ID=14-20 		8-97061-603-0 01 1 0804- ●
159 HOSE ASM; VAC
(B) 		8-98070-137-2 02 1 0804-1004 ●
159 HOSE ASM; VAC
(B) 		8-98070-137-2 02 1 1005- ● ●
159 HOSE ASM; VAC
(A) 		8-98070-138-1 02 1 0804-1004 ●
159 HOSE ASM; VAC
(A) 		8-98070-138-1 02 1 1005- ● ●
159 HOSE ASM; VAC
(C) 		8-98093-010-0 01 1 0804-1004 ●
159 HOSE ASM; VAC
(C) 		8-98093-010-0 01 1 1005- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 0804-1001 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1002-1004 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1005- ● ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ● ●
165 BOLT; BRKT
(C) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0804-1004 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1005- ● ●
172 CLIP; VAC HOSE
ID=16 SOU 		8-94238-568-0 04 1 0804-0911 ●
172 CLIP; VAC HOSE
ID=16 		8-98008-098-0 04 1 0912-1004 ●
172 CLIP; VAC HOSE
ID=16 		8-98008-098-0 04 1 1005- ● ●
228 NUT; PIPE
M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
228 NUT; PIPE
M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
228 NUT; PIPE
M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
228 NUT; PIPE
M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
228 NUT; PIPE
M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ●

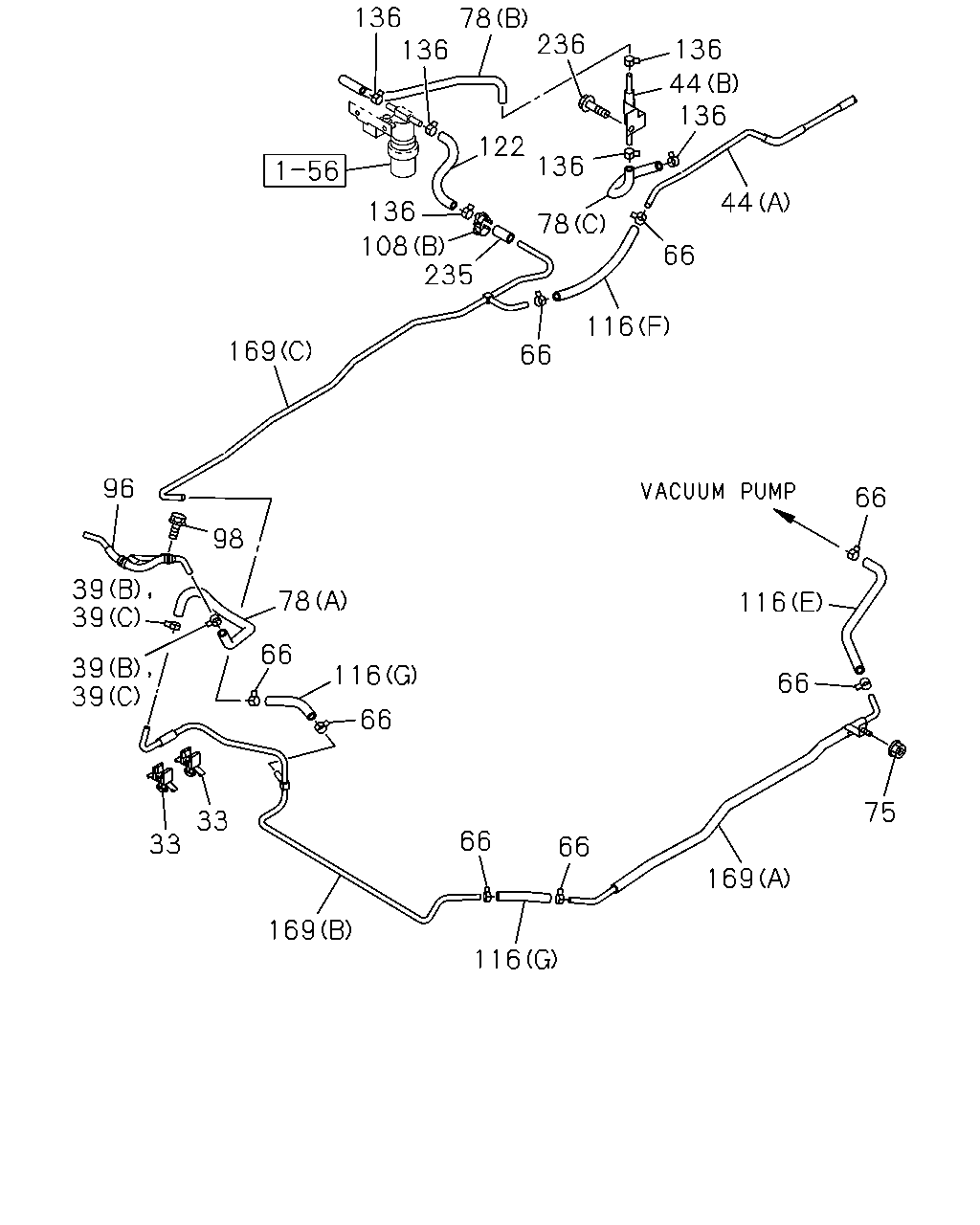

çizim 121898
136 78 236 136 136 44 136 122 136 44 136 78 108 235 66 116 169 66 96 66 98 39 39 78 116 66 39 39 116 66 66 75 33 66 33 66 169 169 116
BalonParca AdiParca NoAdetTipApplied Date A B
33 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 0804-1004 ●
33 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1005- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 0912-1004 ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 1005-1205 ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0804-1004 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1005- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 0912-1004 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1005- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 04 1 0804-1004 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 04 1 1005- ● ●
44 PIPE; VAC,MAG VLV
(B) 		8-98040-634-0 01 1 1005- ●
44 PIPE; VAC,MAG VLV
(B) 		8-98070-194-0 01 1 0804- ●
44 PIPE; VAC,MAG VLV
(A) 		8-98103-009-0 01 1 0804-1004 ●
44 PIPE; VAC,MAG VLV
(A) 		8-98103-009-0 01 1 1005- ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 SOU 		8-94238-568-0 02 1 0804-0911 ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 02 1 0912-1004 ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 02 1 1005- ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 SOU 		8-94238-568-0 06 1 0804-0911 ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 06 1 0912-1004 ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 06 1 1005- ● ●
75 NUT; CLIP,VAC HOSE
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
75 NUT; CLIP,VAC HOSE
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
78 HOSE; VAC,PIPE TO PIPE
(C) L=300 SERVICED BY L=3000 		0-08258-300-0 01 1 1005- ●
78 HOSE; VAC,PIPE TO PIPE
(B) 		8-98040-702-2 01 1 1005-1103 ●
78 HOSE; VAC,PIPE TO PIPE
(B) 		8-98189-103-0 01 1 1104- ●
78 HOSE; VAC,PIPE TO PIPE
(C) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
78 HOSE; VAC,PIPE TO PIPE
(B) 		8-98063-819-2 01 1 0804-1008 ●
78 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-287-0 01 1 1009- ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 0804-1004 ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 1005- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0804-1004 ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 1005-1205 ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ● ●
98 BOLT; VAC PIPE FIX
M6X12 FLANGE SOU 		0-28050-612-0 01 1 0804-1004 ●
98 BOLT; VAC PIPE FIX
M6X12 FLANGE SOU 		0-28050-612-0 01 1 1005- ● ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 0804-1004 ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1005- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		9-09956-353-0 01 1 0804-1004 ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		9-09956-353-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0804-1004 ●
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1005- ● ●
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
(E) 		8-98034-276-2 01 1 0804-0911 ●
116 HOSE; VAC,M/VAC
(E) 		8-98158-378-0 01 1 0912-1004 ●
116 HOSE; VAC,M/VAC
(E) 		8-98158-378-0 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1005- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804-1004 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1005- ● ●
122 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 1005-1103 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-105-0 01 1 1104- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE 8-98034-103-2 01 1 0804-1103 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1104- ●
136 CLIP; VAC HOSE
ID=16 SOU 		8-94238-568-0 06 1 0804-0911 ●
136 CLIP; VAC HOSE
ID=16 		8-98008-098-0 06 1 0912-1004 ●
136 CLIP; VAC HOSE
ID=16 		8-98008-098-0 06 1 1005- ● ●
169 PIPE; VAC,BOOSTER SIDE
(A) 		8-98041-052-2 01 1 0804-1004 ●
169 PIPE; VAC,BOOSTER SIDE
(A) 		8-98041-052-2 01 1 1005- ● ●
169 PIPE; VAC,BOOSTER SIDE
(B) 		8-98041-053-4 01 1 0804-1004 ●
169 PIPE; VAC,BOOSTER SIDE
(B) 		8-98041-053-4 01 1 1005- ● ●
169 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-054-3 01 1 0804-1004 ●
169 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-054-3 01 1 1005- ● ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 0804-1004 ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1005- ● ●
236 BOLT; PIPE
M10X25 FLANGE SOU 		0-28651-025-0 01 1 1005- ●
236 BOLT; PIPE
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
