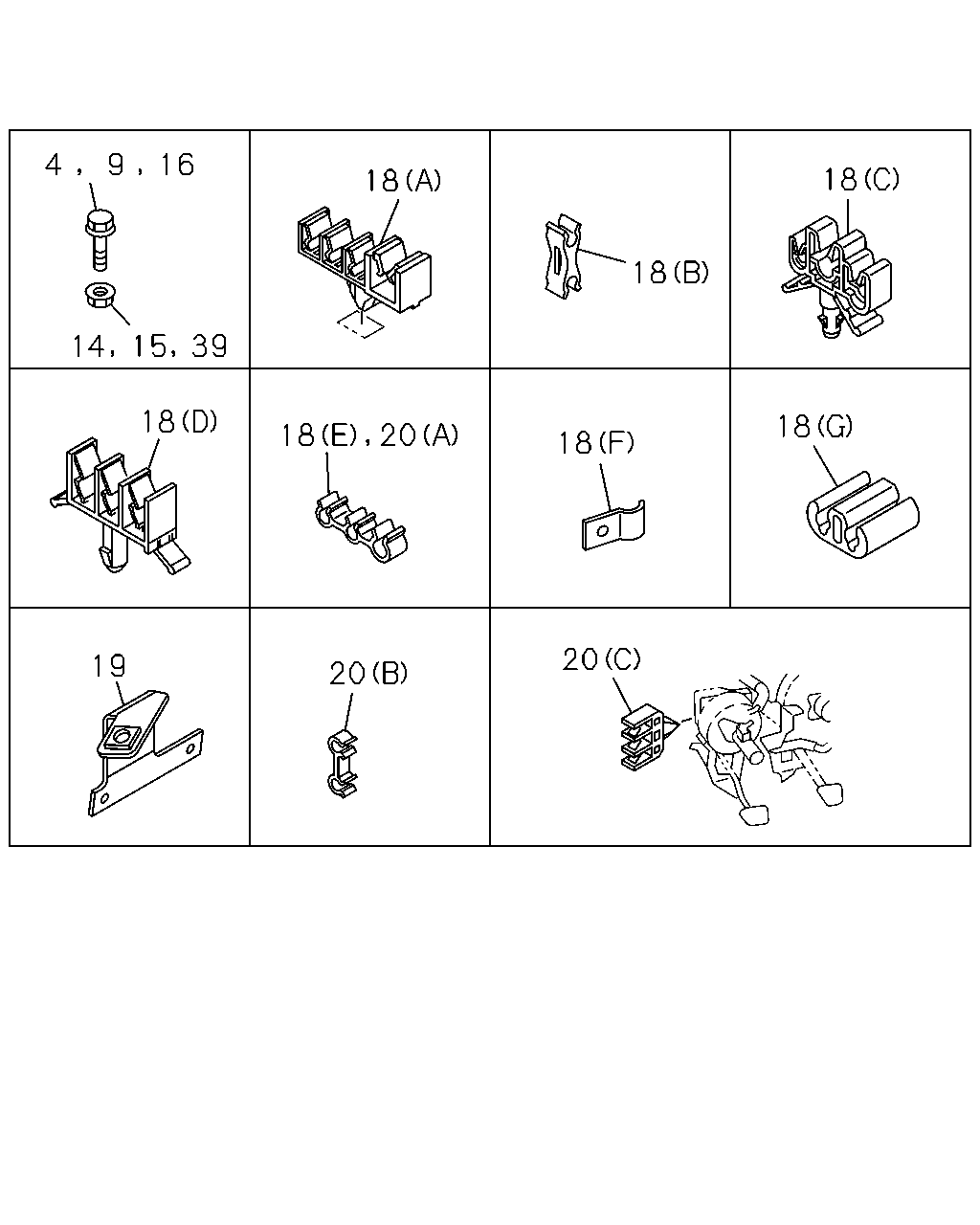

3-58 — FIXING PARTS; OIL PIPING (#32985) — 40 parça

9 16 4 18 18 18 15 39 14 18 18 18 20 19 20 18 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-1004	●
4	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1005-	●	●
9	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-1004	●
9	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1005-	●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-1004	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	1005-	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE SOU	0-91180-108-0	02	1	0804-1004	●
15	NUT; CLIP,OIL PIPE M8 FLANGE SOU	0-91180-108-0	02	1	1005-	●	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	0804-1004	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1005-	●	●
18	CLIP; BRK PIPE (G) ID=4.8X2 SOU	8-94389-060-0	01	1	0804-1004	●
18	CLIP; BRK PIPE (G) ID=4.8X2 SOU	8-94389-060-0	01	1	1005-	●	●
18	CLIP; BRK PIPE (F) B=18 L=20	1-09700-372-0	02	1	0804-1004	●
18	CLIP; BRK PIPE (F) B=18 L=20	1-09700-372-0	02	1	1005-	●	●
18	CLIP; BRK PIPE (E) ID=6.4 & 4.8X2 SOU	8-94146-043-0	01	1	0804-1004	●
18	CLIP; BRK PIPE (E) ID=6.4 & 4.8X2 SOU	8-94146-043-0	01	1	1005-	●	●
18	CLIP; BRK PIPE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0804-1004	●
18	CLIP; BRK PIPE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1005-	●	●
18	CLIP; BRK PIPE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0804-1004	●
18	CLIP; BRK PIPE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1005-	●	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	01	1	0804-1004	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	01	1	1005-	●	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	02	1	0804-1004	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	02	1	1005-	●	●
18	CLIP; BRK PIPE (C) ID=12 & 6.35 & 4.76	8-97202-954-1	03	1	0804-1004	●
18	CLIP; BRK PIPE (C) ID=12 & 6.35 & 4.76	8-97202-954-1	03	1	1005-	●	●
18	CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	04	1	0804-1004	●
18	CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	04	1	1005-	●	●
18	CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	07	1	0804-1004	●
18	CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	07	1	1005-	●	●
19	BRACKET; OIL PIPE	8-97389-845-2	01	1	0804-1004	●
19	BRACKET; OIL PIPE	8-97389-845-2	01	1	1005-	●	●
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2 SOU	8-94146-043-0	01	1	0804-1004	●
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2 SOU	8-94146-043-0	01	1	1005-	●	●
20	CLIP; BRK PIPE (C) ID=6.35 & 4.76X2 SOU	8-94250-923-2	01	1	0804-1004	●
20	CLIP; BRK PIPE (C) ID=6.35 & 4.76X2 SOU	8-94250-923-2	01	1	1005-	●	●
20	CLIP; BRK PIPE (B)	8-94338-104-0	01	1	0804-1004	●
20	CLIP; BRK PIPE (B)	8-94338-104-0	01	1	1005-	●	●
39	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	01	1	0804-1004	●
39	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	01	1	1005-	●	●
