◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#32984) — 14 parça

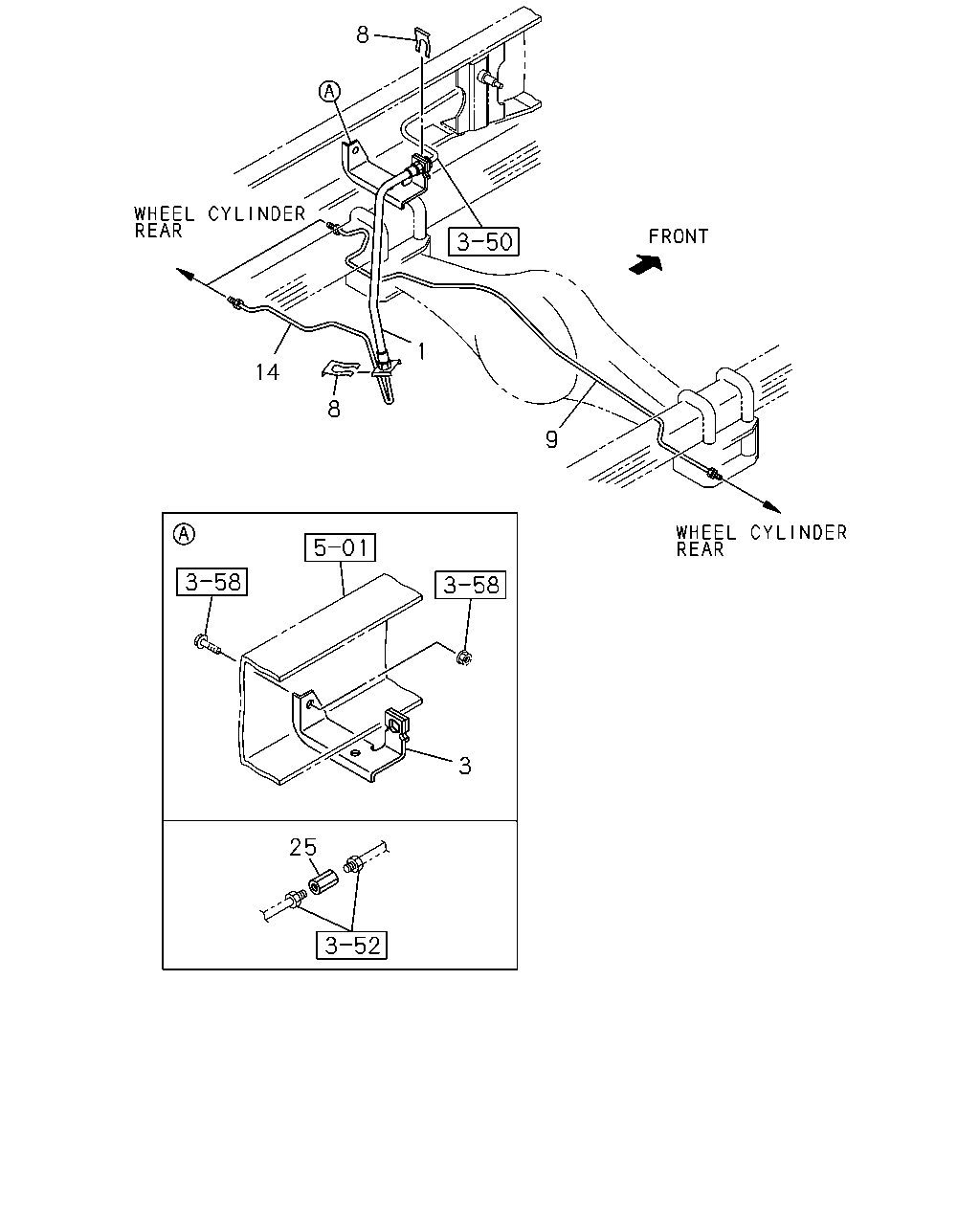

çizim 121880
8 1 14 8 9 3 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK 8-98049-265-0 01 1 0804-1004 ●
1 HOSE; FLEX,RR BRK 8-98049-265-0 01 1 1005- ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0804-1004 ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 1005- ● ●
8 CLIP; RR BRK 8-97360-054-0 02 1 0804-1004 ●
8 CLIP; RR BRK 8-97360-054-0 02 1 1005- ● ●
9 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 0804-1004 ●
9 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1005- ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 0804-1004 ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 1005- ● ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804-1004 ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804-1004 ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1005- ● ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1005- ● ●
