◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶

3-30 — BRAKE MASTER CYLINDER (#32979) — 26 parça

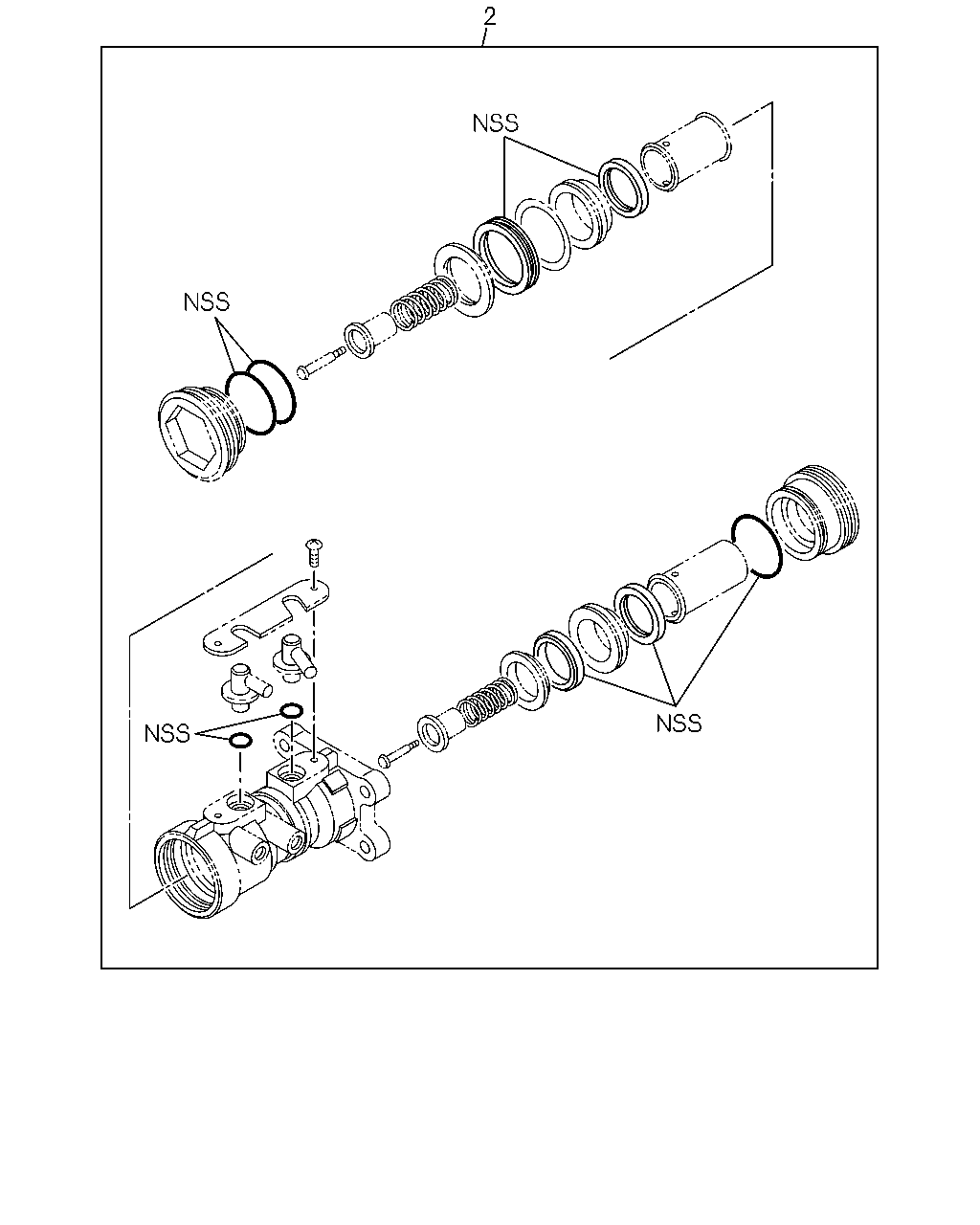

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	REPAIR KIT; BRK,M/CYL SOU	8-97130-471-0	01	1	0804-1004	●
	2	REPAIR KIT; BRK,M/CYL SOU	8-97130-471-0	01	1	1005-	●	●

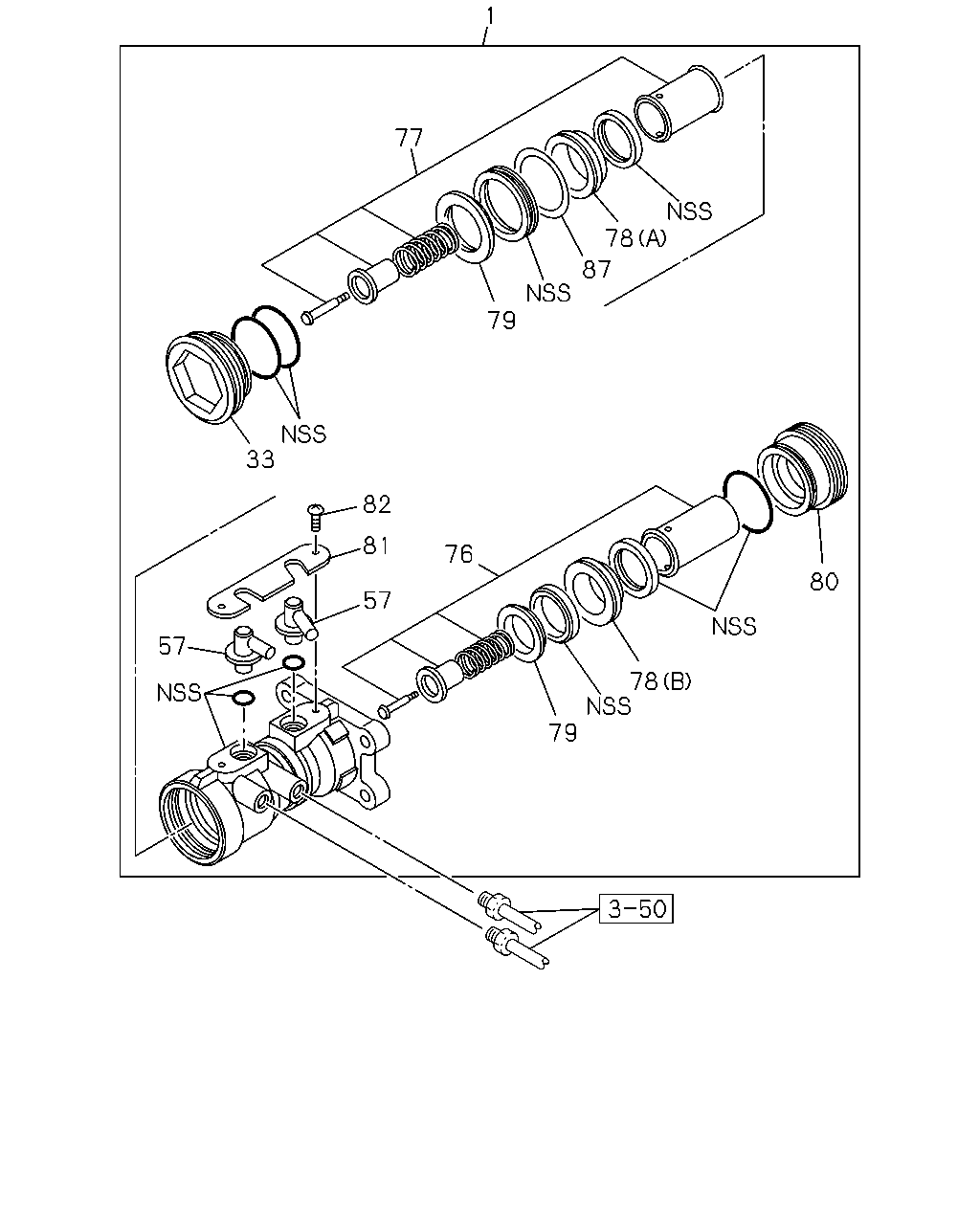

1 77 78 87 79 33 82 81 76 80 57 57 78 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; BRK MASTER	8-98032-600-0	01	1	0804-1004	●
1	CYLINDER ASM; BRK MASTER	8-98032-600-0	01	1	1005-	●	●
33	PLUG; END,M/CYL SOU	8-97186-697-0	01	1	0804-1004	●
33	PLUG; END,M/CYL SOU	8-97186-697-0	01	1	1005-	●	●
57	NIPPLE; BRK M/CYL SOU	8-97130-442-0	02	1	0804-1004	●
57	NIPPLE; BRK M/CYL SOU	8-97130-442-0	02	1	1005-	●	●
76	PISTON ASM; PRIMARY SOU	8-97224-643-0	01	1	0804-1004	●
76	PISTON ASM; PRIMARY SOU	8-97224-643-0	01	1	1005-	●	●
77	PISTON ASM; SECONDARY SOU	8-97224-642-0	01	1	0804-1004	●
77	PISTON ASM; SECONDARY SOU	8-97224-642-0	01	1	1005-	●	●
78	BUSHING; MASTER CYL (A) SOU	8-97130-455-0	01	1	0804-1004	●
78	BUSHING; MASTER CYL (A) SOU	8-97130-455-0	01	1	1005-	●	●
78	BUSHING; MASTER CYL (B) SOU	8-97217-312-0	01	1	0804-1004	●
78	BUSHING; MASTER CYL (B) SOU	8-97217-312-0	01	1	1005-	●	●
79	SUPPORTER; CUP SOU	8-97130-463-0	02	1	0804-1004	●
79	SUPPORTER; CUP SOU	8-97130-463-0	02	1	1005-	●	●
80	COVER; MASTER CYL SOU	8-97130-449-0	01	1	0804-1004	●
80	COVER; MASTER CYL SOU	8-97130-449-0	01	1	1005-	●	●
81	HOLDER; NIPPLE SOU	8-97130-445-0	01	1	0804-1004	●
81	HOLDER; NIPPLE SOU	8-97130-445-0	01	1	1005-	●	●
82	SCREW; HOLDER SOU	8-97130-446-0	02	1	0804-1004	●
82	SCREW; HOLDER SOU	8-97130-446-0	02	1	1005-	●	●
87	SPACER; CUP SOU	8-97130-459-0	01	1	0804-1004	●
87	SPACER; CUP SOU	8-97130-459-0	01	1	1005-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
