◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#32977) — 117 parça
çizim 121863
237 238 241 235 8 198 198 241 198 231 220 181 238 237 85 225 235
BalonParca AdiParca NoAdetTipApplied Date A B
8 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 0804-1004 ●
8 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 1005- ● ●
8 GUIDE; PARKING BRK
(B) 		8-98110-964-0 01 1 0804-1004 ●
8 GUIDE; PARKING BRK
(B) 		8-98110-964-0 01 1 1005- ● ●
85 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 0804-1004 ●
85 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1005- ● ●
181 BOLT; BRKT
M6X12 FLANGE SOU 		0-28050-612-0 02 1 0804-1004 ●
181 BOLT; BRKT
M6X12 FLANGE SOU 		0-28050-612-0 02 1 1005- ● ●
181 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 01 1 0804-1004 ●
181 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 01 1 1005- ● ●
181 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 0804-1004 ●
181 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 1005- ● ●
198 BRACKET; CABLE
(B) 		8-97303-973-0 01 1 0804-1004 ●
198 BRACKET; CABLE
(B) 		8-97303-973-0 01 1 1005- ● ●
198 BRACKET; CABLE
(A) 		8-97303-974-0 01 1 0804-1004 ●
198 BRACKET; CABLE
(A) 		8-97303-974-0 01 1 1005- ● ●
198 BRACKET; CABLE
(C) 		8-98097-898-1 01 1 0804-1004 ●
198 BRACKET; CABLE
(C) 		8-98097-898-1 01 1 1005- ● ●
220 NUT; CLIP,PARKING CONT CABLE
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
220 NUT; CLIP,PARKING CONT CABLE
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
231 CLIP; BAND,BRK CABLE
ID=16 L=20 		0-95235-536-0 01 1 0804-1004 ●
231 CLIP; BAND,BRK CABLE
ID=16 L=20 		0-95235-536-0 01 1 1005- ● ●
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98087-322-0 01 1 0804-1004 ●
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98087-322-0 01 1 1005- ● ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98105-435-0 01 1 0804-0909 ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98106-986-1 01 1 0910-1004 ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98106-986-1 01 1 1005- ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE SOU 		0-91180-110-0 01 1 0804-1004 ●
237 NUT; BRKT TO FRAME
M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE SOU 		0-91180-110-0 01 1 1005- ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 03 1 0804-1004 ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 03 1 1005- ● ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ● ●
241 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
241 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ● ●
241 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 0804-1004 ●
241 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1005- ● ●

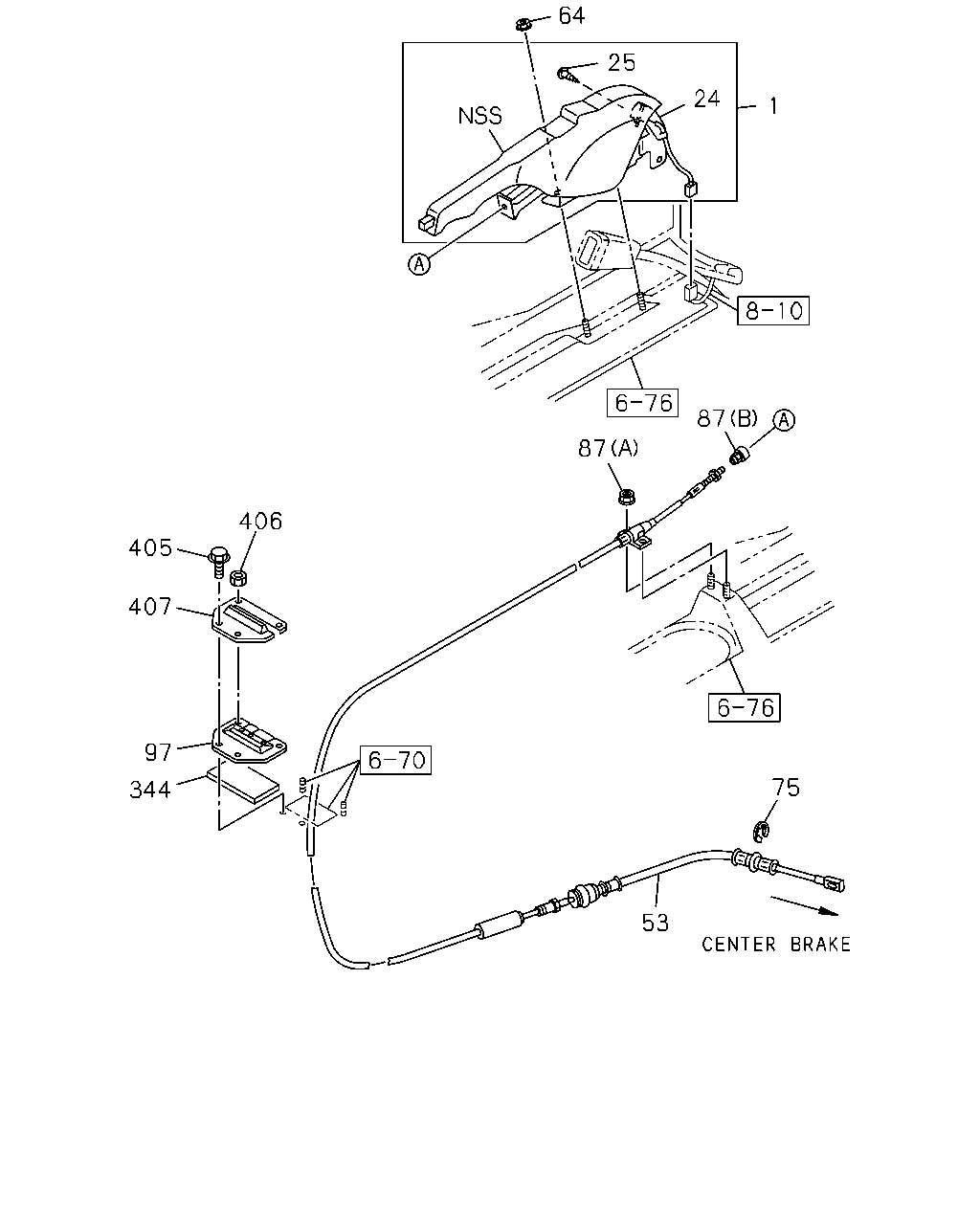

çizim 121866
64 25 24 1 87 87 406 405 407 97 75 344 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEM ASM; PARKING BRK
GRAY 		8-97405-353-0 01 1 0804-1004 ●
1 STEM ASM; PARKING BRK
GRAY 		8-97405-353-0 01 1 1005-1303 ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1304- ● ●
24 SWITCH ASM; PARK BRK
SOU 		8-97995-828-1 01 1 0804-1004 ●
24 SWITCH ASM; PARK BRK
SOU 		8-97995-828-1 01 1 1005-1303 ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0804-1004 ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1005- ● ●
53 CABLE; PARK BRK,FRT LWR 8-98069-440-3 01 1 0804-1004 ●
53 CABLE; PARK BRK,FRT LWR 8-98069-440-3 01 1 1005- ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0804-1004 ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1005- ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0804-1004 ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1005- ● ●
87 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1004 ●
87 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1005- ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 0804-1004 ●
87 NUT
(B) M6 		8-98034-313-1 01 1 1005- ● ●
97 GROMMET; PARKING BRK CABLE 8-97065-212-1 01 1 0804-1004 ●
97 GROMMET; PARKING BRK CABLE 8-97065-212-1 01 1 1005- ● ●
344 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 0804- ●
405 BOLT; GROMMET
M6X20 FLANGE 		0-28450-620-0 02 1 0804-1004 ●
405 BOLT; GROMMET
M6X20 FLANGE 		0-28450-620-0 02 1 1005- ● ●
406 NUT; GROMMET
M6 FLANGE SOU 		0-91180-106-0 02 1 0804-1004 ●
406 NUT; GROMMET
M6 FLANGE SOU 		0-91180-106-0 02 1 1005- ● ●
407 RETAINER; GROMMET 1-33657-674-0 01 1 0804-1004 ●
407 RETAINER; GROMMET 1-33657-674-0 01 1 1005- ● ●

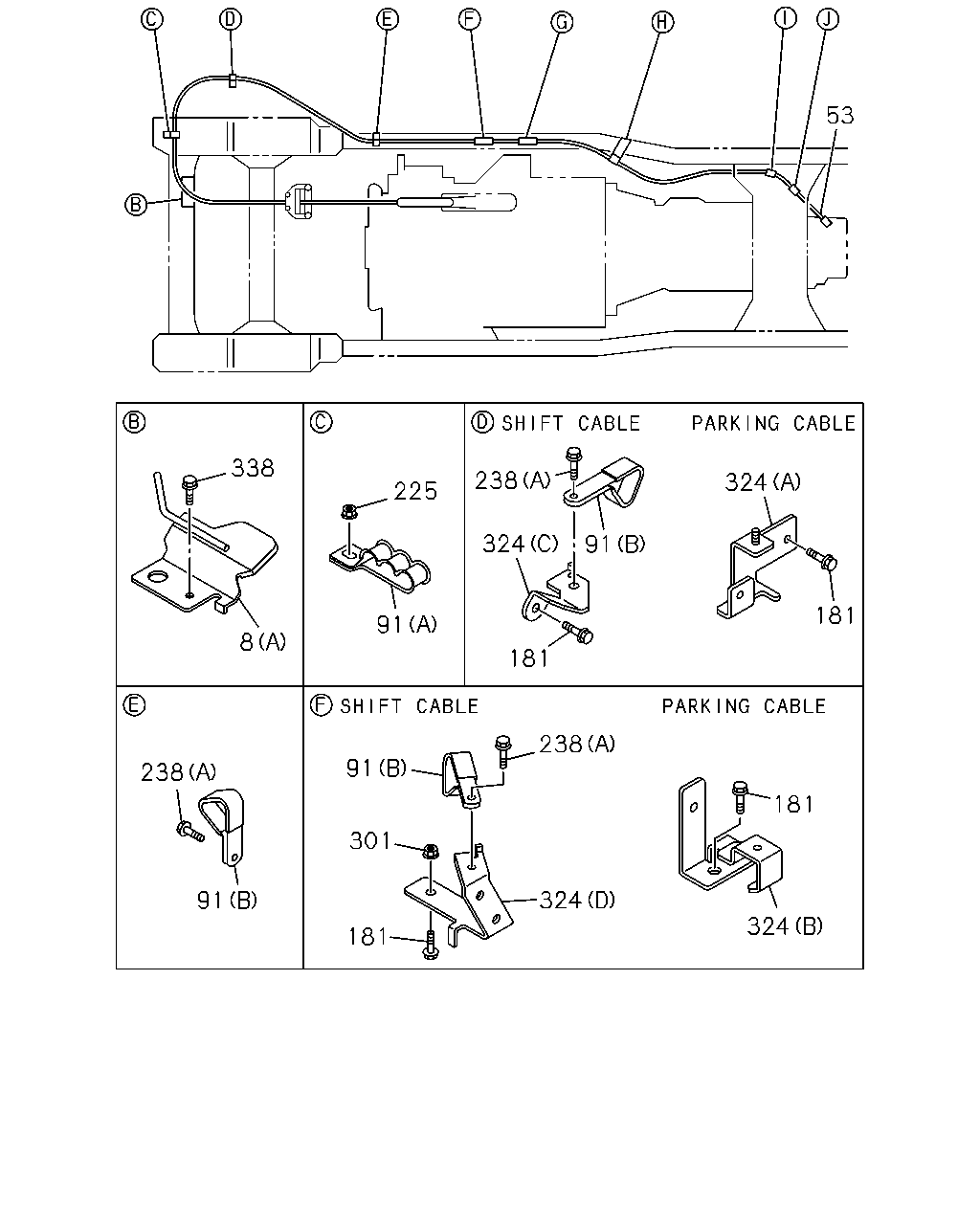

çizim 121871
53 338 238 324 225 324 91 181 91 8 181 238 91 238 181 301 324 91 324 181
BalonParca AdiParca NoAdetTipApplied Date A B
8 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 0804-1004 ●
8 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 1005- ● ●
8 GUIDE; PARKING BRK
(B) 		8-98110-964-0 01 1 0804-1004 ●
8 GUIDE; PARKING BRK
(B) 		8-98110-964-0 01 1 1005- ● ●
53 CABLE; PARK BRK,FRT LWR 8-98069-440-3 01 1 0804-1004 ●
53 CABLE; PARK BRK,FRT LWR 8-98069-440-3 01 1 1005- ● ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97036-333-1 01 1 0804-1004 ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97036-333-1 01 1 0804-1004 ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97036-333-1 01 1 0804-1004 ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97036-333-1 01 1 1005- ● ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97036-333-1 01 1 1005- ● ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97036-333-1 01 1 1005- ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-98023-622-0 01 1 0804-1004 ●
91 CLIP; PARKING BRK CABLE
(A) 		8-98023-622-0 01 1 1005- ● ●
181 BOLT; BRKT
M6X12 FLANGE SOU 		0-28050-612-0 02 1 0804-1004 ●
181 BOLT; BRKT
M6X12 FLANGE SOU 		0-28050-612-0 02 1 1005- ● ●
181 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 01 1 0804-1004 ●
181 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 01 1 1005- ● ●
181 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 0804-1004 ●
181 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 1005- ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 03 1 0804-1004 ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 03 1 1005- ● ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 0804-1004 ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1005- ● ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-1004 ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE SOU 		0-91180-108-0 01 1 1005- ● ●
324 BRACKET
(C) 		8-98034-115-0 01 1 0804-1004 ●
324 BRACKET
(C) 		8-98034-115-0 01 1 1005- ● ●
324 BRACKET
(D) 		8-98034-185-1 01 1 0804-1004 ●
324 BRACKET
(D) 		8-98034-185-1 01 1 1005- ● ●
324 BRACKET
(A) 		8-98099-516-0 01 1 0804-1004 ●
324 BRACKET
(A) 		8-98099-516-0 01 1 1005- ● ●
324 BRACKET
(B) 		8-98111-394-1 01 1 0804-1004 ●
324 BRACKET
(B) 		8-98111-394-1 01 1 1005- ● ●
338 SCREW; GUIDE
M8X35 FLANGE 		8-98046-876-0 01 1 0804-1004 ●
338 SCREW; GUIDE
M8X35 FLANGE 		8-98046-876-0 01 1 1005- ● ●
