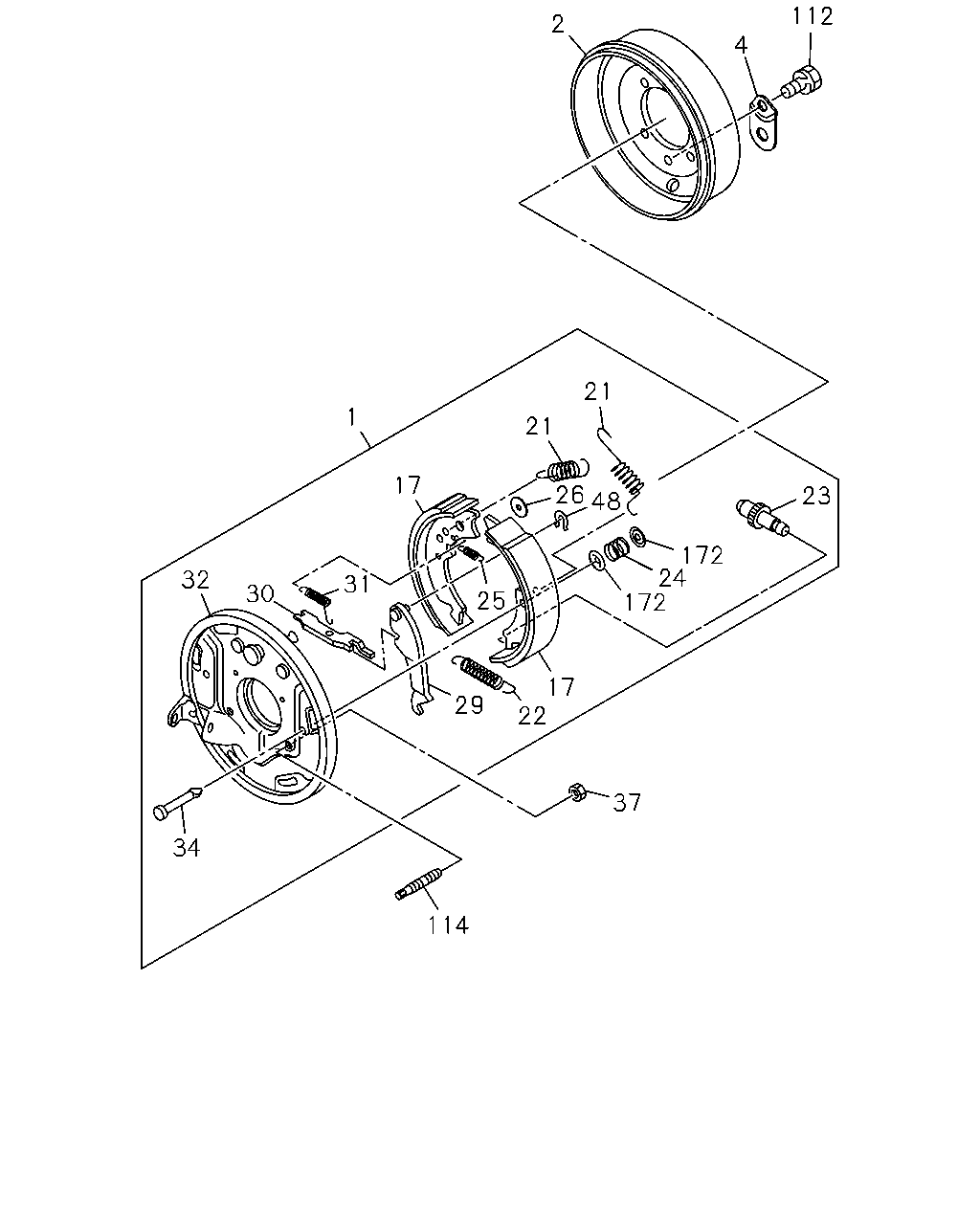

3-08 — PARKING BRAKE
(#32975) — 41 parça
Tümü
A - NPS5SN
B - NPS5WN
112
2
4
21
1
21
17
26
48
23
172
24
172
31
32
30
25
17
22
29
37
34
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRAKE ASM; CENTER,PARKING
8-98029-922-0
01
1
0804-1004
●
1
BRAKE ASM; CENTER,PARKING
8-98029-922-0
01
1
1005-
●
●
2
DRUM; PARKING BRK
8-97334-107-0
01
1
0804-1004
●
2
DRUM; PARKING BRK
8-97334-107-0
01
1
1005-1506
●
●
2
DRUM; PARKING BRK
8-98308-289-0
01
1
1507-
●
●
4
COVER; ADJ HOLE
8-98029-820-0
01
1
0804-1004
●
4
COVER; ADJ HOLE
8-98029-820-0
01
1
1005-
●
●
17
SHOE; PARKING BRK
8-97020-250-2
02
1
0804-1004
●
17
SHOE; PARKING BRK
8-97020-250-2
02
1
1005-
●
●
21
SPRING; RETURN,PARKING BRK SHOE
8-94132-157-0
02
1
0804-1004
●
21
SPRING; RETURN,PARKING BRK SHOE
8-94132-157-0
02
1
1005-
●
●
22
SPRING; ADJ SCREW,PARKING BRK
8-94107-618-0
01
1
0804-1004
●
22
SPRING; ADJ SCREW,PARKING BRK
8-94107-618-0
01
1
1005-
●
●
23
SCREW; ADJ,PARKING BRK SHOE
8-98043-954-0
01
1
0804-1004
●
23
SCREW; ADJ,PARKING BRK SHOE
8-98043-954-0
01
1
1005-
●
●
24
SPRING; BRK SHOE
8-94132-155-1
02
1
0804-1004
●
24
SPRING; BRK SHOE
8-94132-155-1
02
1
1005-
●
●
25
SPRING; SHOE ALIGNMENT
8-94132-156-0
01
1
0804-1004
●
25
SPRING; SHOE ALIGNMENT
8-94132-156-0
01
1
1005-
●
●
26
PLATE; SHOE GUIDE
8-98043-959-0
01
1
0804-1004
●
26
PLATE; SHOE GUIDE
8-98043-959-0
01
1
1005-
●
●
29
LEVER; PARKING BRK
8-98043-949-0
01
1
0804-1004
●
29
LEVER; PARKING BRK
8-98043-949-0
01
1
1005-
●
●
30
STRUT; PARKING BRK
8-98043-953-0
01
1
0804-1004
●
30
STRUT; PARKING BRK
8-98043-953-0
01
1
1005-
●
●
31
SPRING; SHOE TO STRUT
8-94132-158-0
01
1
0804-1004
●
31
SPRING; SHOE TO STRUT
8-94132-158-0
01
1
1005-
●
●
32
PLATE; SUPPORT,PARKING BRK
8-97308-176-0
01
1
0804-1004
●
32
PLATE; SUPPORT,PARKING BRK
8-97308-176-0
01
1
1005-
●
●
34
PIN; BRK SHOE
8-98043-955-0
02
1
0804-1004
●
34
PIN; BRK SHOE
8-98043-955-0
02
1
1005-
●
●
37
NUT; SUPPORT PLATE
M12 LOCK NUT
8-98029-927-0
04
1
0804-1004
●
37
NUT; SUPPORT PLATE
M12 LOCK NUT
8-98029-927-0
04
1
1005-
●
●
48
RETAINER; PIN,PARKING BRK
8-98043-958-0
01
1
0804-1004
●
48
RETAINER; PIN,PARKING BRK
8-98043-958-0
01
1
1005-
●
●
112
BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER SOU
0-50540-616-0
01
1
0804-1004
●
112
BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER SOU
0-50540-616-0
01
1
1005-
●
●
114
STUD; SUPPORT PLATE
8-98029-929-0
04
1
0804-1004
●
114
STUD; SUPPORT PLATE
8-98029-929-0
04
1
1005-
●
●
172
CUP; SHOE HOLD
8-98043-956-0
04
1
0804-1004
●
172
CUP; SHOE HOLD
8-98043-956-0
04
1
1005-
●
●
