3-01 — FRONT WHEEL BRAKE (#32973) — 61 parça

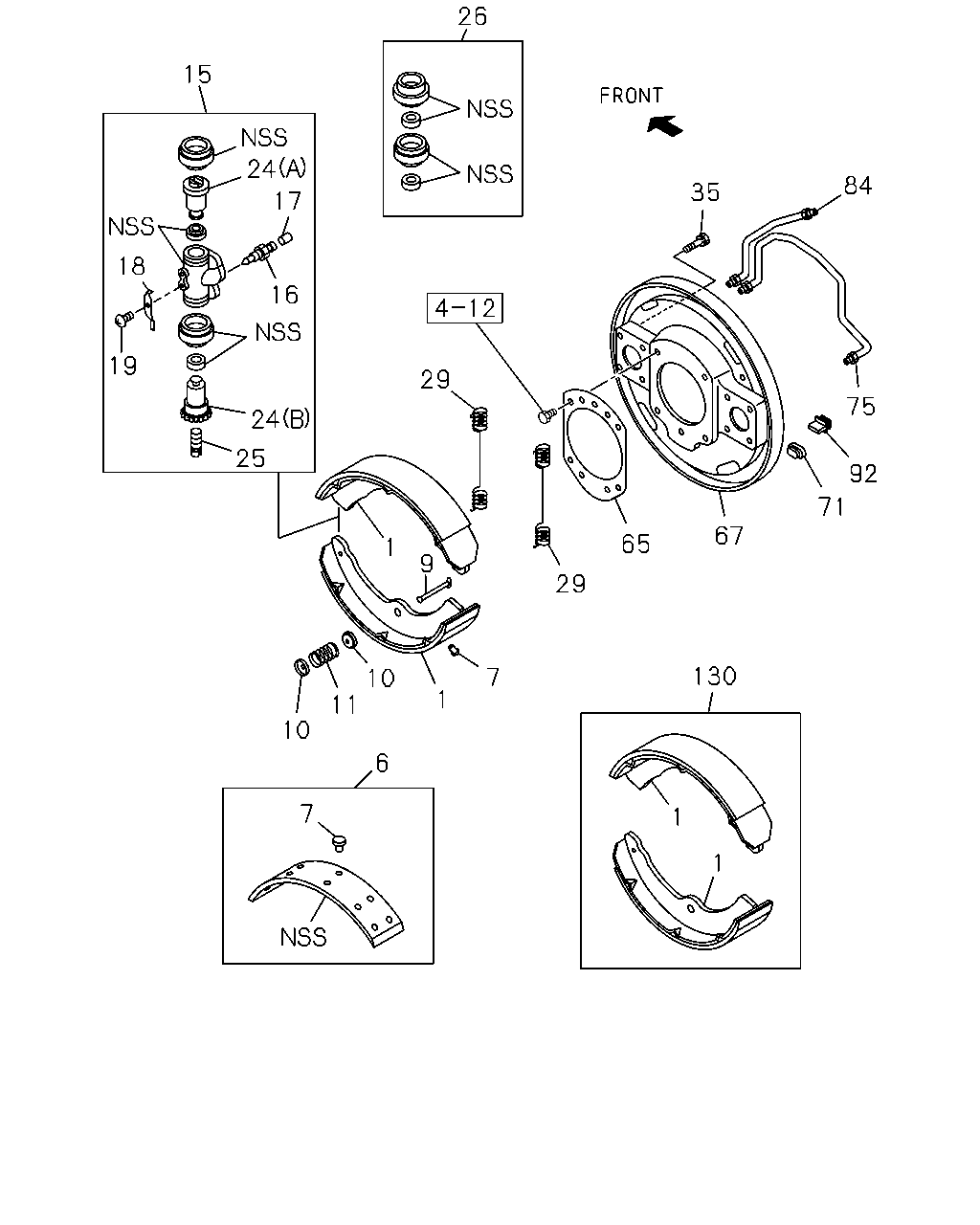

çizim 121875
26 15 24 84 35 17 18 16 19 29 75 24 25 92 71 67 65 1 9 29 130 7 10 1 11 10 6 7 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
SOU 		8-97287-778-0 04 1 0804-1004 ●
1 SHOE; BRK,FRT
SOU 		8-97287-778-0 04 1 1005- ● ●
6 LINING KIT; FRT BRK
SOU 		5-87831-801-0 01 1 0804-1004 ●
6 LINING KIT; FRT BRK
SOU 		5-87831-801-0 01 1 1005- ● ●
6 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 0804-1004 ●
6 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 1005- ● ●
7 RIVET; LINING,FRT BRK
SOU 		1-09732-029-0 40 1 0804-1004 ●
7 RIVET; LINING,FRT BRK
SOU 		1-09732-029-0 40 1 1005- ● ●
9 PIN; SHOE HOLDER
SOU 		5-47162-001-0 04 1 0804-1004 ●
9 PIN; SHOE HOLDER
SOU 		5-47162-001-0 04 1 1005- ● ●
10 CUP; SHOE HOLDING
SOU 		9-47165-096-0 08 1 0804-1004 ●
10 CUP; SHOE HOLDING
SOU 		9-47165-096-0 08 1 1005- ● ●
11 SPRING; SHOE HOLDING
SOU 		5-09580-101-1 04 1 0804-1004 ●
11 SPRING; SHOE HOLDING
SOU 		5-09580-101-1 04 1 1005- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT ID=30.16(1 3/16") 		8-97139-815-0 01 1 0804-1004 ●
15 CYLINDER; WHEEL,FRT BRK
FRONT ID=30.16(1 3/16") 		8-97139-815-0 01 1 1005- ● ●
15 CYLINDER; WHEEL,FRT BRK
REAR ID=30.16(1 3/16") 		8-97139-817-0 01 1 0804-1004 ●
15 CYLINDER; WHEEL,FRT BRK
REAR ID=30.16(1 3/16") 		8-97139-817-0 01 1 1005- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT ID=30.16(1 3/16") 		8-97139-814-0 01 1 0804-1004 ●
15 CYLINDER; WHEEL,FRT BRK
FRONT ID=30.16(1 3/16") 		8-97139-814-0 01 1 1005- ● ●
15 CYLINDER; WHEEL,FRT BRK
REAR ID=30.16(1 3/16") 		8-97139-816-0 01 1 0804-1004 ●
15 CYLINDER; WHEEL,FRT BRK
REAR ID=30.16(1 3/16") 		8-97139-816-0 01 1 1005- ● ●
16 SCREW; BLEEDER,FRT BRK
SOU 		8-98050-476-0 02 1 0804-1004 ●
16 SCREW; BLEEDER,FRT BRK
SOU 		8-98050-476-0 02 1 1005- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
SOU 		8-98050-479-0 02 1 0804-1004 ●
17 CAP; BLEEDER,FRT WHEEL CYL
SOU 		8-98050-479-0 02 1 1005- ● ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0804-1004 ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1005- ● ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0804-1004 ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1005- ● ●
24 PISTON; FRT WHEEL CYL
(A) 		8-94414-700-1 04 1 0804-1004 ●
24 PISTON; FRT WHEEL CYL
(A) 		8-94414-700-1 04 1 1005- ● ●
24 PISTON; FRT WHEEL CYL
(B) D=30.16 		8-94414-701-1 04 1 0804-0810 ●
24 PISTON; FRT WHEEL CYL
(B) 		8-97078-045-0 04 1 0811-1004 ●
24 PISTON; FRT WHEEL CYL
(B) 		8-97078-045-0 04 1 1005- ● ●
25 SCREW; ADJ,FRT WHEEL CYL 8-94414-702-0 04 1 0804-1004 ●
25 SCREW; ADJ,FRT WHEEL CYL 8-94414-702-0 04 1 1005- ● ●
26 CUP SET; FRT WHEEL CYL 5-87831-598-0 02 1 0804-1004 ●
26 CUP SET; FRT WHEEL CYL 5-87831-598-0 02 1 1005- ● ●
29 SPRING; RETURN,FRT BRK SHOE
SOU 		5-09583-118-0 04 1 0804-1004 ●
29 SPRING; RETURN,FRT BRK SHOE
SOU 		5-09583-118-0 04 1 1005- ● ●
35 BOLT; FRT WHEEL CYL
SOU 		5-09030-016-1 16 1 0804-1004 ●
35 BOLT; FRT WHEEL CYL
SOU 		5-09030-016-1 16 1 1005- ● ●
65 COVER; OIL SHIELD,FRT 8-94438-775-1 02 1 0804-1004 ●
65 COVER; OIL SHIELD,FRT 8-94438-775-1 02 1 1005- ● ●
67 PLATE; BACK,FRT BRK 8-97078-596-0 01 1 0804-1004 ●
67 PLATE; BACK,FRT BRK 8-97078-596-0 01 1 1005- ● ●
67 PLATE; BACK,FRT BRK 8-97078-595-0 01 1 0804-1004 ●
67 PLATE; BACK,FRT BRK 8-97078-595-0 01 1 1005- ● ●
71 GROMMET; CHECK HOLE 8-94171-287-0 02 1 0804-1004 ●
71 GROMMET; CHECK HOLE 8-94171-287-0 02 1 1005- ● ●
75 PIPE; OIL,FWD,FRT BRK 8-94473-818-0 02 1 0804-1004 ●
75 PIPE; OIL,FWD,FRT BRK 8-94473-818-0 02 1 1005- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-94473-820-1 01 1 0804-1004 ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-94473-820-1 01 1 1005- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-94473-819-1 01 1 0804-1004 ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-94473-819-1 01 1 1005- ● ●
92 GROMMET; ADJ HOLE 9-09756-034-0 04 1 0804-1004 ●
92 GROMMET; ADJ HOLE 9-09756-034-0 04 1 1005- ● ●
130 SHOE KIT; BRK,FRT
SOU 		5-87832-047-0 01 1 0804-1004 ●
130 SHOE KIT; BRK,FRT
SOU 		5-87832-047-0 01 1 1005- ● ●
