2-75 — TRANSFER CONTROL (#32972) — 10 parça

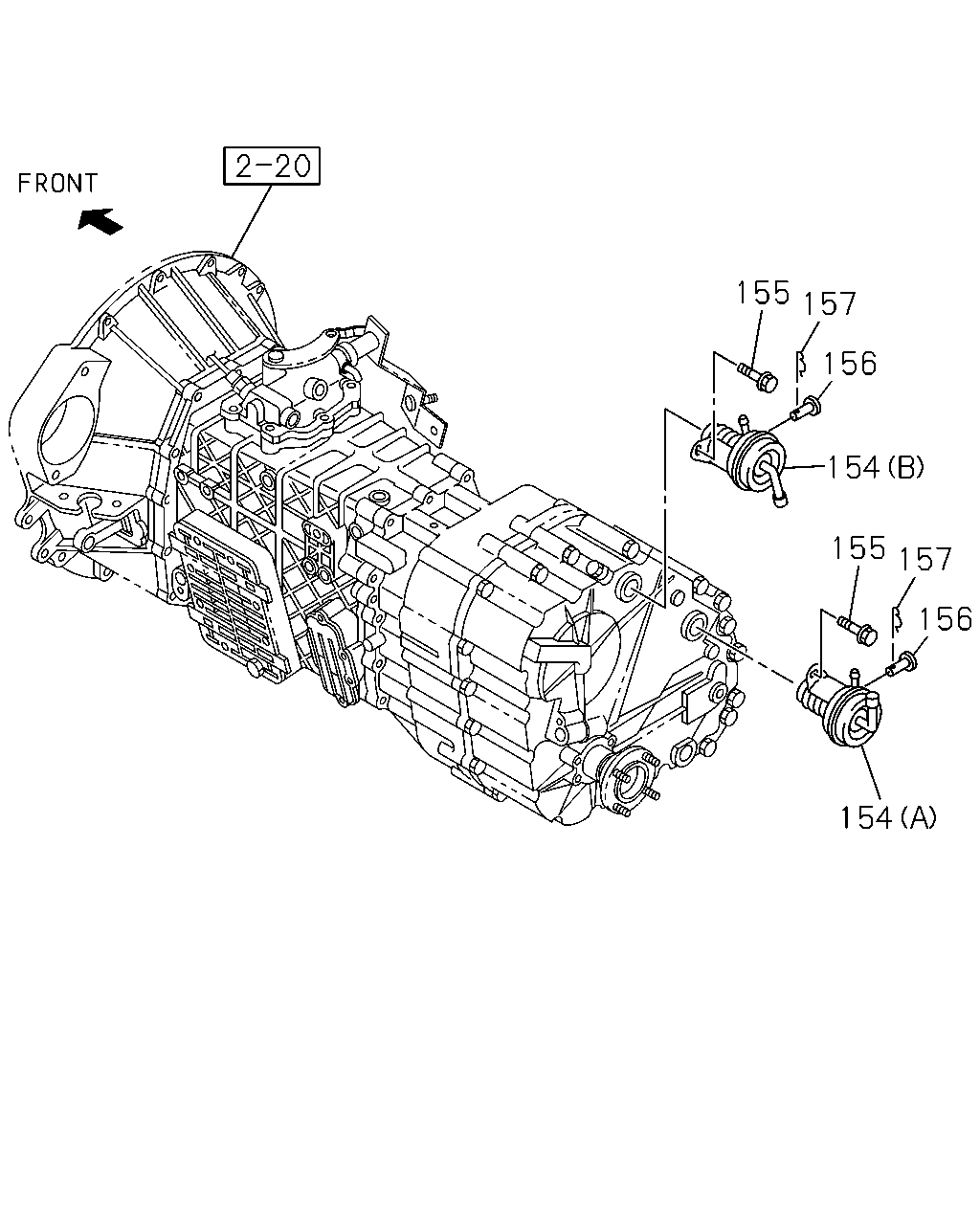

çizim 121879
155 157 156 154 155 157 156 154
BalonParca AdiParca NoAdetTipApplied Date A B
154 ACTUATOR; SELECT,TRANSFER
(A) 		8-98031-513-0 01 1 0804-1004 ●
154 ACTUATOR; SELECT,TRANSFER
(A) 		8-98031-513-0 01 1 1005- ● ●
154 ACTUATOR; SELECT,TRANSFER
(B) 		8-98067-973-0 01 1 0804-1004 ●
154 ACTUATOR; SELECT,TRANSFER
(B) 		8-98067-973-0 01 1 1005- ● ●
155 BOLT; SELECT ACTUATOR
M8X20 FLANGE 		0-28650-820-0 04 1 0804-1004 ●
155 BOLT; SELECT ACTUATOR
M8X20 FLANGE 		0-28650-820-0 04 1 1005- ● ●
156 PIN; JOINT,SELECT ACTUATOR
OD=4 L=16 		0-82353-416-0 02 1 0804-1004 ●
156 PIN; JOINT,SELECT ACTUATOR
OD=4 L=16 		0-82353-416-0 02 1 1005- ● ●
157 PIN; SNAP,SELECT ACTUATOR 1-09747-001-0 02 1 0804-1004 ●
157 PIN; SNAP,SELECT ACTUATOR 1-09747-001-0 02 1 1005- ● ●
