2-66 — MANUAL TRANSFER GEAR; OUTPUT (#32971) — 52 parça

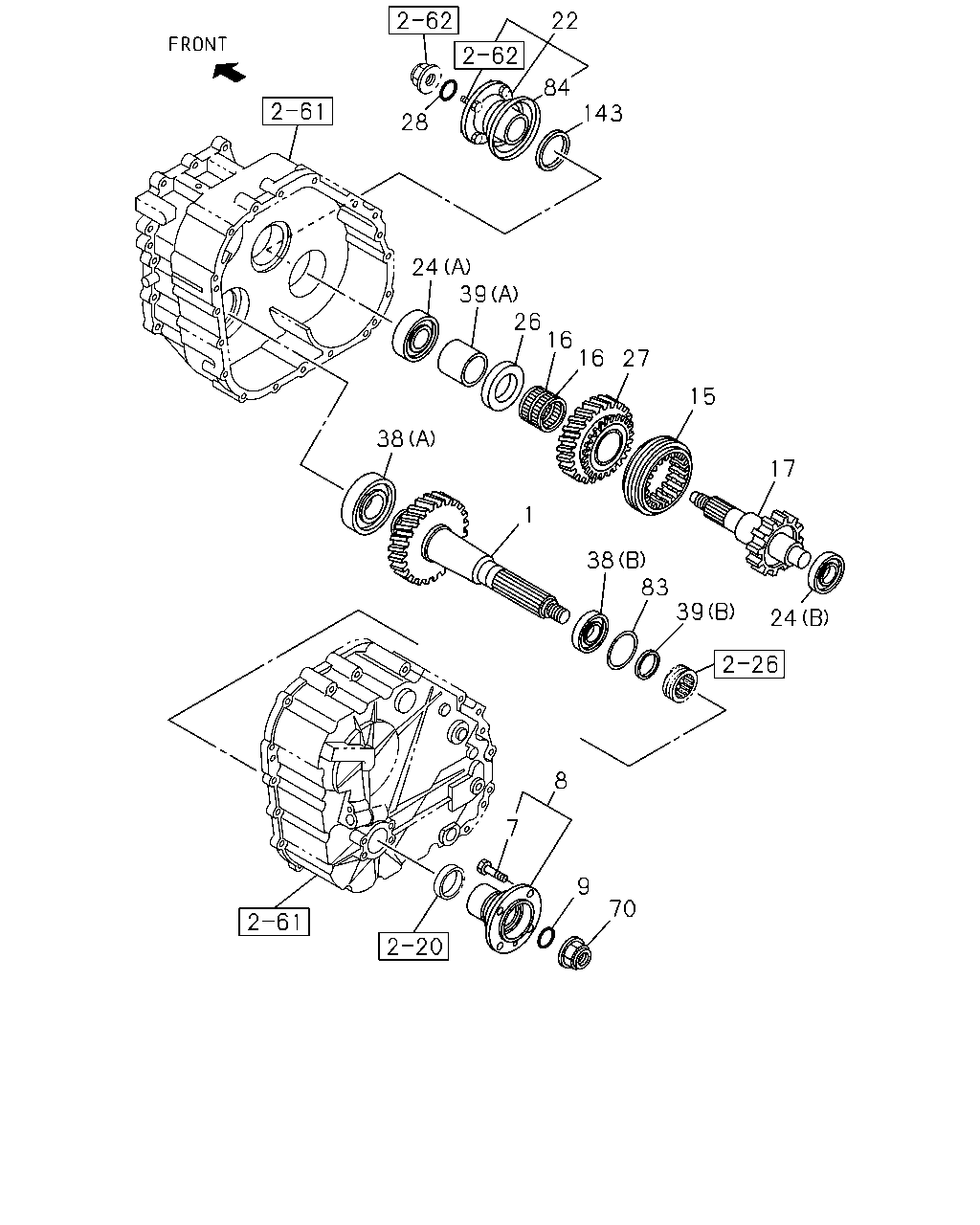

çizim 121874
22 84 143 28 24 39 26 16 16 27 15 38 17 1 38 83 39 24 8 7 9 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; GEAR,OUTPUT,RR 8-97326-911-1 01 1 0804-1004 ●
1 SHAFT; GEAR,OUTPUT,RR 8-97326-911-1 01 1 1005- ● ●
7 BOLT; COUPLING DRIVER 8-98031-764-0 04 1 0804-1004 ●
7 BOLT; COUPLING DRIVER 8-98031-764-0 04 1 1005- ● ●
8 FLANGE; OUTPUT 8-98079-515-0 01 1 0804-1004 ●
8 FLANGE; OUTPUT 8-98079-515-0 01 1 1005- ● ●
9 GASKET; SHAFT
ID=30.6 T=5.7 		8-98028-226-0 01 1 0804-1004 ●
9 GASKET; SHAFT
ID=30.6 T=5.7 		8-98028-226-0 01 1 1005- ● ●
15 SLEEVE; NEUTRAL & FRT 1-33262-175-1 01 1 0804-1004 ●
15 SLEEVE; NEUTRAL & FRT 1-33262-175-1 01 1 1005- ● ●
16 BEARING; OUTPUT GEAR 8-97326-898-0 02 1 0804-1004 ●
16 BEARING; OUTPUT GEAR 8-97326-898-0 02 1 1005- ● ●
17 SHAFT; OUTPUT 8-97326-900-0 01 1 0804-1004 ●
17 SHAFT; OUTPUT 8-97326-900-0 01 1 1005- ● ●
22 FLANGE; OUTPUT,FRT 8-97328-676-0 01 1 0804-1004 ●
22 FLANGE; OUTPUT,FRT 8-97328-676-0 01 1 1005- ● ●
24 BEARING; FRT DRIVE SHAFT,FRT,TRANSFER
(B) 		8-97326-893-0 01 1 0804-1004 ●
24 BEARING; FRT DRIVE SHAFT,FRT,TRANSFER
(B) 		8-97326-893-0 01 1 1005- ● ●
24 BEARING; FRT DRIVE SHAFT,FRT,TRANSFER
(A) 		8-97326-894-0 01 1 0804-1004 ●
24 BEARING; FRT DRIVE SHAFT,FRT,TRANSFER
(A) 		8-97326-894-0 01 1 1005- ● ●
26 WASHER; THRUST 8-97326-896-0 01 1 0804-1004 ●
26 WASHER; THRUST 8-97326-896-0 01 1 1005- ● ●
27 GEAR; OUTPUT,FRT 8-97326-899-0 01 1 0804-1004 ●
27 GEAR; OUTPUT,FRT 8-97326-899-0 01 1 1005- ● ●
28 GASKET; SHAFT 8-97326-890-0 01 1 0804-1004 ●
28 GASKET; SHAFT 8-97326-890-0 01 1 1005- ● ●
38 BEARING; RR DRIVE SHAFT,RR,TRANSFER
(B) 		8-97326-909-0 01 1 0804-1004 ●
38 BEARING; RR DRIVE SHAFT,RR,TRANSFER
(B) 		8-97326-909-0 01 1 1005- ● ●
38 BEARING; RR DRIVE SHAFT,RR,TRANSFER
(A) 		8-97326-910-0 01 1 0804-1004 ●
38 BEARING; RR DRIVE SHAFT,RR,TRANSFER
(A) 		8-97326-910-0 01 1 1005- ● ●
39 COLLAR; DIST,OUTPUT
(A) 		8-97326-895-0 01 1 0804-1004 ●
39 COLLAR; DIST,OUTPUT
(A) 		8-97326-895-0 01 1 1005- ● ●
39 COLLAR; DIST,OUTPUT
(B) 		8-97326-901-0 01 1 0804-1004 ●
39 COLLAR; DIST,OUTPUT
(B) 		8-97326-901-0 01 1 1005- ● ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
M27 H=25 		8-97360-410-0 01 1 0804-1004 ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
M27 H=25 		8-97360-410-0 01 1 1005- ● ●
83 SHIM; OUTPUT SHAFT
T=0.18 		8-97326-902-0 01 1 0804-1004 ●
83 SHIM; OUTPUT SHAFT
T=0.18 		8-97326-902-0 01 1 1005- ● ●
83 SHIM; OUTPUT SHAFT
T=0.50 		8-97326-903-0 02 1 0804-1004 ●
83 SHIM; OUTPUT SHAFT
T=0.50 		8-97326-903-0 02 1 1005- ● ●
83 SHIM; OUTPUT SHAFT
T=0.40 		8-97326-904-0 01 1 0804-1004 ●
83 SHIM; OUTPUT SHAFT
T=0.40 		8-97326-904-0 01 1 1005- ● ●
83 SHIM; OUTPUT SHAFT
T=0.35 		8-97326-905-0 01 1 0804-1004 ●
83 SHIM; OUTPUT SHAFT
T=0.35 		8-97326-905-0 01 1 1005- ● ●
83 SHIM; OUTPUT SHAFT
T=0.30 		8-97326-906-0 01 1 0804-1004 ●
83 SHIM; OUTPUT SHAFT
T=0.30 		8-97326-906-0 01 1 1005- ● ●
83 SHIM; OUTPUT SHAFT
T=0.25 		8-97326-907-0 01 1 0804-1004 ●
83 SHIM; OUTPUT SHAFT
T=0.25 		8-97326-907-0 01 1 1005- ● ●
84 COVER; DUST 8-97326-891-0 01 1 0804-1004 ●
84 COVER; DUST 8-97326-891-0 01 1 1005- ● ●
143 SEAL; OIL 8-97326-889-0 01 1 0804-1004 ●
143 SEAL; OIL 8-97326-889-0 01 1 1005- ● ●
