◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE ▶
2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#32970) — 38 parça

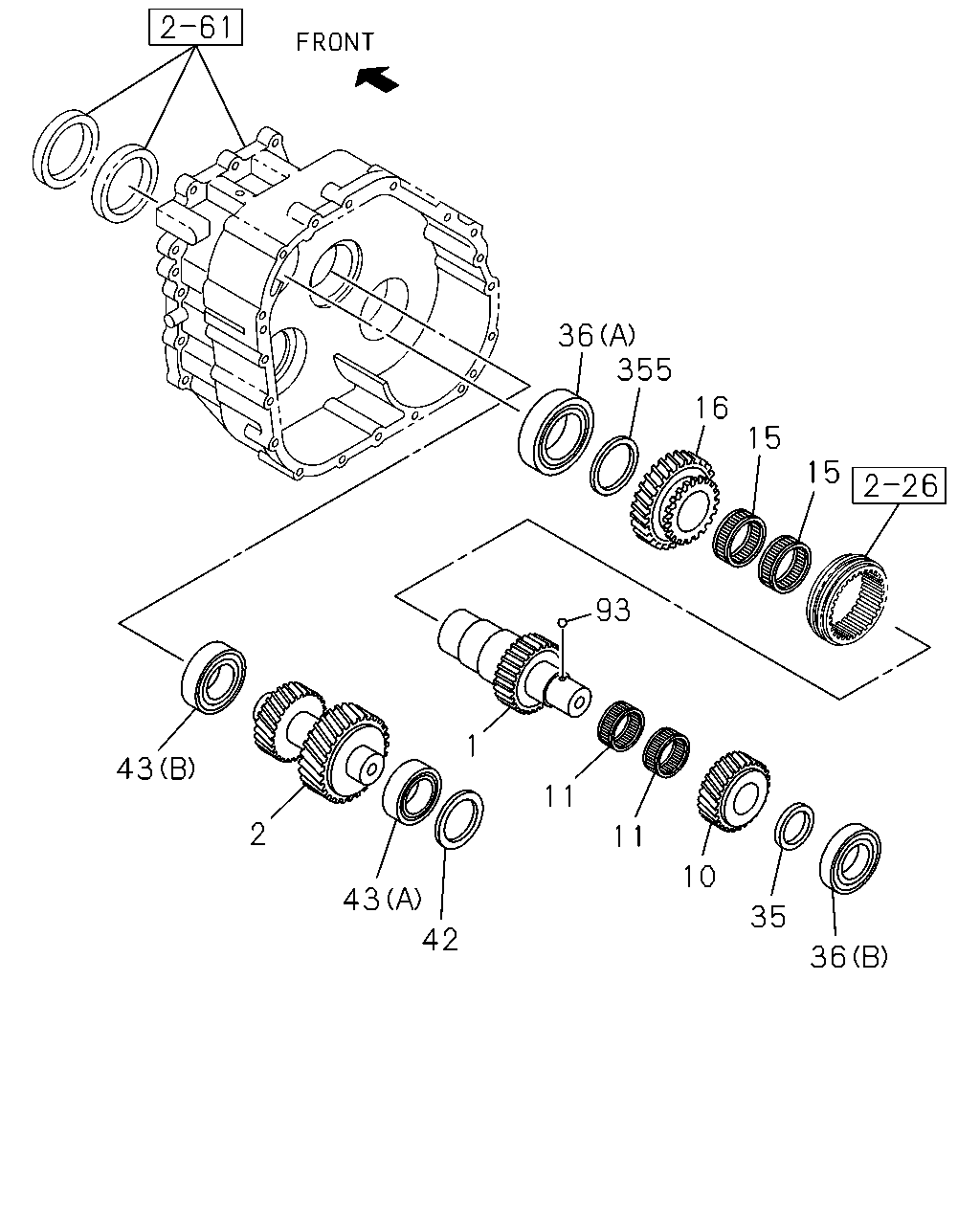

çizim 121870
36 355 16 15 15 93 1 43 11 2 11 10 43 35 42 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; GEAR,INPUT 8-97326-946-0 01 1 0804-1004 ●
1 SHAFT; GEAR,INPUT 8-97326-946-0 01 1 1005- ● ●
2 SHAFT; GEAR,IDLE 8-97326-921-0 01 1 0804-1004 ●
2 SHAFT; GEAR,IDLE 8-97326-921-0 01 1 1005- ● ●
10 GEAR; INPUT,LOW 8-98000-326-0 01 1 0804-1004 ●
10 GEAR; INPUT,LOW 8-98000-326-0 01 1 1005- ● ●
11 BEARING; LOW GEAR,TRANSFER 8-97351-791-0 02 1 0804-1004 ●
11 BEARING; LOW GEAR,TRANSFER 8-97351-791-0 02 1 1005- ● ●
15 BEARING; HIGH GEAR,TRANSFER 8-97326-943-0 02 1 0804-1004 ●
15 BEARING; HIGH GEAR,TRANSFER 8-97326-943-0 02 1 1005- ● ●
16 GEAR; INPUT,HIGH 8-97326-944-0 01 1 0804-1004 ●
16 GEAR; INPUT,HIGH 8-97326-944-0 01 1 1005- ● ●
35 WASHER; THRUST,LOW GEAR,TRANSFER 8-97326-937-0 01 1 0804-1004 ●
35 WASHER; THRUST,LOW GEAR,TRANSFER 8-97326-937-0 01 1 1005- ● ●
36 BEARING; IDLE SHAFT,TRANSFER
(B) 		8-97326-935-0 01 1 0804-1004 ●
36 BEARING; IDLE SHAFT,TRANSFER
(B) 		8-97326-935-0 01 1 1005- ● ●
36 BEARING; IDLE SHAFT,TRANSFER
(A) 		8-97326-936-0 01 1 0804-1004 ●
36 BEARING; IDLE SHAFT,TRANSFER
(A) 		8-97326-936-0 01 1 1005- ● ●
42 SHIM; IDLE SHAFT BRG
T=0.18 		8-97326-912-0 01 1 0804-1004 ●
42 SHIM; IDLE SHAFT BRG
T=0.18 		8-97326-912-0 01 1 1005- ● ●
42 SHIM; IDLE SHAFT BRG
T=0.50 		8-97326-913-0 02 1 0804-1004 ●
42 SHIM; IDLE SHAFT BRG
T=0.50 		8-97326-913-0 02 1 1005- ● ●
42 SHIM; IDLE SHAFT BRG
T=0.40 		8-97326-914-0 01 1 0804-1004 ●
42 SHIM; IDLE SHAFT BRG
T=0.40 		8-97326-914-0 01 1 1005- ● ●
42 SHIM; IDLE SHAFT BRG
T=0.35 		8-97326-915-0 01 1 0804-1004 ●
42 SHIM; IDLE SHAFT BRG
T=0.35 		8-97326-915-0 01 1 1005- ● ●
42 SHIM; IDLE SHAFT BRG
T=0.30 		8-97326-916-0 01 1 0804-1004 ●
42 SHIM; IDLE SHAFT BRG
T=0.30 		8-97326-916-0 01 1 1005- ● ●
42 SHIM; IDLE SHAFT BRG
T=0.25 		8-97326-917-0 01 1 0804-1004 ●
42 SHIM; IDLE SHAFT BRG
T=0.25 		8-97326-917-0 01 1 1005- ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) 		8-97326-919-0 01 1 0804-1004 ●
43 BEARING; ROLLER,IDLE SHAFT
(A) 		8-97326-919-0 01 1 1005- ● ●
43 BEARING; ROLLER,IDLE SHAFT
(B) 		8-97326-920-0 01 1 0804-1004 ●
43 BEARING; ROLLER,IDLE SHAFT
(B) 		8-97326-920-0 01 1 1005- ● ●
93 BALL; INPUT SHAFT 8-97328-680-0 01 1 0804-1004 ●
93 BALL; INPUT SHAFT 8-97328-680-0 01 1 1005- ● ●
355 WASHER; THRUST,INPUT SHAFT 8-97326-942-0 01 1 0804-1004 ●
355 WASHER; THRUST,INPUT SHAFT 8-97326-942-0 01 1 1005- ● ●
