◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#32968) — 58 parça

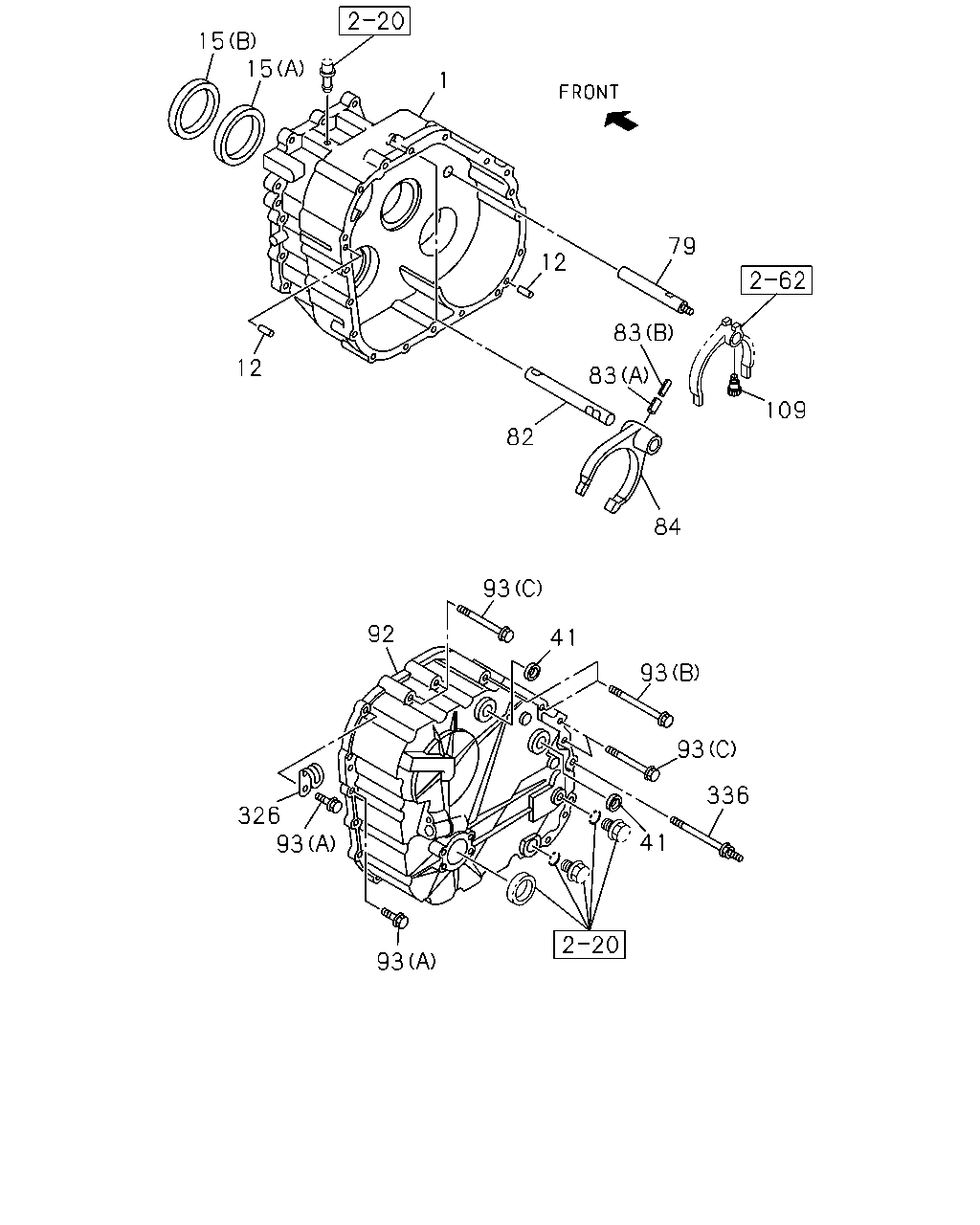

çizim 121857
15 15 1 79 12 83 12 83 109 82 84 93 92 41 93 93 336 326 93 41 93
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER 8-98072-450-1 01 1 0804-1004 ●
1 CASE; TRANSFER 8-98072-450-1 01 1 1005- ● ●
12 PIN; STRAIGHT,TRANSFER CASE 8-97326-880-0 02 1 0804-1004 ●
12 PIN; STRAIGHT,TRANSFER CASE 8-97326-880-0 02 1 1005- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
(A) 		8-97326-934-0 02 1 0804-1004 ●
15 SEAL; OIL,INPUT & FRT OUTPUT
(A) 		8-97326-934-0 02 1 1005- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
(B) 		8-97327-114-0 01 1 0804-1004 ●
15 SEAL; OIL,INPUT & FRT OUTPUT
(B) 		8-97327-114-0 01 1 1005- ● ●
41 SEAL; OIL,SHIFT ROD 8-97326-887-0 02 1 0804-1004 ●
41 SEAL; OIL,SHIFT ROD 8-97326-887-0 02 1 1005- ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 8-97357-217-0 01 1 0804-1004 ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 8-97357-217-0 01 1 1005- ● ●
82 ROD; SHIFT,LOW & HIGH 8-98072-454-0 01 1 0804-1004 ●
82 ROD; SHIFT,LOW & HIGH 8-98072-454-0 01 1 1005- ● ●
83 PIN; SPRING,LOW-HIGH,SHIFT BLOCK
(B) 		8-97326-931-0 01 1 0804-1004 ●
83 PIN; SPRING,LOW-HIGH,SHIFT BLOCK
(B) 		8-97326-931-0 01 1 1005- ● ●
83 PIN; SPRING,LOW-HIGH,SHIFT BLOCK
(A) 		8-97326-932-0 01 1 0804-1004 ●
83 PIN; SPRING,LOW-HIGH,SHIFT BLOCK
(A) 		8-97326-932-0 01 1 1005- ● ●
84 FORK; SHIFT,LOW & HIGH 8-98072-455-0 01 1 0804-1004 ●
84 FORK; SHIFT,LOW & HIGH 8-98072-455-0 01 1 1005- ● ●
92 COVER; RR,TRANSFER 8-98072-447-1 01 1 0804-1004 ●
92 COVER; RR,TRANSFER 8-98072-447-1 01 1 1005- ● ●
93 BOLT; TRANSFER CASE TO RR COVER
(B) M10X100 FLANGE 		8-97326-881-0 02 1 0804-1004 ●
93 BOLT; TRANSFER CASE TO RR COVER
(B) M10X100 FLANGE 		8-97326-881-0 02 1 1005- ● ●
93 BOLT; TRANSFER CASE TO RR COVER
(C) M10X70 FLANGE 		8-97326-882-0 04 1 0804-1004 ●
93 BOLT; TRANSFER CASE TO RR COVER
(C) M10X70 FLANGE 		8-97326-882-0 04 1 1005- ● ●
93 BOLT; TRANSFER CASE TO RR COVER
(A) M10X40 FLANGE 		8-97326-883-0 11 1 0804-1004 ●
93 BOLT; TRANSFER CASE TO RR COVER
(A) M10X40 FLANGE 		8-97326-883-0 11 1 1005- ● ●
109 BOLT; TAPER,TRANSFER CASE 1-09052-034-2 01 1 0804-1004 ●
109 BOLT; TAPER,TRANSFER CASE 1-09052-034-2 01 1 1005- ● ●
326 CLIP; HARNESS
ID=8 		8-97329-633-0 01 1 0804-1004 ●
326 CLIP; HARNESS
ID=8 		8-97329-633-0 01 1 1005- ● ●
336 STUD; CASE 8-98098-017-0 01 1 0804-1004 ●
336 STUD; CASE 8-98098-017-0 01 1 1005- ● ●

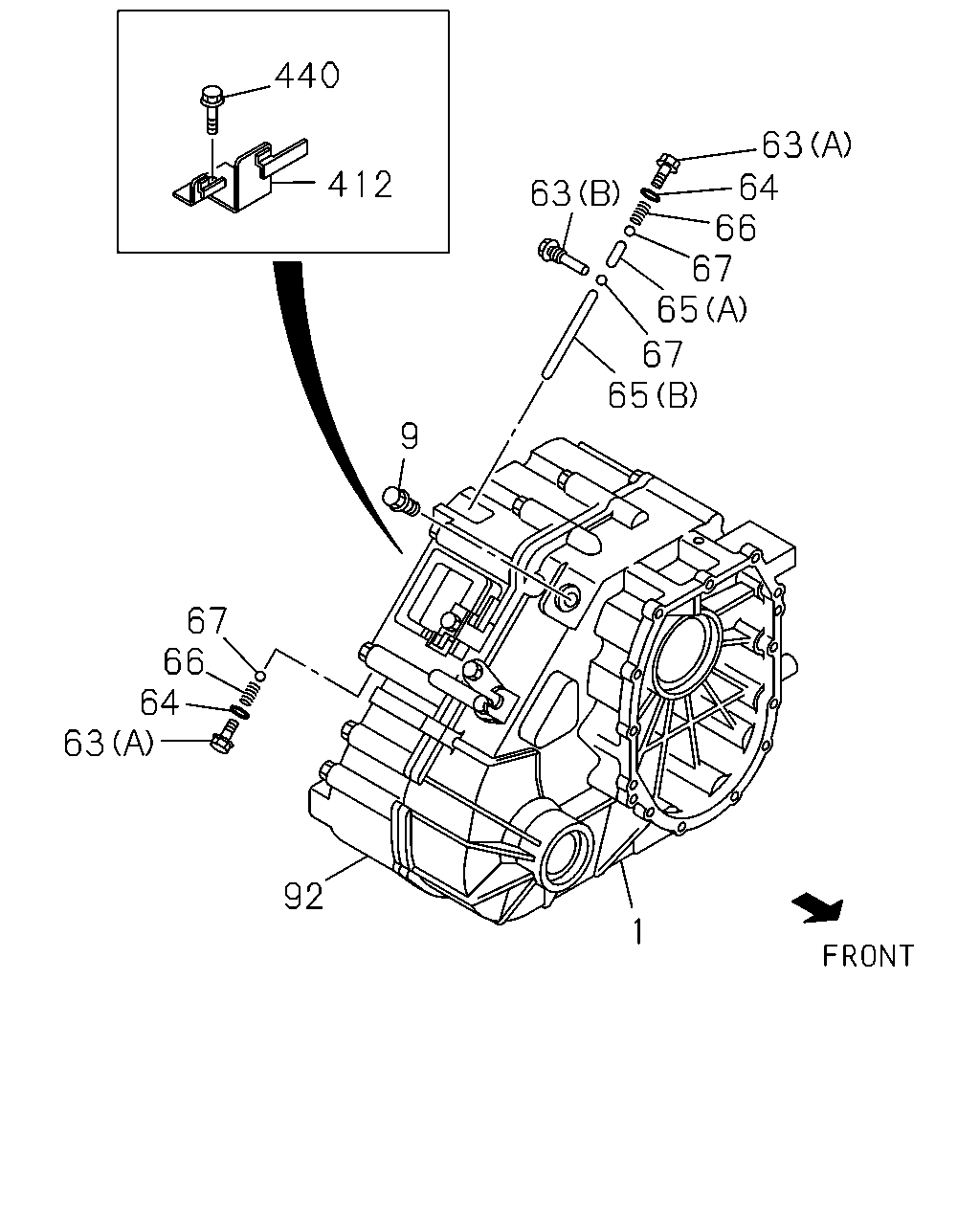

çizim 121872
440 63 64 66 67 65 412 63 67 65 9 67 66 64 63 92 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER 8-98072-450-1 01 1 0804-1004 ●
1 CASE; TRANSFER 8-98072-450-1 01 1 1005- ● ●
9 SWITCH; TRANSFER 8-98023-051-0 01 1 0804-1004 ●
9 SWITCH; TRANSFER 8-98023-051-0 01 1 1005- ● ●
63 PLUG; DETENT SPRING
(A) 		8-97326-926-0 02 1 0804-1004 ●
63 PLUG; DETENT SPRING
(A) 		8-97326-926-0 02 1 1005- ● ●
63 PLUG; DETENT SPRING
(B) 		8-98072-453-0 01 1 0804-1004 ●
63 PLUG; DETENT SPRING
(B) 		8-98072-453-0 01 1 1005- ● ●
64 GASKET; DETENT SPRING PLUG 8-97326-925-0 02 1 0804-1004 ●
64 GASKET; DETENT SPRING PLUG 8-97326-925-0 02 1 1005- ● ●
65 ROD; INTER LOCK,SHIFT ROD
(A) 		8-98072-451-0 01 1 0804-1004 ●
65 ROD; INTER LOCK,SHIFT ROD
(A) 		8-98072-451-0 01 1 1005- ● ●
65 ROD; INTER LOCK,SHIFT ROD
(B) 		8-98072-452-0 01 1 0804-1004 ●
65 ROD; INTER LOCK,SHIFT ROD
(B) 		8-98072-452-0 01 1 1005- ● ●
66 SPRING; DETENT,SHIFT ROD 8-97326-927-0 02 1 0804-1004 ●
66 SPRING; DETENT,SHIFT ROD 8-97326-927-0 02 1 1005- ● ●
67 BALL; DETENT,SHIFT ROD,TRANSFER 8-97326-928-0 03 1 0804-1004 ●
67 BALL; DETENT,SHIFT ROD,TRANSFER 8-97326-928-0 03 1 1005- ● ●
92 COVER; RR,TRANSFER 8-98072-447-1 01 1 0804-1004 ●
92 COVER; RR,TRANSFER 8-98072-447-1 01 1 1005- ● ●
412 BRACKET; SW CONN 8-97327-662-1 01 1 0804-1004 ●
412 BRACKET; SW CONN 8-97327-662-1 01 1 1005- ● ●
440 BOLT; W/WASHER 8-98072-445-0 01 1 0804-1004 ●
440 BOLT; W/WASHER 8-98072-445-0 01 1 1005- ● ●
