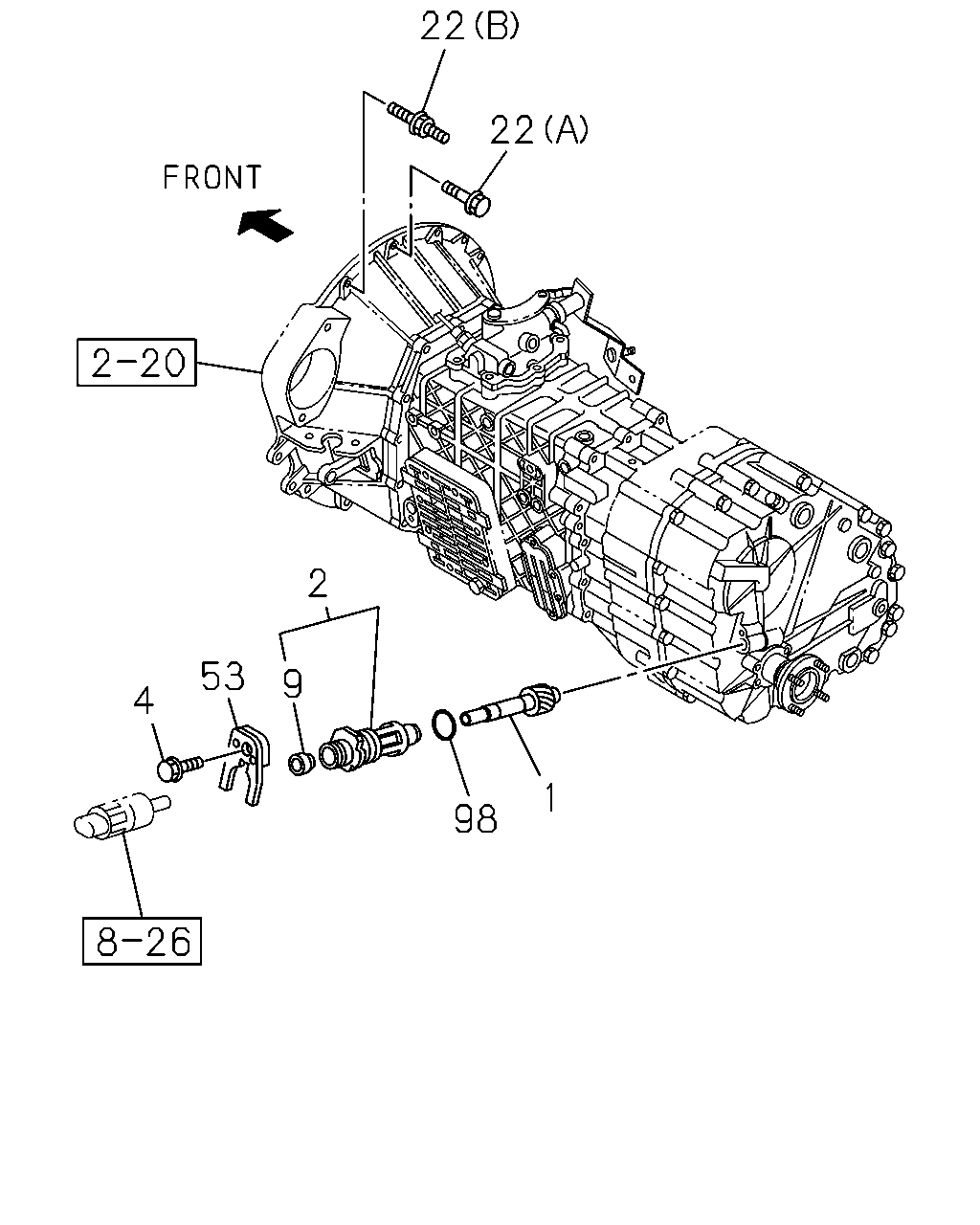

2-25 — SPEEDOMETER DRIVEN GEAR (#32963) — 29 parça

22 22 2 53 9 4 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) Z=14	8-97253-561-1	01	1	0804-0809	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) Z=14	8-97253-561-1	01	1	0810-1004	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) Z=14	8-97253-561-1	01	1	1005-	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) Z=13	8-97253-562-1	01	1	0804-0809	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) Z=13	8-97253-562-1	01	1	0810-1004	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) Z=13	8-97253-562-1	01	1	1005-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) MARK "12,13,14,15"	8-97253-125-0	01	1	0804-0809	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) MARK "12,13,14,15"	8-97253-125-0	01	1	0810-1004	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) MARK "12,13,14,15"	8-97253-125-0	01	1	1005-	●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28650-820-0	01	1	0804-1004	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28650-820-0	01	1	1005-	●	●
9	SEAL; OIL,DRIVEN GEAR FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) NOK	8-97131-328-1	01	1	0804-0809	●
9	SEAL; OIL,DRIVEN GEAR FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) NOK	8-97131-328-1	01	1	0810-1004	●
9	SEAL; OIL,DRIVEN GEAR FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) NOK	8-97131-328-1	01	1	1005-	●	●
22	BOLT; TRANS CASE TO ENG (A) M10X30 FLANGE	0-28151-030-0	02	1	0804-1004	●
22	BOLT; TRANS CASE TO ENG (A) M10X30 FLANGE	0-28151-030-0	02	1	0804-1004	●
22	BOLT; TRANS CASE TO ENG (A) M10X30 FLANGE	0-28151-030-0	02	1	1005-	●	●
22	BOLT; TRANS CASE TO ENG (A) M10X30 FLANGE	0-28151-030-0	02	1	1005-	●	●
22	BOLT; TRANS CASE TO ENG (A) M10X35 FLANGE	0-28151-035-0	01	1	0804-1004	●
22	BOLT; TRANS CASE TO ENG (A) M10X35 FLANGE	0-28151-035-0	01	1	1005-	●	●
22	BOLT; TRANS CASE TO ENG (A) M10X50 FLANGE	0-28151-050-0	02	1	0804-1004	●
22	BOLT; TRANS CASE TO ENG (A) M10X50 FLANGE	0-28151-050-0	02	1	1005-	●	●
22	BOLT; TRANS CASE TO ENG (B) M10X35 L=65	8-97178-725-0	02	1	0804-1004	●
22	BOLT; TRANS CASE TO ENG (B) M10X35 L=65	8-97178-725-0	02	1	1005-	●	●
53	PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	0804-1004	●
53	PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	1005-	●	●
98	SEAL; OIL,BUSH FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V)	9-09561-324-0	01	1	0804-0809	●
98	SEAL; OIL,BUSH FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	9-09561-324-0	01	1	0810-1004	●
98	SEAL; OIL,BUSH FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	9-09561-324-0	01	1	1005-	●	●
