Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

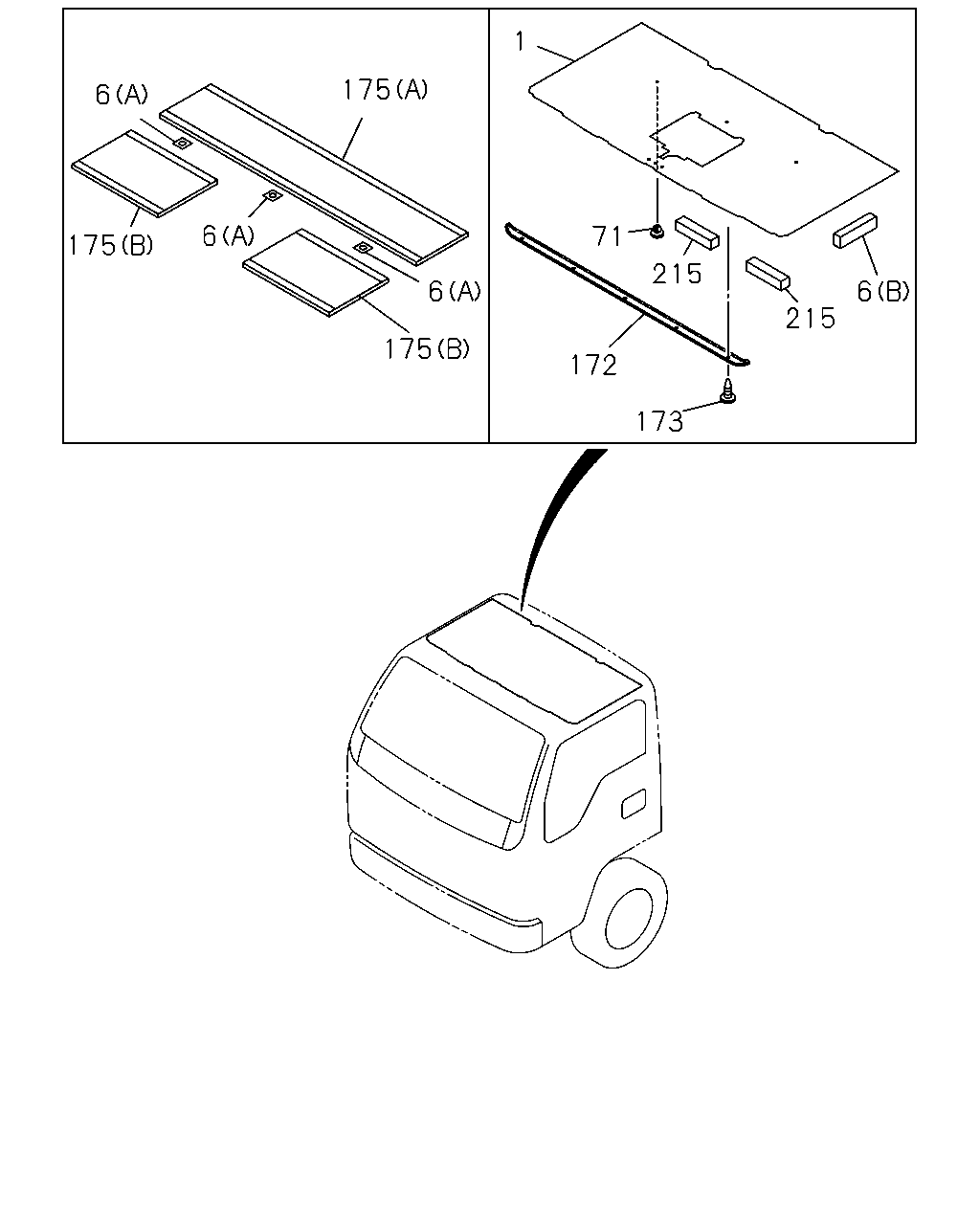

6-66 — HEAD LINING AND TRIM
(#32950) — 14 parça
1
175
6
6
71
175
215
6
6
215
175
172
173
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-646-3
01
1
0609-
1
LINING; HD
ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-645-3
01
1
0609-
1
LINING; HD
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-644-3
01
1
0609-
1
LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY
8-97859-861-4
01
1
0609-
6
SPACER; HD LINING
(A)
8-94353-014-0
03
1
0609-
6
SPACER; HD LINING
(B) H=10 L=55
8-97410-832-0
02
1
0609-
71
FASTENER; HD LINING
LIGHT GRAY
8-97867-230-2
03
1
0609-0610
71
FASTENER; HD LINING
DARK GRAY
8-97405-301-2
03
1
0611-
172
RETAINER; HEAD LINING
LIGHT GRAY
8-97867-191-4
01
1
0609-
173
CLIP; RETAINER,HEAD LINING
LIGHT GRAY, D6.8X11 PUSH RIVET
8-97867-240-0
04
1
0609-0708
173
CLIP; RETAINER,HEAD LINING
DARK GRAY
8-97406-299-0
04
1
0709-
175
CUSHION; HEAD LINING
(B)
8-97856-791-4
02
1
0609-
175
CUSHION; HEAD LINING
(A)
8-97856-792-4
01
1
0609-
215
CUSHION; TRAY BACK PANEL
ROOF VENTILATOR<C55> L=100
8-97866-625-0
02
1
0609-
