2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#3295) — 100 parça

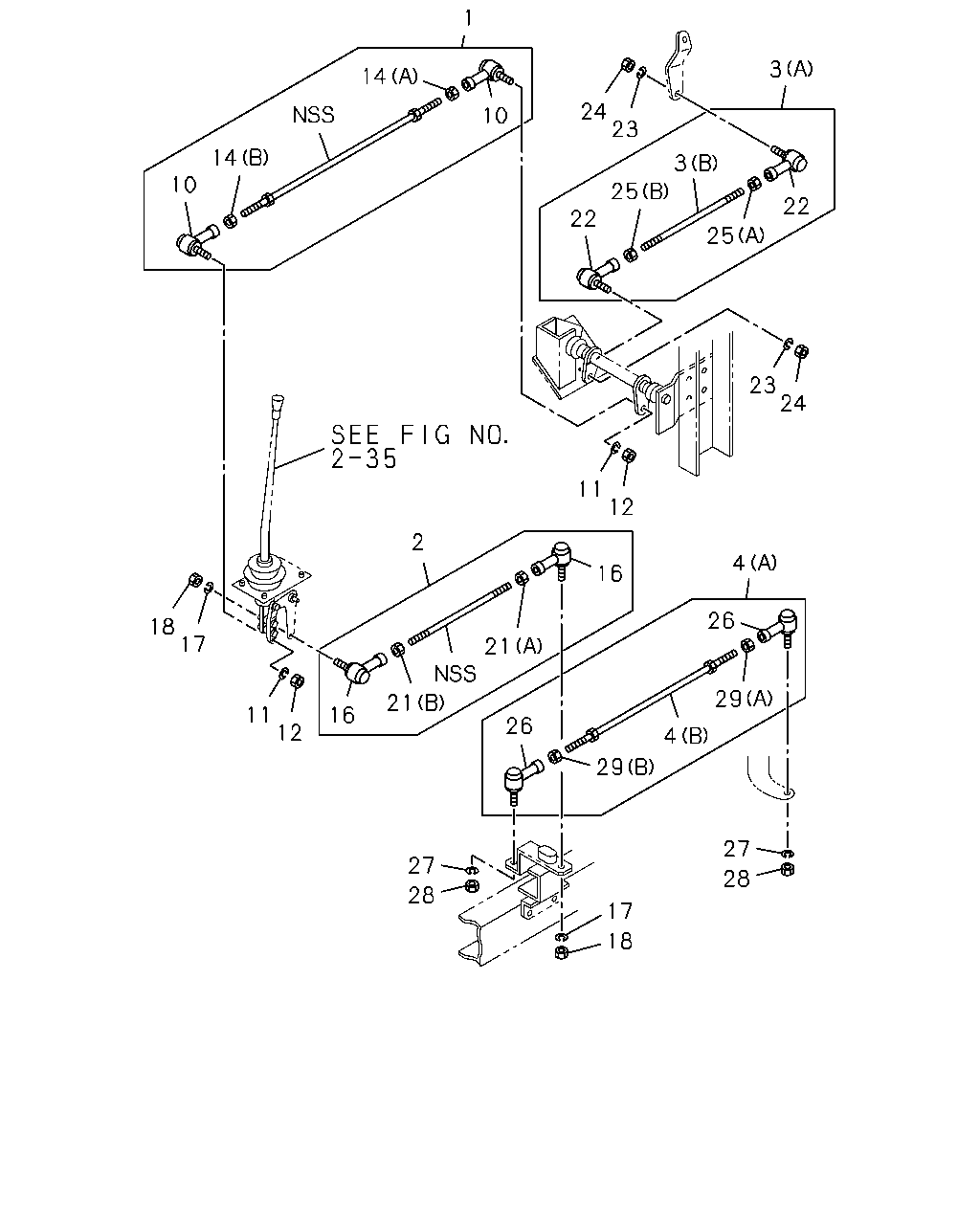

1 3 14 24 23 10 14 3 10 25 22 22 25 23 24 11 12 2 4 16 26 18 17 21 29 21 16 11 26 12 4 29 27 27 28 28 17 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ROD; LINK,1ST SHIFT RIGHT HAND DRIVE(MRR5FB) L=792	1-33660-813-0	01	1	9101-	●	●	●
1	ROD; LINK,1ST SHIFT LEFT HAND DRIVE(MRR6FB) L=725	1-33660-814-0	01	1	9101-	●	●	●
2	ROD; LINK,1ST SELECT RIGHT HAND DRIVE(MRR5FB) L=120	1-33660-820-0	01	1	9101-	●	●	●
2	ROD; LINK,1ST SELECT LEFT HAND DRIVE(MRR6FB) L=427	1-33660-815-0	01	1	9101-	●	●	●
3	ROD; LINK,2ND SHIFT RIGHT HAND DRIVE(MRR5FB) (B) L=210	1-09765-061-0	01	1	9101-	●	●	●
3	ROD; LINK,2ND SHIFT RIGHT HAND DRIVE(MRR5FB) (A) L=266	1-33660-821-0	01	1	9101-	●	●	●
3	ROD; LINK,2ND SHIFT LEFT HAND DRIVE(MRR6FB) (B) L=270	1-09765-145-0	01	1	9101-	●	●	●
3	ROD; LINK,2ND SHIFT LEFT HAND DRIVE(MRR6FB) (A) L=327 L=327	1-33660-748-0	01	1	9101-	●	●	●
4	ROD; LINK,2ND SELECT RIGHT HAND DRIVE(MRR5FB) (B)	1-33652-362-0	01	1	9101-	●	●	●
4	ROD; LINK,2ND SELECT RIGHT HAND DRIVE(MRR5FB) (A) L=451	1-33660-812-0	01	1	9101-	●	●	●
4	ROD; LINK,2ND SELECT LEFT HAND DRIVE(MRR6FB) (B) L=580	1-33652-519-0	01	1	9101-	●	●	●
4	ROD; LINK,2ND SELECT LEFT HAND DRIVE(MRR6FB) (A) L=633	1-33660-816-0	01	1	9101-	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-086-0	01	1	9101-	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-085-0	01	1	9101-	●	●	●
11	WASHER; LK,1ST LINK ROD,SHIFT	9-09150-510-0	02	1	9101-9301	●	●	●
12	NUT; 1ST LINK ROD,SHIFT	9-09110-410-0	02	1	9101-9301	●	●	●
12	NUT; 1ST LINK ROD,SHIFT	1-09440-050-0	02	1	9302-9710	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-	●	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD (B) M10 LH THREAD	1-09400-017-0	01	1	9101-	●	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	01	1	9101-	●	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-086-0	01	1	9101-	●	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-085-0	01	1	9101-	●	●	●
17	WASHER; LK,1ST LINK ROD	9-09150-510-0	02	1	9101-9301	●	●	●
18	NUT; 1ST LINK ROD	9-09110-410-0	02	1	9101-9301	●	●	●
18	NUT; 1ST LINK ROD	1-09440-050-0	02	1	9302-9710	●	●	●
18	NUT; 1ST LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-	●	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD (B) M10 LH THREAD	1-09400-017-0	01	1	9101-	●	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	01	1	9101-	●	●	●
22	JOINT; BALL,SCREW,LINK ROD RH THREAD	1-09760-085-0	01	1	9101-	●	●	●
22	JOINT; BALL,SCREW,LINK ROD LH THREAD	1-09760-086-0	01	1	9101-	●	●	●
23	WASHER; LK,2ND LINK ROD	9-09150-510-0	02	1	9101-9301	●	●	●
24	NUT; 2ND LINK ROD,SHIFT	9-09110-410-0	02	1	9101-9301	●	●	●
24	NUT; 2ND LINK ROD,SHIFT	1-09440-050-0	02	1	9302-9710	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10 LH THREAD	1-09400-017-0	01	1	9101-	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	01	1	9101-	●	●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD RH THREAD	1-09760-085-0	01	1	9101-	●	●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD LH THREAD	1-09760-086-0	01	1	9101-	●	●	●
27	WASHER; LK,2ND LINK ROD	9-09150-510-0	02	1	9101-9301	●	●	●
28	NUT; 2ND LINK ROD	9-09110-410-0	02	1	9101-9301	●	●	●
28	NUT; 2ND LINK ROD	1-09440-050-0	02	1	9302-9710	●	●	●
28	NUT; 2ND LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-	●	●	●
29	NUT; LK,RIGHT SCREW,LINK ROD (B) M10 LH THREAD	1-09400-017-0	01	1	9101-	●	●	●
29	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	01	1	9101-	●	●	●

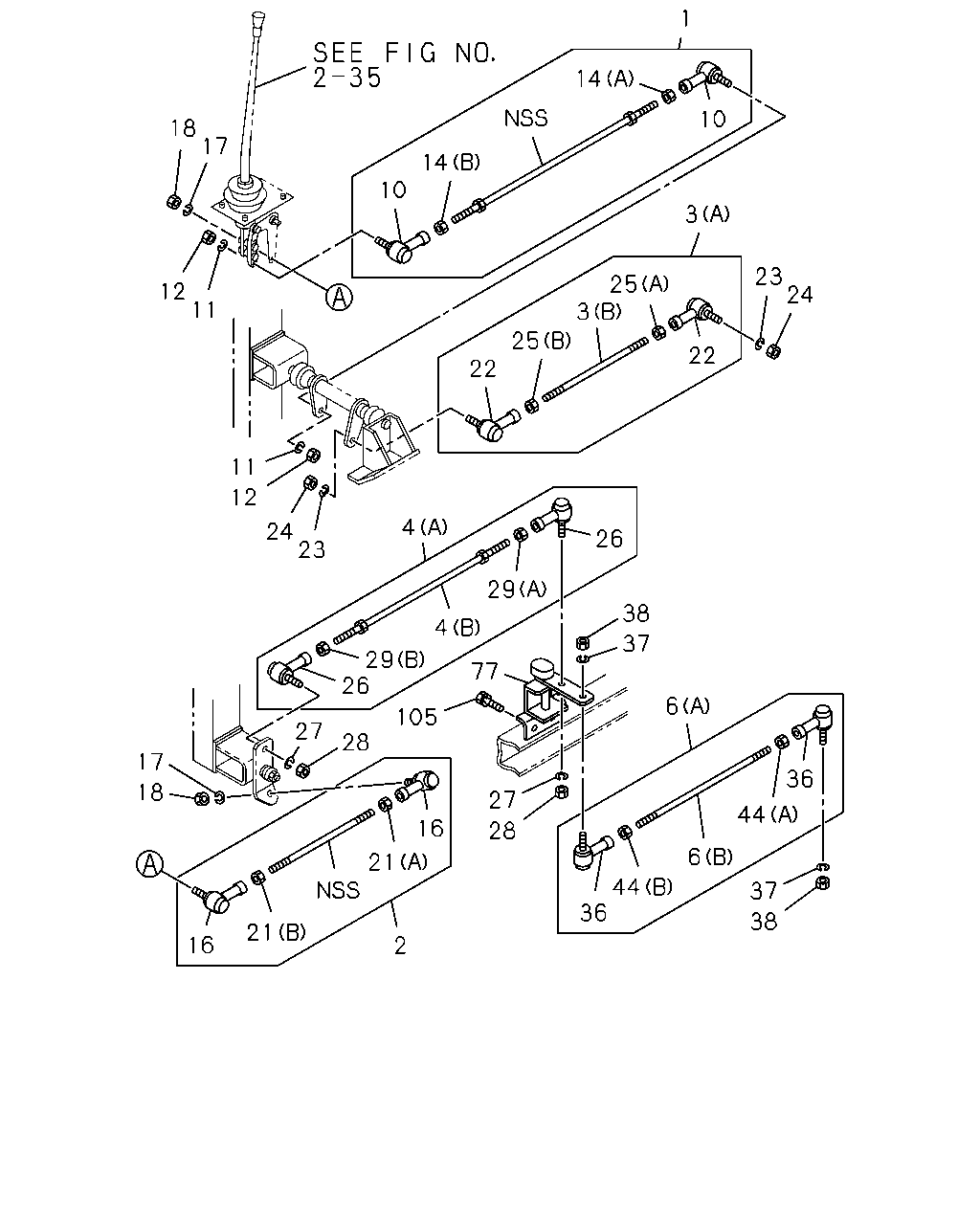

1 14 10 18 17 14 10 3 23 24 25 3 12 11 25 22 22 11 12 4 24 23 26 29 38 4 37 29 26 77 6 105 27 28 17 36 18 27 44 16 28 6 21 44 36 37 38 21 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ROD; LINK,1ST SHIFT RIGHT HAND DRIVE(MRR5FB) L=792	1-33660-813-0	01	1	9101-	●	●	●
1	ROD; LINK,1ST SHIFT LEFT HAND DRIVE(MRR6FB) L=725	1-33660-814-0	01	1	9101-	●	●	●
2	ROD; LINK,1ST SELECT RIGHT HAND DRIVE(MRR5FB) L=120	1-33660-820-0	01	1	9101-	●	●	●
2	ROD; LINK,1ST SELECT LEFT HAND DRIVE(MRR6FB) L=427	1-33660-815-0	01	1	9101-	●	●	●
3	ROD; LINK,2ND SHIFT RIGHT HAND DRIVE(MRR5FB) (B) L=210	1-09765-061-0	01	1	9101-	●	●	●
3	ROD; LINK,2ND SHIFT RIGHT HAND DRIVE(MRR5FB) (A) L=266	1-33660-821-0	01	1	9101-	●	●	●
3	ROD; LINK,2ND SHIFT LEFT HAND DRIVE(MRR6FB) (B) L=270	1-09765-145-0	01	1	9101-	●	●	●
3	ROD; LINK,2ND SHIFT LEFT HAND DRIVE(MRR6FB) (A) L=327 L=327	1-33660-748-0	01	1	9101-	●	●	●
4	ROD; LINK,2ND SELECT RIGHT HAND DRIVE(MRR5FB) (B)	1-33652-362-0	01	1	9101-	●	●	●
4	ROD; LINK,2ND SELECT RIGHT HAND DRIVE(MRR5FB) (A) L=451	1-33660-812-0	01	1	9101-	●	●	●
4	ROD; LINK,2ND SELECT LEFT HAND DRIVE(MRR6FB) (B) L=580	1-33652-519-0	01	1	9101-	●	●	●
4	ROD; LINK,2ND SELECT LEFT HAND DRIVE(MRR6FB) (A) L=633	1-33660-816-0	01	1	9101-	●	●	●
6	ROD; LINK,3RD SELECT RIGHT HAND DRIVE(MRR5FB) (B) L=375	1-09765-126-1	01	1	9101-	●	●	●
6	ROD; LINK,3RD SELECT RIGHT HAND DRIVE(MRR5FB) (A) L=424	1-33660-811-0	01	1	9101-	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-086-0	01	1	9101-	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-085-0	01	1	9101-	●	●	●
11	WASHER; LK,1ST LINK ROD,SHIFT	9-09150-510-0	02	1	9101-9301	●	●	●
12	NUT; 1ST LINK ROD,SHIFT	9-09110-410-0	02	1	9101-9301	●	●	●
12	NUT; 1ST LINK ROD,SHIFT	1-09440-050-0	02	1	9302-9710	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-	●	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD (B) M10 LH THREAD	1-09400-017-0	01	1	9101-	●	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	01	1	9101-	●	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-086-0	01	1	9101-	●	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-085-0	01	1	9101-	●	●	●
17	WASHER; LK,1ST LINK ROD	9-09150-510-0	02	1	9101-9301	●	●	●
18	NUT; 1ST LINK ROD	9-09110-410-0	02	1	9101-9301	●	●	●
18	NUT; 1ST LINK ROD	1-09440-050-0	02	1	9302-9710	●	●	●
18	NUT; 1ST LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-	●	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD (B) M10 LH THREAD	1-09400-017-0	01	1	9101-	●	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	01	1	9101-	●	●	●
22	JOINT; BALL,SCREW,LINK ROD RH THREAD	1-09760-085-0	01	1	9101-	●	●	●
22	JOINT; BALL,SCREW,LINK ROD LH THREAD	1-09760-086-0	01	1	9101-	●	●	●
23	WASHER; LK,2ND LINK ROD	9-09150-510-0	02	1	9101-9301	●	●	●
24	NUT; 2ND LINK ROD,SHIFT	9-09110-410-0	02	1	9101-9301	●	●	●
24	NUT; 2ND LINK ROD,SHIFT	1-09440-050-0	02	1	9302-9710	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10 LH THREAD	1-09400-017-0	01	1	9101-	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	01	1	9101-	●	●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD RH THREAD	1-09760-085-0	01	1	9101-	●	●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD LH THREAD	1-09760-086-0	01	1	9101-	●	●	●
27	WASHER; LK,2ND LINK ROD	9-09150-510-0	02	1	9101-9301	●	●	●
28	NUT; 2ND LINK ROD	9-09110-410-0	02	1	9101-9301	●	●	●
28	NUT; 2ND LINK ROD	1-09440-050-0	02	1	9302-9710	●	●	●
28	NUT; 2ND LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-	●	●	●
29	NUT; LK,RIGHT SCREW,LINK ROD (B) M10 LH THREAD	1-09400-017-0	01	1	9101-	●	●	●
29	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	01	1	9101-	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD RIGHT HAND DRIVE(MRR5FB)	1-09760-086-0	01	1	9101-	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD RIGHT HAND DRIVE(MRR5FB)	1-09760-085-0	01	1	9101-	●	●	●
37	WASHER; LK,3RD LINK ROD RIGHT HAND DRIVE(MRR5FB)	9-09150-510-0	02	1	9101-9301	●	●	●
38	NUT; 3RD LINK ROD RIGHT HAND DRIVE(MRR5FB)	9-09110-410-0	02	1	9101-9301	●	●	●
38	NUT; 3RD LINK ROD RIGHT HAND DRIVE(MRR5FB)	1-09440-050-0	02	1	9302-9710	●	●	●
38	NUT; 3RD LINK ROD RIGHT HAND DRIVE(MRR5FB) M10 FLANGE	1-09440-056-0	02	1	9711-	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD RIGHT HAND DRIVE(MRR5FB) (B) M10 LH THREAD	1-09400-017-0	01	1	9101-	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD RIGHT HAND DRIVE(MRR5FB) (A) M10	9-09111-410-0	01	1	9101-	●	●	●
77	LEVER; RELAY,2ND SELECT RIGHT HAND DRIVE(MRR5FB)	1-33660-517-0	01	1	9101-	●	●	●
105	BOLT; BRKT,2ND RELAY LEVER RIGHT HAND DRIVE(MRR5FB)	0-50041-020-0	02	1	9101-	●	●	●
