Isuzu WW
▶
BUSES
▶
MR
▶
10663 - MR
▶
2 - Clutch, Transmission, Trans Axle
▶

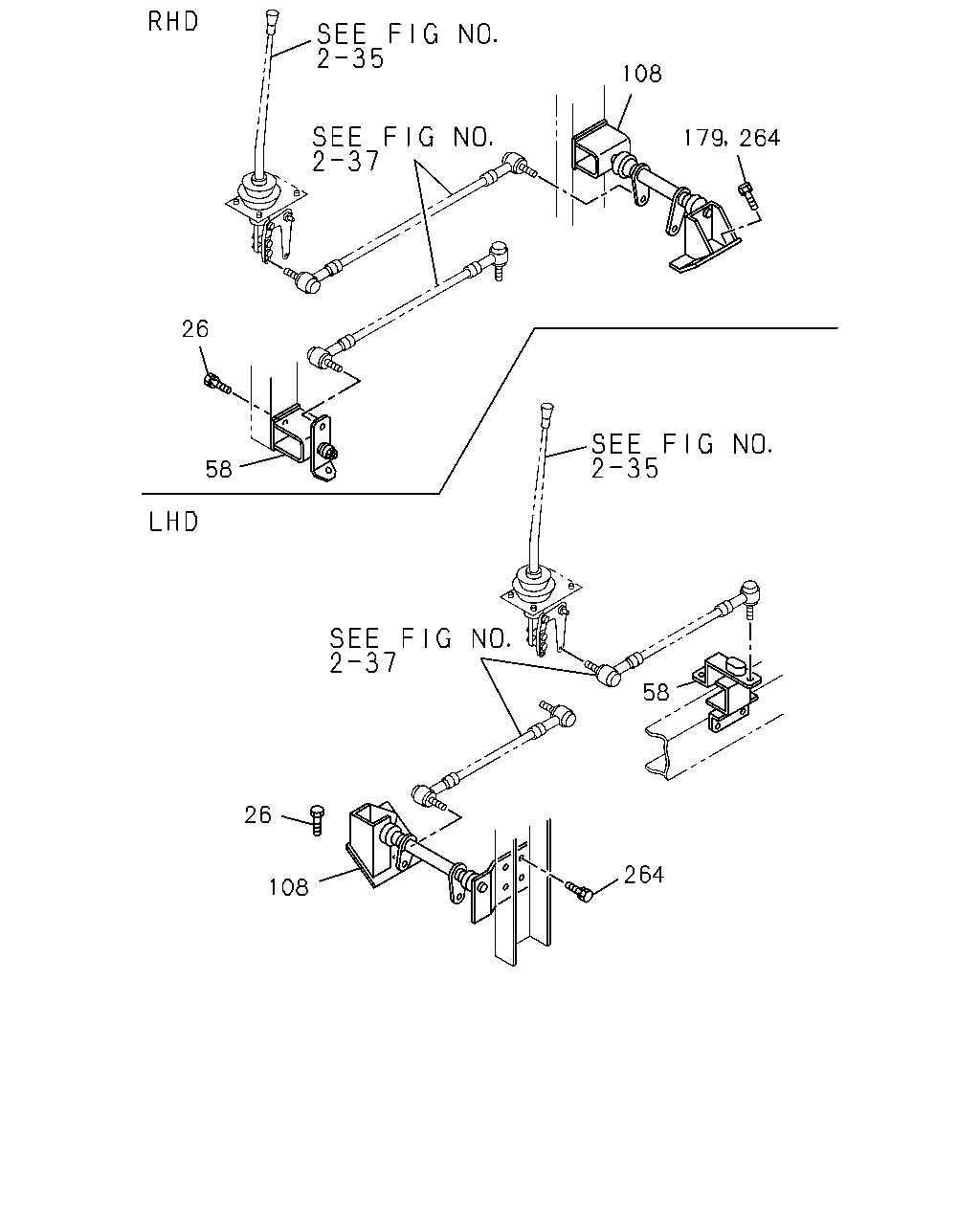

2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#3294) — 9 parça
Tümü
A - MBG5A M/T
B - MBG5Q M/T
C - MBG5R M/T
108
179
264
26
58
58
26
264
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
26
BOLT; RELAY LEVER,1ST
LEFT HAND DRIVE(MRR6FB)
0-50040-820-0
01
1
9101-
●
●
●
58
LEVER; RELAY,SELECT,1ST
RIGHT HAND DRIVE(MRR5FB)
1-33660-516-0
01
1
9101-
●
●
●
58
LEVER; RELAY,SELECT,1ST
LEFT HAND DRIVE(MRR6FB)
1-33660-417-0
01
1
9101-
●
●
●
108
LEVER; SHIFT,1ST CONT
RIGHT HAND DRIVE(MRR5FB)
1-33660-518-2
01
1
9101-
●
●
●
108
LEVER; SHIFT,1ST CONT
LEFT HAND DRIVE(MRR6FB)
1-33660-416-2
01
1
9101-
●
●
●
179
BOLT; BRKT,RELAY LEVER
RIGHT HAND DRIVE(MRR5FB)
0-50051-020-0
02
1
9101-
●
●
●
264
BOLT; BRKT,RELAY LEVER
M10X20 W/LK WASHER
0-50041-020-0
02
1
9101-
●
●
●
264
BOLT; BRKT,RELAY LEVER
RIGHT HAND DRIVE(MRR5FB) M10X25 W/LK WASHER
0-50041-025-0
02
1
9101-
●
●
●
264
BOLT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MRR6FB) M10X25 W/LK WASHER
0-50041-025-0
04
1
9101-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
