4-80 — ROAD WHEEL (#32931) — 36 parça

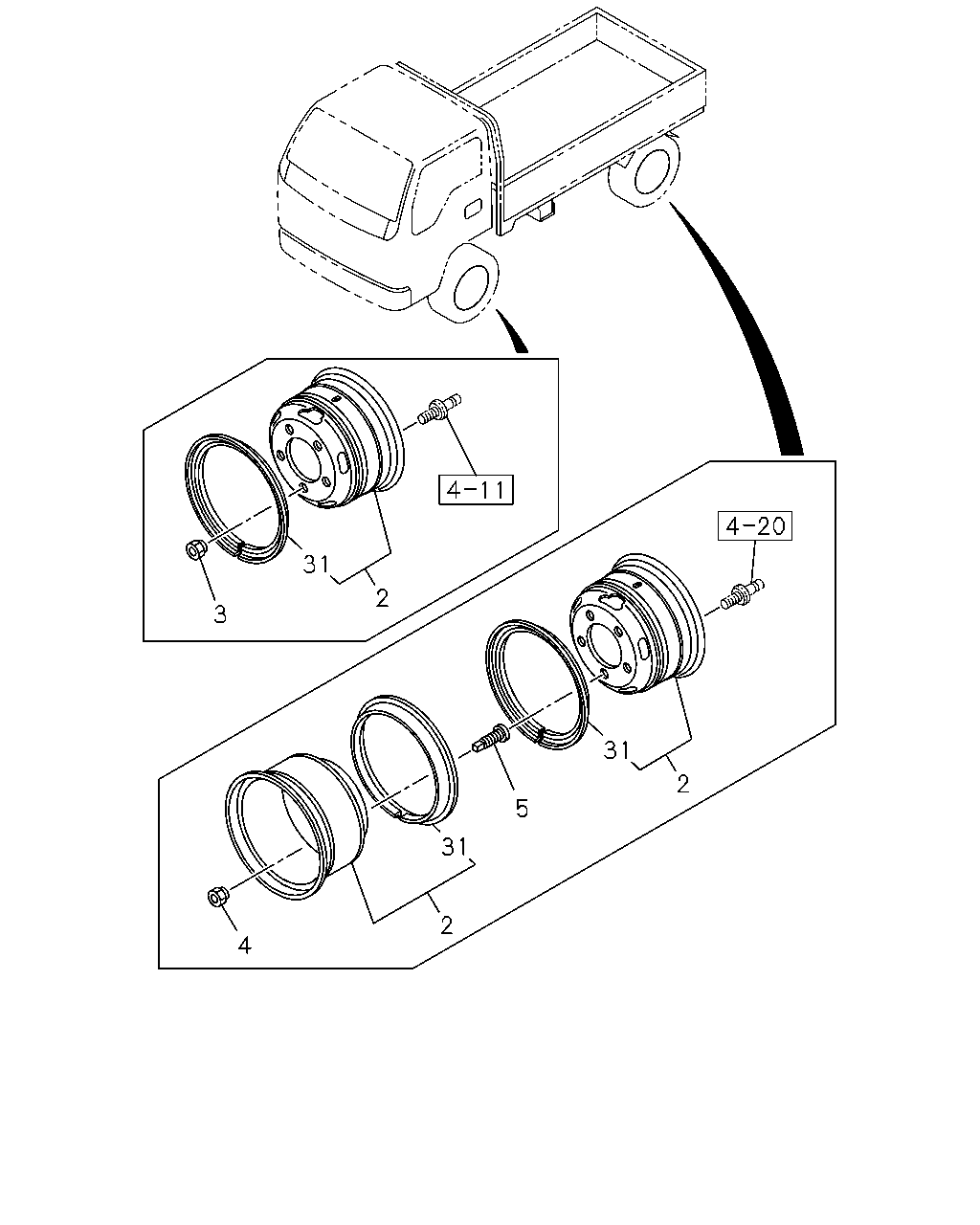

31 2 3 31 2 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	0609-0811
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	0812-
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	0609-0811
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	0812-
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0609-
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0609-
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	0609-0610
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0611-
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	0609-0610
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0611-
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-94365-146-0	05	1	0609-0610
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0611-
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-94365-145-0	05	1	0609-0610
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-94365-144-1	05	1	0609-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-94365-143-1	05	1	0609-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0611-
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0609-0811
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0812-
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	0609-0811
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	0812-
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0609-
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0609-

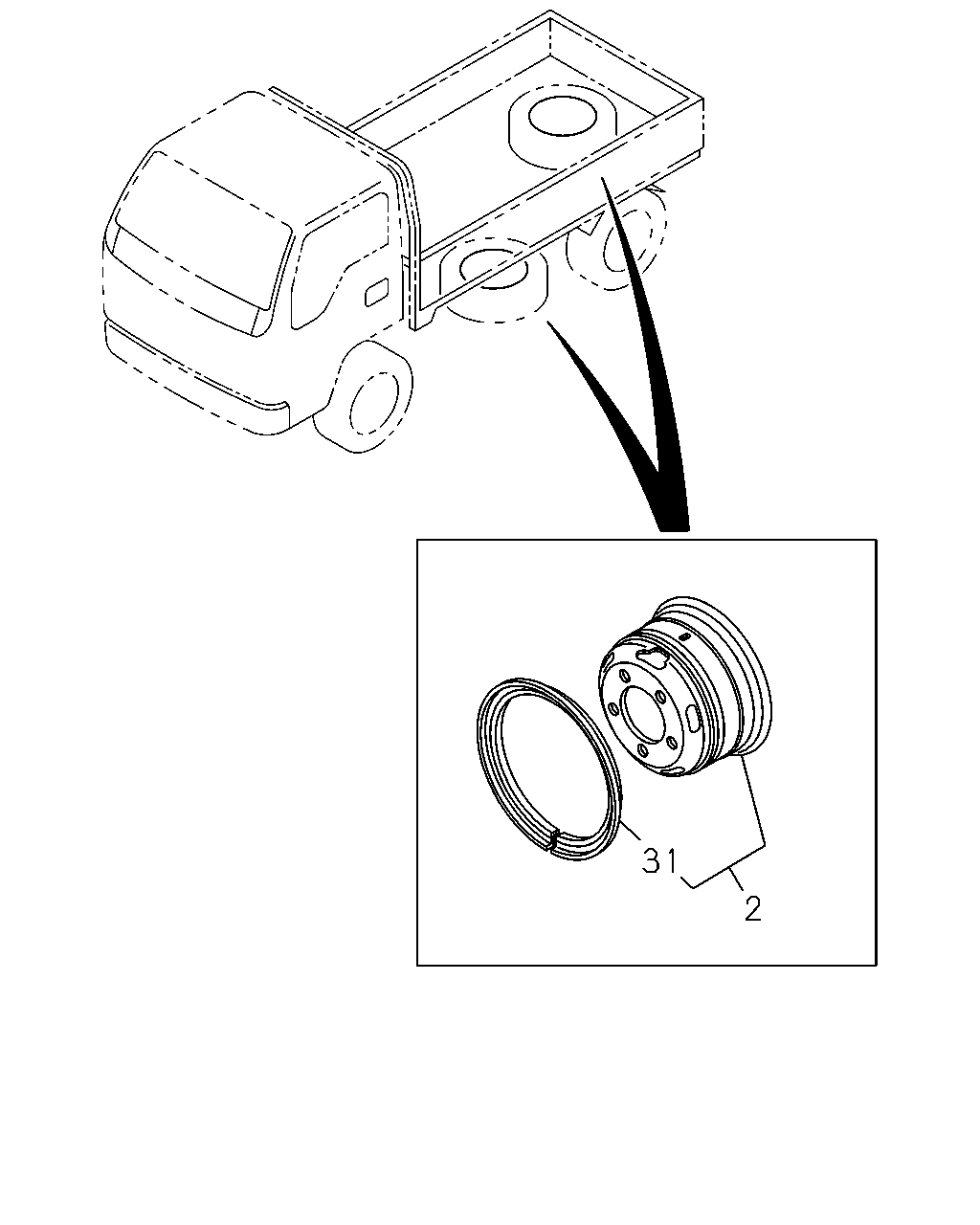

31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	0609-0811
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	0812-
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	0609-0811
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	0812-
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0609-
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0609-
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0609-0811
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0812-
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	0609-0811
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	0812-
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0609-
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0609-
