Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

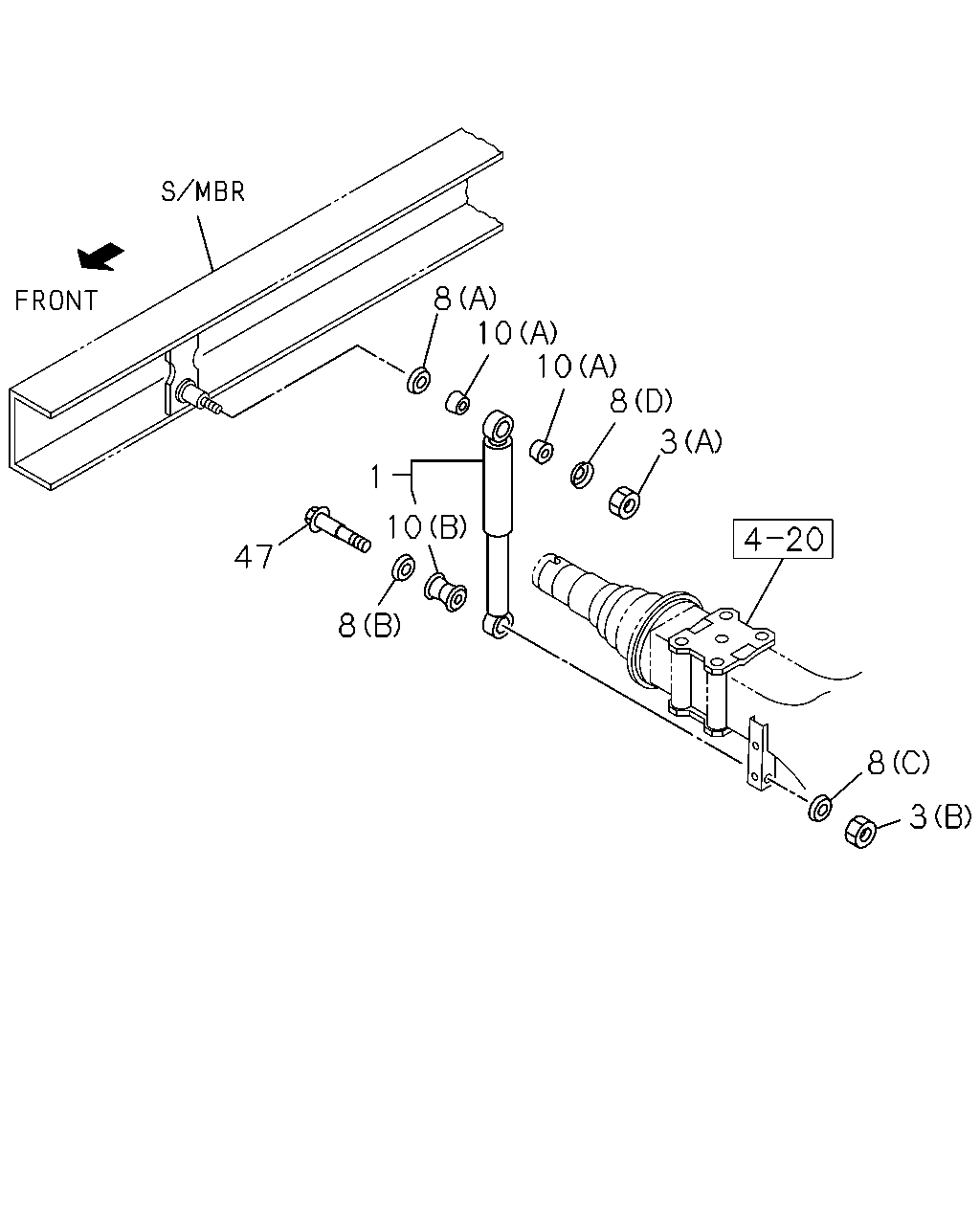

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#32929) — 17 parça
8
10
10
8
3
1
10
47
8
8
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
8-97253-651-2
02
1
0609-1506
1
ABSORBER ASM; SHOCK,RR
8-98316-233-0
02
1
1507-
1
ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS
5-87610-132-0
02
1
0609-1506
3
NUT; S/ABS
(A) M14
0-91111-514-0
02
1
0609-0612
3
NUT; S/ABS
(A) M14
0-91110-514-0
02
1
0701-
3
NUT; S/ABS
(B) M16
0-91111-516-0
02
1
0609-
8
WASHER; S/ABS
(B) ID=16.4
8-94137-482-1
02
1
0609-0610
8
WASHER; S/ABS
(B) ID=16.4
8-97360-118-0
02
1
0611-
8
WASHER; S/ABS
(C) ID=16.5
8-97070-925-1
02
1
0609-0611
8
WASHER; S/ABS
(C) ID=16.5
8-98011-489-0
02
1
0612-
8
WASHER; S/ABS
(D) ID=15.0
9-51679-012-0
02
1
0609-0611
8
WASHER; S/ABS
(D) ID=15
8-97360-056-0
02
1
0612-
8
WASHER; S/ABS
(A) ID=20.0
9-51679-013-0
02
1
0609-0611
8
WASHER; S/ABS
(A) ID=20.0
8-97360-057-0
02
1
0612-
10
BUSHING; RUBBER,S/ABS
(B) TOKICO
8-94382-149-0
02
1
0609-
10
BUSHING; RUBBER,S/ABS
(A) TOKICO
9-51631-014-0
04
1
0609-
47
PIN; S/ABS SETTING
8-97316-972-0
02
1
0609-
