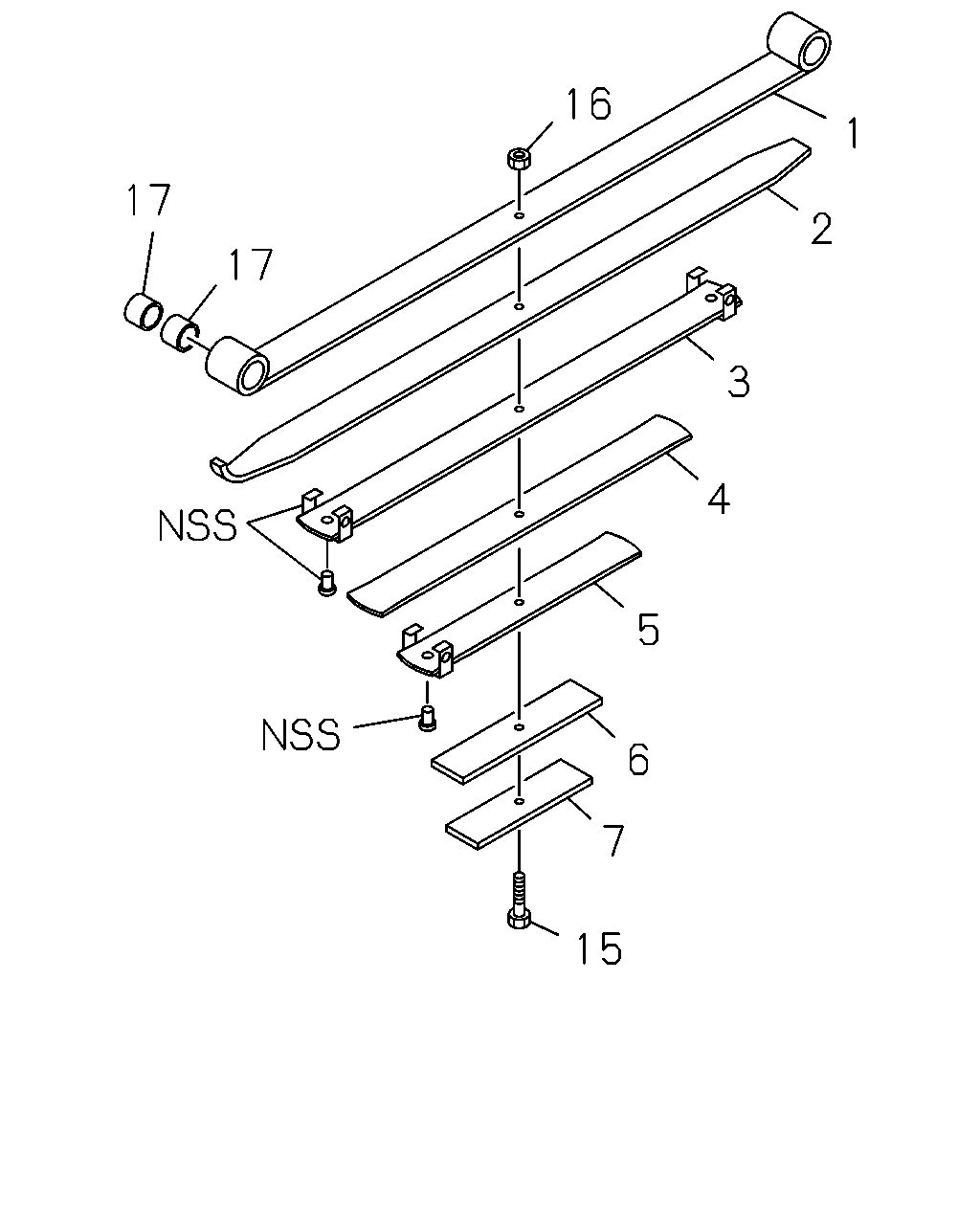

4-55 — FRONT LEAF SPRING (#32927) — 17 parça

16 1 17 2 17 3 4 5 6 7 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-94343-094-3	8-94327-457-1	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-94343-095-3	8-94327-458-1	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-94343-095-3	8-94158-819-1	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-94343-094-3	8-94158-826-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-94343-095-3	8-94158-820-3	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-94343-094-3	8-94158-827-3	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 8-94343-095-3	8-94158-821-1	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-94343-094-3	8-94158-828-1	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-94343-095-3	8-94158-822-3	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 8-94343-094-3	8-94158-829-3	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 8-94343-095-3	8-94158-823-1	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 8-94343-094-3	8-94158-830-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 8-94343-095-3	8-94158-824-1	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 8-94343-094-3	8-94158-831-1	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=72 ASM PART: A = 8-94343-094-3, B = 8-94343-095-3	8-94165-278-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-94343-094-3, B = 8-94343-095-3	9-09110-010-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=56 ASM PART: A = 8-94343-094-3, B = 8-94343-095-3	8-94463-020-0	04	1	-
