Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

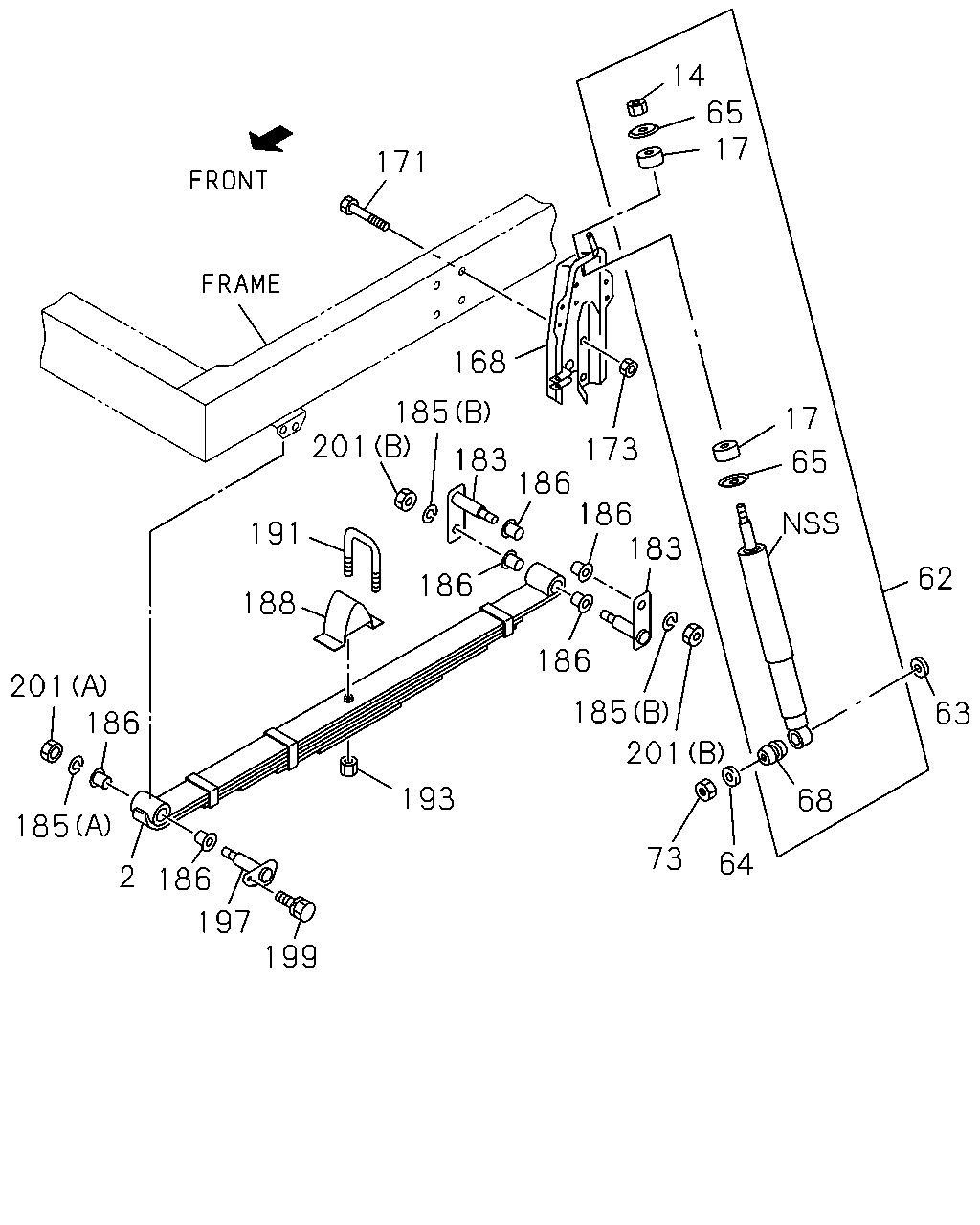

4-50 — FRONT SUSPENSION
(#32926) — 34 parça
14
65
17
171
168
185
201
17
173
183
186
186
183
65
191
62
186
188
186
201
186
185
63
201
193
68
185
73
64
2
186
197
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF
8-94343-095-3
01
1
0609-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF
8-94343-094-3
01
1
0609-
14
NUT; S/ABS,UPR
M10
8-94317-772-0
02
1
0609-
17
BUSHING; RUBBER,S/ABS
TOKICO
9-51631-603-0
04
1
0609-
62
ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97253-602-1
02
1
0911-
62
ABSORBER ASM; SHOCK,FRT
8-97253-605-1
02
1
0609-0910
62
ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97253-605-1
02
1
0911-
62
ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS
5-87610-127-1
02
1
1304-
63
WASHER; PL,S/ABS,LWR
ID=17 OD=32
9-09164-616-0
02
1
0609-1011
63
WASHER; PL,S/ABS,LWR
ID=17 OD=32
0-91614-616-0
02
1
1012-
64
WASHER; S/ABS,LWR
ID=12.5
9-51679-022-0
02
1
0609-
65
WASHER; S/ABS
ID=10.5 OD=38
9-51631-062-0
04
1
0609-
68
BUSHING; S/ABS
TOKICO
8-94224-694-0
02
1
0609-
73
NUT; BRKT,SHOCK
M12
0-91111-512-0
02
1
0609-
168
BRACKET; S/ABS,FRT SUSP
8-97316-007-1
01
1
0609-
168
BRACKET; S/ABS,FRT SUSP
8-97316-015-1
01
1
0609-
171
BOLT; S/ABS BRKT
M10X30 FLANGE
0-28651-030-0
08
1
0609-
173
NUT; S/ABS
M10 FLANGE
0-91180-210-0
08
1
0609-1403
173
NUT; S/ABS
M10 FLANGE
0-91180-110-0
08
1
1404-
183
SHACKLE; FRT SUSP
8-98034-341-0
04
1
0609-
185
WASHER; LK,PIN
(B) ID=16.5
8-98011-489-0
04
1
0609-
185
WASHER; LK,PIN
KD PREPARATORY PACK<6HF> (A) ID=16.5
8-97070-925-1
02
1
0609-0611
185
WASHER; LK,PIN
KD PREPARATORY PACK<6HF> (A) ID=16.5
8-98011-489-0
02
1
0612-
186
BUSHING; SHACKLE
8-97081-531-0
12
1
0609-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
8-94150-265-3
02
1
0609-
191
U-BOLT; FRT SPR
L=105
8-97304-074-1
04
1
0609-
193
NUT; U BOLT
M14 FLANGE
8-94137-483-0
08
1
0609-0610
193
NUT; U BOLT
M14 FLANGE
8-97360-124-0
08
1
0611-
197
PIN; FRT SPR,FRT
8-94117-900-1
02
1
0609-
199
BOLT
M10X25 FLANGE
0-28651-025-0
02
1
0609-
201
NUT; PIN LK
(B) M16
0-91110-516-0
04
1
0609-
201
NUT; PIN LK
KD PREPARATORY PACK<6HF> (A) M16
0-91110-516-0
02
1
0609-
201
NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE
8-97147-389-0
02
1
0609-0610
201
NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE
8-97360-125-0
02
1
0611-
