4-42 — POWER STEERING OIL PUMP (#32925) — 43 parça

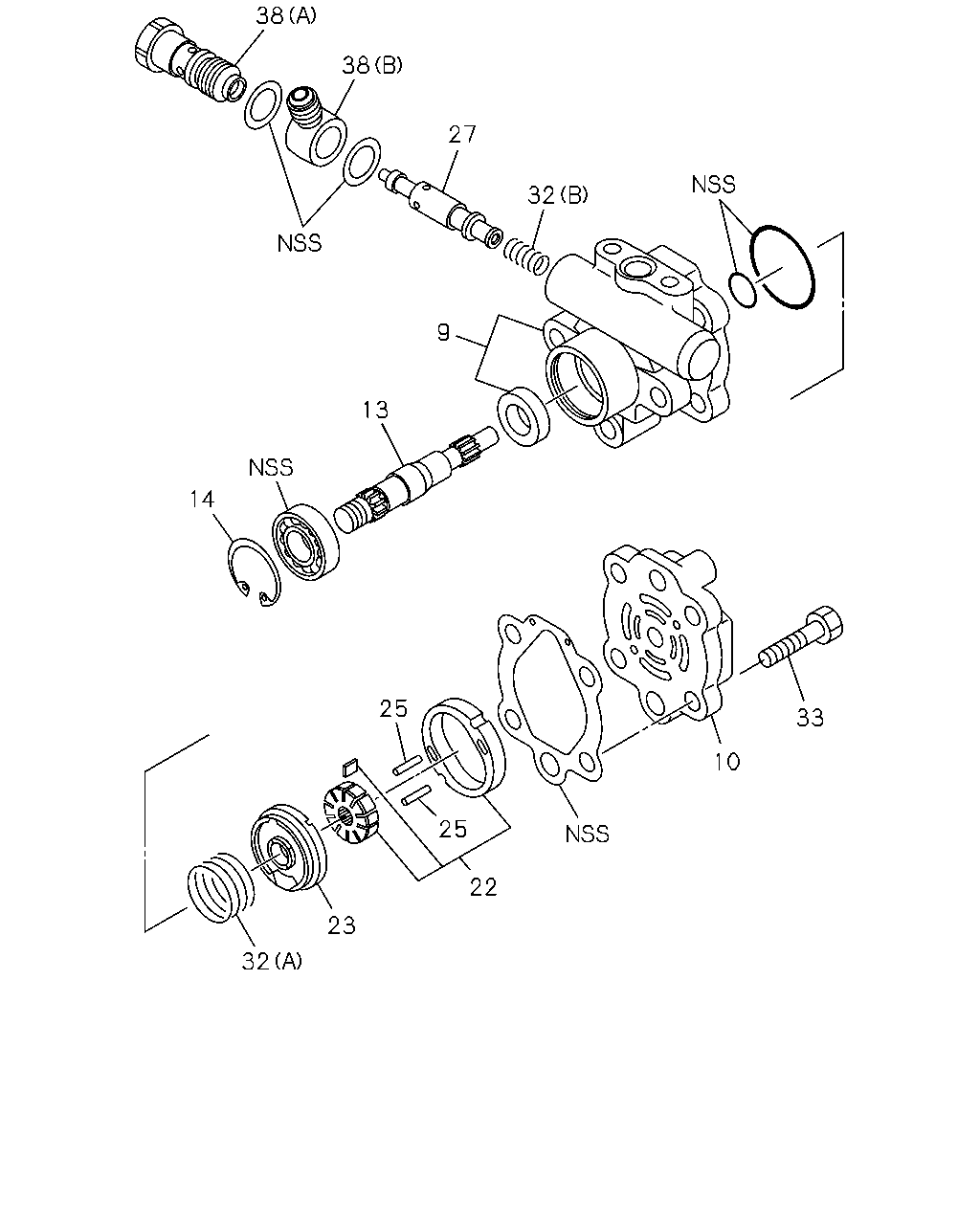

çizim 119509
38 38 27 32 9 13 14 25 33 10 25 22 23 32
BalonParca AdiParca NoAdetTipApplied Date
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97354-730-1 		8-97354-933-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-98217-772-0 		8-98219-140-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-97354-730-1 		8-97102-294-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: B = 8-98217-772-0 		8-98219-142-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 8-97354-730-1 		8-97354-935-0 01 1 -
13 SHAFT KIT; RET
ASM PART: B = 8-98217-772-0 		8-98219-139-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 8-97354-730-1, B = 8-98217-772-0 		8-97064-620-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-97354-730-1, B = 8-98217-772-0 		8-97357-499-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97354-730-1 		8-97354-679-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 8-97354-730-1, B = 8-98217-772-0 		8-97081-859-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-97354-730-1 		8-97094-142-0 01 1 -
27 VALVE ASM; OIL PUMP
ASM PART: B = 8-98217-772-0 		8-98219-136-0 01 1 -
32 SPRING; OIL PUMP
(A) ASM PART: A = 8-97354-730-1 		8-97064-982-0 01 1 -
32 SPRING; OIL PUMP
(B) ASM PART: A = 8-97354-730-1, B = 8-98217-772-0 		8-97064-987-0 01 1 -
33 BOLT; COVER
ASM PART: A = 8-97354-730-1 		8-97064-979-0 04 1 -
33 BOLT; COVER
ASM PART: B = 8-98217-772-0 		8-97081-847-0 04 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 8-97354-730-1 		8-97354-941-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 8-97354-730-1 		8-97354-943-0 01 1 -
38 CONNECTOR; OIL PUMP
(D) ASM PART: B = 8-98217-772-0 		8-98219-135-0 01 1 -
38 CONNECTOR; OIL PUMP
(C) ASM PART: B = 8-98217-772-0 		8-98219-137-0 01 1 -

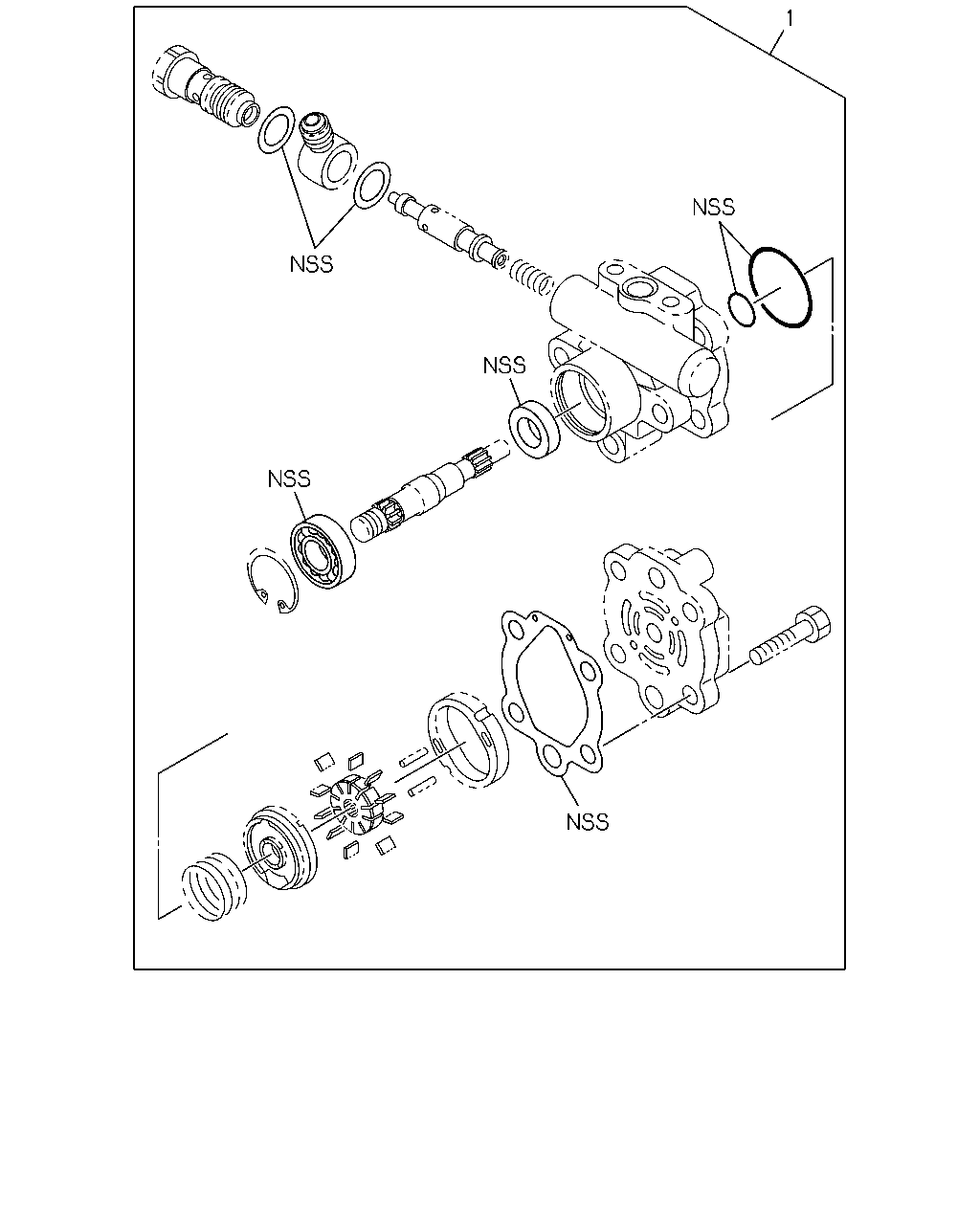

çizim 119513
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 8-97354-730-1 		8-97354-944-0 01 1 -
1 REPAIR KIT; OIL PUMP
ASM PART: B = 8-98217-772-0 		8-98219-134-0 01 1 -

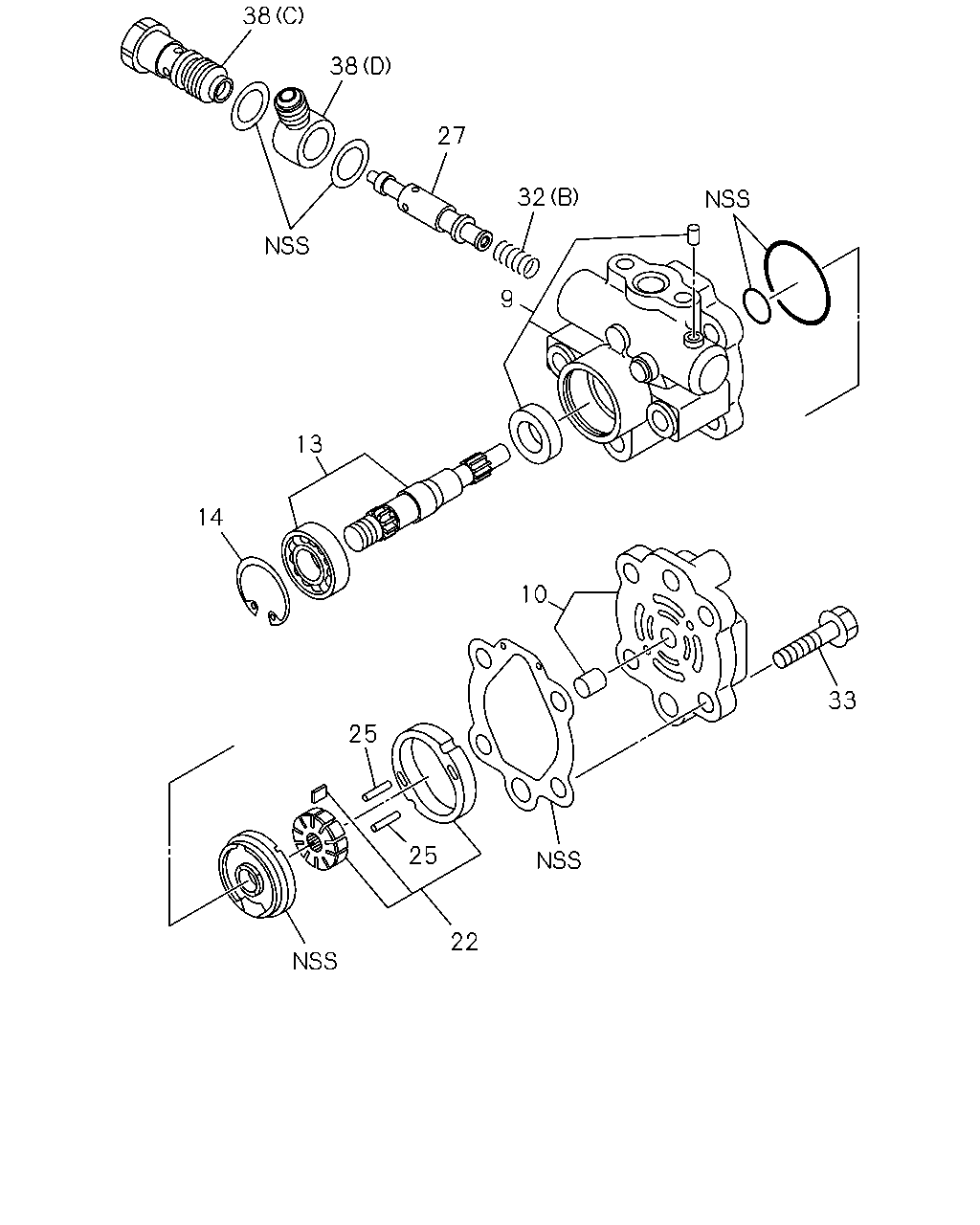

çizim 286296
33 22 25 25 10 13 14 9 32 27 38 38
BalonParca AdiParca NoAdetTipApplied Date
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97354-730-1 		8-97354-933-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-98217-772-0 		8-98219-140-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-97354-730-1 		8-97102-294-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: B = 8-98217-772-0 		8-98219-142-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 8-97354-730-1 		8-97354-935-0 01 1 -
13 SHAFT KIT; RET
ASM PART: B = 8-98217-772-0 		8-98219-139-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 8-97354-730-1, B = 8-98217-772-0 		8-97064-620-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-97354-730-1, B = 8-98217-772-0 		8-97357-499-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 8-97354-730-1, B = 8-98217-772-0 		8-97081-859-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-97354-730-1 		8-97094-142-0 01 1 -
27 VALVE ASM; OIL PUMP
ASM PART: B = 8-98217-772-0 		8-98219-136-0 01 1 -
32 SPRING; OIL PUMP
(A) ASM PART: A = 8-97354-730-1 		8-97064-982-0 01 1 -
32 SPRING; OIL PUMP
(B) ASM PART: A = 8-97354-730-1, B = 8-98217-772-0 		8-97064-987-0 01 1 -
33 BOLT; COVER
ASM PART: A = 8-97354-730-1 		8-97064-979-0 04 1 -
33 BOLT; COVER
ASM PART: B = 8-98217-772-0 		8-97081-847-0 04 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 8-97354-730-1 		8-97354-941-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 8-97354-730-1 		8-97354-943-0 01 1 -
38 CONNECTOR; OIL PUMP
(D) ASM PART: B = 8-98217-772-0 		8-98219-135-0 01 1 -
38 CONNECTOR; OIL PUMP
(C) ASM PART: B = 8-98217-772-0 		8-98219-137-0 01 1 -

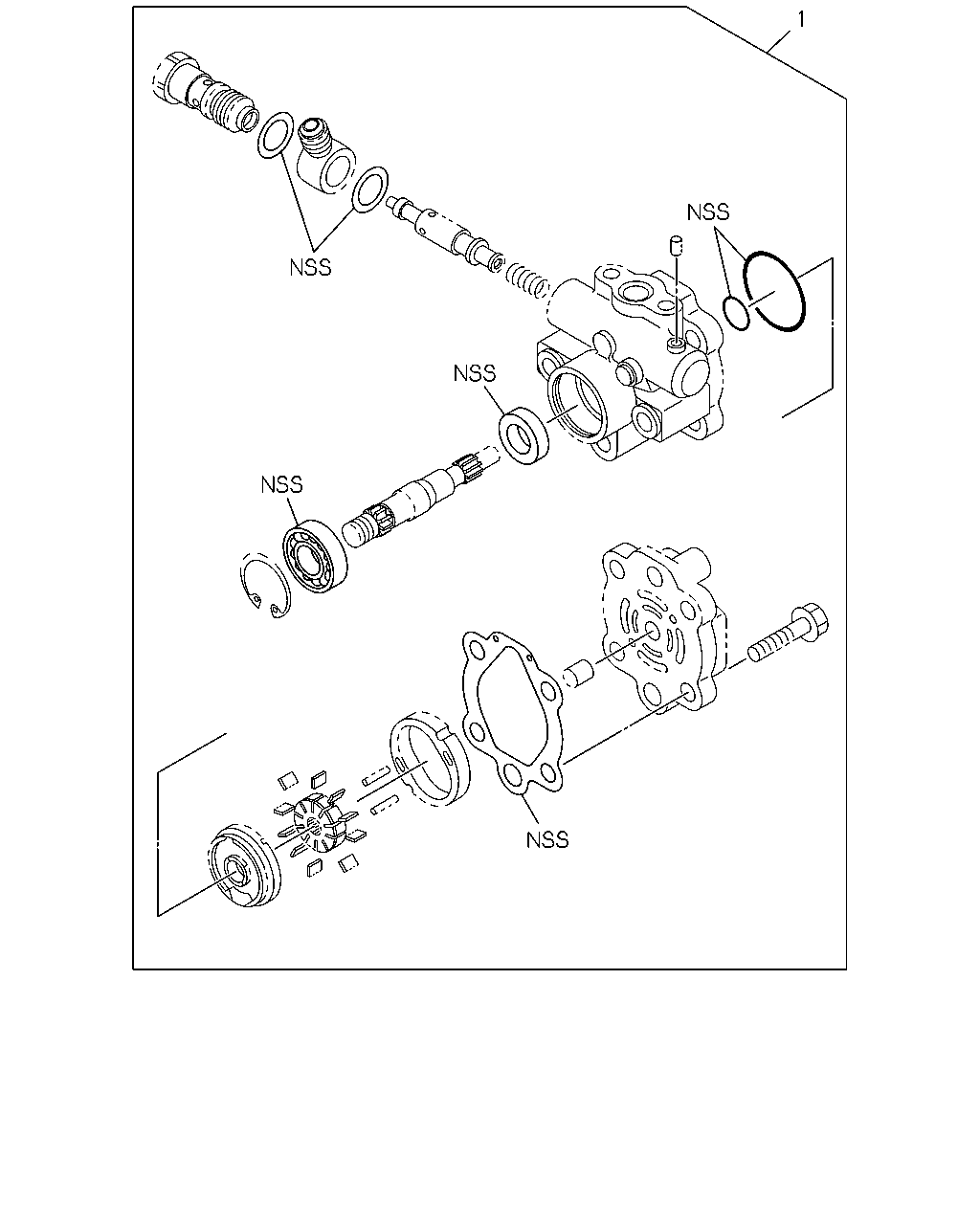

çizim 286540
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 8-97354-730-1 		8-97354-944-0 01 1 -
1 REPAIR KIT; OIL PUMP
ASM PART: B = 8-98217-772-0 		8-98219-134-0 01 1 -
