◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51126 - NKR(IRAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#32924) — 48 parça

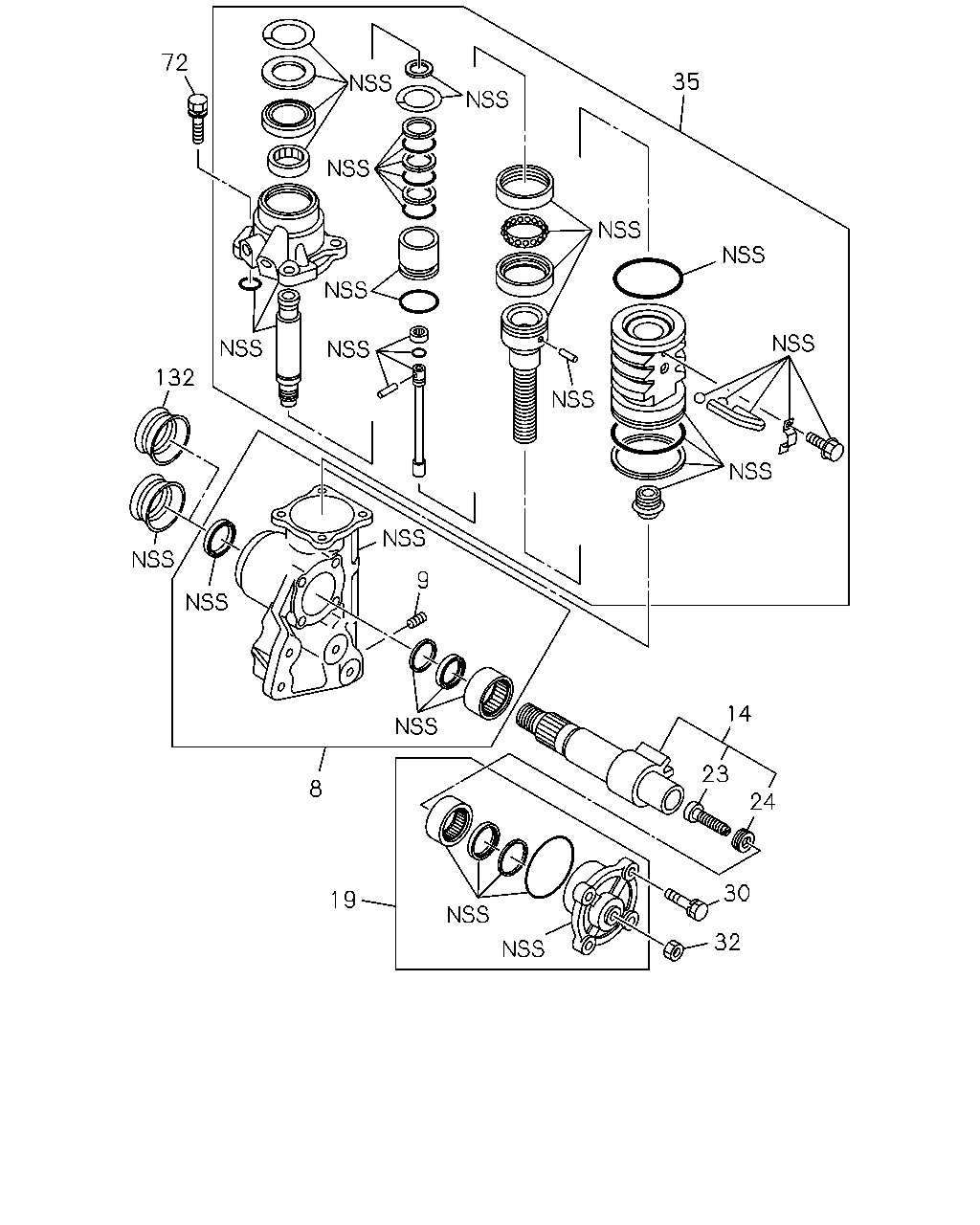

çizim 119499
72 132 8 19 32 30 24 14 23 35 9
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-706-0 		8-97108-213-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-97356-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-706-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-97014-820-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-706-0 		8-97107-731-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-97356-137-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-706-0 		8-97107-733-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-98036-333-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-706-0 		9-44277-014-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-98036-336-0 04 1 -
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: A = 8-97069-706-0 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-98036-337-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-706-0 		9-09111-410-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-98112-932-3 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-98036-336-0 04 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 8-98251-947-0 		8-97076-372-0 01 1 -

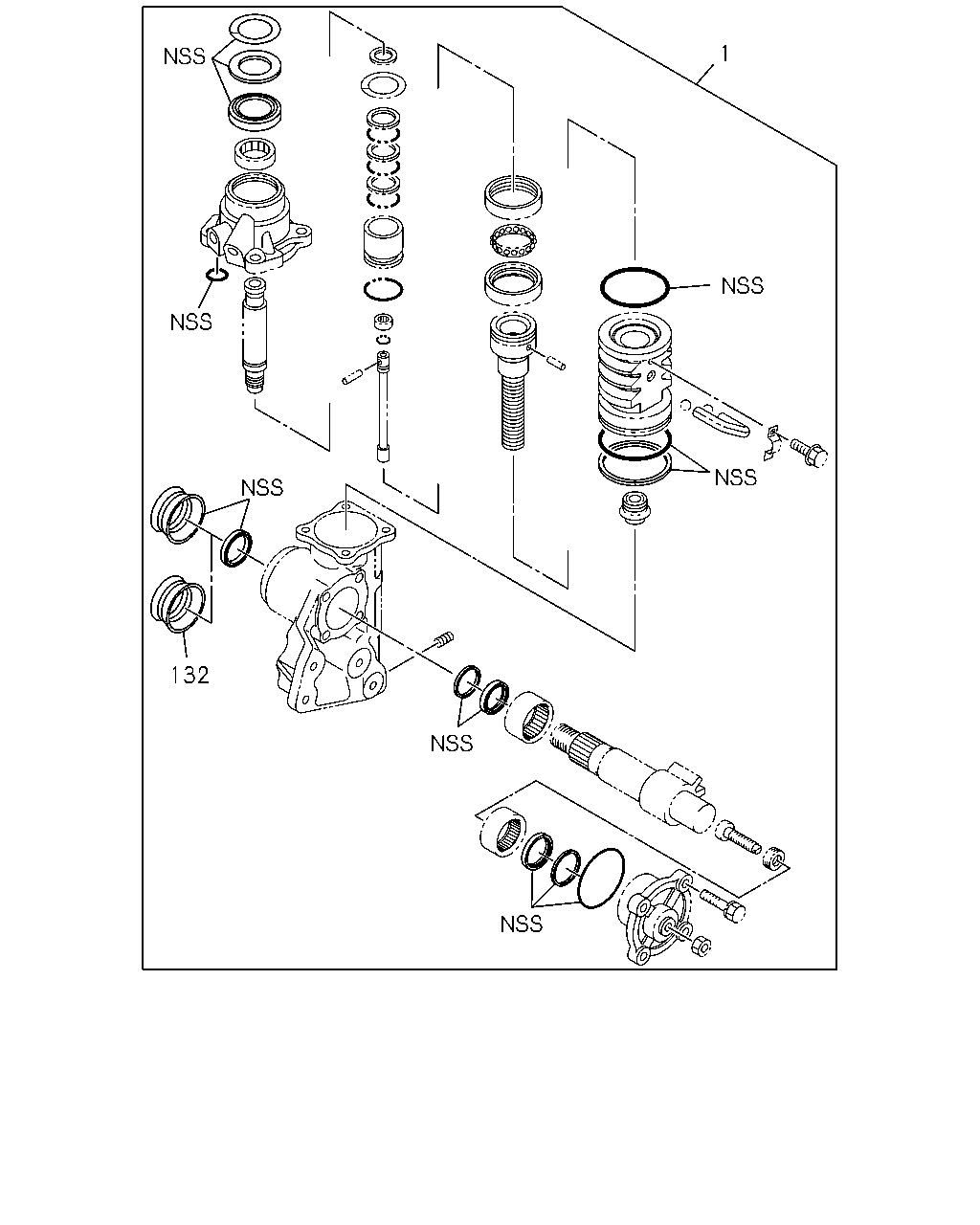

çizim 119508
1 132
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-98171-736-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 8-98251-947-0 		8-97076-372-0 01 1 -

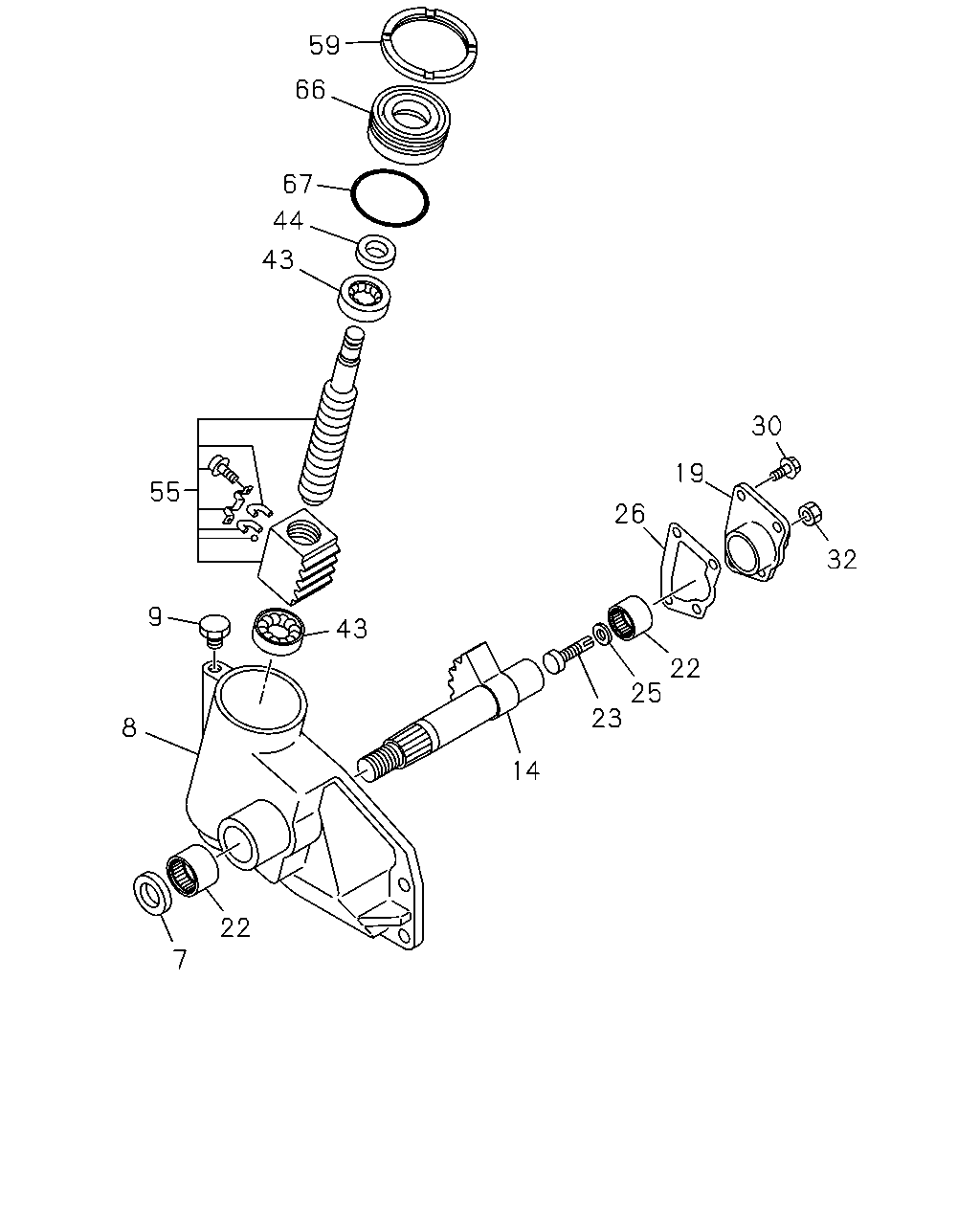

çizim 119512
59 66 67 44 43 30 19 55 26 32 9 43 22 25 23 8 14 22 7
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-706-0 		9-09924-502-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-706-0 		8-97108-213-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-97356-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-706-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-97014-820-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-706-0 		8-97107-731-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-97356-137-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-706-0 		8-97107-733-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-98036-333-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97069-706-0 		5-09811-039-0 02 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-706-0 		9-44277-014-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.515-1.535 ASM PART: A = 8-97069-706-0 		9-44279-008-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.545-1.565 ASM PART: A = 8-97069-706-0 		9-44279-009-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.575-1.595 ASM PART: A = 8-97069-706-0 		9-44279-010-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.605-1.625 ASM PART: A = 8-97069-706-0 		9-44279-011-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.635-1.655 ASM PART: A = 8-97069-706-0 		9-44279-012-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: A = 8-97069-706-0 		8-97107-737-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-98036-336-0 04 1 -
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: A = 8-97069-706-0 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97356-105-8, C = 8-98251-947-0 		8-98036-337-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-706-0 		9-09111-410-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-97069-706-0 		8-94128-202-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-97069-706-0 		5-09625-070-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 8-97069-706-0 		8-97108-218-0 01 1 -
59 NUT; COVER STRG UNIT
M7.2 ASM PART: A = 8-97069-706-0 		8-94128-207-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 8-97069-706-0 		8-97107-735-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 8-97069-706-0 		8-97107-738-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
