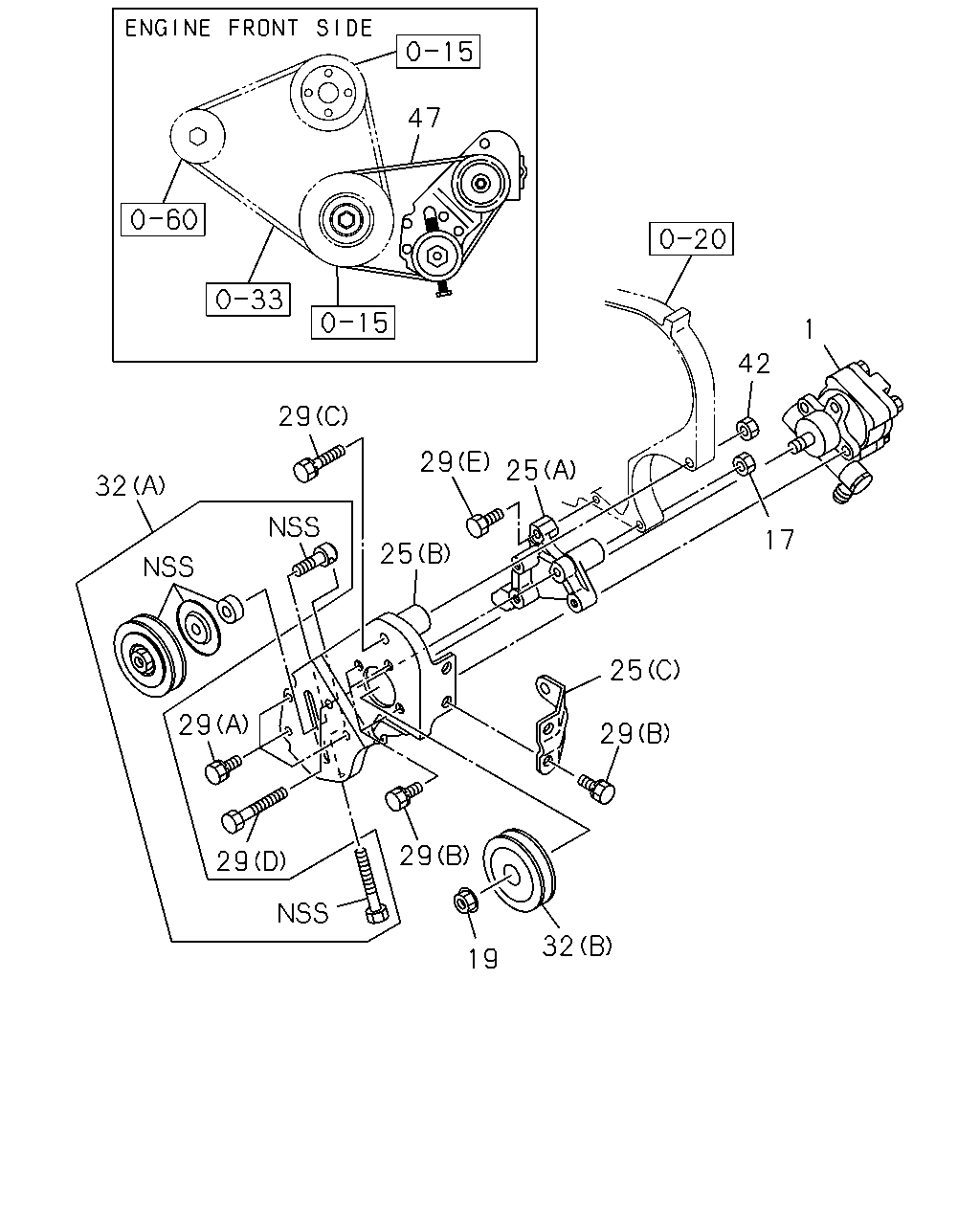

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#32923) — 19 parça

47 1 42 17 32 29 25 29 25 25 29 29 19 32 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97354-730-1	01	1	0609-1303
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-98217-772-0	01	1	1304-
17	NUT; POWER STRG PUMP POWER STEERING<N40> M8 FLANGE	0-91180-108-0	01	1	0609-
19	NUT; PULLEY,OIL PUMP POWER STEERING<N40> M12	8-94139-015-0	01	1	0609-0610
19	NUT; PULLEY,OIL PUMP POWER STEERING<N40> M12	8-97360-126-0	01	1	0611-
25	BRACKET; P/S PUMP POWER STEERING<N40> (B)	8-97065-974-0	01	1	0609-
25	BRACKET; P/S PUMP POWER STEERING<N40> (A)	8-97107-869-0	01	1	0609-
25	BRACKET; P/S PUMP POWER STEERING<N40> (C)	8-97107-872-0	01	1	0609-
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (D) M8X100 FLANGE	0-28050-800-0	01	1	0609-
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (A) M8X16 FLANGE	0-28050-816-0	03	1	0609-
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (E) M8X60 FLANGE	0-28050-860-0	01	1	0609-
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (C) M10X100 FLANGE	0-28051-000-0	01	1	0609-
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> (B) M10X20 FLANGE	0-28651-020-0	05	1	0609-
32	PULLEY; IDLER,P/S POWER STEERING<N40> (A)	8-94128-866-0	01	1	0609-
32	PULLEY; IDLER,P/S POWER STEERING<N40> (B)	8-97084-332-2	01	1	0609-1303
32	PULLEY; IDLER,P/S POWER STEERING<N40> (B)	8-98217-771-0	01	1	1304-
42	NUT; ADJ PLATE POWER STEERING<N40> M10 FLANGE	0-91180-110-0	01	1	0609-
47	BELT; P/S PUMP POWER STEERING<N40>	8-97085-131-0	01	1	0609-
47	BELT; P/S PUMP POWER STEERING<N40> BEST VALUE PARTS	5-87610-096-0	01	1	0609-
