4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#32922) — 52 parça

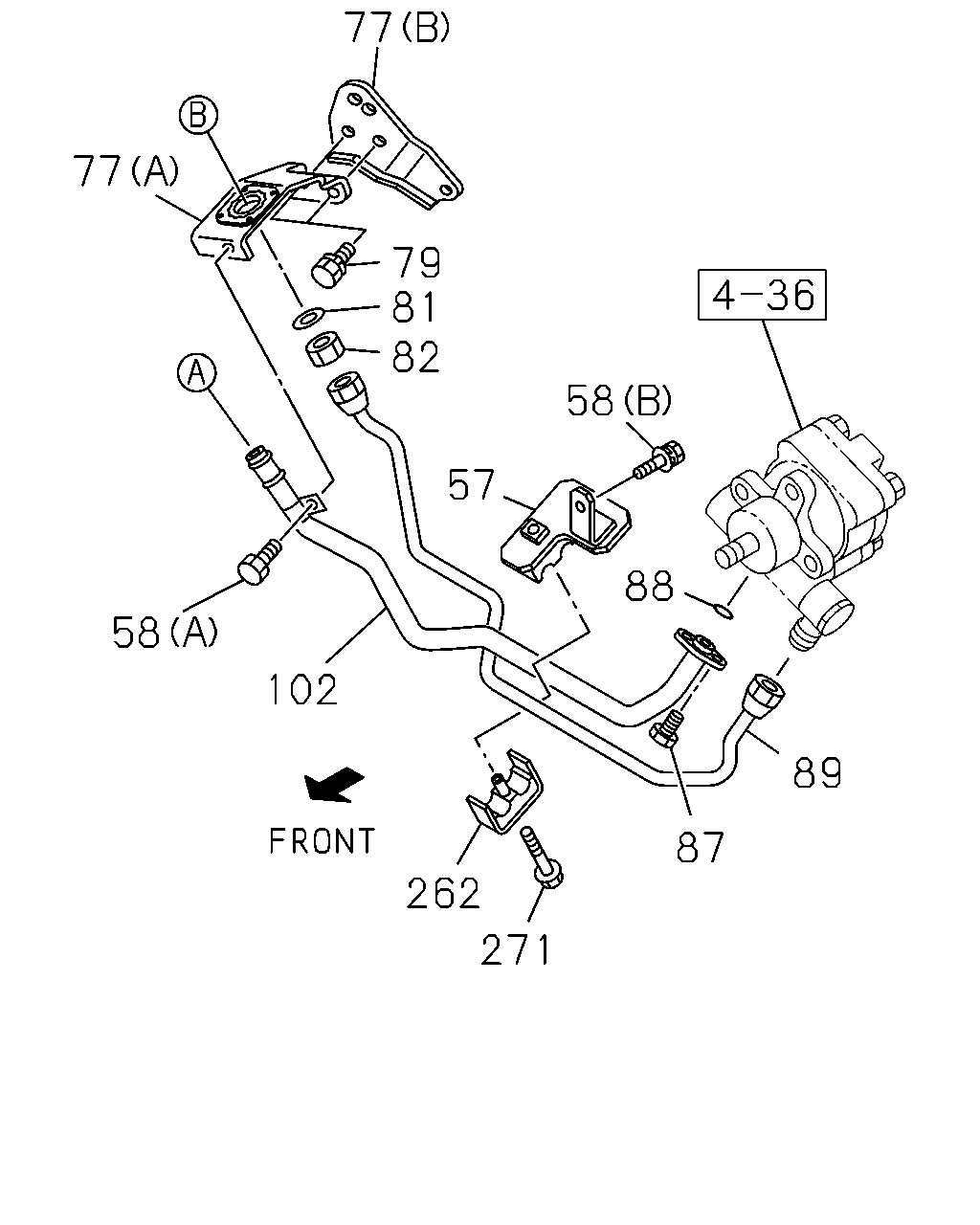

77 77 79 81 82 58 57 88 58 102 89 87 262 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97312-558-3	01	1	0609-
58	BOLT; CLIP POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	0609-
58	BOLT; CLIP POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0609-
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40> (B)	8-97075-615-0	01	1	0609-
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40> (A)	8-97208-424-0	01	1	0609-
79	BOLT; BRKT POWER STEERING<N40> M8X20 W/LK WASHER	0-50040-820-0	02	1	0609-0909
79	BOLT; BRKT POWER STEERING<N40> M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0609-
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0609-
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16	8-94370-339-0	01	1	0609-
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X12 FLANGE	0-28050-812-0	02	1	0609-1303
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X14 FLANGE	8-98219-171-0	02	1	1304-
88	RING; OIL PIPE POWER STEERING<N40> ID=11.0	9-09561-111-0	01	1	0609-
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97312-556-0	01	1	0609-1303
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-98218-675-0	01	1	1304-
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97312-557-1	01	1	0609-1303
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-98218-669-0	01	1	1304-
262	CLIP; P/S PIPE POWER STEERING<N40>	8-97300-961-1	01	1	0609-
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X40 FLANGE	0-28650-840-0	01	1	0609-

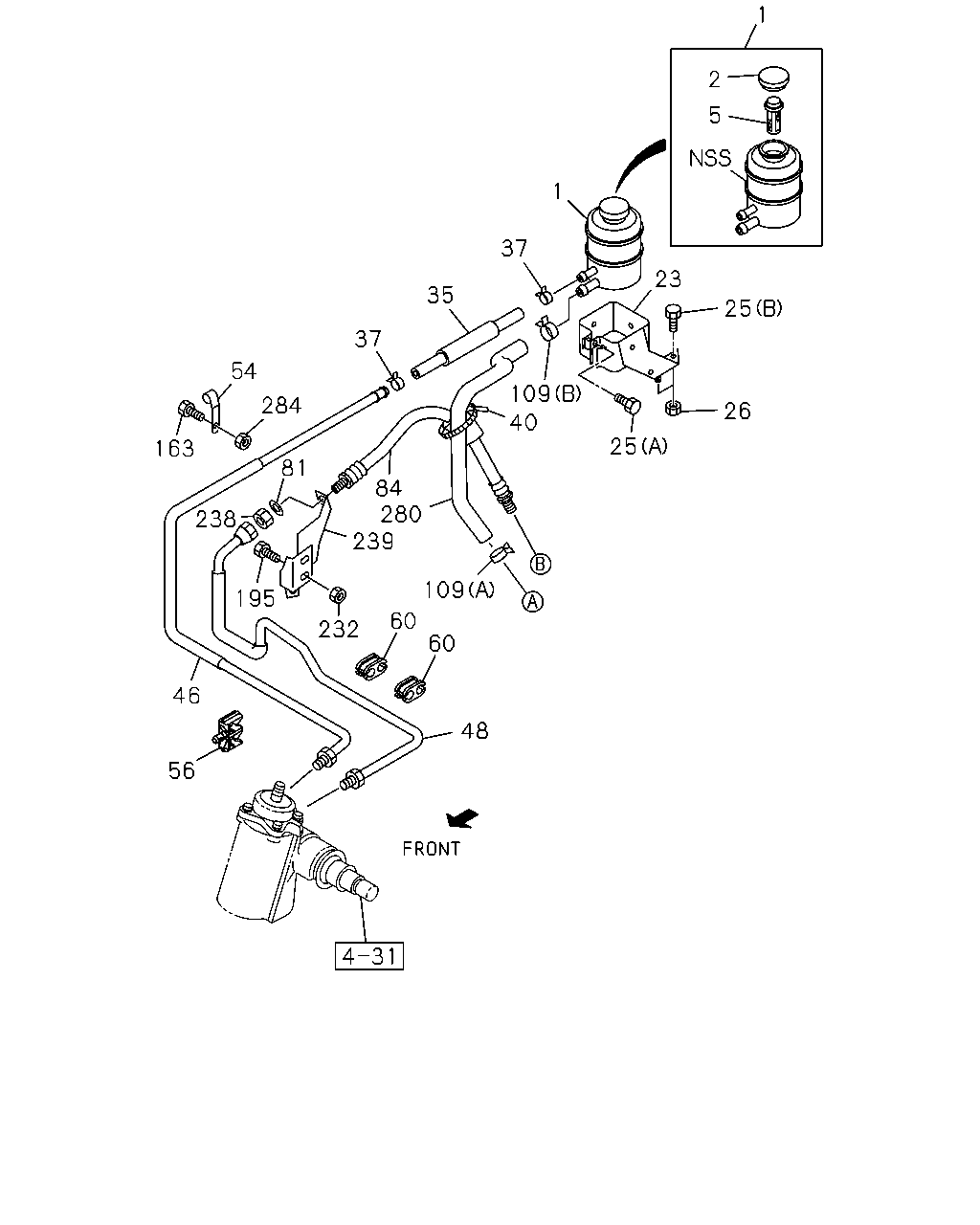

1 2 5 1 37 23 35 25 37 54 109 284 26 40 25 163 81 84 280 239 238 109 195 60 232 60 46 48 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0609-
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0609-
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0609-
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0609-1211
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-98215-043-0	01	1	1212-
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28450-620-0	01	1	0609-
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28650-825-0	01	1	0609-
26	NUT; OIL TANK TO BRKT POWER STEERING<N40> M8 FLANGE	0-91180-108-0	01	1	0609-
35	HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	0609-
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0609-0911
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-98008-098-0	02	1	0912-
40	CLIP; BAND POWER STEERING<N40> L=250	5-09707-030-1	01	1	0609-
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97356-185-0	01	1	0609-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97356-184-0	01	1	0609-
54	CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	0609-
56	CLIP; OIL PIPE POWER STEERING<N40> ID=10X2 H=37.5	8-97018-546-0	01	1	0609-
60	CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	02	1	0609-
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0609-
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0609-
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-328-0	01	1	0609-
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0609-0911
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-98150-355-0	01	1	0912-
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	0609-1003
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-97359-141-0	01	1	1004-
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28650-825-0	01	1	0609-
195	BOLT; BRKT POWER STEERING<N40> M10X35 FLANGE	0-28651-035-0	02	1	0609-
232	NUT; BRKT POWER STEERING<N40> M10 FLANGE	0-91180-110-0	02	1	0609-
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	0609-
239	BRACKET; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5> POWER STEERING<N40>	8-97260-271-1	01	1	0911-
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97092-085-1	01	1	0609-0910
239	BRACKET; FLEX HOSE POWER STEERING<N40> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	01	1	0911-
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97205-635-0	01	1	0609-
284	NUT; PIPE POWER STEERING<N40> M8 FLANGE	0-91180-108-0	01	1	0609-
