◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#3292) — 246 parça

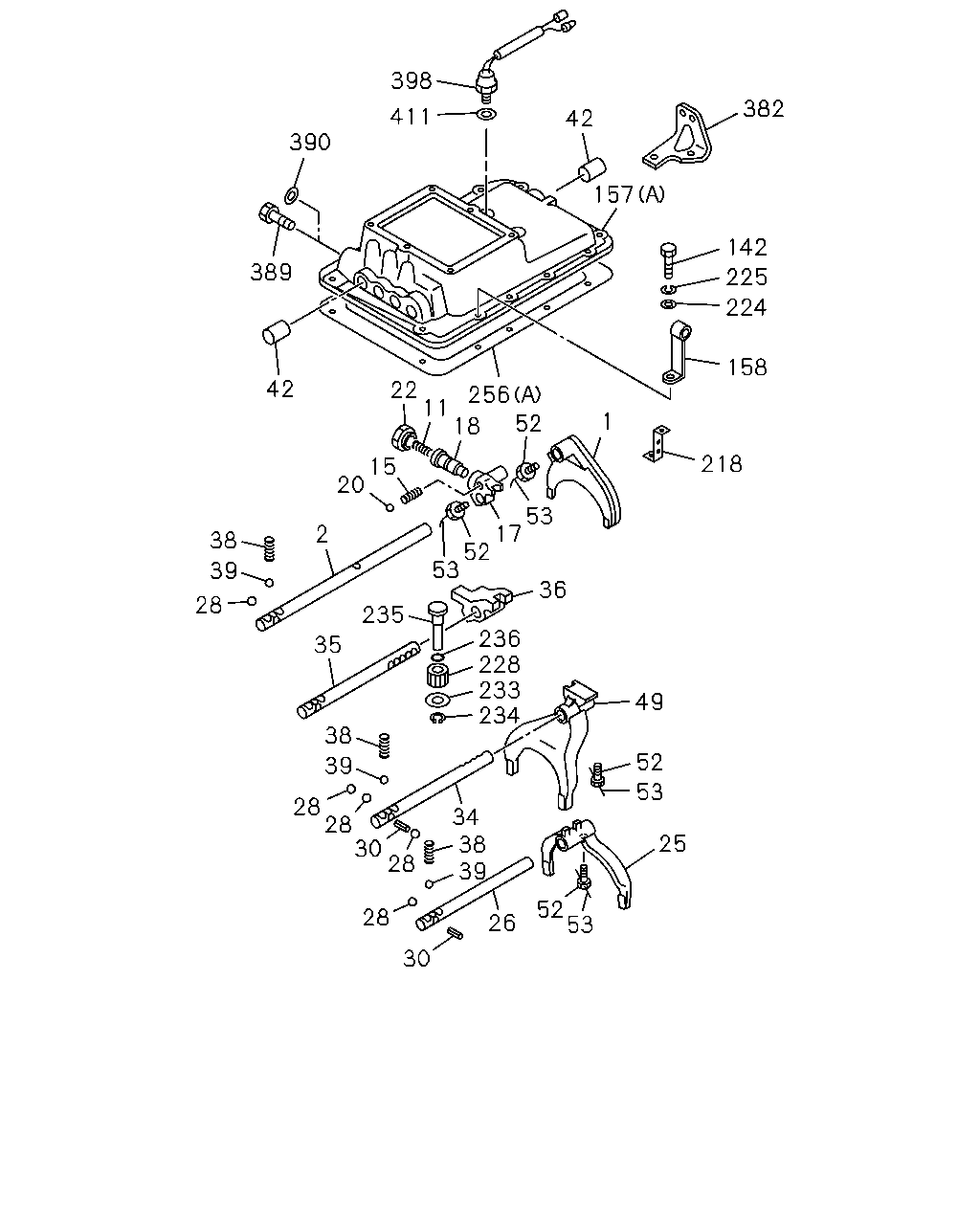

çizim 2994
398 382 411 42 390 157 142 389 225 224 158 42 22 11 256 52 1 18 15 20 218 53 17 52 53 2 38 39 36 28 235 236 228 233 234 35 49 38 52 39 53 28 28 30 28 34 38 39 25 52 53 28 26 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV 1-33511-078-3 01 1 9101- ● ● ●
2 ROD; SHIFT,1ST & REV 1-33531-318-2 01 1 9101- ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
LEFT HAND DRIVE(MRR6FB) 		9-09941-160-0 01 1 9101- ● ● ●
15 SPRING; LK,SHIFT SLEEVE
LEFT HAND DRIVE(MRR6FB) 		9-09940-854-0 01 1 9101- ● ● ●
17 BLOCK; SHIFT,1ST & REV
RIGHT HAND DRIVE(MRR5FB) 		1-33511-154-1 01 1 9101- ● ● ●
17 BLOCK; SHIFT,1ST & REV
LEFT HAND DRIVE(MRR6FB) 		1-33511-160-1 01 1 9101- ● ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK
LEFT HAND DRIVE(MRR6FB) 		1-33516-015-1 01 1 9101- ● ● ●
20 BALL; DETENT SLEEVE
LEFT HAND DRIVE(MRR6FB) 		9-00097-009-0 01 1 9101- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK
LEFT HAND DRIVE(MRR6FB) 		9-33516-060-1 01 1 9101- ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-258-2 01 1 9101-9201 ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-441-0 01 1 9202- ● ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-245-0 01 1 9101- ● ● ●
28 BALL; INTER LK 9-00097-010-0 04 1 9101- ● ● ●
30 PIN; INTER LK 1-33534-002-0 01 1 9101- ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-218-0 01 1 9101- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-244-1 01 1 9101- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-243-1 01 1 9101- ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33511-220-1 01 1 9101- ● ●
38 SPRING; DETENT 1-09580-374-0 03 1 9101- ● ● ●
39 BALL; DETENT 9-00097-013-0 03 1 9101- ● ● ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MRR5FB) OD=20 		1-33545-002-1 05 1 9101- ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MRR6FB) OD=20 		1-33545-002-1 05 1 9101- ● ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MRR6FB) OD=20 		1-33545-002-1 04 1 9101- ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MRR5FB) OD=20 		1-33545-002-1 06 1 9101- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-190-1 01 1 9101-9201 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-444-1 01 1 9202- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-219-1 01 1 9101- ● ●
52 BOLT; SHIFT ARM 1-09052-004-2 04 1 9101-9107 ●
52 BOLT; SHIFT ARM 1-09052-034-2 04 1 9108- ●
52 BOLT; SHIFT ARM 1-09052-004-2 05 1 9101-9107 ● ●
52 BOLT; SHIFT ARM 1-09052-034-2 05 1 9108- ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 04 1 9101-9107 ●
53 WIRE; BOLT
L=200 		9-08351-020-0 05 1 9101-9107 ● ●
142 BOLT; QUAD BOX
M10X35 W/LK WASHER 		0-50051-035-0 01 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
M10X32 FLANGE 		0-28181-032-0 01 1 9206- ● ● ●
142 BOLT; QUAD BOX
M10X30 		1-09040-063-1 01 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 01 1 9206- ● ● ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 01 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
M10X34 		1-09040-091-1 01 1 9206- ● ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MRR5FB) M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MRR5FB) M10X28 FLANGE 		0-28181-028-0 08 1 9206- ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X30 W/LK WASHER 		0-50051-030-0 08 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X28 FLANGE 		0-28181-028-0 12 1 9206- ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X35 		1-09040-064-1 02 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9206- ● ● ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MRR5FB) 		1-33541-310-0 01 1 9101- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-285-2 01 1 9101-9810 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-439-0 01 1 9811- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (B) 		1-33541-256-2 01 1 9101- ● ● ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MRR5FB) 		1-33541-313-0 01 1 9101- ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-287-1 01 1 9101-9810 ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-431-0 01 1 9811- ● ●
158 CLIP; HARNESS 1-09700-415-0 02 1 9101- ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX 1-47476-812-1 01 1 9208- ● ● ●
224 WASHER; PL,QUAD BOX
RIGHT HAND DRIVE(MRR5FB) 		9-09160-510-0 01 1 9101-9205 ● ● ●
225 WASHER; LK,QUAD BOX 9-09150-510-0 02 1 9101-9205 ● ● ●
228 PINION; 4TH & 5TH SHIFT 1-33539-011-0 01 1 9101- ● ●
233 PLATE; PINION 1-33539-010-0 01 1 9101- ● ●
234 RING; SNAP
ID=8 		9-09185-008-0 01 1 9101- ● ●
235 PIN; PINION 1-33539-013-0 01 1 9101- ● ●
236 GASKET; PIN,PINION
ID=9.8 		9-09561-110-0 01 1 9101- ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-036-2 01 1 9101- ● ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MRR6FB) (B) 		1-33542-046-0 01 1 9101-9108 ● ● ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-086-1 01 1 9101-9104 ● ● ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-137-1 01 1 9105- ● ● ●
389 PLUG; QUAD BOX,NEUTRAL SW 9-99202-314-0 01 1 9101- ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14 		9-09920-393-0 01 1 9101-9208 ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9209- ● ● ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 9101- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14 		9-09920-393-0 01 1 9101-9208 ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9209- ● ● ●

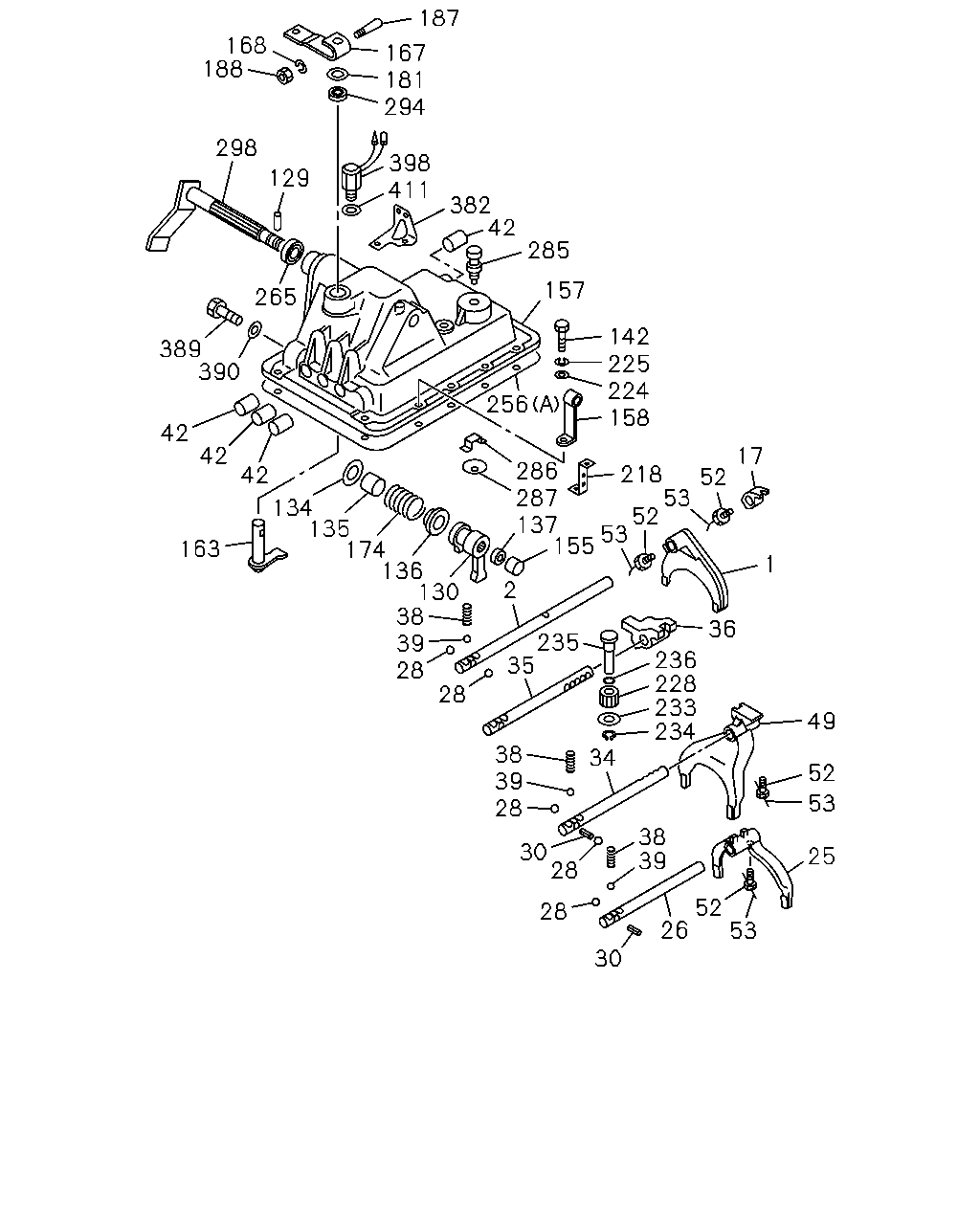

çizim 5331
187 168 188 167 181 294 298 398 411 129 382 42 285 157 265 142 225 224 158 389 390 256 42 42 17 286 218 287 53 52 137 53 155 42 52 134 135 174 136 130 38 39 28 163 1 2 36 235 35 236 228 233 234 28 49 38 39 28 34 52 53 38 39 30 28 25 52 26 53 28 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV 1-33511-078-3 01 1 9101- ● ● ●
2 ROD; SHIFT,1ST & REV 1-33531-318-2 01 1 9101- ● ● ●
17 BLOCK; SHIFT,1ST & REV
RIGHT HAND DRIVE(MRR5FB) 		1-33511-154-1 01 1 9101- ● ● ●
17 BLOCK; SHIFT,1ST & REV
LEFT HAND DRIVE(MRR6FB) 		1-33511-160-1 01 1 9101- ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-258-2 01 1 9101-9201 ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-441-0 01 1 9202- ● ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-245-0 01 1 9101- ● ● ●
28 BALL; INTER LK 9-00097-010-0 04 1 9101- ● ● ●
30 PIN; INTER LK 1-33534-002-0 01 1 9101- ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-218-0 01 1 9101- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-244-1 01 1 9101- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-243-1 01 1 9101- ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33511-220-1 01 1 9101- ● ●
38 SPRING; DETENT 1-09580-374-0 03 1 9101- ● ● ●
39 BALL; DETENT 9-00097-013-0 03 1 9101- ● ● ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MRR5FB) OD=20 		1-33545-002-1 05 1 9101- ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MRR6FB) OD=20 		1-33545-002-1 05 1 9101- ● ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MRR6FB) OD=20 		1-33545-002-1 04 1 9101- ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MRR5FB) OD=20 		1-33545-002-1 06 1 9101- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-190-1 01 1 9101-9201 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-444-1 01 1 9202- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-219-1 01 1 9101- ● ●
52 BOLT; SHIFT ARM 1-09052-004-2 04 1 9101-9107 ●
52 BOLT; SHIFT ARM 1-09052-034-2 04 1 9108- ●
52 BOLT; SHIFT ARM 1-09052-004-2 05 1 9101-9107 ● ●
52 BOLT; SHIFT ARM 1-09052-034-2 05 1 9108- ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 04 1 9101-9107 ●
53 WIRE; BOLT
L=200 		9-08351-020-0 05 1 9101-9107 ● ●
129 PIN; SPR,SHIFT
RIGHT HAND DRIVE(MRR5FB) 		1-09740-008-0 01 1 9101- ● ● ●
130 LEVER; SHIFT,INTERNAL
RIGHT HAND DRIVE(MRR5FB) 		1-33521-062-0 01 1 9101- ● ● ●
130 LEVER; SHIFT,INTERNAL
LEFT HAND DRIVE(MRR6FB) 		1-33521-082-3 01 1 9101- ● ● ●
134 SEAT; REV RESIST SPR
RIGHT HAND DRIVE(MRR5FB) 		1-33549-024-0 01 1 9101- ● ● ●
135 STOPPER; LOW & REV,SELECT
RIGHT HAND DRIVE(MRR5FB) 		1-33537-003-1 01 1 9101- ● ● ●
136 SLEEVE; REV RESIST SPR
RIGHT HAND DRIVE(MRR5FB) 		1-33516-002-0 01 1 9101- ● ● ●
137 STOPPER; 4TH & 5TH,SELECT
RIGHT HAND DRIVE(MRR5FB) 		1-33537-006-0 01 1 9101- ● ● ●
142 BOLT; QUAD BOX
M10X35 W/LK WASHER 		0-50051-035-0 01 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
M10X32 FLANGE 		0-28181-032-0 01 1 9206- ● ● ●
142 BOLT; QUAD BOX
M10X30 		1-09040-063-1 01 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 01 1 9206- ● ● ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 01 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
M10X34 		1-09040-091-1 01 1 9206- ● ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MRR5FB) M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MRR5FB) M10X28 FLANGE 		0-28181-028-0 08 1 9206- ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X30 W/LK WASHER 		0-50051-030-0 08 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X28 FLANGE 		0-28181-028-0 12 1 9206- ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X35 		1-09040-064-1 02 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9206- ● ● ●
155 STOPPER; 6TH,SELECT
RIGHT HAND DRIVE(MRR5FB) 		1-33537-004-1 01 1 9101- ● ● ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MRR5FB) 		1-33541-310-0 01 1 9101- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-285-2 01 1 9101-9810 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-439-0 01 1 9811- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (B) 		1-33541-256-2 01 1 9101- ● ● ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MRR5FB) 		1-33541-313-0 01 1 9101- ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-287-1 01 1 9101-9810 ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-431-0 01 1 9811- ● ●
158 CLIP; HARNESS 1-09700-415-0 02 1 9101- ● ● ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MRR5FB) 		1-33522-032-0 01 1 9101- ● ● ●
163 LEVER; SELECT,INTERNAL
LEFT HAND DRIVE(MRR6FB) 		1-33522-041-4 01 1 9101- ● ● ●
167 LEVER; SELECT,EXTERNAL
RIGHT HAND DRIVE(MRR5FB) 		1-33521-044-0 01 1 9101- ● ● ●
167 LEVER; SELECT,EXTERNAL
LEFT HAND DRIVE(MRR6FB) 		1-33521-064-0 01 1 9101- ● ● ●
168 WASHER; LK,SELECT LEVER 9-09150-508-0 01 1 9101-9205 ● ● ●
174 SPRING; REV
RIGHT HAND DRIVE(MRR5FB) 		1-09580-443-0 01 1 9101- ● ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MRR5FB) OD=37 		1-09532-007-0 01 1 9101- ● ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MRR5FB) ID=8.4 OD=22 		9-09160-708-0 01 1 9101- ● ● ●
181 WASHER; PL,SELECT LEVER
LEFT HAND DRIVE(MRR6FB) OD=40 		1-09532-008-0 01 1 9101- ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9101- ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9101-9205 ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		0-91150-208-0 01 1 9206-9304 ● ● ●
188 NUT; SELECT LEVER
RIGHT HAND DRIVE(MRR5FB) M8 FLANGE 		0-91150-208-0 01 1 9305- ● ● ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MRR6FB) M8 FLANGE 		1-09440-049-0 01 1 9305-9804 ● ● ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MRR6FB) M8 FLANGE 		1-09440-062-1 01 1 9805- ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX 1-47476-812-1 01 1 9208- ● ● ●
224 WASHER; PL,QUAD BOX
RIGHT HAND DRIVE(MRR5FB) 		9-09160-510-0 01 1 9101-9205 ● ● ●
225 WASHER; LK,QUAD BOX 9-09150-510-0 02 1 9101-9205 ● ● ●
228 PINION; 4TH & 5TH SHIFT 1-33539-011-0 01 1 9101- ● ●
233 PLATE; PINION 1-33539-010-0 01 1 9101- ● ●
234 RING; SNAP
ID=8 		9-09185-008-0 01 1 9101- ● ●
235 PIN; PINION 1-33539-013-0 01 1 9101- ● ●
236 GASKET; PIN,PINION
ID=9.8 		9-09561-110-0 01 1 9101- ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-036-2 01 1 9101- ● ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MRR6FB) (B) 		1-33542-046-0 01 1 9101-9108 ● ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). RIGHT HAND DRIVE(MRR5FB) 		1-09625-269-0 01 1 9101- ● ● ●
285 BREATHER; AIR,QUAD BOX
RIGHT HAND DRIVE(MRR5FB) 		1-33547-013-0 01 1 9101- ● ● ●
285 BREATHER; AIR,QUAD BOX
LEFT HAND DRIVE(MRR6FB) 		1-33149-008-0 01 1 9101- ● ● ●
286 PLATE; BAFFLE,AIR BREATHER
RIGHT HAND DRIVE(MRR5FB) 		1-33549-102-0 01 1 9101- ● ● ●
287 COVER; AIR BREATHER
RIGHT HAND DRIVE(MRR5FB) 		1-33549-103-0 01 1 9101- ● ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). RIGHT HAND DRIVE(MRR5FB) 		1-09625-369-0 01 1 9101- ● ● ●
298 SHAFT; SHIFT LEVER
RIGHT HAND DRIVE(MRR5FB) 		1-33522-076-0 01 1 9101- ● ● ●
298 SHAFT; SHIFT LEVER
LEFT HAND DRIVE(MRR6FB) 		1-33522-098-0 01 1 9101- ● ● ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-086-1 01 1 9101-9104 ● ● ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-137-1 01 1 9105- ● ● ●
389 PLUG; QUAD BOX,NEUTRAL SW 9-99202-314-0 01 1 9101- ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14 		9-09920-393-0 01 1 9101-9208 ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9209- ● ● ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 9101- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14 		9-09920-393-0 01 1 9101-9208 ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9209- ● ● ●

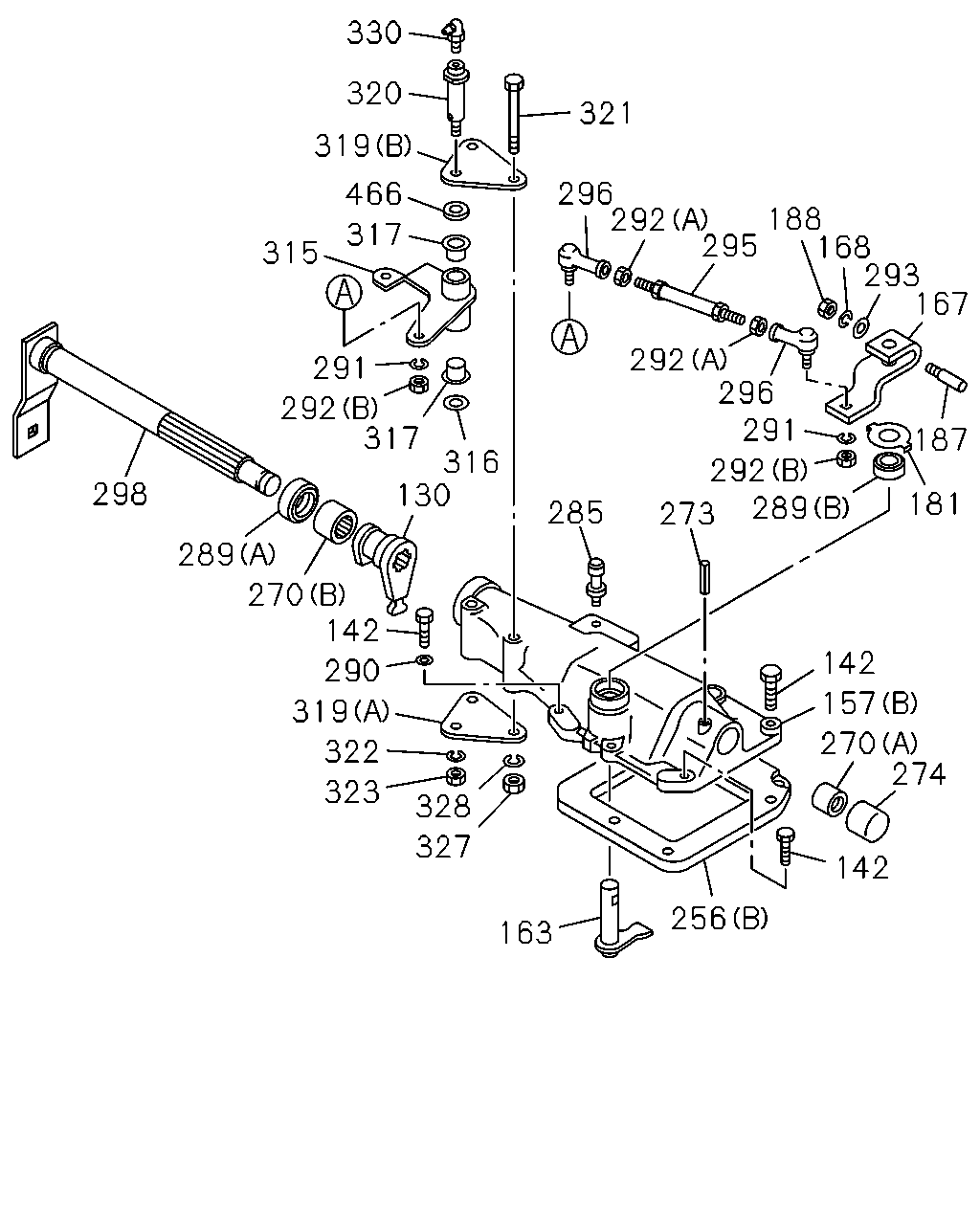

çizim 5394
330 320 321 319 296 292 466 188 295 168 293 167 317 315 292 296 291 291 292 317 187 316 130 292 289 298 181 285 273 289 270 142 142 290 157 319 270 274 322 323 328 327 142 256 163
BalonParca AdiParca NoAdetTipApplied Date A B C
130 LEVER; SHIFT,INTERNAL
RIGHT HAND DRIVE(MRR5FB) 		1-33521-062-0 01 1 9101- ● ● ●
130 LEVER; SHIFT,INTERNAL
LEFT HAND DRIVE(MRR6FB) 		1-33521-082-3 01 1 9101- ● ● ●
142 BOLT; QUAD BOX
M10X35 W/LK WASHER 		0-50051-035-0 01 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
M10X32 FLANGE 		0-28181-032-0 01 1 9206- ● ● ●
142 BOLT; QUAD BOX
M10X30 		1-09040-063-1 01 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 01 1 9206- ● ● ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 01 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
M10X34 		1-09040-091-1 01 1 9206- ● ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MRR5FB) M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MRR5FB) M10X28 FLANGE 		0-28181-028-0 08 1 9206- ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X30 W/LK WASHER 		0-50051-030-0 08 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X28 FLANGE 		0-28181-028-0 12 1 9206- ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X35 		1-09040-064-1 02 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MRR6FB) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9206- ● ● ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MRR5FB) 		1-33541-310-0 01 1 9101- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-285-2 01 1 9101-9810 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-439-0 01 1 9811- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (B) 		1-33541-256-2 01 1 9101- ● ● ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MRR5FB) 		1-33541-313-0 01 1 9101- ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-287-1 01 1 9101-9810 ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MRR6FB) (A) 		1-33541-431-0 01 1 9811- ● ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MRR5FB) 		1-33522-032-0 01 1 9101- ● ● ●
163 LEVER; SELECT,INTERNAL
LEFT HAND DRIVE(MRR6FB) 		1-33522-041-4 01 1 9101- ● ● ●
167 LEVER; SELECT,EXTERNAL
RIGHT HAND DRIVE(MRR5FB) 		1-33521-044-0 01 1 9101- ● ● ●
167 LEVER; SELECT,EXTERNAL
LEFT HAND DRIVE(MRR6FB) 		1-33521-064-0 01 1 9101- ● ● ●
168 WASHER; LK,SELECT LEVER 9-09150-508-0 01 1 9101-9205 ● ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MRR5FB) OD=37 		1-09532-007-0 01 1 9101- ● ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MRR5FB) ID=8.4 OD=22 		9-09160-708-0 01 1 9101- ● ● ●
181 WASHER; PL,SELECT LEVER
LEFT HAND DRIVE(MRR6FB) OD=40 		1-09532-008-0 01 1 9101- ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9101- ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9101-9205 ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		0-91150-208-0 01 1 9206-9304 ● ● ●
188 NUT; SELECT LEVER
RIGHT HAND DRIVE(MRR5FB) M8 FLANGE 		0-91150-208-0 01 1 9305- ● ● ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MRR6FB) M8 FLANGE 		1-09440-049-0 01 1 9305-9804 ● ● ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MRR6FB) M8 FLANGE 		1-09440-062-1 01 1 9805- ● ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-036-2 01 1 9101- ● ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MRR6FB) (B) 		1-33542-046-0 01 1 9101-9108 ● ● ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MRR6FB) (A) NTN 		1-09811-006-0 01 1 9101- ● ● ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MRR6FB) (A) NSK 		1-09811-057-0 01 1 9101- ● ● ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MRR6FB) (B) NTN 		1-09811-260-0 01 1 9101- ● ● ●
273 PIN; SPR,STOPPER
LEFT HAND DRIVE(MRR6FB) 		1-09748-016-0 01 1 9101- ● ● ●
274 COVER; SHAFT,QUAD BOX
LEFT HAND DRIVE(MRR6FB) 		9-33545-017-1 01 1 9101- ● ● ●
285 BREATHER; AIR,QUAD BOX
RIGHT HAND DRIVE(MRR5FB) 		1-33547-013-0 01 1 9101- ● ● ●
285 BREATHER; AIR,QUAD BOX
LEFT HAND DRIVE(MRR6FB) 		1-33149-008-0 01 1 9101- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MRR6FB) (A) OD=41 		1-09625-334-0 01 1 9101- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MRR6FB) (B) OD=30 		1-09625-386-0 01 1 9101- ● ● ●
290 WASHER; PL,QUAD BOX
LEFT HAND DRIVE(MRR6FB) 		9-09160-510-0 02 1 9101-9205 ● ● ●
291 WASHER; LK,LINK ROD
LEFT HAND DRIVE(MRR6FB) 		9-09150-508-0 02 1 9101-9205 ● ● ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MRR6FB) (B) M8 		9-09110-408-0 02 1 9101-9205 ● ● ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MRR6FB) (B) M8 FLANGE 		0-91150-208-0 02 1 9206-9301 ● ● ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MRR6FB) (B) M8 FLANGE 		1-09440-049-0 02 1 9302-9804 ● ● ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MRR6FB) (B) M8 FLANGE 		1-09440-062-1 02 1 9805- ● ● ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MRR6FB) (A) M8 		9-09111-408-0 02 1 9101- ● ● ●
293 WASHER; PL,TAPER BOLT
LEFT HAND DRIVE(MRR6FB) 		9-09160-708-0 01 1 9101- ● ● ●
295 ROD; LINK,RELAY LEVER
LEFT HAND DRIVE(MRR6FB) 		1-33652-275-0 01 1 9101-9402 ● ● ●
295 ROD; LINK,RELAY LEVER
LEFT HAND DRIVE(MRR6FB) L=130 		1-09765-262-0 01 1 9403- ● ● ●
296 ROD END
LEFT HAND DRIVE(MRR6FB) 		5-09760-018-0 02 1 9101-9402 ● ● ●
296 ROD END
LEFT HAND DRIVE(MRR6FB) 		1-09760-038-1 02 1 9403- ● ● ●
298 SHAFT; SHIFT LEVER
RIGHT HAND DRIVE(MRR5FB) 		1-33522-076-0 01 1 9101- ● ● ●
298 SHAFT; SHIFT LEVER
LEFT HAND DRIVE(MRR6FB) 		1-33522-098-0 01 1 9101- ● ● ●
315 LEVER; SELECT
LEFT HAND DRIVE(MRR6FB) 		1-33651-196-0 01 1 9101- ● ● ●
316 WASHER; PL,LEVER
LEFT HAND DRIVE(MRR6FB) 		1-09503-028-1 01 1 9101- ● ● ●
317 BUSHING; LEVER
LEFT HAND DRIVE(MRR6FB) 		1-09330-003-0 02 1 9101- ● ● ●
319 BRACKET; SELECT LEVER
LEFT HAND DRIVE(MRR6FB) (B) 		1-33657-157-0 01 1 9101- ● ● ●
319 BRACKET; SELECT LEVER
LEFT HAND DRIVE(MRR6FB) (A) 		1-33657-161-0 01 1 9101- ● ● ●
320 SHAFT; LEVER
LEFT HAND DRIVE(MRR6FB) 		1-33619-118-0 01 1 9101- ● ● ●
321 BOLT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MRR6FB) 		0-10806-080-0 02 1 9101- ● ● ●
322 WASHER; LK
LEFT HAND DRIVE(MRR6FB) 		9-09150-510-0 01 1 9101- ● ● ●
323 NUT; LK,SELECT LEVER
LEFT HAND DRIVE(MRR6FB) 		9-09110-410-0 01 1 9101- ● ● ●
327 NUT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MRR6FB) M10 		9-09110-410-0 03 1 9101-9205 ● ● ●
327 NUT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MRR6FB) M10 		9-09110-410-0 01 1 9206- ● ● ●
327 NUT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MRR6FB) M10 FLANGE 		0-91150-210-0 02 1 9206- ● ● ●
328 WASHER; LK,BRKT
LEFT HAND DRIVE(MRR6FB) 		9-09150-510-0 02 1 9101-9205 ● ● ●
330 NIPPLE; GREASE
LEFT HAND DRIVE(MRR6FB) 		1-09380-003-0 01 1 9101- ● ● ●
466 WASHER; CUP,LEVER
LEFT HAND DRIVE(MRR6FB) 		1-09503-047-0 01 1 9101- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
