◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51126 - NKR(IRAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#32919) — 29 parça

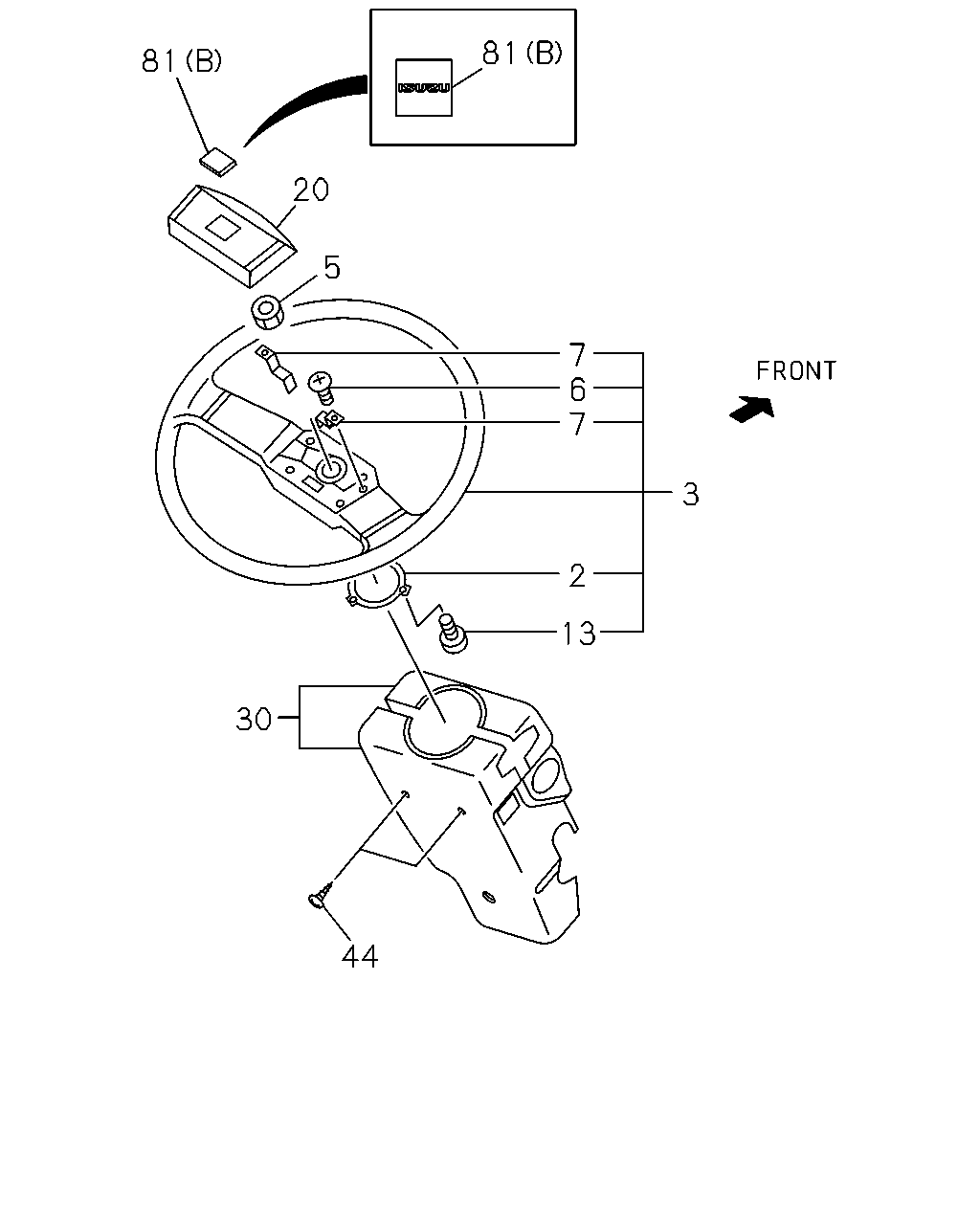

çizim 119658
81 81 20 5 7 6 7 3 2 13 30 44
BalonParca AdiParca NoAdetTipApplied Date
2 RING; HORN CONTACT
EXC. POWER STEERING<N40> 		8-94150-223-0 01 1 0609-
3 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0609-
3 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 0609-
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0609-
6 SCREW; HORN SPR CONTACT
EXC. POWER STEERING<N40> 		8-94458-316-0 02 1 0609-
7 SPRING; HORN CONTACT
EXC. POWER STEERING<N40> 		8-94150-222-0 02 1 0609-
13 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 0609-
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 0609-
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-396-0 01 1 0609-
30 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 0609-
30 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0609-
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0609-0612
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701-
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97400-060-0 01 1 0609-
81 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97400-397-0 01 1 0609-

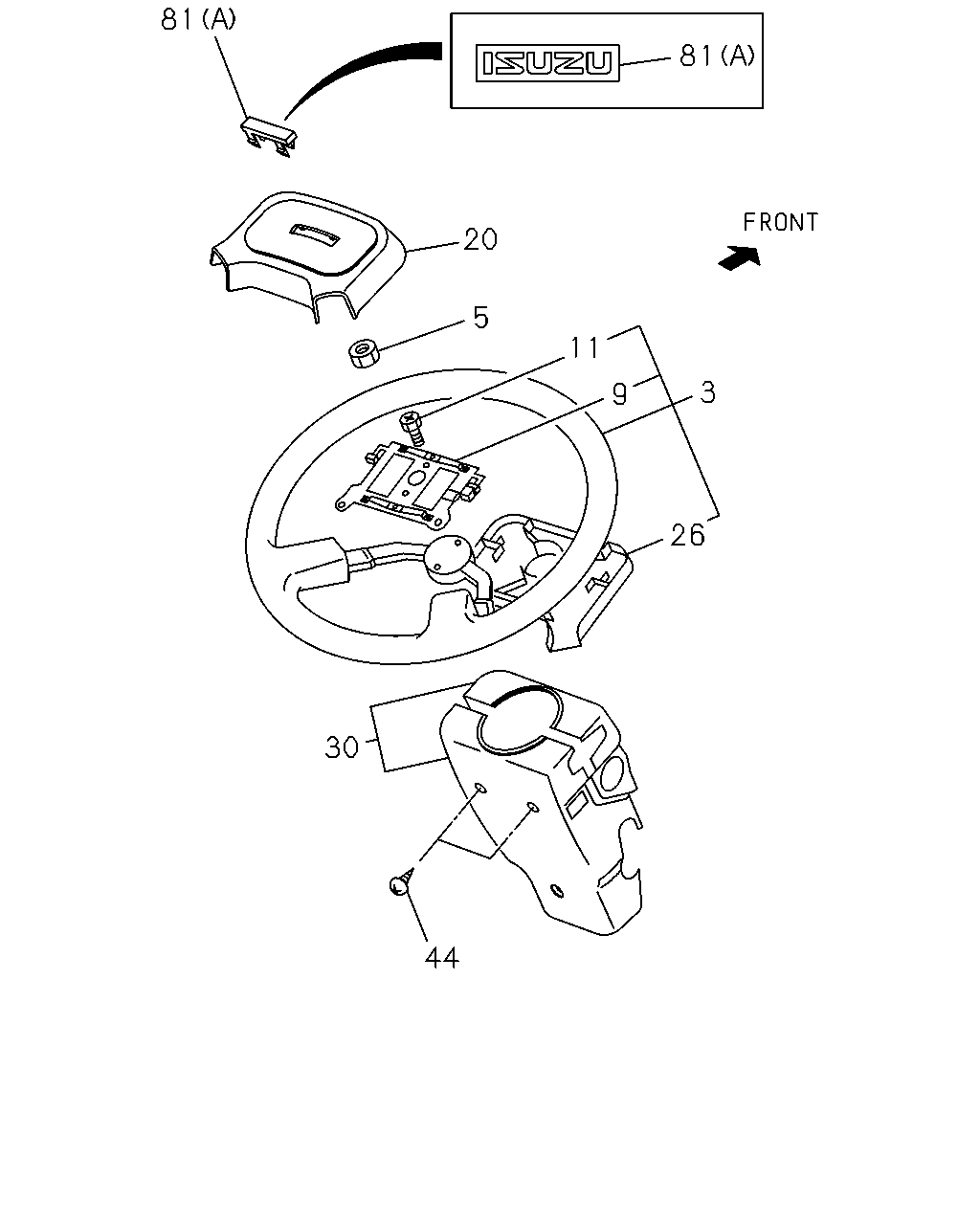

çizim 119659
81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date
3 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0609-
3 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 0609-
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0609-
9 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 0609-
11 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 01 1 0609-
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 0609-
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-396-0 01 1 0609-
26 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97400-089-1 01 1 0609-
30 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 0609-
30 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0609-
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0609-0612
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701-
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97400-060-0 01 1 0609-
81 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97400-397-0 01 1 0609-
