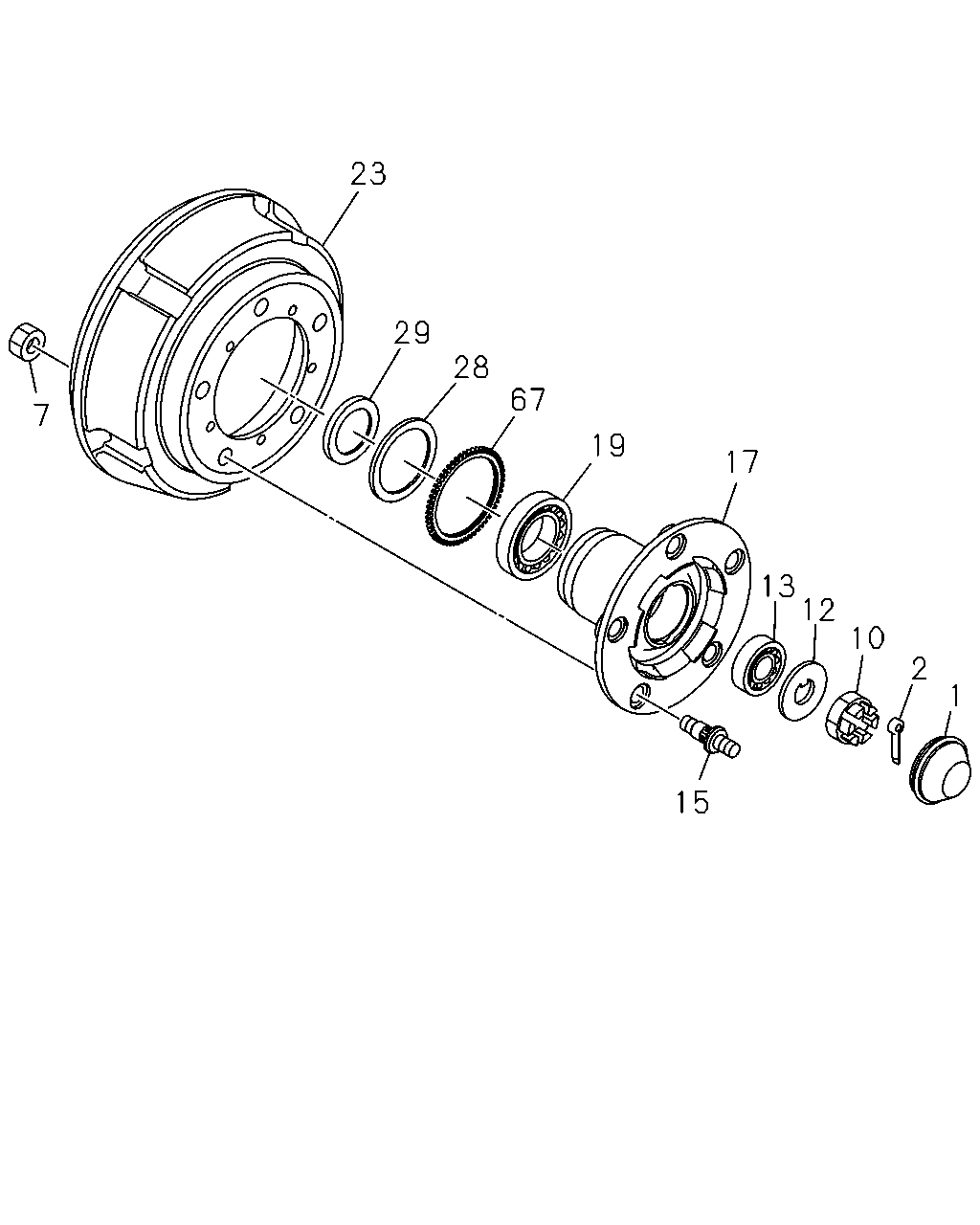

4-11 — FRONT HUB AND DRUM OR ROTOR (#32916) — 25 parça

23 29 28 67 7 19 17 13 12 10 2 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE	8-97012-619-0	02	1	0609-0611
1	CAP; HUB,FRT AXLE	8-97360-101-0	02	1	0612-1407
1	CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	0609-
7	NUT; FRT HUB M20	0-91110-520-0	10	1	0609-
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	0609-
12	WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	0609-1502
12	WASHER; LK,FRT HUB BRG	8-98282-435-0	02	1	1503-
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0609-
13	BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	0609-
15	PIN; WHEEL,FRT AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0609-
15	PIN; WHEEL,FRT AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0609-
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97140-126-0	02	1	0911-
17	HUB; FRT AXLE	8-94365-459-0	02	1	0609-0910
17	HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94365-459-0	02	1	0911-
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-94248-088-2	02	1	0609-1009
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1010-
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	0609-1009
19	BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1010-
23	DRUM; BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94385-650-3	02	1	0911-
23	DRUM; BRK,FRT	8-97094-434-2	02	1	0609-0910
23	DRUM; BRK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97094-434-2	02	1	0911-
28	SEAL; OIL,FRT HUB	8-94248-117-1	02	1	0609-
29	DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	0609-
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97234-458-0	02	1	0911-
