3-58 — FIXING PARTS; OIL PIPING (#32912) — 94 parça

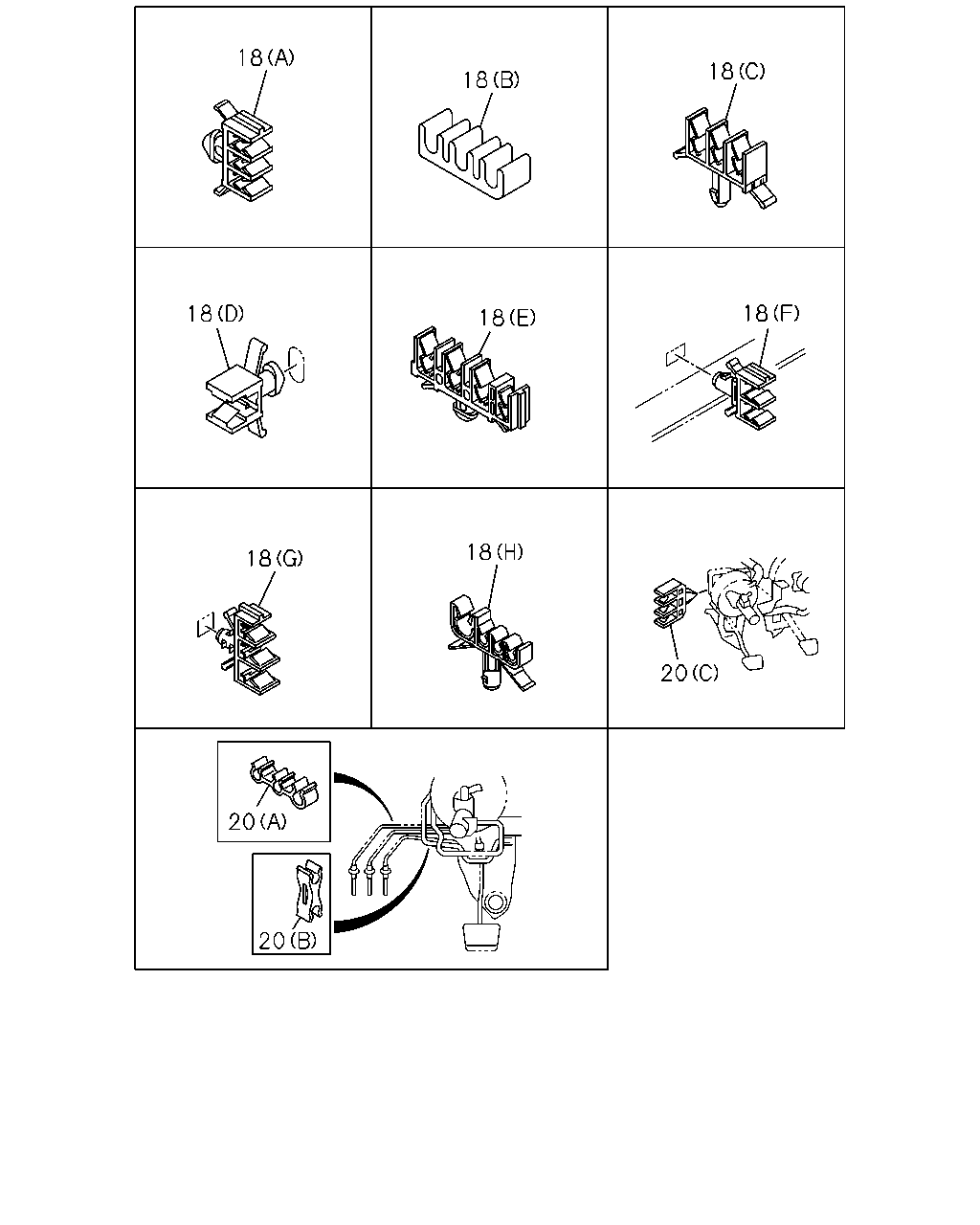

18 18 18 18 18 18 18 18 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (O) B=18 L=20	1-09700-372-0	02	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.8X2	8-94389-060-0	01	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=10 & 4.76X3	8-97326-158-1	01	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=10 & 4.76X3	8-97326-158-1	02	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=10 & 4.76X3	8-97168-819-0	02	1	0911-0911
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=10 & 4.76X3	8-97168-819-0	02	1	0911-0911
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=10 & 4.76X3	8-97168-819-0	03	1	0912-1205
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=10 & 4.76X3	8-97168-819-0	04	1	1206-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=4.76X3	8-97314-976-0	01	1	0912-1205
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	0801-0910
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	0801-0910
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	0801-0910
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8 H=26	8-94249-685-0	01	1	0911-
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8 H=26	8-94249-685-0	01	1	0911-
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8 H=26	8-94249-685-0	01	1	0911-
18	CLIP; BRK PIPE (B) ID=4.76X3	8-94122-333-0	01	1	0609-
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	02	1	0609-0706
18	CLIP; BRK PIPE (F) ID=4.8X2	8-94316-410-0	02	1	0707-0910
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=4.8X2	8-94316-410-0	02	1	0911-1006
18	CLIP; BRK PIPE (F) ID=4.8X2	8-94316-410-0	02	1	1007-
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	0609-0712
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	0609-0712
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	02	1	0801-0910
18	CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> (D) ID=4.8 H=26	8-94249-685-0	02	1	0911-
18	CLIP; BRK PIPE (G) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0609-
18	CLIP; BRK PIPE (G) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0609-
18	CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97168-820-0	01	1	0609-0910
18	CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97168-820-0	01	1	0911-
18	CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0609-0706
18	CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0707-0910
18	CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0707-0910
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0911-0911
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0911-0911
18	CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0912-
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0912-
18	CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0609-
18	CLIP; BRK PIPE (F) ID=4.8X2	8-94316-410-0	01	1	0609-0911
18	CLIP; BRK PIPE (F) ID=4.8X2	8-94316-410-0	01	1	0912-1006
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=4.8X2	8-94316-410-0	01	1	0912-1006
18	CLIP; BRK PIPE (F) ID=4.8X2	8-94316-410-0	01	1	1007-
18	CLIP; BRK PIPE (E) ID=8 & 6.5X2 &4.8	8-94492-600-1	01	1	0609-0706
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0609-
20	CLIP; BRK PIPE (B) ID=4.6X2	8-94241-454-0	01	1	0609-
20	CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0609-

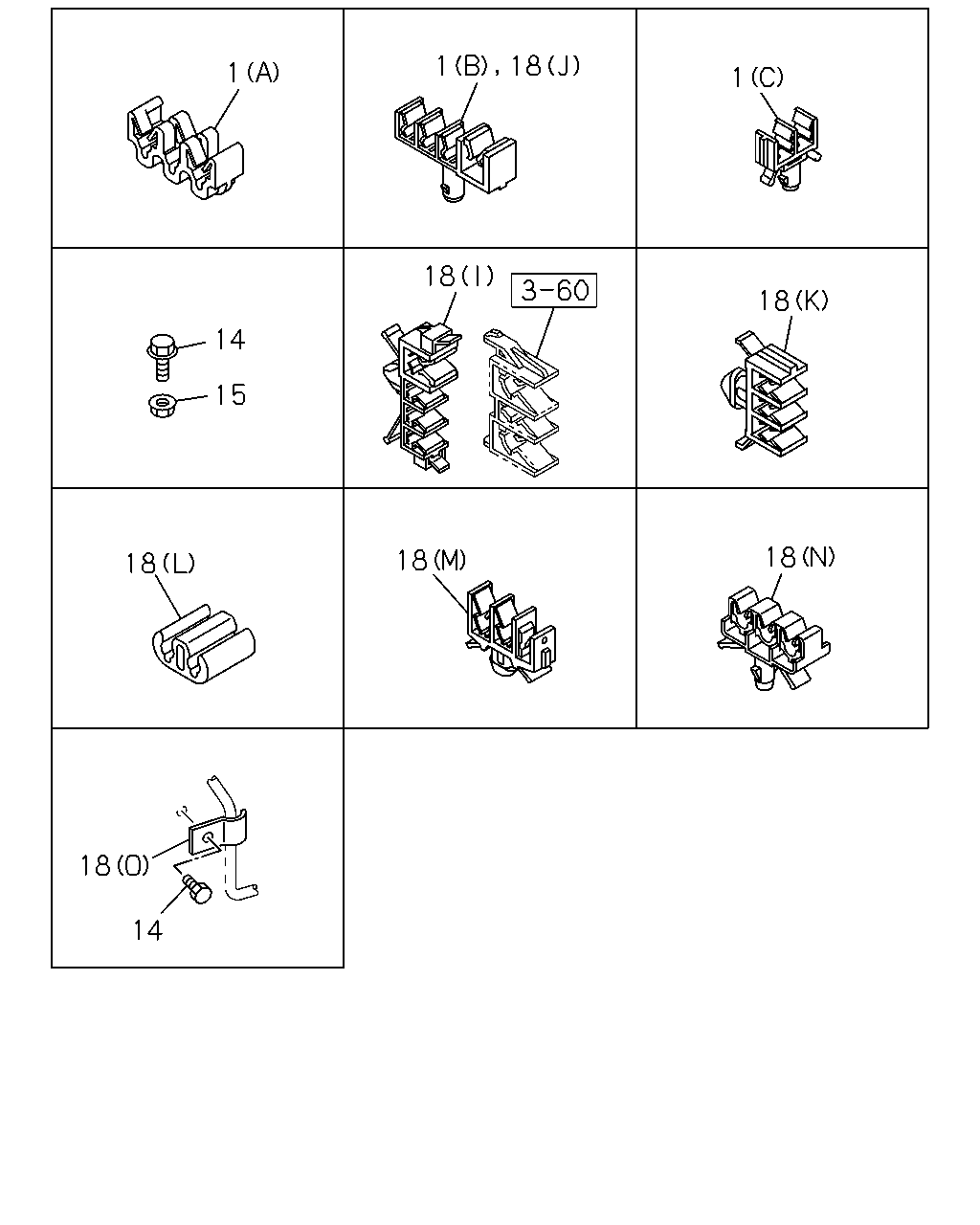

1 18 1 1 18 18 14 15 18 18 18 18 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	01	1	0911-
1	CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3	8-97168-819-0	02	1	0911-
1	CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2	8-94316-410-0	01	1	0912-
14	BOLT; CLIP,OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28650-820-0	02	1	0911-
15	NUT; CLIP,OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (O) B=18 L=20	1-09700-372-0	02	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.8X2	8-94389-060-0	01	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=10 & 4.76X3	8-97326-158-1	01	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=10 & 4.76X3	8-97326-158-1	02	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=10 & 4.76X3	8-97168-819-0	02	1	0911-0911
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=10 & 4.76X3	8-97168-819-0	02	1	0911-0911
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=10 & 4.76X3	8-97168-819-0	03	1	0912-1205
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=10 & 4.76X3	8-97168-819-0	04	1	1206-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=4.76X3	8-97314-976-0	01	1	0912-1205
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	0801-0910
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	0801-0910
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	0801-0910
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8 H=26	8-94249-685-0	01	1	0911-
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8 H=26	8-94249-685-0	01	1	0911-
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8 H=26	8-94249-685-0	01	1	0911-
18	CLIP; BRK PIPE (B) ID=4.76X3	8-94122-333-0	01	1	0609-
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	02	1	0609-0706
18	CLIP; BRK PIPE (F) ID=4.8X2	8-94316-410-0	02	1	0707-0910
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=4.8X2	8-94316-410-0	02	1	0911-1006
18	CLIP; BRK PIPE (F) ID=4.8X2	8-94316-410-0	02	1	1007-
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	0609-0712
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	0609-0712
18	CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	02	1	0801-0910
18	CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> (D) ID=4.8 H=26	8-94249-685-0	02	1	0911-
18	CLIP; BRK PIPE (G) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0609-
18	CLIP; BRK PIPE (G) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0609-
18	CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97168-820-0	01	1	0609-0910
18	CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97168-820-0	01	1	0911-
18	CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0609-0706
18	CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0707-0910
18	CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0707-0910
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0911-0911
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0911-0911
18	CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0912-
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0912-
18	CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0609-
18	CLIP; BRK PIPE (F) ID=4.8X2	8-94316-410-0	01	1	0609-0911
18	CLIP; BRK PIPE (F) ID=4.8X2	8-94316-410-0	01	1	0912-1006
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=4.8X2	8-94316-410-0	01	1	0912-1006
18	CLIP; BRK PIPE (F) ID=4.8X2	8-94316-410-0	01	1	1007-
18	CLIP; BRK PIPE (E) ID=8 & 6.5X2 &4.8	8-94492-600-1	01	1	0609-0706
