2-26 — MANUAL TRANSMISSION GEAR (#3291) — 141 parça

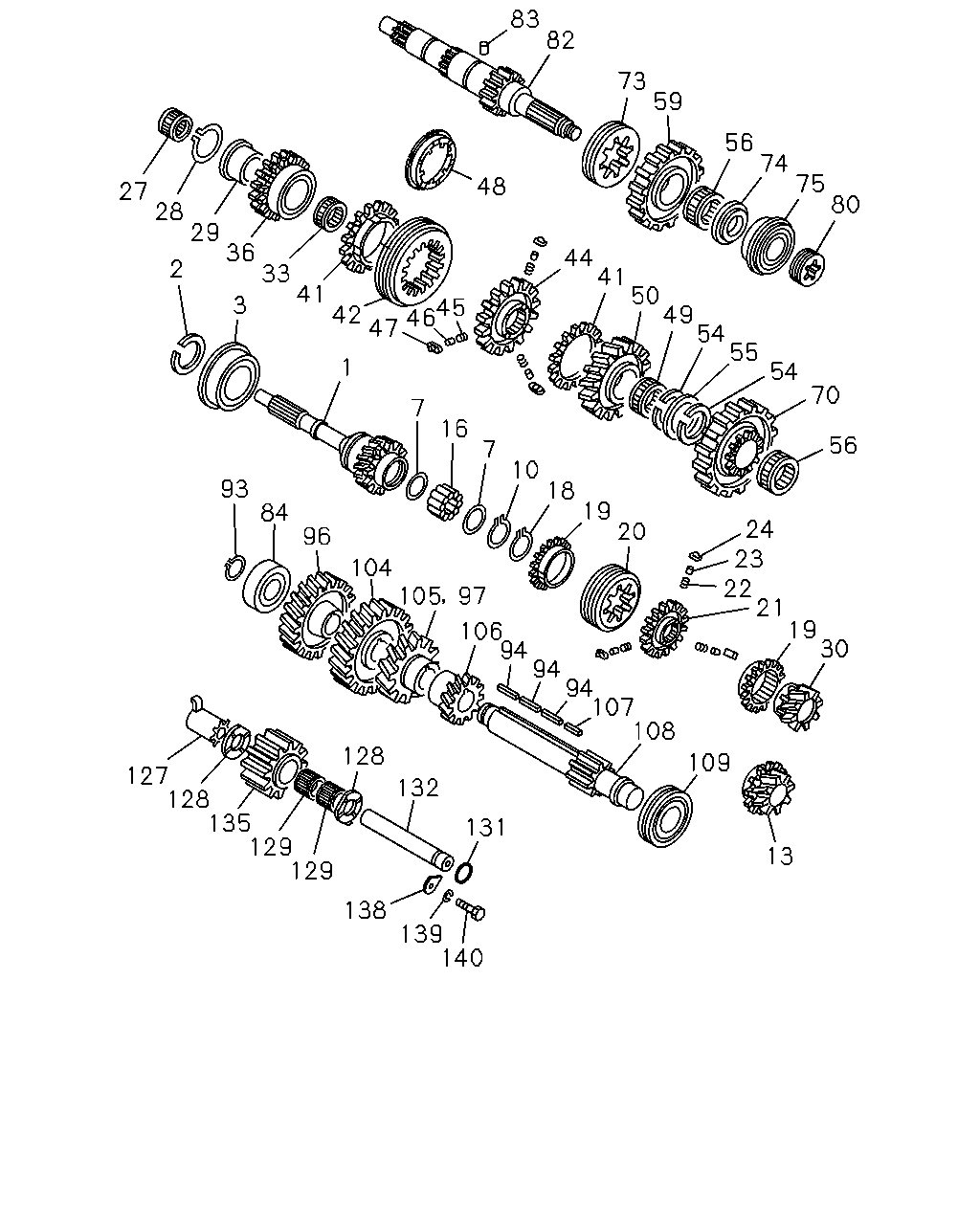

çizim 5392
83 82 73 59 56 74 75 80 48 27 28 29 36 33 41 45 42 46 47 44 41 50 49 54 55 2 3 1 54 70 7 16 56 7 10 18 19 20 93 84 24 23 22 21 19 30 96 104 105 97 106 94 94 94 107 108 128 109 127 128 135 129 129 132 131 13 138 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; TOP GEAR,TRANS
Z=20 		1-33211-719-0 01 1 9101-9309 ● ●
1 SHAFT; TOP GEAR,TRANS
Z=20 		1-33211-773-0 01 1 9310- ● ●
1 SHAFT; TOP GEAR,TRANS 1-33211-721-0 01 1 9101- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 9101- ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 9101- ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 9101- ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 9101- ● ● ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-138-1 01 1 9101-9501 ● ● ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-235-0 01 1 9502-9909 ● ● ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-275-0 01 1 9910- ● ● ●
7 WASHER; THRUST,MAINSHAFT 1-33239-059-0 02 1 9101- ● ● ●
10 RING; SNAP,PILOT BRG
OD=50.5 		9-09180-147-0 01 1 9101- ● ● ●
13 GEAR; 5TH,MAINSHAFT
Z=17 		1-33253-385-0 01 1 9101-9309 ● ●
13 GEAR; 5TH,MAINSHAFT
Z=17 		1-33253-570-0 01 1 9310- ● ●
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09844-006-1 14 1 9101-9810 ● ● ●
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09844-021-0 14 1 9811- ● ● ●
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09844-007-1 14 1 9101-9810 ● ● ●
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09844-022-0 14 1 9811- ● ● ●
16 BEARING; PILOT,MAINSHAFT
KOYO 		1-09844-008-2 14 1 9101-9810 ● ● ●
16 BEARING; PILOT,MAINSHAFT
KOYO 		1-09844-023-0 14 1 9811- ● ● ●
18 RING; SNAP,CLU HUB
ID=46.3 T=1.75 		1-09588-121-1 01 1 9101- ●
18 RING; SNAP,CLU HUB
ID=43.8 T=1.75 		1-09588-104-0 01 1 9101- ● ●
19 RING; BLOCK,4TH & 5TH 1-33265-283-0 02 1 9101-9212 ● ● ●
19 RING; BLOCK,4TH & 5TH
Z=39 		1-33265-408-0 02 1 9301- ● ● ●
20 SLEEVE 1-33262-094-1 01 1 9101- ● ● ●
21 HUB; CLU,4TH & 5TH 1-33261-148-0 01 1 9101- ●
21 HUB; CLU,4TH & 5TH 1-33261-147-0 01 1 9101- ● ●
22 SPRING; BLOCK,INSERT 1-09580-395-0 03 1 9101- ● ● ●
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9101- ● ● ●
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9101- ● ● ●
27 BEARING; 4TH GEAR
NSK 		1-09811-263-0 01 1 9101- ●
27 BEARING; 4TH GEAR
NTN 		1-09811-265-0 01 1 9101- ●
27 BEARING; 4TH GEAR
KOYO 		1-09811-266-0 01 1 9101- ●
27 BEARING; 4TH GEAR
NSK 		1-09811-289-0 01 1 9101- ● ●
27 BEARING; 4TH GEAR
NTN 		1-09811-290-0 01 1 9101- ● ●
27 BEARING; 4TH GEAR
KOYO 		1-09811-291-0 01 1 9101- ● ●
28 RING; SNAP,3RD GEAR 1-09588-120-0 01 1 9101- ● ● ●
29 COLLAR; 3RD GEAR 1-33234-042-2 01 1 9101- ●
29 COLLAR; 3RD GEAR 1-33234-031-1 01 1 9101- ● ●
30 GEAR; 4TH,MAINSHAFT 1-33253-454-0 01 1 9101-9309 ●
30 GEAR; 4TH,MAINSHAFT 1-33253-495-0 01 1 9310- ●
33 BEARING; NEEDLE,3RD GEAR
NSK 		1-09811-198-0 01 1 9101- ● ● ●
33 BEARING; NEEDLE,3RD GEAR
KOYO 		1-09811-199-0 01 1 9101- ● ● ●
36 GEAR; 3RD,MAINSHAFT
Z=33 		1-33252-326-0 01 1 9101-9108 ●
36 GEAR; 3RD,MAINSHAFT
Z=33 		1-33252-322-1 01 1 9109-9301 ●
36 GEAR; 3RD,MAINSHAFT
Z=33 		1-33252-406-0 01 1 9302-9309 ●
36 GEAR; 3RD,MAINSHAFT
Z=33 		1-33252-358-1 01 1 9310- ●
36 GEAR; 3RD,MAINSHAFT
Z=30 Z=30 		1-33252-329-0 01 1 9101-9108 ●
36 GEAR; 3RD,MAINSHAFT
Z=30 Z=30 		1-33252-320-1 01 1 9109-9301 ●
36 GEAR; 3RD,MAINSHAFT
Z=30 Z=30 		1-33252-403-1 01 1 9302- ●
36 GEAR; 3RD,MAINSHAFT
Z=31 		1-33252-330-0 01 1 9101-9108 ●
36 GEAR; 3RD,MAINSHAFT
Z=31 		1-33252-321-1 01 1 9109-9301 ●
36 GEAR; 3RD,MAINSHAFT
Z=31 		1-33252-404-0 01 1 9302-9309 ●
36 GEAR; 3RD,MAINSHAFT
Z=31 		1-33252-360-1 01 1 9310- ●
41 RING; BLOCK,2ND & 3RD 1-33265-282-0 02 1 9101-9108 ● ● ●
42 SLEEVE
Z=42 		1-33262-136-0 01 1 9101-9108 ● ● ●
42 SLEEVE
Z=45 		1-33262-140-1 01 1 9109-9209 ● ● ●
42 SLEEVE
Z=45 		1-33262-164-0 01 1 9210-9503 ● ● ●
42 SLEEVE
Z=45 		1-33262-162-0 01 1 9504- ● ● ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-146-3 01 1 9101-9108 ● ● ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-172-1 01 1 9109-9112 ● ● ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-196-0 01 1 9201-9405 ● ● ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-216-0 01 1 9406- ● ● ●
45 SPRING; BLOCK INSERT 1-09580-395-0 03 1 9101-9108 ● ● ●
45 SPRING; BLOCK INSERT 1-09580-373-0 03 1 9109-9209 ● ● ●
45 SPRING; BLOCK INSERT 1-09580-395-0 03 1 9210- ● ● ●
46 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9101- ● ● ●
47 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9101- ● ● ●
48 SYNCHRONIZER ASM; 2ND & 3RD 1-33265-352-0 02 1 9109-9205 ● ● ●
48 SYNCHRONIZER ASM; 2ND & 3RD 1-33265-402-0 02 1 9206-9301 ● ● ●
48 SYNCHRONIZER ASM; 2ND & 3RD 1-33265-409-0 02 1 9302- ● ● ●
49 BEARING; NEEDLE,2ND GEAR 1-09811-141-1 01 1 9101- ● ● ●
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-275-0 01 1 9101-9108 ● ●
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-259-1 01 1 9109-9301 ● ●
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-325-0 01 1 9302-9309 ● ●
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-290-1 01 1 9310- ● ●
50 GEAR; 2ND,MAINSHAFT
Z=41 Z=41 		1-33251-274-0 01 1 9101-9108 ●
50 GEAR; 2ND,MAINSHAFT
Z=41 Z=41 		1-33251-258-1 01 1 9109-9301 ●
50 GEAR; 2ND,MAINSHAFT
Z=41 Z=41 		1-33251-324-1 01 1 9302- ●
54 RING; SNAP,THRUST WASHER 1-09588-080-0 02 1 9101- ● ● ●
55 WASHER; THRUST,MAINSHAFT 1-33239-016-0 01 1 9101- ● ● ●
56 BEARING; NEEDLE,1ST,REV
NSK 		1-09811-019-0 02 1 9101- ● ● ●
56 BEARING; NEEDLE,1ST,REV
KOYO 		1-09811-020-0 02 1 9101- ● ● ●
59 GEAR; REV MAINSHAFT
Z=43 		1-33257-022-0 01 1 9101-9110 ● ● ●
59 GEAR; REV MAINSHAFT
Z=43 		1-33257-052-0 01 1 9111-9309 ● ● ●
59 GEAR; REV MAINSHAFT
Z=43 		1-33257-059-0 01 1 9310- ● ● ●
70 GEAR; 1ST,MAINSHAFT
Z=47 		1-33255-021-1 01 1 9101-9309 ● ● ●
70 GEAR; 1ST,MAINSHAFT
Z=47 		1-33255-054-1 01 1 9310- ● ● ●
73 CLUTCH; SYN 1ST 1-33261-133-0 01 1 9101- ● ● ●
74 WASHER; THRUST,REV GEAR 1-33239-018-1 01 1 9101- ● ● ●
75 BEARING; MAINSHAFT
NSK 		1-09810-082-0 01 1 9101- ● ● ●
75 BEARING; MAINSHAFT
KOYO 		1-09810-155-0 01 1 9101- ● ● ●
80 GEAR; SPD DRIVE
Z=4 		1-33371-002-0 01 1 9101-9110 ● ● ●
80 GEAR; SPD DRIVE
Z=4 		1-33371-043-2 01 1 9111- ● ● ●
80 GEAR; SPD DRIVE
Z=6 		1-33371-025-0 01 1 9101-9110 ● ● ●
80 GEAR; SPD DRIVE
Z=6 		1-33371-042-2 01 1 9111- ● ● ●
82 SHAFT; MAIN,TRANS
Z=26-24-21 		1-33231-201-1 01 1 9101-9309 ●
82 SHAFT; MAIN,TRANS
Z=26-24-21 		1-33231-266-0 01 1 9310- ●
82 SHAFT; MAIN,TRANS
Z=26-22-21 		1-33231-198-1 01 1 9101-9309 ● ●
82 SHAFT; MAIN,TRANS
Z=22-21-26 		1-33231-265-0 01 1 9310- ● ●
83 PIN; THRUST WASHER 1-09740-032-0 01 1 9101- ● ● ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-127-0 01 1 9101- ● ● ●
84 BEARING; COUNTER SHAFT,FRT
NTN 		1-09810-128-0 01 1 9101- ● ● ●
84 BEARING; COUNTER SHAFT,FRT
KOYO 		1-09810-129-0 01 1 9101- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
ID=53.3 T=2.5 		1-09588-102-0 01 1 9101- ● ● ●
94 KEY; FEATHER,COUNTER SHAFT 1-09735-022-1 03 1 9101- ● ● ●
96 GEAR; COUNTER DRIVE
Z=38 		1-33331-168-2 01 1 9101-9110 ● ●
96 GEAR; COUNTER DRIVE
Z=38 		1-33331-198-0 01 1 9111-9309 ● ●
96 GEAR; COUNTER DRIVE
Z=38 		1-33331-209-0 01 1 9310- ● ●
96 GEAR; COUNTER DRIVE
Z=37 		1-33331-172-1 01 1 9101-9110 ●
96 GEAR; COUNTER DRIVE
Z=37 Z=37 		1-33331-217-0 01 1 9111-9404 ●
96 GEAR; COUNTER DRIVE
Z=37 		1-33331-211-0 01 1 9405- ●
97 GEAR; 5TH,COUNTER
Z=41 		1-33332-077-2 01 1 9101-9309 ● ●
97 GEAR; 5TH,COUNTER
Z=41 		1-33332-112-0 01 1 9310- ● ●
104 GEAR; 4TH,COUNTER
Z=34 		1-33332-070-4 01 1 9101-9110 ●
104 GEAR; 4TH,COUNTER
Z=34 		1-33332-084-0 01 1 9111-9309 ●
104 GEAR; 4TH,COUNTER
Z=34 		1-33332-093-0 01 1 9310- ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-098-2 01 1 9101-9309 ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-151-0 01 1 9310- ●
105 GEAR; 3RD,COUNTER
Z=32 		1-33333-104-2 01 1 9101- ●
105 GEAR; 3RD,COUNTER
Z=30 		1-33333-103-1 01 1 9101-9309 ●
105 GEAR; 3RD,COUNTER
Z=30 		1-33333-149-0 01 1 9310- ●
106 GEAR; 2ND,COUNTER
Z=22 		1-33334-017-0 01 1 9101-9309 ● ●
106 GEAR; 2ND,COUNTER
Z=22 		1-33334-019-0 01 1 9310- ● ●
106 GEAR; 2ND,COUNTER
Z=23 		1-33334-016-1 01 1 9101- ●
107 KEY; FEATHER,2ND COUNTER
L=41 		1-09735-021-0 01 1 9101- ● ● ●
108 SHAFT; COUNTER 1-33311-170-2 01 1 9101-9309 ● ● ●
108 SHAFT; COUNTER 1-33311-268-1 01 1 9310- ● ● ●
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-080-0 01 1 9101- ● ● ●
127 COLLAR; THRUST,REV SHAFT 1-33363-005-0 01 1 9101- ● ● ●
128 WASHER; THRUST,REV SHAFT 9-33271-033-0 02 1 9101- ● ● ●
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-016-0 02 1 9101- ● ● ●
129 BEARING; NEEDLE,IDLER
KOYO 		1-09811-017-0 02 1 9101- ● ● ●
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9101- ● ● ●
132 SHAFT; REV 1-33351-013-1 01 1 9101- ● ● ●
135 GEAR; REV IDLER 1-33361-017-0 01 1 9101-9309 ● ● ●
135 GEAR; REV IDLER 1-33361-062-0 01 1 9310- ● ● ●
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 9101- ● ● ●
139 WASHER; LK,PIECE 9-09151-210-0 01 1 9101-9205 ● ● ●
140 BOLT; LK PIECE 0-23801-016-0 01 1 9101-9205 ● ● ●
140 BOLT; LK PIECE 1-09049-019-0 01 1 9206- ● ● ●
