Isuzu WW
▶
TRUCKS
▶
NLR
▶
51264 - NLR CNG-RHD
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

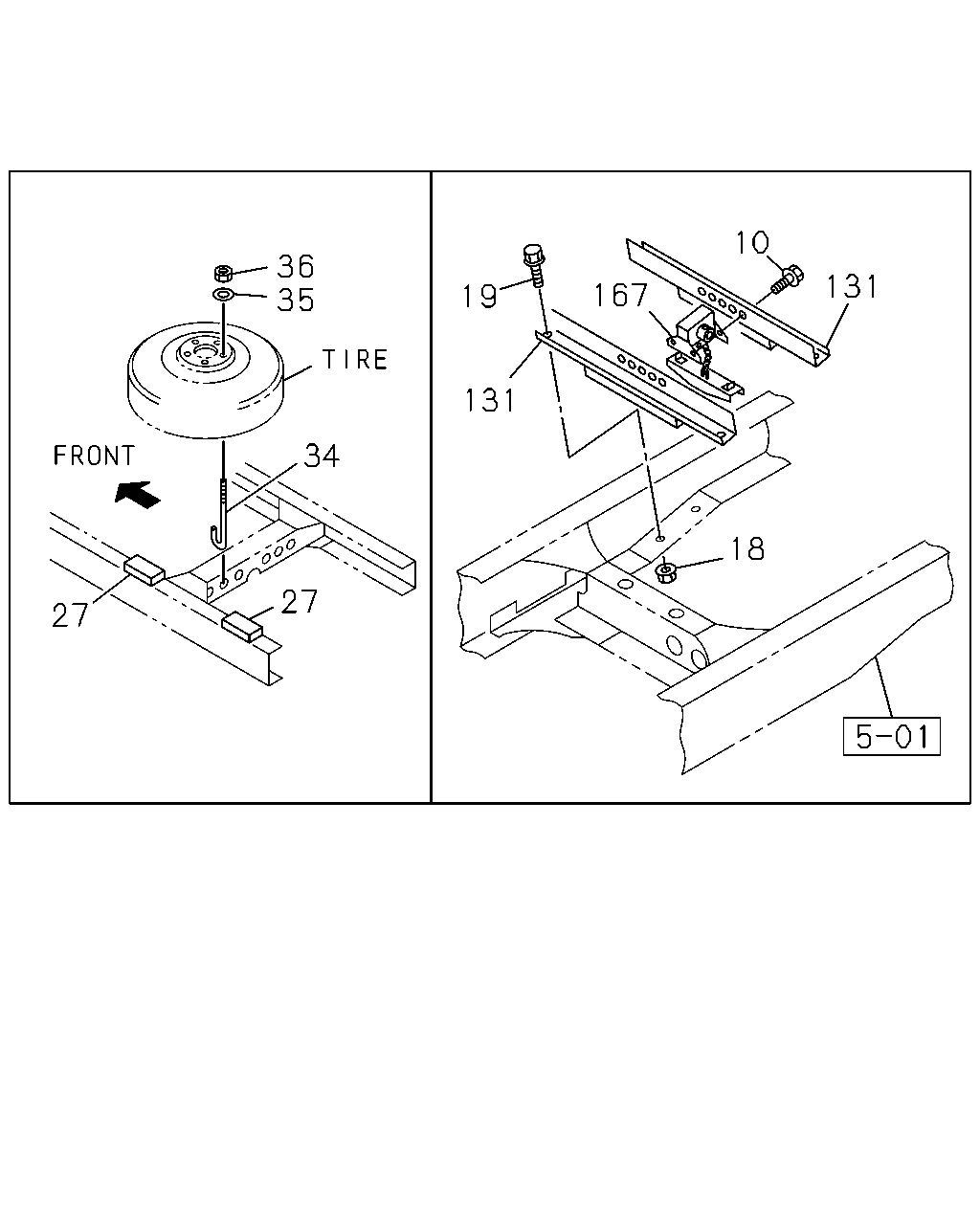

5-30 — SPARE TIRE CARRIER AND COVER
(#32903) — 10 parça
10
36
35
131
167
19
131
34
18
27
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
07.632 BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 06.216 M8X25 FLANGE
0-28650-825-0
04
1
0909-
18
07.633 NUT; MEMBER
03.162 M10 FLANGE
0-91180-110-0
04
1
0909-
19
07.632 BOLT; C/MBR
00.029 M10X30 FLANGE
0-28651-030-0
04
1
0909-
27
07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10
8-94341-284-0
03
1
0909-
34
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305
8-94441-189-0
01
1
0909-1209
34
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X330
8-98226-501-0
01
1
1210-
35
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54
8-94466-483-0
01
1
0909-
36
07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.002 M12
0-91110-512-0
01
1
0909-
131
07.629 CROSSMEMBER; SPARE TIRE
8-98035-825-3
02
1
0909-
167
07.629 HANGER; TIRE
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>
8-98036-384-0
01
1
0909-
