Isuzu WW
▶
TRUCKS
▶
NLR
▶
51264 - NLR CNG-RHD
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#32900) — 39 parça
◀

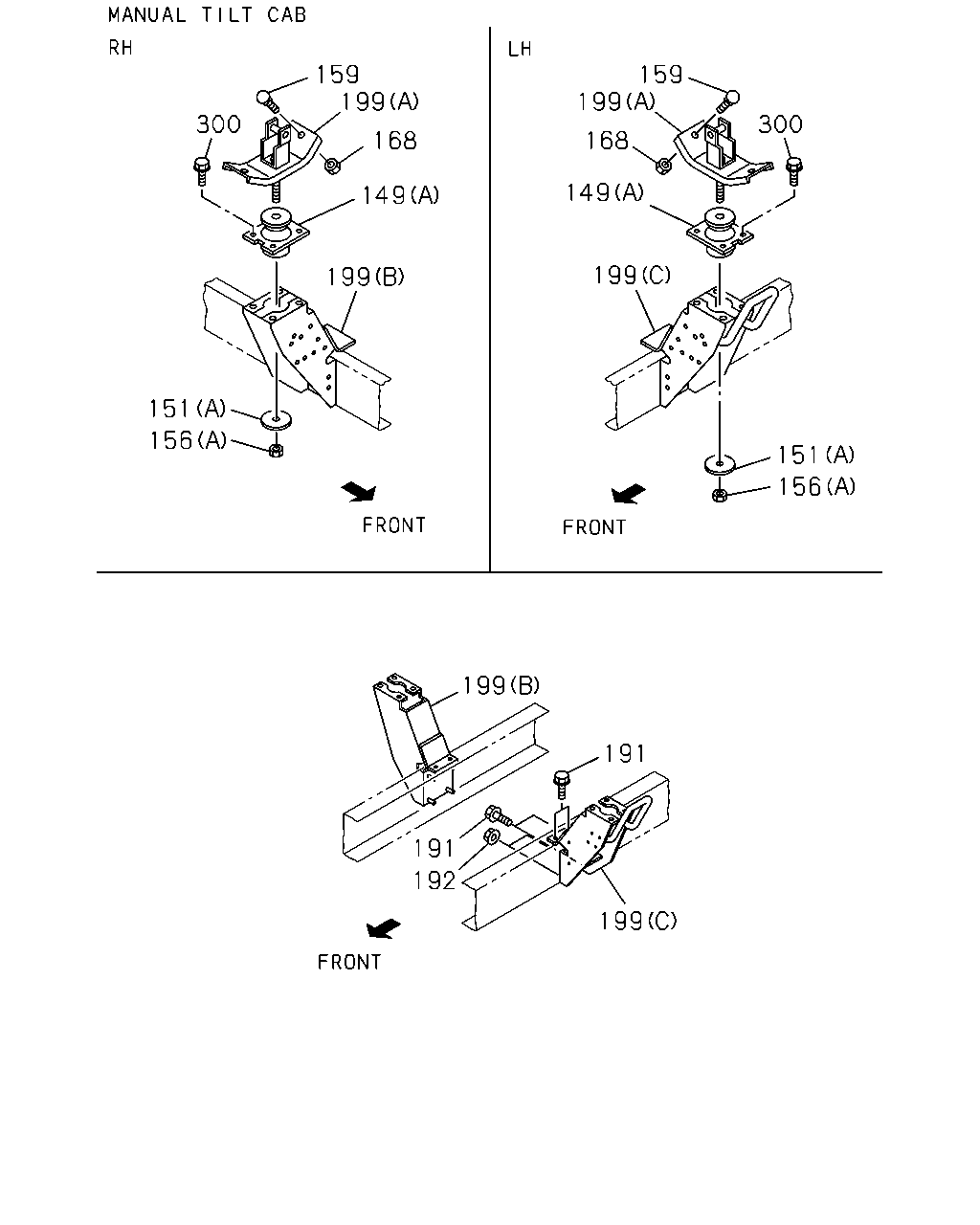

[510A] CAB MTG BRKT REAR(NO.2) (13 parça)

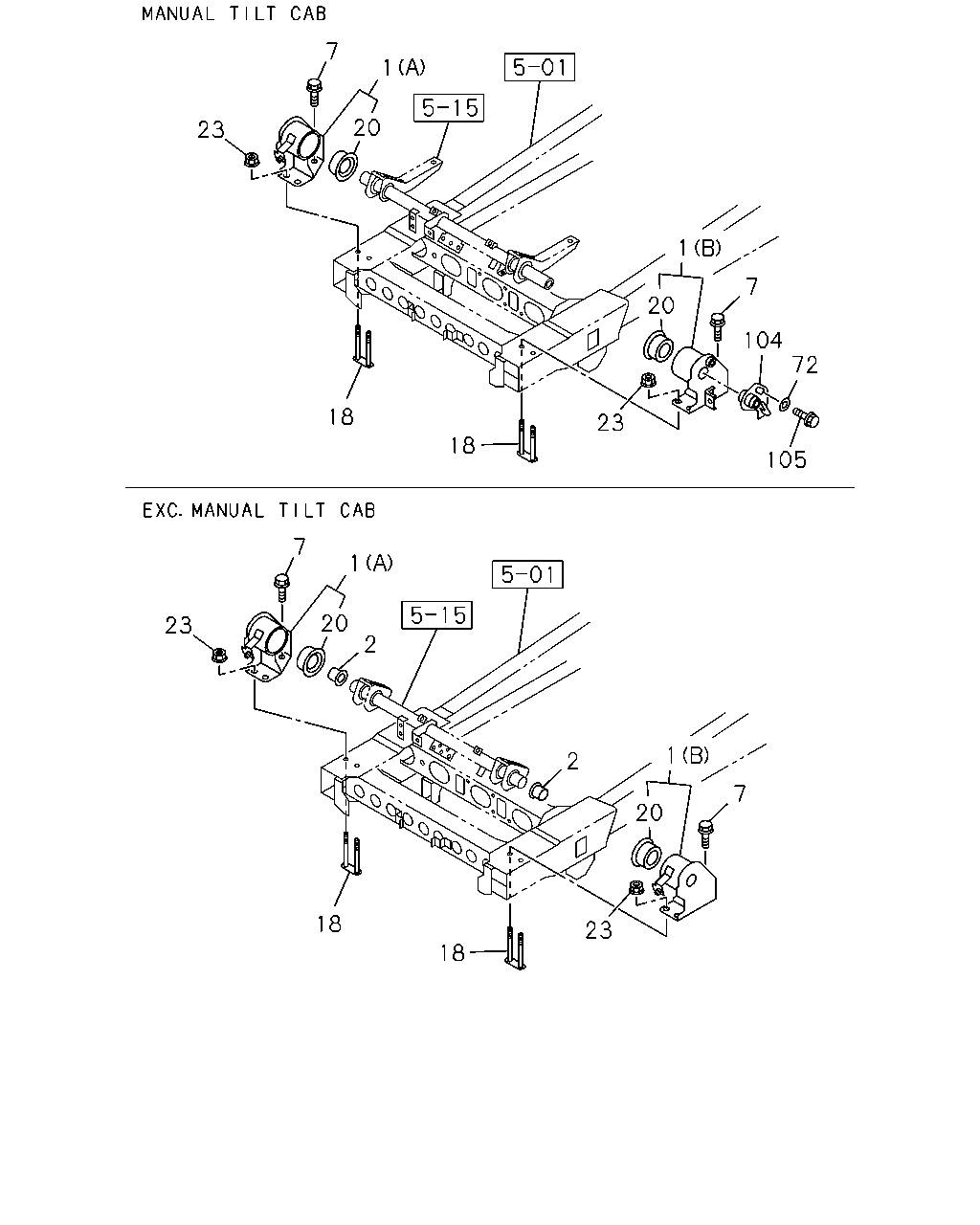

[510A] CAB MTG BRKT FRONT (11 parça)
[510A] CAB MTG BRKT REAR(NO.1) (15 parça)
▶
156
151
199
300
149
192
199
191
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
149
09.023 RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ> (A)
8-98021-561-1
02
1
0909-
149
09.023 RUBBER; MTG,CAB,UPR RR
EXC. MANUAL TILT CAB<RWZ> (B)
8-98038-868-0
02
1
0909-
151
09.011 WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> (A) ID=17 OD=62
8-97359-042-1
02
1
0909-
151
09.011 WASHER; CAB MTG,RR UPR
EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58
8-97359-040-1
02
1
0909-
156
07.529 NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> 00.785 (A) M16
0-91111-516-0
02
1
0909-
156
07.529 NUT; CAB MTG RR
EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE
0-91180-114-0
02
1
0909-
191
09.003 BOLT; BRKT FIX
M12X35 FLANGE
0-28651-235-0
08
1
0909-
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
04
1
0909-
199
09.003 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98021-568-2
01
1
0909-
199
09.003 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98036-883-0
02
1
0909-
199
09.003 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (C)
8-98149-033-0
01
1
0909-
199
09.003 BRACKET; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> (D)
8-98001-443-4
02
1
0909-
300
09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE
0-28651-020-0
08
1
0909-
7
1
20
23
1
7
20
104
72
18
23
18
105
7
1
20
23
2
1
2
7
20
18
23
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.003 BRACKET; CAB MTG
MANUAL TILT CAB<RWZ> 16.545 (B)
8-98021-410-3
01
1
0909-
1
09.003 BRACKET; CAB MTG
16.545 (A)
8-98021-407-4
01
1
0909-
1
09.003 BRACKET; CAB MTG
EXC. MANUAL TILT CAB<RWZ> (B)
8-98021-408-3
01
1
0909-
2
09.009 BUSHING; TORSION BAR
EXC. MANUAL TILT CAB<RWZ>
8-97061-514-0
02
1
0909-
7
09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE
0-28661-440-0
02
1
0909-
18
09.003 PLATE; MTG BRKT FIX
8-98029-285-1
02
1
0909-
20
09.003 RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
0909-
23
09.003 NUT; MTG BRKT
M14
8-98039-989-0
04
1
0909-
72
09.003 WASHER; PL,BRKT TO FRAME
MANUAL TILT CAB<RWZ> ID=15 OD=36
0-91614-714-0
01
1
0909-
104
09.003 BRACKET; CAB FRAME,CAB FRT MTG
MANUAL TILT CAB<RWZ>
8-97383-788-1
01
1
0909-
105
09.023 BOLT; BRKT TO CAB FRAME
MANUAL TILT CAB<RWZ> M14X35 FLANGE
0-28661-435-0
01
1
0909-
159
199
159
199
300
300
168
168
149
149
199
199
151
156
151
156
199
191
191
192
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
149
09.023 RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ> (A)
8-98021-561-1
02
1
0909-
149
09.023 RUBBER; MTG,CAB,UPR RR
EXC. MANUAL TILT CAB<RWZ> (B)
8-98038-868-0
02
1
0909-
151
09.011 WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> (A) ID=17 OD=62
8-97359-042-1
02
1
0909-
151
09.011 WASHER; CAB MTG,RR UPR
EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58
8-97359-040-1
02
1
0909-
156
07.529 NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> 00.785 (A) M16
0-91111-516-0
02
1
0909-
156
07.529 NUT; CAB MTG RR
EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE
0-91180-114-0
02
1
0909-
159
09.023 RUBBER; CUSHION,CAB MTG
MANUAL TILT CAB<RWZ>
8-97113-340-0
04
1
0909-
168
09.011 NUT; CUSHION RUBBER,BODY MTG
MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE
0-91180-108-0
04
1
0909-
191
09.003 BOLT; BRKT FIX
M12X35 FLANGE
0-28651-235-0
08
1
0909-
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
04
1
0909-
199
09.003 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98021-568-2
01
1
0909-
199
09.003 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98036-883-0
02
1
0909-
199
09.003 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (C)
8-98149-033-0
01
1
0909-
199
09.003 BRACKET; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> (D)
8-98001-443-4
02
1
0909-
300
09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE
0-28651-020-0
08
1
0909-
