2-25 — SPEEDOMETER DRIVEN GEAR (#3290) — 24 parça

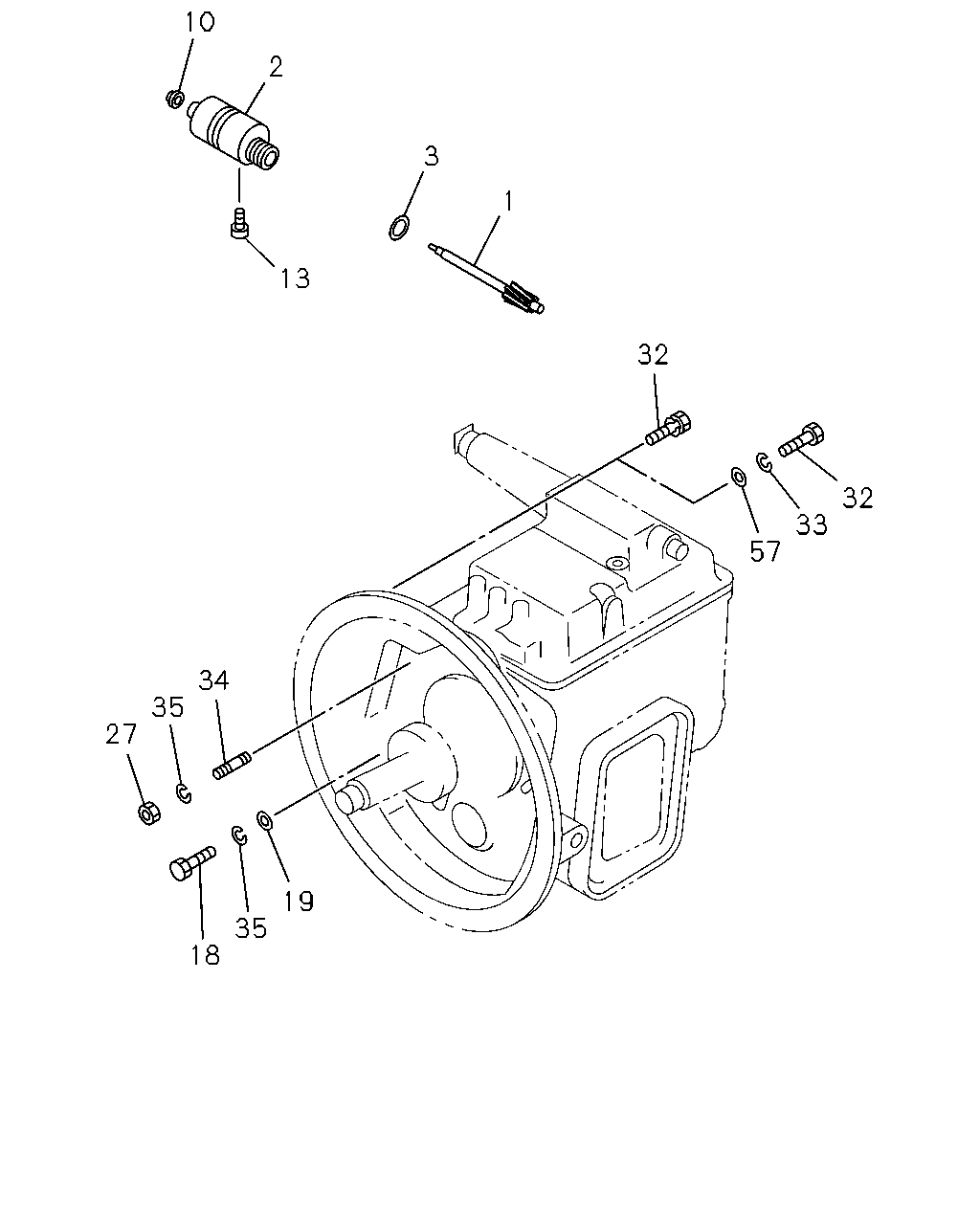

çizim 36074
10 2 3 1 13 32 32 33 57 34 35 27 19 35 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
FINAL GEAR 38/7 13.5"(W1B) RR TIRE 7.50-16<89X> Z=20 		1-33372-123-4 01 1 9101- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 38/7 13.5"(W1B) RR TIRE 7.50-20<91X> Z=17 		1-33372-120-4 01 1 9101- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 38/7 13.5"(W1B) RR TIRE 8.25-16<92X> Z=19 		1-33372-122-4 01 1 9101- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 41/7 13.5"(W1C) RR TIRE 7.50-20<91X> Z=19 		1-33372-122-4 01 1 9101- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 41/8 13.5"(W4E) RR TIRE 7.50-16<89X> Z=19 		1-33372-122-4 01 1 9101- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 41/7 13.5"(W1C) RR TIRE 7.50-16<89X>,RR TIRE 8.25-16<92X> Z=14 		1-33372-076-5 01 1 9101- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 41/8 13.5"(W4E) RR TIRE 7.50-20<91X> Z=16 		1-33372-119-4 01 1 9101- ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-039-1 01 1 9101- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-370-0 01 1 9101- ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9101- ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9101- ● ● ●
18 BOLT; CLU HSG TO TRANS 0-23801-440-0 05 1 9101-9203 ● ● ●
18 BOLT; CLU HSG TO TRANS 0-50151-440-0 05 1 9204- ● ● ●
19 WASHER; PL,CLU HSG TO TRANS 9-09160-614-0 06 1 9101-9203 ● ● ●
19 WASHER; PL,CLU HSG TO TRANS 9-09160-514-0 01 1 9204- ● ● ●
27 NUT; CLU HSG TO TRANS 9-99110-514-0 01 1 9101- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 W/LK&PL WASHER 		0-50151-030-0 12 1 9101-9606 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 FLANGE 		0-28781-030-0 12 1 9607- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 		9-02361-030-0 12 1 9101- ●
33 WASHER; LK,CLU HSG 9-09150-510-0 12 1 9101- ●
34 STUD; CLU HSG 1-09302-145-1 01 1 9101- ● ● ●
35 WASHER; LK,CLU HSG TO TRANS 9-09150-514-0 06 1 9101-9203 ● ● ●
35 WASHER; LK,CLU HSG TO TRANS 9-09150-514-0 01 1 9204- ● ● ●
57 WASHER; PL,CLU HSG 9-09164-510-0 12 1 9101- ●
