2-20 — MANUAL TRANSMISSION ASM AND CASE (#3289) — 51 parça

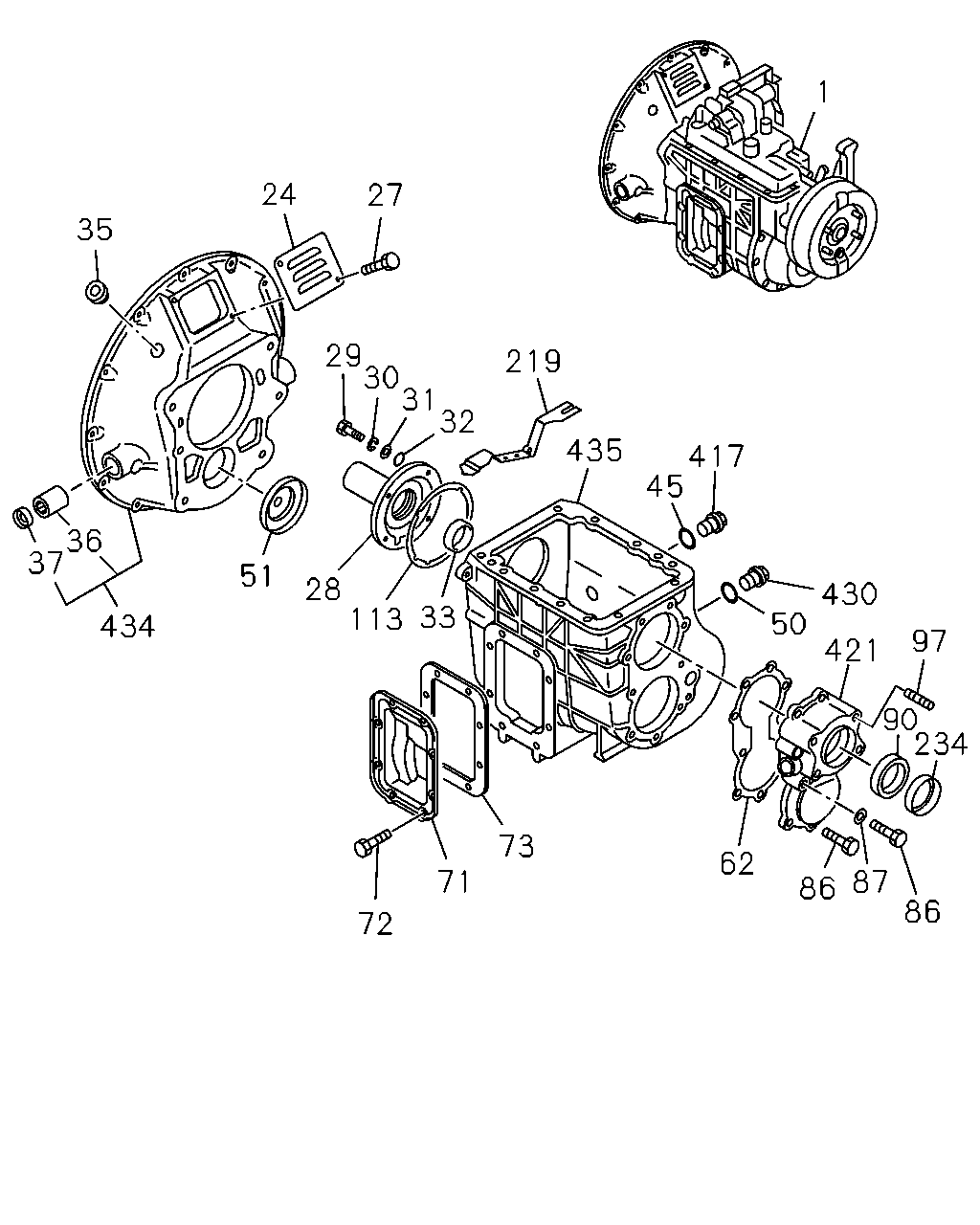

çizim 36066
1 24 27 35 29 30 31 32 219 435 417 45 36 37 51 28 113 430 33 50 434 97 421 90 234 73 62 71 87 86 86 72
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRANSMISSION ASM; MANUAL
RIGHT HAND DRIVE(MRR5FB) 		1-33019-729-0 01 1 9101- ●
1 TRANSMISSION ASM; MANUAL
LEFT HAND DRIVE(MRR6FB) 		1-33019-762-0 01 1 9101- ●
1 TRANSMISSION ASM; MANUAL
RIGHT HAND DRIVE(MRR5FB) 		1-33019-773-0 01 1 9101- ●
1 TRANSMISSION ASM; MANUAL
LEFT HAND DRIVE(MRR6FB) 		1-33019-773-0 01 1 9101- ●
1 TRANSMISSION ASM; MANUAL
RIGHT HAND DRIVE(MRR5FB) 		1-33019-751-0 01 1 9101- ●
1 TRANSMISSION ASM; MANUAL
LEFT HAND DRIVE(MRR6FB) 		1-33019-784-0 01 1 9101- ●
24 COVER; CHECK HOLE,DUST 1-31131-027-0 01 1 9101-9807 ● ● ●
24 COVER; CHECK HOLE,DUST 1-31131-041-0 01 1 9808- ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		9-01900-816-0 02 1 9101-9204 ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-9205 ● ● ●
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28080-812-0 02 1 9206- ● ● ●
28 COVER; FRT,TRANS CASE 1-33121-021-3 01 1 9101-9312 ● ● ●
28 COVER; FRT,TRANS CASE 1-33121-078-0 01 1 9401- ● ● ●
29 BOLT; FRT COVER
M10X32 		1-09020-120-1 04 1 9101-9205 ● ● ●
29 BOLT; FRT COVER 1-09040-089-1 04 1 9206- ● ● ●
30 WASHER; LK,FRT COVER 9-09150-510-0 04 1 9101-9205 ● ● ●
31 WASHER; PL,FRT COVER BOLT 9-09164-510-0 04 1 9101-9205 ● ● ●
32 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10 		1-09623-369-0 04 1 9101- ● ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-502-0 01 1 9101-9306 ● ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-565-1 01 1 9307- ● ● ●
35 GROMMET; CLU HSG 9-31139-007-0 01 1 9101- ● ● ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-002-1 02 1 9101- ● ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-002-0 02 1 9101- ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5 		9-09920-392-0 01 1 9101-9405 ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9406- ● ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9101- ● ● ●
51 COVER; SEAL,COUNTER,FRT 1-33319-056-0 01 1 9101- ● ● ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33132-027-2 01 1 9101- ● ● ●
71 COVER; SIDE,TRANS CASE 1-33141-028-0 01 1 9101- ● ● ●
72 BOLT; SIDE COVER
M10X20 W/LK WASHER 		9-01921-020-0 08 1 9101-9204 ● ● ●
72 BOLT; SIDE COVER
M10X20 W/LK WASHER 		0-50051-020-0 08 1 9205-9205 ● ● ●
72 BOLT; SIDE COVER
M10X16 FLANGE 		0-28181-016-0 08 1 9206- ● ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-036-0 01 1 9101- ● ● ●
86 BOLT; RR COVER
M10X60 		9-01656-060-0 02 1 9101-9205 ● ● ●
86 BOLT; RR COVER
M10X25 		1-09044-080-0 07 1 9206- ● ● ●
86 BOLT; RR COVER
M10X30 		9-01931-030-0 07 1 9101-9205 ● ● ●
86 BOLT; RR COVER
M10X55 		1-09044-083-0 02 1 9206- ● ● ●
87 WASHER; LK,RR COVER 9-09150-510-0 02 1 9101-9205 ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-505-0 01 1 9101- ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). KOYO 		1-09625-522-0 01 1 9101-9710 ● ● ●
97 STUD; PARKING BRK 1-09302-138-1 01 1 9101- ● ● ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-008-0 01 1 9101-9312 ● ● ●
219 PLATE; TRANS CASE & QUAD BOX 1-33119-073-1 01 1 9101- ● ● ●
234 COVER; OIL SEAL 1-33139-001-1 01 1 9101- ● ● ●
417 PLUG; OIL FILLER,TRANS 1-09604-021-0 01 1 9101-9405 ● ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 9406-9802 ● ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-064-1 01 1 9803- ● ● ●
421 COVER; RR,TRANS 1-33131-058-5 01 1 9101- ● ● ●
430 PLUG; OIL DRAIN 1-09604-023-0 01 1 9101- ● ● ●
434 HOUSING; CLU 1-31110-086-0 01 1 9101- ● ● ●
435 CASE; TRANS 1-33111-157-3 01 1 9101- ● ● ●
