3-11 — PARKING BRAKE CONTROL
(#32871) — 42 parça
◀

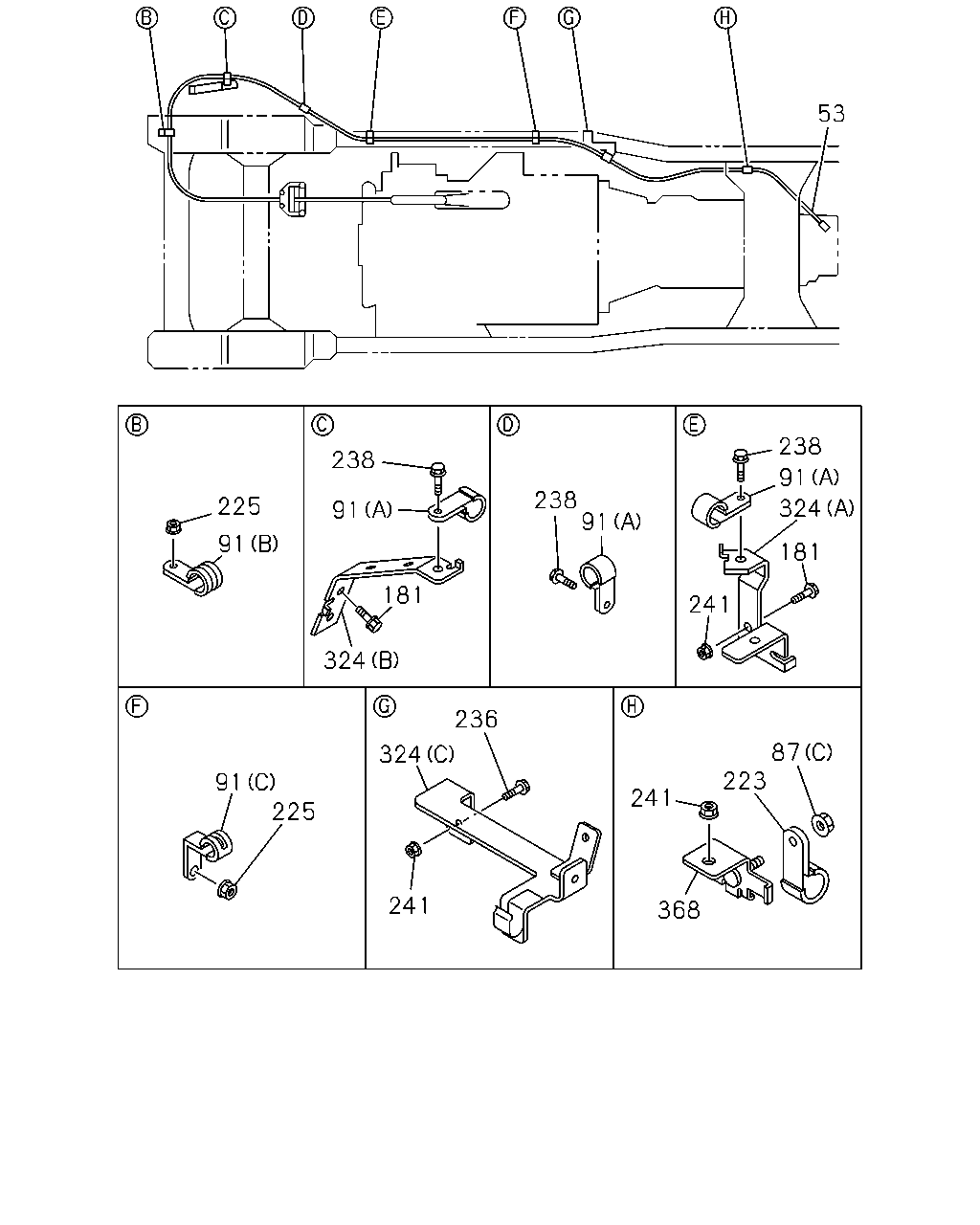

[311A] FIXING PARTS (22 parça)

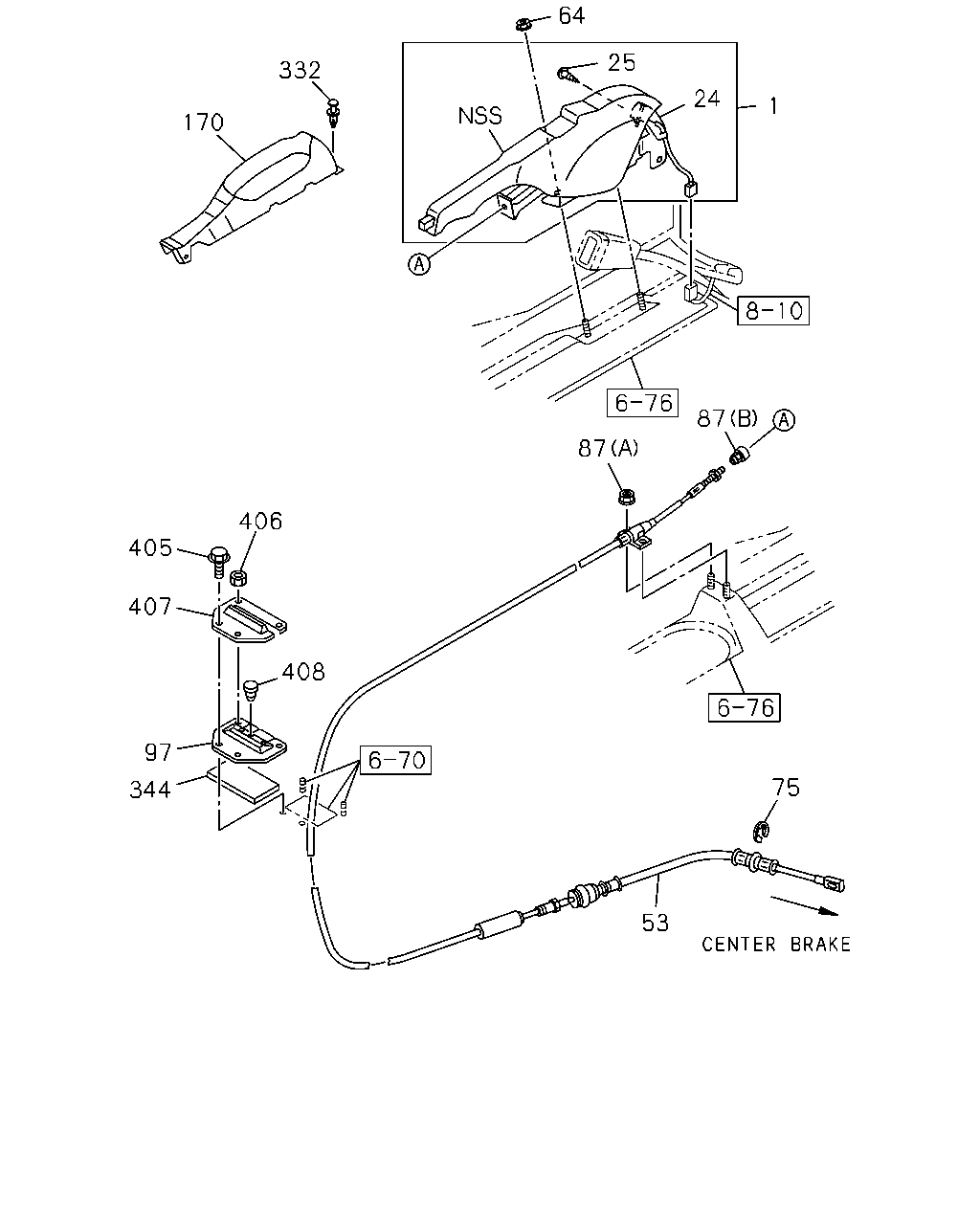

[311A] STEM AND CABLE (20 parça)
▶
53
238
238
91
238
91
225
324
91
91
181
181
241
324
236
87
223
324
91
225
241
241
368
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
04.779 CABLE; PARK BRK,FRT LWR
8-98002-143-1
01
1
0909-1109
53
04.779 CABLE; PARK BRK,FRT LWR
8-98189-205-0
01
1
1110-
87
04.785 NUT
01.062 (B) M8 FLANGE
0-91180-108-0
02
1
0909-
87
04.785 NUT
03.162 (C) M10 FLANGE
0-91180-110-0
01
1
0909-
87
04.785 NUT
(A) M6
8-98034-313-1
01
1
0909-
91
04.785 CLIP; PARKING BRK CABLE
02.559 (C) ID=24 H=40 L=24
1-09701-243-1
01
1
0909-
91
04.785 CLIP; PARKING BRK CABLE
01.540 (A) ID=13 L=28
0-95235-255-0
01
1
0909-
91
04.785 CLIP; PARKING BRK CABLE
01.540 (A) ID=13 L=28
0-95235-255-0
02
1
0909-
91
04.785 CLIP; PARKING BRK CABLE
04.128 (B) ID=19 L=32
1-09701-235-0
01
1
0909-
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0909-
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0909-
223
04.785 CLIP; PARKING BRK CABLE
00.799 ID=13 L=20
1-09701-138-1
01
1
0909-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0909-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0909-
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0910-
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
03
1
0909-
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0909-
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0909-
324
04.785 BRACKET
(A)
8-98003-642-1
01
1
0909-
324
04.785 BRACKET
(B)
8-98032-783-1
01
1
0909-
324
04.785 BRACKET
(C)
8-98149-255-0
01
1
0909-
368
04.785 BRACKET; T/M SIDE
8-97372-863-1
01
1
0909-
64
25
332
24
1
170
87
87
406
405
407
408
97
75
344
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97405-353-0
01
1
0909-1303
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97426-513-0
01
1
1304-
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0909-1303
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1304-
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0909-
53
04.779 CABLE; PARK BRK,FRT LWR
8-98002-143-1
01
1
0909-1109
53
04.779 CABLE; PARK BRK,FRT LWR
8-98189-205-0
01
1
1110-
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0909-
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
0909-
87
04.785 NUT
01.062 (B) M8 FLANGE
0-91180-108-0
02
1
0909-
87
04.785 NUT
03.162 (C) M10 FLANGE
0-91180-110-0
01
1
0909-
87
04.785 NUT
(A) M6
8-98034-313-1
01
1
0909-
97
04.785 GROMMET; PARKING BRK CABLE
04.010
8-97065-212-1
01
1
0909-
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97406-170-1
01
1
0909-
332
04.785 CLIP; COVER
GRAY
8-97406-171-0
01
1
0909-
344
04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047
8-97096-753-0
01
1
0909-
405
04.785 BOLT; GROMMET
00.785 M6X20 FLANGE
0-28450-620-0
02
1
0909-
406
04.785 NUT; GROMMET
01.062 M6 FLANGE
0-91180-106-0
02
1
0909-
407
04.785 RETAINER; GROMMET
04.047
1-33657-674-0
01
1
0909-
408
04.785 CAP; GROMMET
04.010
8-97371-108-0
02
1
0909-
