3-05 — REAR WHEEL BRAKE
(#32868) — 35 parça
◀
[305A] NO.2 (22 parça)
[305A] NO.1 (13 parça)
▶
95
94
102
97
96
101
98
99
108
104
106
295
107
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
8-97191-497-0
01
1
0909-
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
8-97191-499-0
01
1
0909-
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
8-97191-501-0
01
1
0909-
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
8-97191-502-0
01
1
0909-
95
04.665 CUP SET; RR WHEEL CYL
5-87831-781-0
01
1
0909-
96
04.666 SCREW; BLEEDER,RR BRK
8-97191-759-0
02
1
0909-
97
04.666 CAP; BLEEDER,RR WHEEL CYL
8-97191-774-0
02
1
0909-
98
04.669 SPRING; RR WHEEL CYL
8-97191-768-0
04
1
0909-
99
04.668 PISTON; RR WHEEL CYL
8-97191-731-0
02
1
0909-
99
04.668 PISTON; RR WHEEL CYL
8-97191-732-0
02
1
0909-
101
04.666 SCREW; ADJ,RR WHEEL CYL
8-97191-770-0
04
1
0909-
102
04.668 PISTON; REAR WHEEL CYL
8-97191-755-0
04
1
0909-
104
05.103 LEVER; ADJ
8-97191-739-0
02
1
0909-
104
05.103 LEVER; ADJ
8-97191-740-0
02
1
0909-
106
05.107 SPRING; ADJ LEVER
8-97191-743-0
02
1
0909-
106
05.107 SPRING; ADJ LEVER
8-97191-744-0
02
1
0909-
107
05.110 GEAR; ADJ,RR W/CYL
8-97191-747-0
02
1
0909-
107
05.110 GEAR; ADJ,RR W/CYL
8-97191-748-0
02
1
0909-
108
05.110 WASHER; THRUST,GEAR ADJ
8-97191-762-0
04
1
0909-
295
05.110 SEAL; DUST
8-97191-751-0
04
1
0909-
296
05.125 BOLT; ADJ,RR WHEEL CYL
8-97191-764-0
02
1
0909-
296
05.125 BOLT; ADJ,RR WHEEL CYL
8-97191-765-0
02
1
0909-

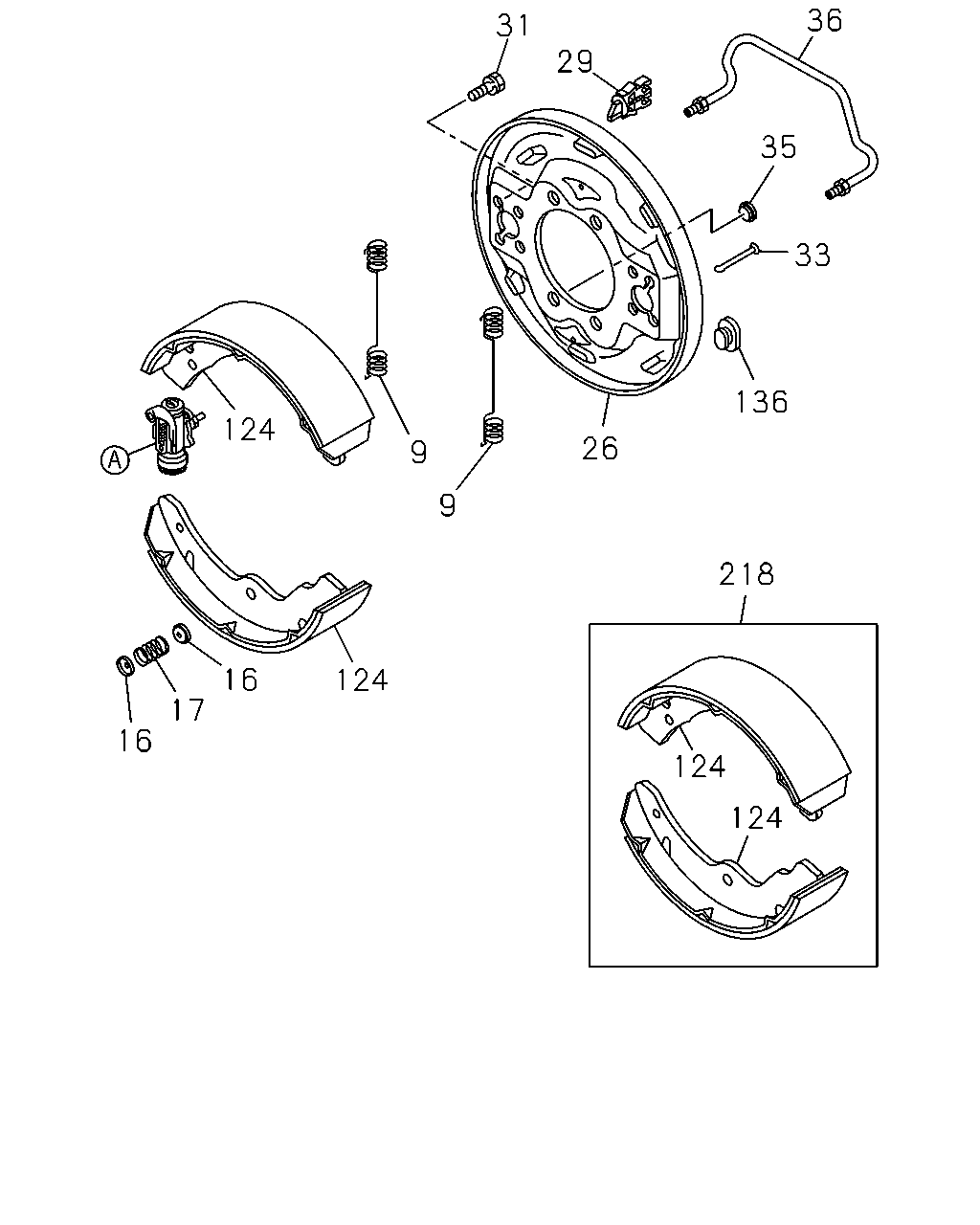

36
31
29
35
33
136
124
26
9
9
218
16
124
17
16
124
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
05.026 SPRING; RETURN,BRK SHOE
8-97191-707-0
04
1
0909-
16
05.043 CUP; SHOE HOLDING
8-97191-712-0
08
1
0909-
17
04.043 SPRING; SHOE HOLD DOWN
8-97191-708-0
04
1
0909-
26
05.001 PLATE; BACK,RR BRK
8-97191-698-0
01
1
0909-
26
05.001 PLATE; BACK,RR BRK
8-97191-699-0
01
1
0909-
29
04.685 CLIP; PIPE,BRK
8-97191-703-0
02
1
0909-
31
04.665 BOLT; RR WHEEL CYL
8-97191-714-0
16
1
0909-
33
05.043 PIN; SHOE HOLD DOWN
8-97191-711-0
04
1
0909-
35
05.002 GROMMET; CHECK HOLE
8-97191-720-0
02
1
0909-
36
04.685 PIPE; OIL,RR BRK
8-97191-702-0
02
1
0909-
124
05.017 SHOE ASM; BRK,RR
8-97331-932-0
04
1
0909-
136
05.002 GROMMET
8-97191-718-0
08
1
0909-
218
05.017 SHOE KIT; BRK,RR
5-87832-044-0
01
1
0909-
