Isuzu WW
▶
TRUCKS
▶
NLR
▶
51264 - NLR CNG-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

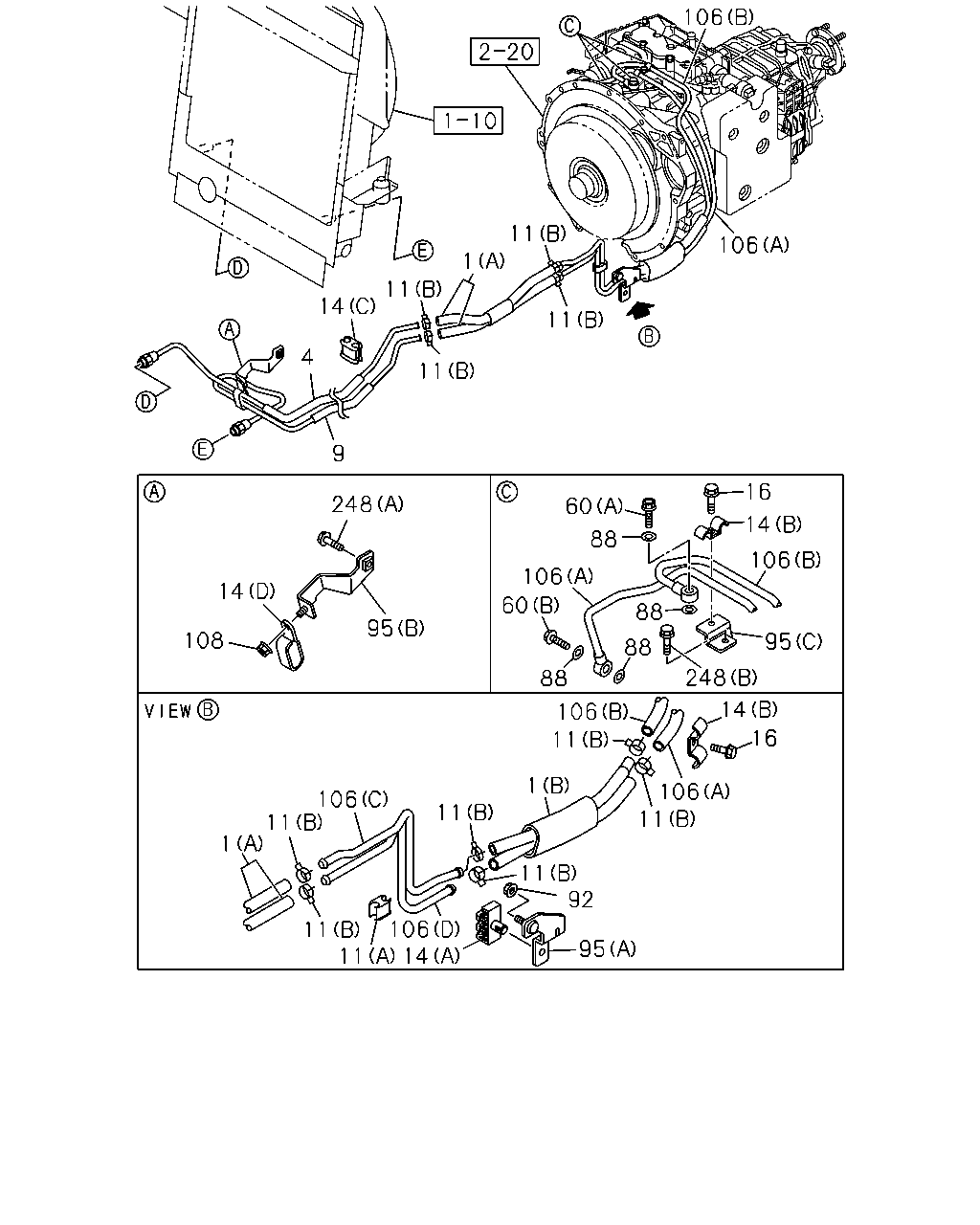

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#32866) — 25 parça
106
11
106
1
11
14
11
4
11
9
16
248
60
14
88
106
106
14
60
88
95
108
95
88
248
88
14
106
11
16
1
106
11
106
11
11
1
11
92
106
14
11
11
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.128 HOSE; ATF
(B)
8-98086-375-0
01
1
0909-
1
04.128 HOSE; ATF
(A)
8-98086-376-0
01
1
0909-
4
04.128 PIPE; ATF,OUTLET,A/T
8-98052-833-1
01
1
0909-
9
04.128 PIPE; ATF,INL,A/T
8-98052-832-1
01
1
0909-
11
04.128 CLIP; PIPE
06.672 (A) ID=10X2 H=22
8-94252-455-2
01
1
0909-
11
04.128 CLIP; PIPE
01.097 (B) ID=16
8-97329-628-0
08
1
0909-
14
04.128 CLIP; PIPE TO ENG SIDE
(D) ID=16X2 L=28
0-95325-556-0
01
1
0909-
14
04.128 CLIP; PIPE TO ENG SIDE
00.854 (B) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
02
1
0909-
14
04.128 CLIP; PIPE TO ENG SIDE
06.672 (C) ID=10X2 H=22
8-94252-455-2
01
1
0909-
14
04.128 CLIP; PIPE TO ENG SIDE
(A) ID=10 OR 12X2 & 4.76
8-98058-323-0
01
1
0909-
16
04.128 BOLT; CLIP,ENG SIDE
01.531 M8X20 FLANGE
0-28650-820-0
02
1
0909-
60
04.128 BOLT; EYE,ATF PIPE
(B) M14X30 EYE-BOLT
8-98037-827-0
01
1
0909-
60
04.128 BOLT; EYE,ATF PIPE
(A) M14X35.5 EYE-BOLT
8-98060-382-0
01
1
0909-
88
04.128 GASKET; EYE BOLT
08.955 ID=14.2 OD=20.0
9-09571-414-0
04
1
0909-
92
04.128 NUT; CLIP
03.162 M10 FLANGE
0-91180-110-0
01
1
0909-
95
04.128 BRACKET; CLIP
(C)
8-97349-876-0
01
1
0909-
95
04.128 BRACKET; CLIP
(A)
8-98052-834-2
01
1
0909-
95
04.128 BRACKET; CLIP
(B)
8-98052-835-2
01
1
0909-
106
04.128 PIPE ASM; OIL,COOLER TO UNION
(A)
8-98017-110-0
01
1
0909-
106
04.128 PIPE ASM; OIL,COOLER TO UNION
(B)
8-98035-638-0
01
1
0909-
106
04.128 PIPE ASM; OIL,COOLER TO UNION
(C)
8-98052-829-2
01
1
0909-
106
04.128 PIPE ASM; OIL,COOLER TO UNION
(D)
8-98052-831-2
01
1
0909-
108
04.128 NUT; PIPE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0909-
248
04.128 BOLT; RETAINER
01.531 (B) M8X20 FLANGE
0-28650-820-0
01
1
0909-
248
04.128 BOLT; RETAINER
06.216 (A) M8X25 FLANGE
0-28650-825-0
01
1
0909-
