◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51264 - NLR CNG-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#32862) — 90 parça

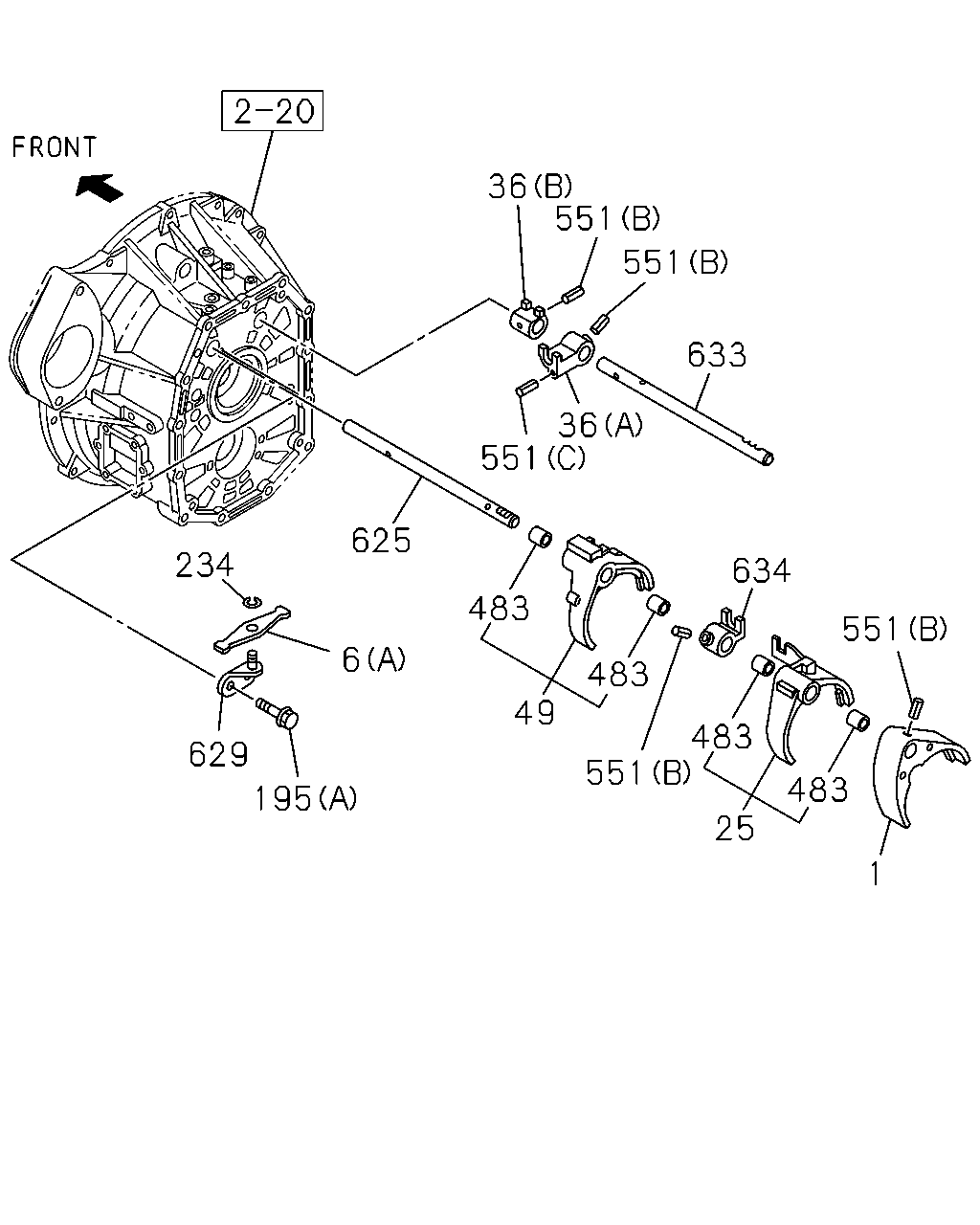

çizim 124595
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0909-
6 04.302 LEVER; RELAY
(A) 		8-97241-344-0 01 1 0909-
6 04.302 LEVER; RELAY
(B) 		8-97379-995-0 01 1 0909-
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0909-1407
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408-
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 0909-
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 0909-
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 0909-
195 04.105 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0909-
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0909-
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 0909-
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 0909-
551 04.303 PIN; SPRING
04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0909-
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0909-
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0909-
551 04.303 PIN; SPRING
04.302 (F) OD=5 		8-97184-905-0 03 1 0909-
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0909-
551 04.303 PIN; SPRING
(E) 		8-97379-991-0 01 1 0909-
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 0909-
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 0909-
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 0909-1201
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-98206-518-0 01 1 1202-
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 0909-

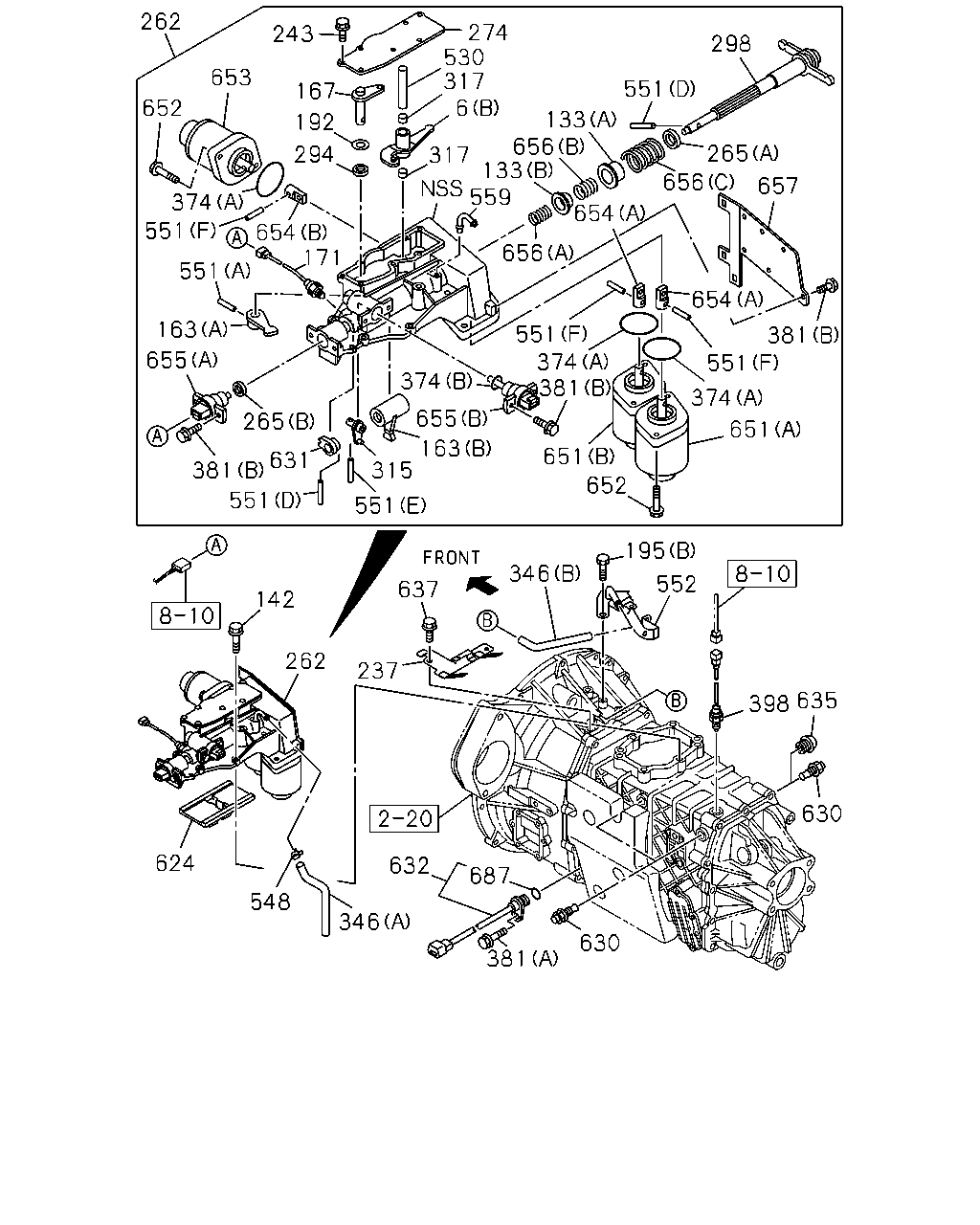

çizim 124601
262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 265 294 317 656 657 374 654 171 551 656 551 654 381 551 163 551 374 381 655 374 374 655 265 651 163 315 651 631 381 652 551 551 195 346 552 637 142 262 237 398 635 630 624 632 687 548 346 630 381 654
BalonParca AdiParca NoAdetTipApplied Date
6 04.302 LEVER; RELAY
(A) 		8-97241-344-0 01 1 0909-
6 04.302 LEVER; RELAY
(B) 		8-97379-995-0 01 1 0909-
133 04.027 SEAT; SPR
(B) 		8-97379-988-0 01 1 0909-
133 04.027 SEAT; SPR
(A) 		8-97379-989-0 01 1 0909-
142 04.012 BOLT; QUAD BOX
M8X35 FLANGE 		8-98020-384-0 03 1 0909-
142 04.012 BOLT; QUAD BOX
M8X75 FLANGE 		8-98020-385-0 03 1 0909-
163 04.302 LEVER; SELECT,INTERNAL
(B) 		8-97379-979-0 01 1 0909-
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97379-990-0 01 1 0909-
167 04.302 LEVER; SELECT,EXTERNAL 8-97379-994-0 01 1 0909-
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 0909-1312
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-
192 04.309 WASHER; PL
04.302 		1-09503-280-0 01 1 0909-
195 04.105 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0909-
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0909-
237 04.057 BRACKET; CABLE,TRANS 8-98018-905-1 01 1 0909-
243 04.105 BOLT; COVER
04.010 M6X12 FLANGE 		1-33739-842-0 11 1 0909-
262 04.105 BOX ASM; SHIFT CONT 8-98020-399-5 01 1 0909-1010
262 04.105 BOX ASM; SHIFT CONT 8-98109-435-1 01 1 1011-1312
262 04.105 BOX ASM; SHIFT CONT 8-98241-121-1 01 1 1401-1411
262 04.105 BOX ASM; SHIFT CONT 8-98296-529-0 01 1 1412-
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0909-
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97379-981-0 01 1 0909-
274 04.105 COVER; SHAFT,QUAD BOX 8-98020-711-0 01 1 0909-
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-600-0 01 1 0909-
298 04.309 SHAFT; SHIFT LEVER 8-97379-978-0 01 1 0909-
315 04.302 LEVER; SELECT 8-97379-998-0 01 1 0909-1411
315 04.302 LEVER; SELECT 8-98296-526-0 01 1 1412-
317 04.302 BUSHING; LEVER 8-97379-997-0 02 1 0909-
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 0909-
346 04.545 HOSE; AIR
(B) 		8-97373-381-0 01 1 0909-
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97349-571-0 03 1 0909-
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97349-573-0 01 1 0909-
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0909-
381 04.105 BOLT
04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 0909-
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 0909-1312
398 02.698 SWITCH; REV LAMP 8-98242-173-1 01 1 1401-
530 04.302 SHAFT; SELECT 8-97379-996-0 01 1 0909-
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 0909-
551 04.303 PIN; SPRING
04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0909-
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0909-
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0909-
551 04.303 PIN; SPRING
04.302 (F) OD=5 		8-97184-905-0 03 1 0909-
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0909-
551 04.303 PIN; SPRING
(E) 		8-97379-991-0 01 1 0909-
552 04.105 BRACKET 8-97349-914-1 01 1 0909-
559 04.302 PIPE; BREATHER 8-98020-710-0 01 1 0909-
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 0909-
630 04.307 DETENT ASM 8-98019-536-0 03 1 0909-
631 04.105 STOPPER; SPRING 8-97379-984-0 01 1 0909-
632 04.054 SENSOR; TRANS,REV 8-97315-604-1 01 1 0909-
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 0909-
637 04.105 BOLT; BRACKET
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0909-
651 04.309 SOLENOID ASM; SHIFT
(A) 		8-98002-759-0 01 1 0909-
651 04.309 SOLENOID ASM; SHIFT
(B) 		8-98002-760-0 01 1 0909-
652 04.309 BOLT; SORENOID
02.042 M10X25 FLANGE 		0-28151-025-0 06 1 0909-
653 04.309 SOLENOID ASM; SELECT 8-98002-761-0 01 1 0909-
654 04.309 JOINT; SOLENOID,CASE
(A) 		8-97349-473-0 02 1 0909-
654 04.309 JOINT; SOLENOID,CASE
(B) 		8-97380-419-0 01 1 0909-
655 04.309 SENSOR; STROKE
(A) 		8-97324-826-0 01 1 0909-1010
655 04.309 SENSOR; STROKE
(A) 		8-98107-823-0 01 1 1011-
655 04.309 SENSOR; STROKE
(B) 		8-97324-827-0 01 1 0909-1010
655 04.309 SENSOR; STROKE
(B) 		8-98107-824-0 01 1 1011-
656 04.307 SPRING; SHAFT
(A) 		8-97379-985-0 01 1 0909-
656 04.307 SPRING; SHAFT
(B) 		8-97379-986-0 01 1 0909-
656 04.307 SPRING; SHAFT
(C) 		8-97379-987-0 01 1 0909-
657 04.105 PLATE; SIDE 8-98020-712-0 01 1 0909-
687 04.075 GASKET; SENSOR
04.307 		9-09567-113-0 01 1 0909-
