2-20 — MANUAL TRANSMISSION ASM AND CASE
(#32859) — 68 parça
◀

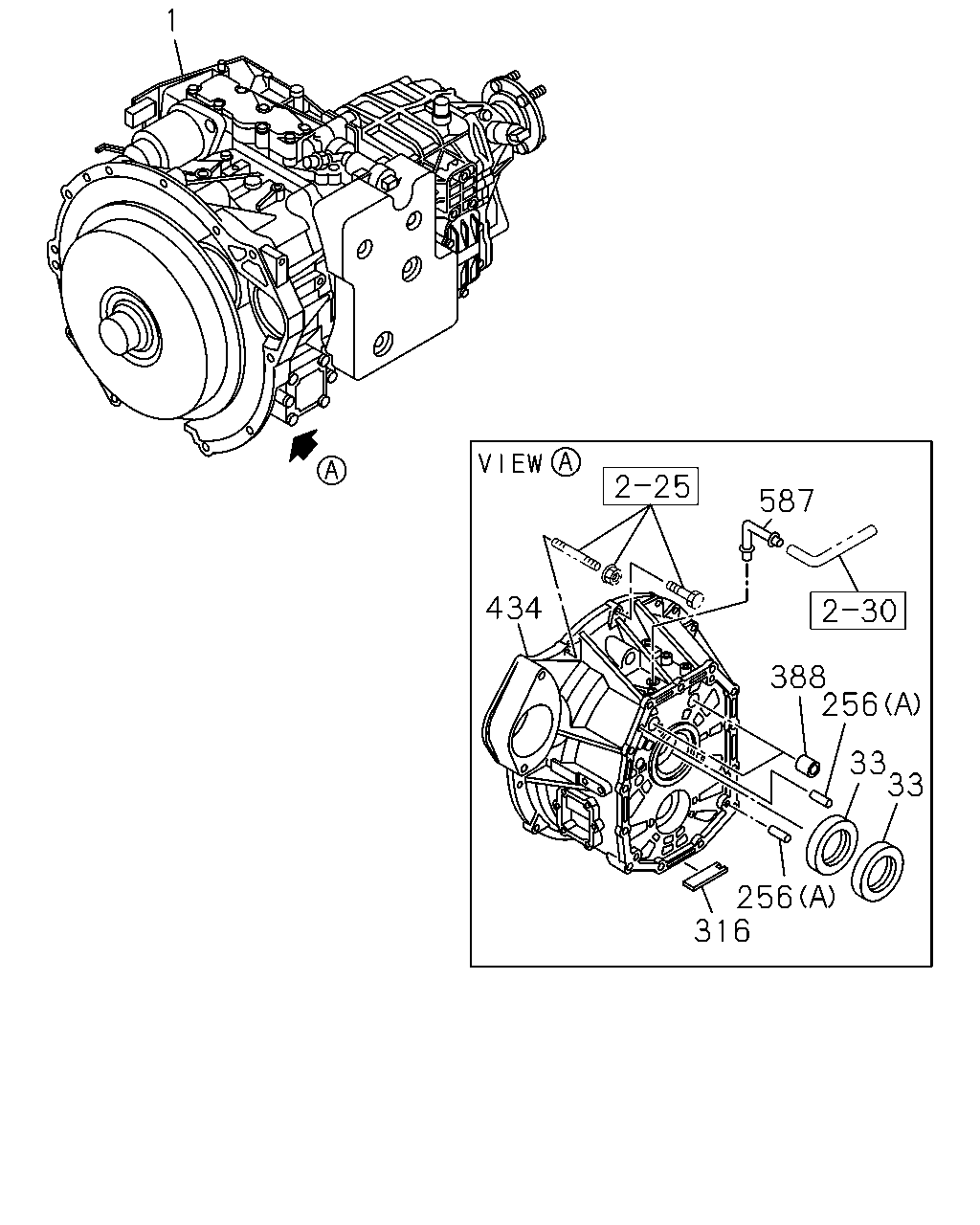

[220A] NO.1 (8 parça)

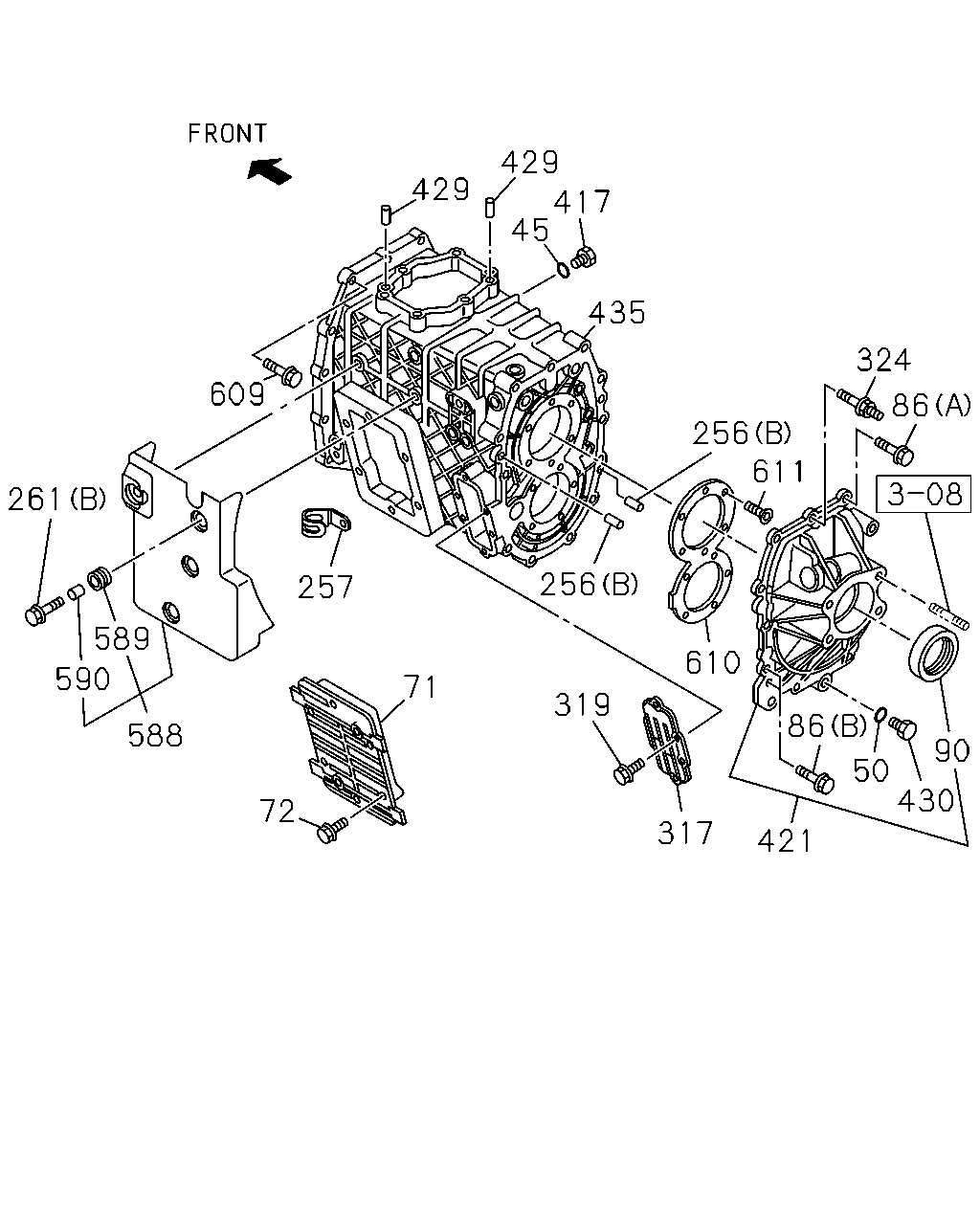

[220A] NO.2 (26 parça)

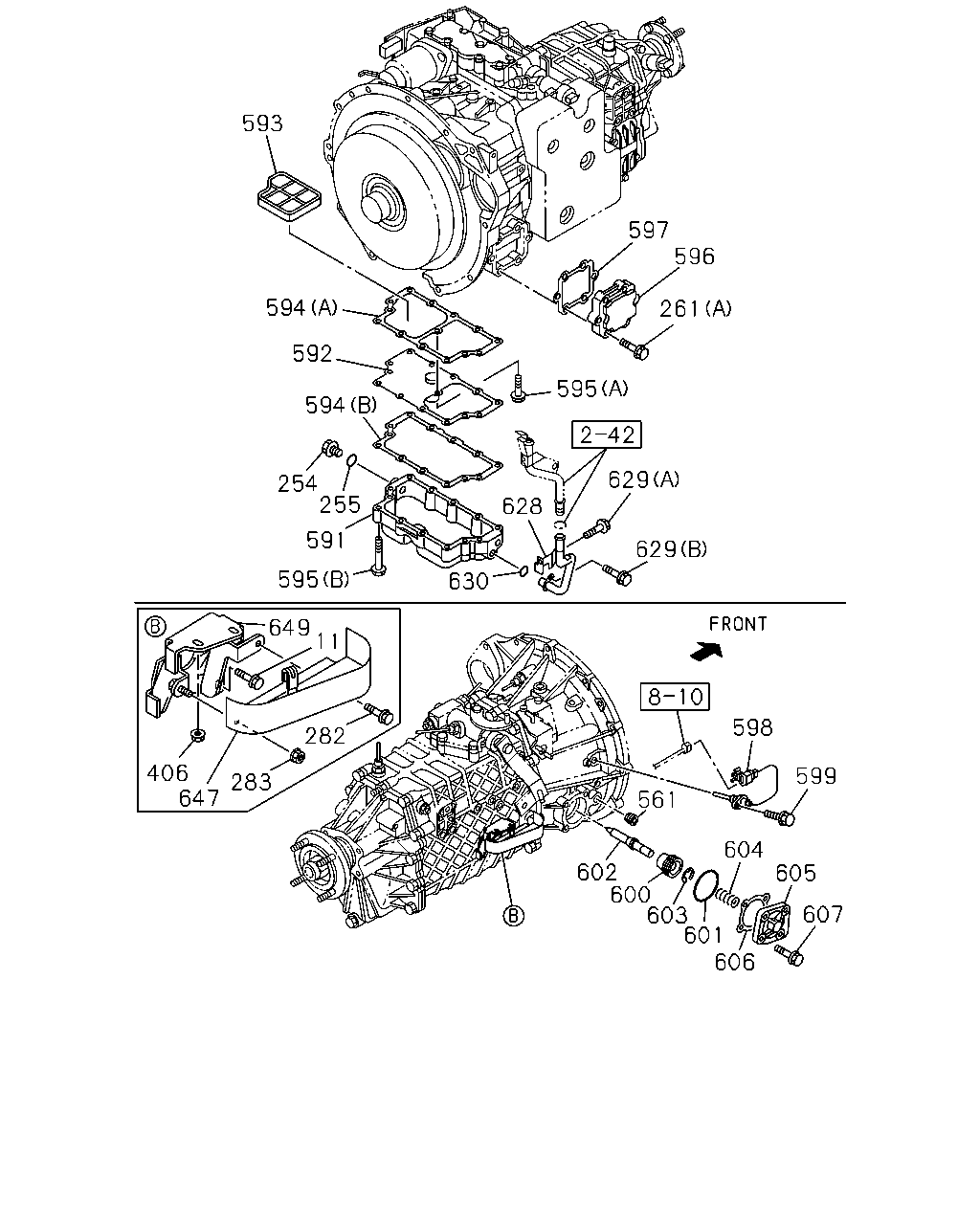

[220A] NO.3 (34 parça)
▶
1
587
434
388
256
33
33
256
316
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.003 TRANSMISSION ASM; MANUAL
8-98033-559-0
01
1
0909-
33
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
8-97255-187-0
02
1
0909-
256
04.317 PIN; KNOCK
04.510 (A) OD=10 L=20
8-97135-423-0
02
1
0909-
256
04.317 PIN; KNOCK
00.862 (B) ID=6 L=12
9-08160-612-0
02
1
0909-
316
04.105 MAGNET; TRANS CASE
8-94249-524-2
01
1
0909-
388
00.683 BUSHING; CLU HSG
8-97241-326-2
02
1
0909-
434
00.683 HOUSING; CLU
8-98100-978-0
01
1
0909-
587
04.020 PIPE; BREATHER
04.510
8-97358-318-0
01
1
0909-
429
429
417
45
435
324
609
86
256
611
256
261
257
589
610
86
590
71
319
588
90
50
430
72
317
421
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
0909-
50
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
0909-
71
04.439 COVER; SIDE,TRANS CASE
8-97252-625-0
01
1
0909-
72
04.439 BOLT; SIDE COVER
00.206 M10X20 FLANGE
8-98014-142-0
06
1
0909-
86
04.317 BOLT; RR COVER
09.171 (A) M10X40 FLANGE
0-28151-040-0
10
1
0909-
86
04.317 BOLT; RR COVER
04.510 (B) M10X40 FLANGE
8-97365-377-0
02
1
0909-
90
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-97253-552-1
01
1
0909-
256
04.317 PIN; KNOCK
04.510 (A) OD=10 L=20
8-97135-423-0
02
1
0909-
256
04.317 PIN; KNOCK
00.862 (B) ID=6 L=12
9-08160-612-0
02
1
0909-
257
02.559 CLIP; HARNESS
03.671 ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
0909-
261
04.109 BOLT; COVER
03.162 (A) M6X35 FLANGE
0-28650-635-0
06
1
0909-
261
04.109 BOLT; COVER
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
0909-
317
04.109 COVER; CASE
8-97252-626-0
01
1
0909-
319
04.109 BOLT; COVER
04.338 M8X20 FLANGE
0-28050-820-0
06
1
0909-
324
04.319 STUD; RR COVER
04.510 M10X15,M10X40 L=65
8-97365-379-0
01
1
0909-
417
04.105 PLUG; OIL FILLER,TRANS
8-97365-373-0
01
1
0909-
421
04.317 COVER; RR,TRANS
8-98020-029-0
01
1
0909-
429
04.105 PIN; STRAIGHT
04.510 OD=10 L=20
8-97135-423-0
02
1
0909-
430
04.105 PLUG; OIL DRAIN
8-97365-374-0
01
1
0909-
435
04.103 CASE; TRANS
8-97379-375-0
01
1
0909-
588
04.356 COVER ASM; TRANS
8-97317-663-1
01
1
0909-
589
04.015 MOUNTING; RUBBER
00.034 OD=22
8-94140-428-1
04
1
0909-
590
04.015 BUSHING; RUBBER
00.034 OD=13 T=9.5
8-94140-427-1
04
1
0909-
609
04.104 BOLT; HSG TO CASE
09.171 M10X40 FLANGE
0-28151-040-0
13
1
0909-
610
04.412 RETAINER; BRG
8-97241-315-1
01
1
0909-
611
04.104 SCREW
M10X27 TORQUES
8-97365-354-0
11
1
0909-
593
597
596
594
261
592
595
594
629
254
255
628
591
629
595
630
649
11
598
282
406
647
599
283
561
604
602
600
603
601
606
605
607
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
04.085 BOLT; BRKT
M10X20 FLANGE
0-28761-020-0
02
1
0909-
254
04.104 PLUG; DRAIN,OIL
04.105
8-97365-374-0
01
1
0909-
255
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
0909-
261
04.109 BOLT; COVER
03.162 (A) M6X35 FLANGE
0-28650-635-0
06
1
0909-
261
04.109 BOLT; COVER
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
0909-
282
00.785 BOLT; PROTECTOR
01.531 M8X20 FLANGE
0-28650-820-0
01
1
0909-
283
04.083 NUT; PROTECTOR
01.062 M8 FLANGE
0-91180-108-0
01
1
0909-
406
04.510 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
02
1
0909-
561
04.104 PLUG
8-97320-204-0
01
1
0909-
591
04.195 PAN; OIL
8-97256-429-2
01
1
0909-
592
04.338 COVER; STRAINER
8-97289-771-1
01
1
0909-
593
04.338 FILTER; STRAINER
8-97256-438-1
01
1
0909-
594
04.105 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(M/T). (A)
8-97256-430-1
01
1
0909-
594
04.105 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(M/T). (B)
8-97289-772-0
01
1
0909-
595
04.510 BOLT; OIL PAN
02.343 (A) M6X16 FLANGE
0-28650-616-0
01
1
0909-
595
04.510 BOLT; OIL PAN
03.162 (B) M6X35 FLANGE
0-28650-635-0
13
1
0909-
596
04.317 COVER; OIL PAN
8-97289-773-0
01
1
0909-
597
04.109 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T).
8-97289-774-0
01
1
0909-
598
04.329 SENSOR; TURBINE
8-97316-495-1
01
1
0909-
599
04.329 BOLT; SENSOR
02.343 M6X16 FLANGE
0-28650-616-0
01
1
0909-
600
04.105 PISTON; BRAKE
8-97254-652-1
01
1
0909-
601
04.317 SEAL; PISTON
ALSO INCLUDED IN GASKET SET(M/T).
8-97254-755-0
01
1
0909-
602
04.166 PLUNGER; BRAKE
8-97254-653-0
01
1
0909-
603
04.317 RING; SNAP
03.838 ID=8
9-09185-008-0
01
1
0909-
604
04.384 SPRING; PISTON
8-97254-752-0
01
1
0909-
605
04.356 COVER; CYLINDER
8-97254-756-0
01
1
0909-
606
04.005 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T).
8-97254-757-0
01
1
0909-
607
04.109 BOLT; COVER
03.403 M8X30 FLANGE
0-28650-830-0
04
1
0909-
628
04.439 TUBE; OIL FILLER
8-98030-395-1
01
1
0909-
629
04.317 BOLT; OIL FILLER
00.029 (A) M10X16 FLANGE
0-28151-016-0
01
1
0909-
629
04.317 BOLT; OIL FILLER
02.343 (B) M6X16 FLANGE
0-28650-616-0
01
1
0909-
630
04.105 GASKET; OIL FILLER TUBE,T/M
ALSO INCLUDED IN GASKET SET(M/T). ID=15.8
8-97305-656-0
01
1
0909-
647
00.782 PROTECTOR; HEAT
8-97329-465-0
01
1
0909-
649
04.105 BRACKET; SOLENOID
8-97387-237-0
01
1
0909-
