Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#32858) — 17 parça
◀

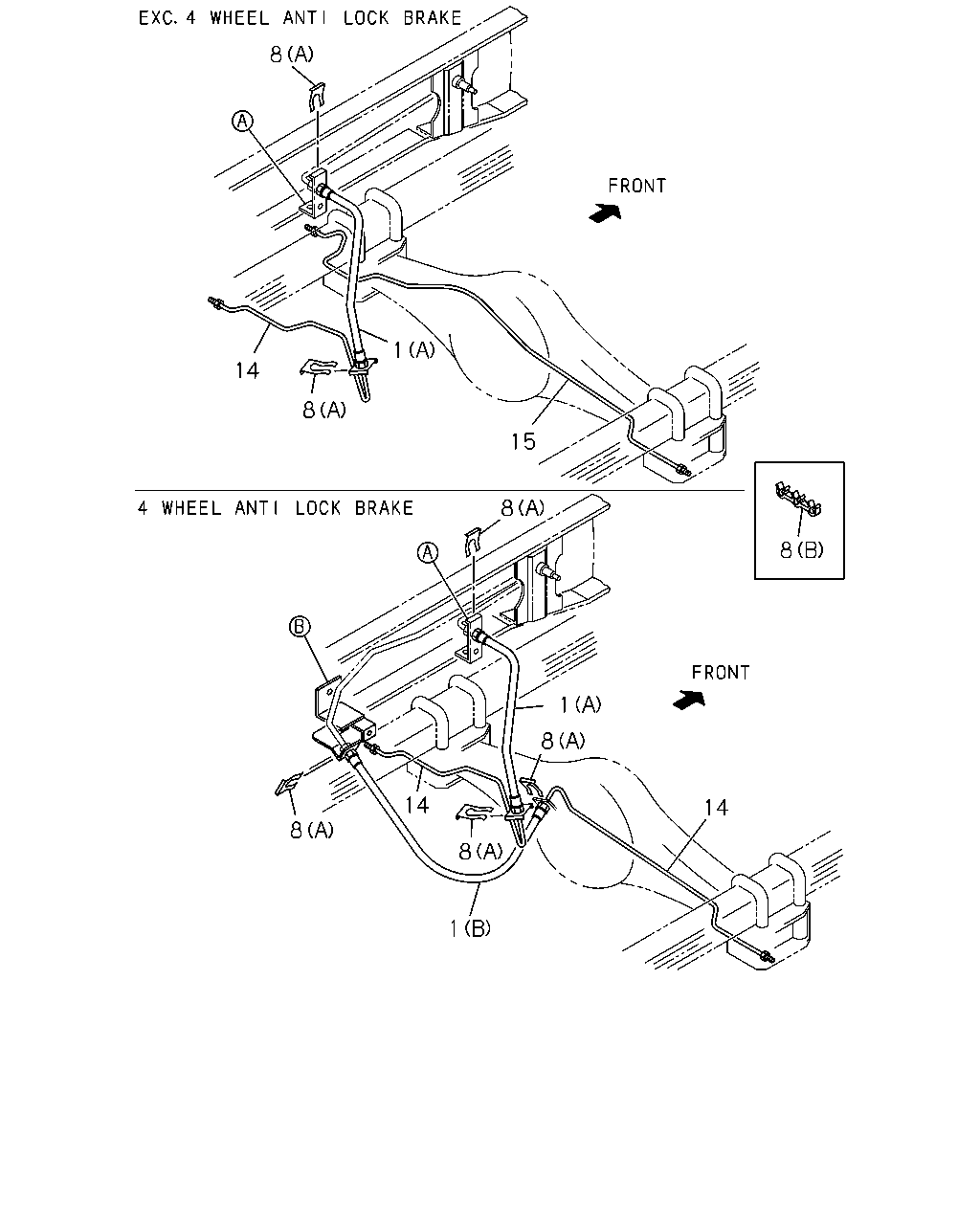

[355A] NO.1 (13 parça)
[355A] NO.2 (4 parça)
▶
8
1
14
8
15
8
8
1
8
14
14
8
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430
8-97077-458-0
01
1
0911-
1
HOSE; FLEX,RR BRK
(A) L=370
8-97035-574-0
01
1
0609-
8
CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-97360-054-0
04
1
0911-
8
CLIP; RR BRK
(A)
8-94137-662-0
02
1
0609-0610
8
CLIP; RR BRK
(A)
8-97360-054-0
02
1
0611-0910
8
CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-97360-054-0
02
1
0911-
8
CLIP; RR BRK
(B)
8-97076-471-0
01
1
0609-
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98021-871-0
01
1
0911-
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98021-879-0
01
1
0911-
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97070-590-0
01
1
0609-0910
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97070-590-0
01
1
0911-
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
8-97034-530-0
01
1
0609-0910
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97034-530-0
01
1
0911-
5
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97046-936-0
01
1
0911-1101
3
BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98178-774-0
01
1
1102-
4
NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> M10 FLANGE
0-91180-110-0
01
1
0911-
5
BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> M10X25 FLANGE
0-28651-025-0
01
1
0911-
