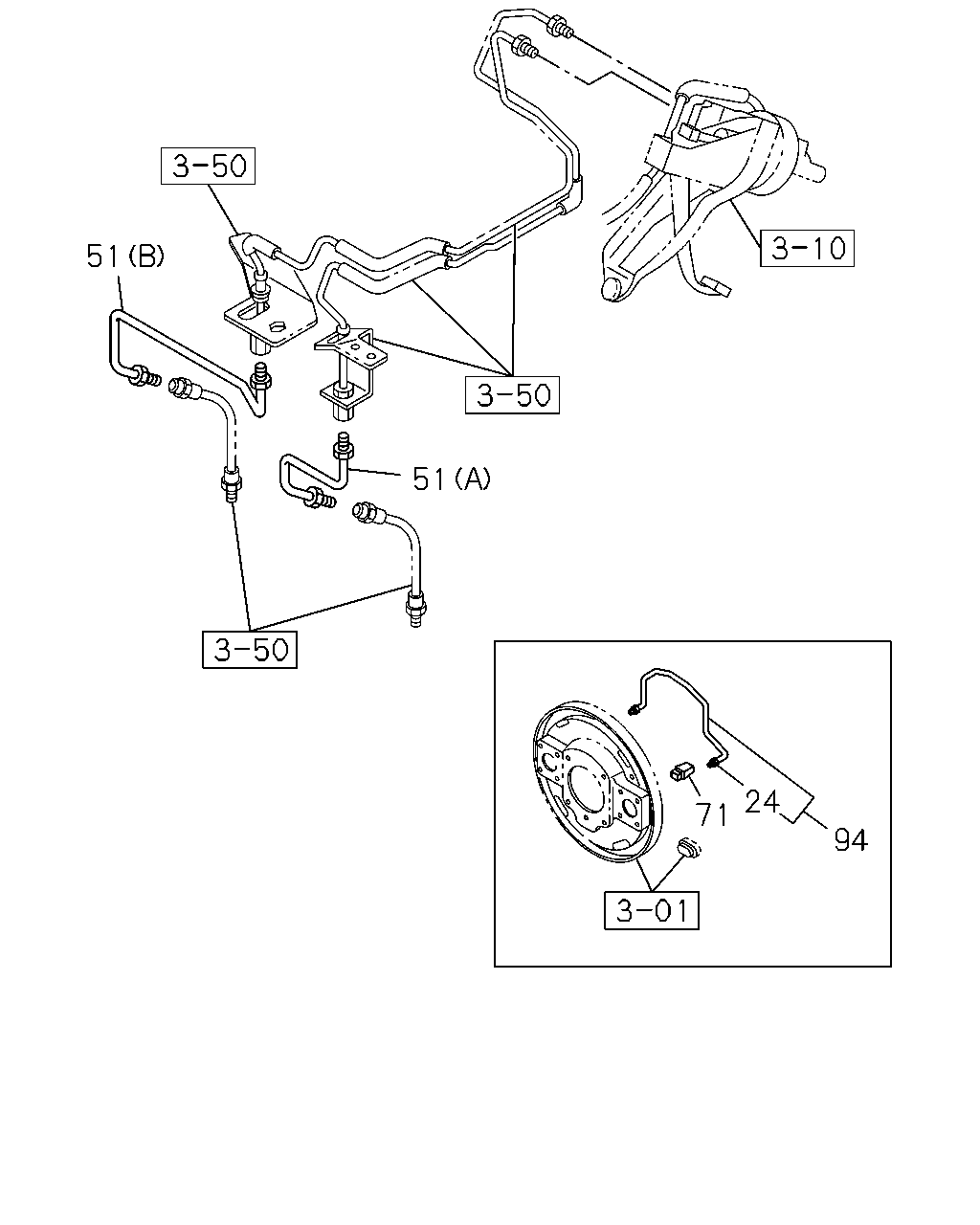

3-52 — BRAKE PIPING; OIL,FRONT (#32857) — 102 parça

51 51 24 71 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; UNION,OIL PIPE	0-92107-605-0	02	1	0609-0910
24	NUT; UNION,OIL PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	0-92107-605-0	02	1	0911-
51	PIPE; BRK (B) FRONT	5-47411-763-0	01	1	0609-
51	PIPE; BRK (A) REAR	8-97070-296-2	01	1	0609-
71	GROMMET; OIL PIPE	9-09756-034-0	02	1	0609-0910
71	GROMMET; OIL PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	9-09756-034-0	02	1	0911-
94	PIPE; BRK,W/C TO W/C	8-97019-223-0	01	1	0609-0910
94	PIPE; BRK,W/C TO W/C EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97019-223-0	01	1	0911-
94	PIPE; BRK,W/C TO W/C	8-97019-222-0	01	1	0609-0910
94	PIPE; BRK,W/C TO W/C EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97019-222-0	01	1	0911-

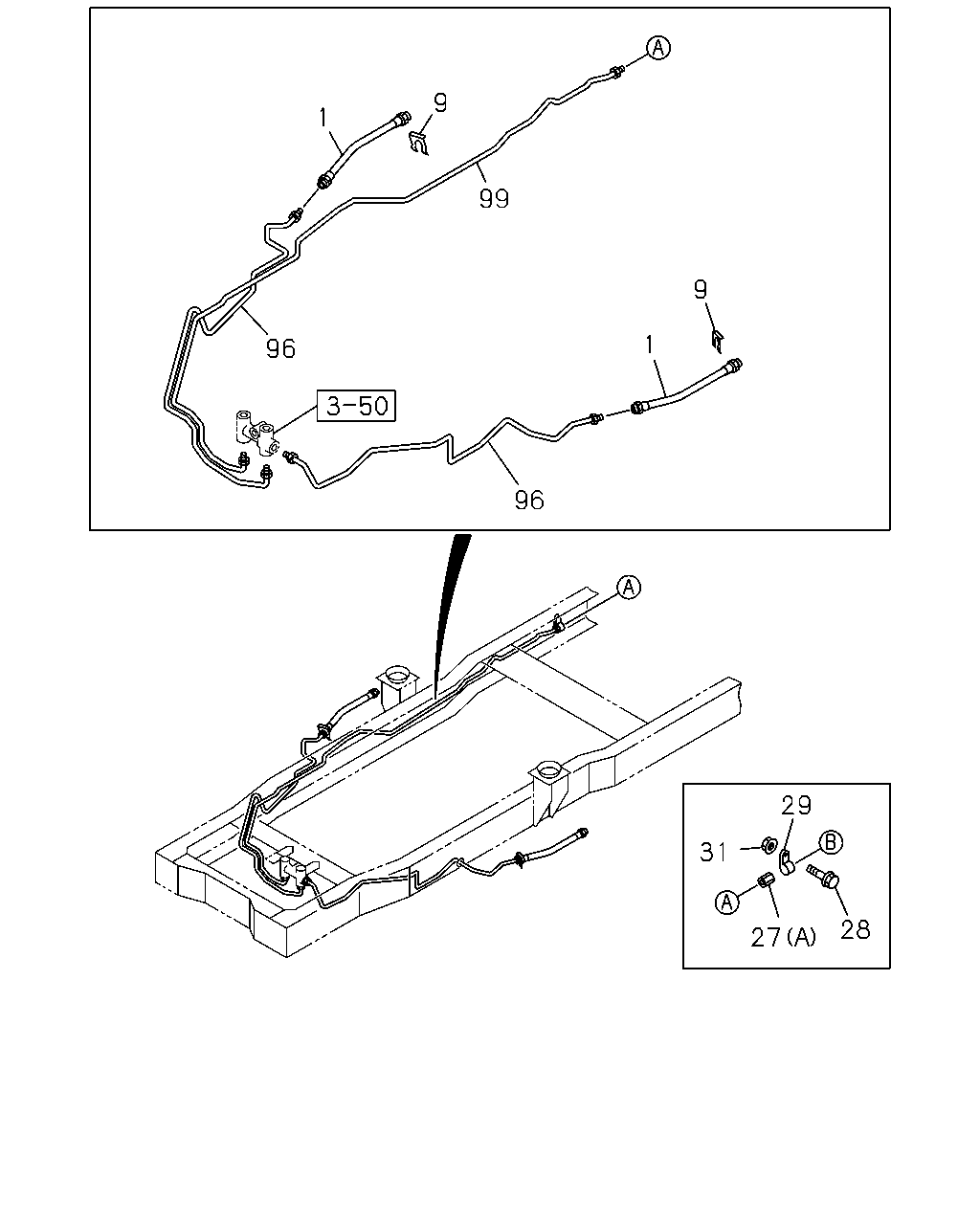

9 1 99 9 1 96 96 29 31 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=310	8-97035-063-1	02	1	0609-
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	0609-0610
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	0609-0610
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-
27	UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-1	01	1	0911-
27	UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0911-
27	UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	02	1	0911-
27	UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	0609-0910
27	UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	01	1	0911-
27	UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	0911-
28	BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> M6X20 FLANGE	0-28650-620-0	01	1	0912-
28	BOLT; UNION CLIP M6X25 FLANGE	0-28650-625-0	01	1	0609-0911
28	BOLT; UNION CLIP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M6X25 FLANGE	0-28650-625-0	01	1	0912-
29	CLIP; UNION BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=16X2 L=20	0-95325-533-0	01	1	0911-
29	CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ID=16 H=24 L=20	0-95207-315-0	01	1	0912-
29	CLIP; UNION ID=16 L=20	0-95235-532-0	01	1	0609-0910
29	CLIP; UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> ID=16 L=20	0-95235-532-0	01	1	0911-0911
29	CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ID=16 L=20	0-95235-532-0	01	1	0911-0911
29	CLIP; UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> ID=16 L=20	0-95235-532-0	01	1	0912-
31	NUT; UNION CLIP M6 FLANGE	0-91180-106-0	01	1	0609-0910
31	NUT; UNION CLIP M6 FLANGE	0-91180-106-0	01	1	0911-
31	NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> M6 FLANGE	0-91180-106-0	01	1	0911-
96	PIPE ASM; 6 WAY	8-97077-519-3	01	1	0609-0910
96	PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97077-519-3	01	1	0911-
96	PIPE ASM; 6 WAY	8-97091-666-3	01	1	0609-0910
96	PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>	8-97091-666-3	01	1	0911-
99	PIPE ASM; 4/5/6 WAY	8-97070-368-3	01	1	0609-0910
99	PIPE ASM; 4/5/6 WAY EXC. BRK WHL LK CONT LSPV<6PH>	8-97070-368-3	01	1	0911-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	13	PIPE; OIL,UNION TO UNION	8-97255-086-0	01	1	0609-0910
	13	PIPE; OIL,UNION TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>	8-97255-086-0	01	1	0911-

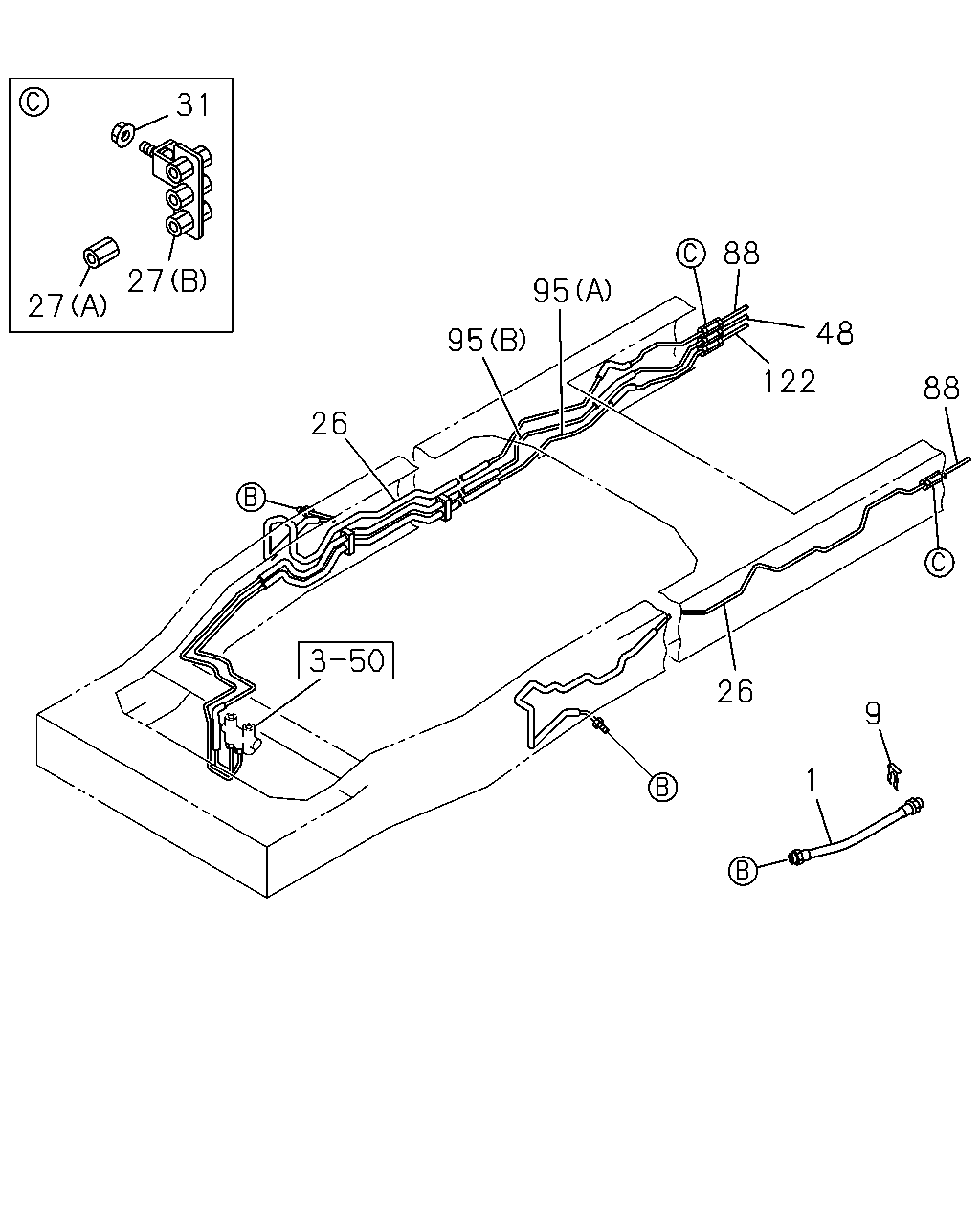

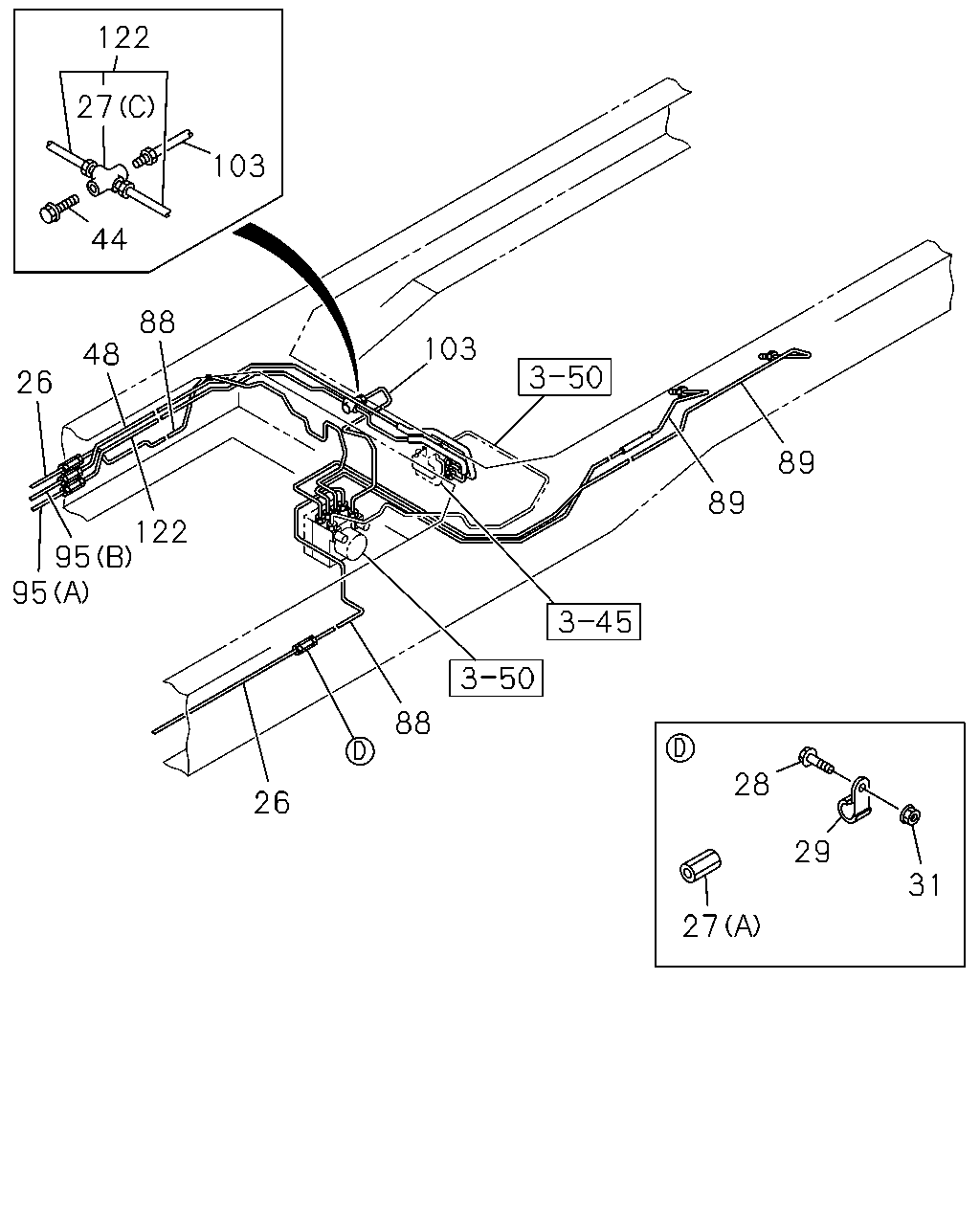

122 27 103 44 88 103 48 26 89 89 122 95 95 88 28 26 29 31 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> L=2067	8-98159-108-0	01	1	0911-1006
26	PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98173-848-0	01	1	1007-
26	PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> L=1987	8-98159-109-0	01	1	0911-
27	UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-1	01	1	0911-
27	UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0911-
27	UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	02	1	0911-
27	UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	0609-0910
27	UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	01	1	0911-
27	UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	0911-
28	BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> M6X20 FLANGE	0-28650-620-0	01	1	0912-
28	BOLT; UNION CLIP M6X25 FLANGE	0-28650-625-0	01	1	0609-0911
28	BOLT; UNION CLIP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M6X25 FLANGE	0-28650-625-0	01	1	0912-
29	CLIP; UNION BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=16X2 L=20	0-95325-533-0	01	1	0911-
29	CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ID=16 H=24 L=20	0-95207-315-0	01	1	0912-
29	CLIP; UNION ID=16 L=20	0-95235-532-0	01	1	0609-0910
29	CLIP; UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> ID=16 L=20	0-95235-532-0	01	1	0911-0911
29	CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ID=16 L=20	0-95235-532-0	01	1	0911-0911
29	CLIP; UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> ID=16 L=20	0-95235-532-0	01	1	0912-
31	NUT; UNION CLIP M6 FLANGE	0-91180-106-0	01	1	0609-0910
31	NUT; UNION CLIP M6 FLANGE	0-91180-106-0	01	1	0911-
31	NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> M6 FLANGE	0-91180-106-0	01	1	0911-
44	BOLT; JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	01	1	0911-
48	PIPE; BRK,BYPASS VLV TO CONN BRK WHL LK CONT LSPV<6PH>	8-97325-944-0	01	1	0911-
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-962-0	01	1	0911-1205
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98216-842-0	01	1	1206-
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-965-0	01	1	0911-1205
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98216-843-0	01	1	1206-
89	PIPE; BRK,HYDRULIC UNIT TO RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-968-0	01	1	0911-1205
89	PIPE; BRK,HYDRULIC UNIT TO RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98216-844-0	01	1	1206-
89	PIPE; BRK,HYDRULIC UNIT TO RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-971-0	01	1	0911-1205
89	PIPE; BRK,HYDRULIC UNIT TO RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98216-845-0	01	1	1206-
95	PIPE ASM; BRK,6 WAY 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97247-850-2	01	1	0911-
95	PIPE ASM; BRK,6 WAY 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97247-851-2	01	1	0911-
103	PIPE; BRK,3 WAY TO HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-958-0	01	1	0911-1205
103	PIPE; BRK,3 WAY TO HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98216-841-0	01	1	1206-
122	PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-941-0	01	1	0911-

31 88 27 95 27 48 95 122 88 26 26 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=310	8-97035-063-1	02	1	0609-
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	0609-0610
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	0609-0610
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-
26	PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> L=2067	8-98159-108-0	01	1	0911-1006
26	PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98173-848-0	01	1	1007-
26	PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> L=1987	8-98159-109-0	01	1	0911-
27	UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-1	01	1	0911-
27	UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0911-
27	UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	02	1	0911-
27	UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	0609-0910
27	UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	01	1	0911-
27	UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	0911-
31	NUT; UNION CLIP M6 FLANGE	0-91180-106-0	01	1	0609-0910
31	NUT; UNION CLIP M6 FLANGE	0-91180-106-0	01	1	0911-
31	NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> M6 FLANGE	0-91180-106-0	01	1	0911-
48	PIPE; BRK,BYPASS VLV TO CONN BRK WHL LK CONT LSPV<6PH>	8-97325-944-0	01	1	0911-
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-962-0	01	1	0911-1205
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98216-842-0	01	1	1206-
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-965-0	01	1	0911-1205
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98216-843-0	01	1	1206-
95	PIPE ASM; BRK,6 WAY 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97247-850-2	01	1	0911-
95	PIPE ASM; BRK,6 WAY 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97247-851-2	01	1	0911-
122	PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-941-0	01	1	0911-
