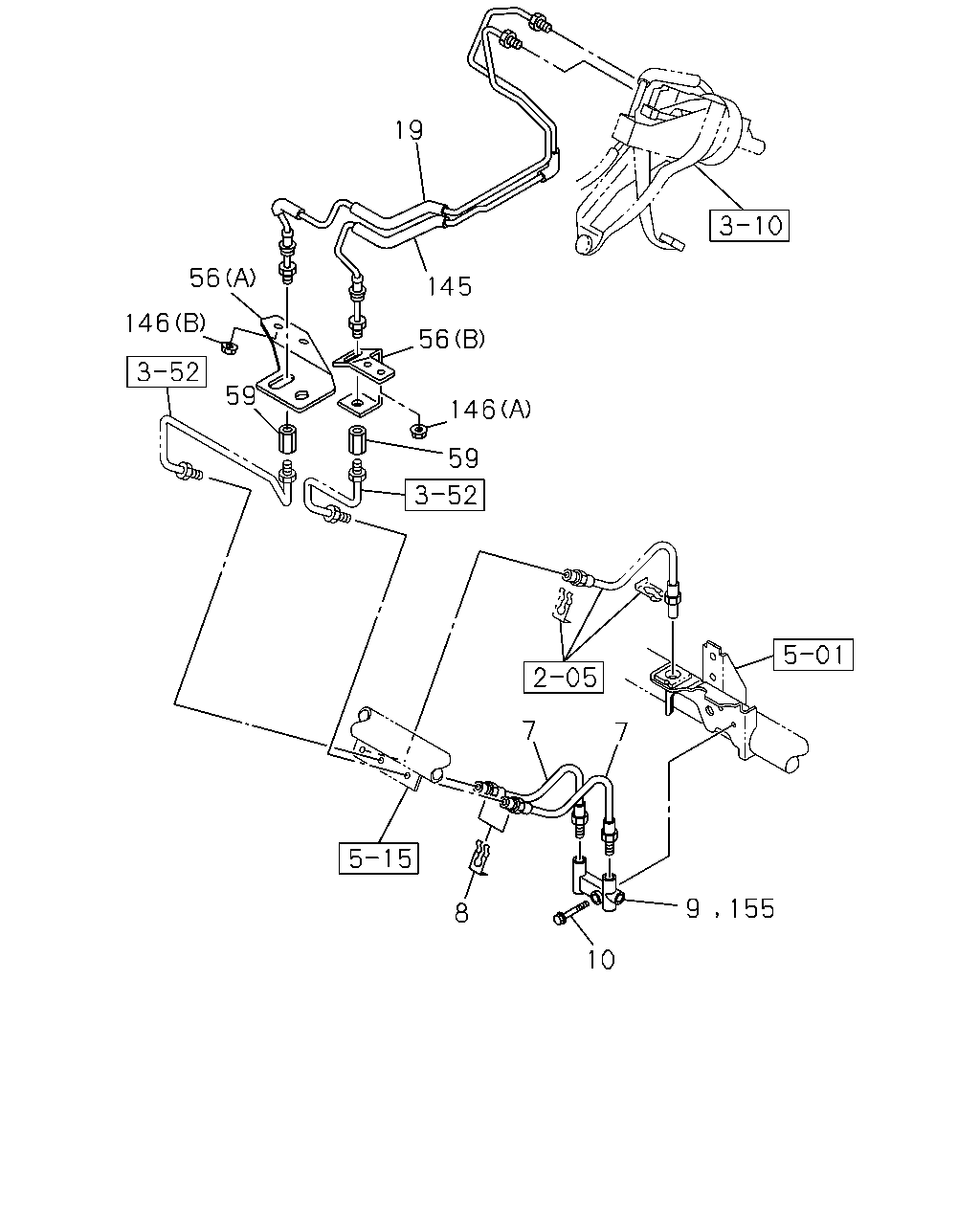

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#32856) — 37 parça

19 56 145 146 56 59 146 59 7 7 9 155 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0609-
8	CLIP; FLEX HOSE,CABLE SIDE	8-94167-006-0	02	1	0609-0610
8	CLIP; FLEX HOSE,CABLE SIDE	8-97365-304-0	02	1	0611-
9	JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-922-1	01	1	0911-
9	JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-1	01	1	0609-0910
9	JOINT; BRK & CLU PIPE,CAB SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>	5-47456-009-1	01	1	0911-
10	BOLT; JOINT M6X40 FLANGE	0-28650-640-0	01	1	0609-
19	PIPE; BRK,M/CYL TO UNION	8-97314-591-0	01	1	0609-
56	BRACKET; UNION,BRK (A)	8-97102-365-0	01	1	0609-
56	BRACKET; UNION,BRK (B)	8-97102-366-2	01	1	0609-
59	UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0609-
145	PIPE; BRK,METERING VLV TO UNION	8-97314-584-0	01	1	0609-
146	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	02	1	0609-
146	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0609-
155	JOINT; 6WAY BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-2	01	1	0911-

24 100 100 89 72 138 228 103 90 103 72 72

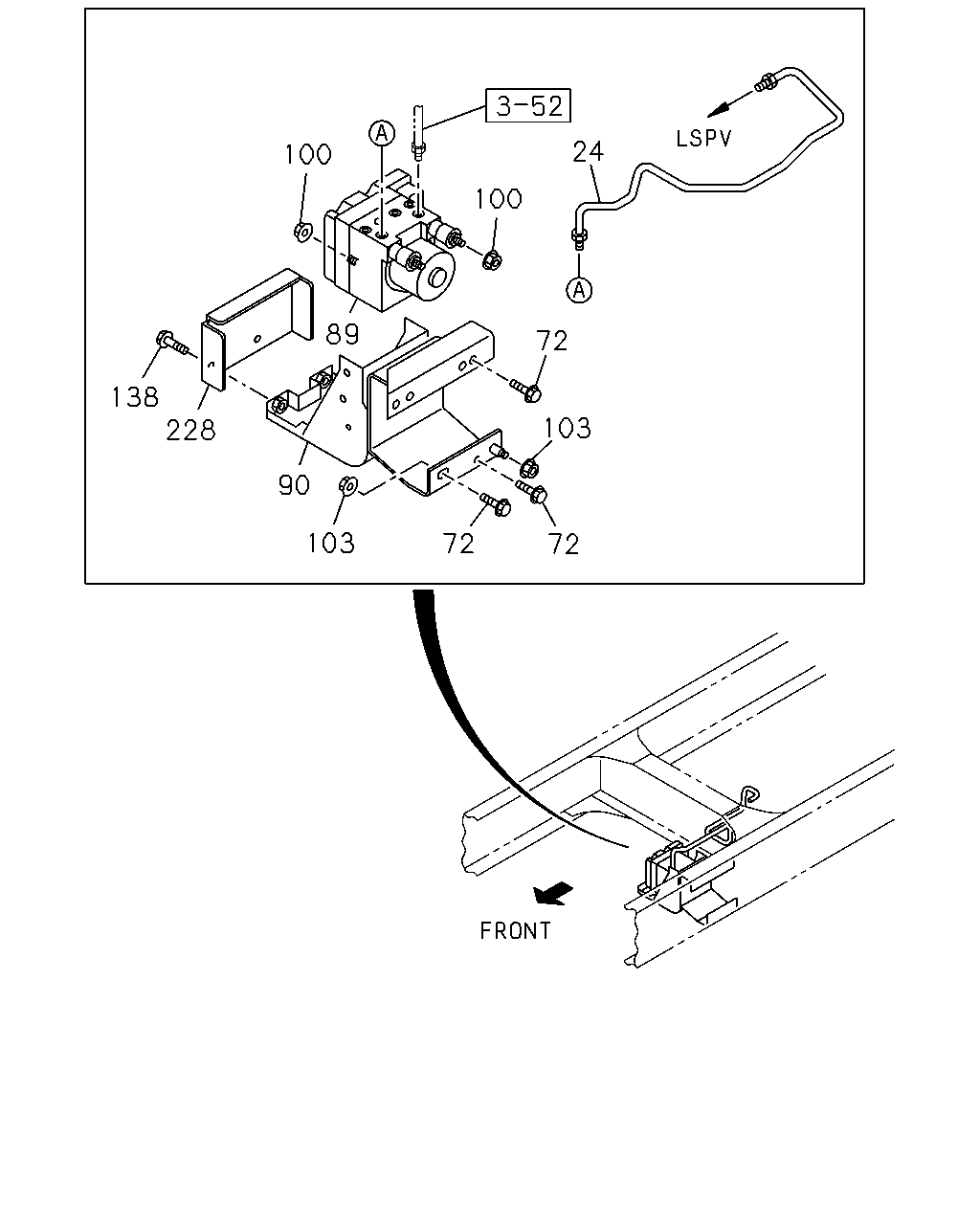

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-954-0	01	1	0911-1205
24	PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98216-840-0	01	1	1206-
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M10X25 FLANGE	0-28651-025-0	03	1	0911-0912
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M10X25 FLANGE	0-28651-025-0	02	1	1001-
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-075-3	01	1	0911-1006
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98155-358-1	01	1	1007-
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-501-0	01	1	0911-0912
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98164-369-0	01	1	1001-
100	NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	03	1	0911-
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-110-0	02	1	0911-0912
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-110-0	01	1	1001-
138	BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	02	1	0911-
228	COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-760-0	01	1	0911-

147 142 143 95 147 147 131 130

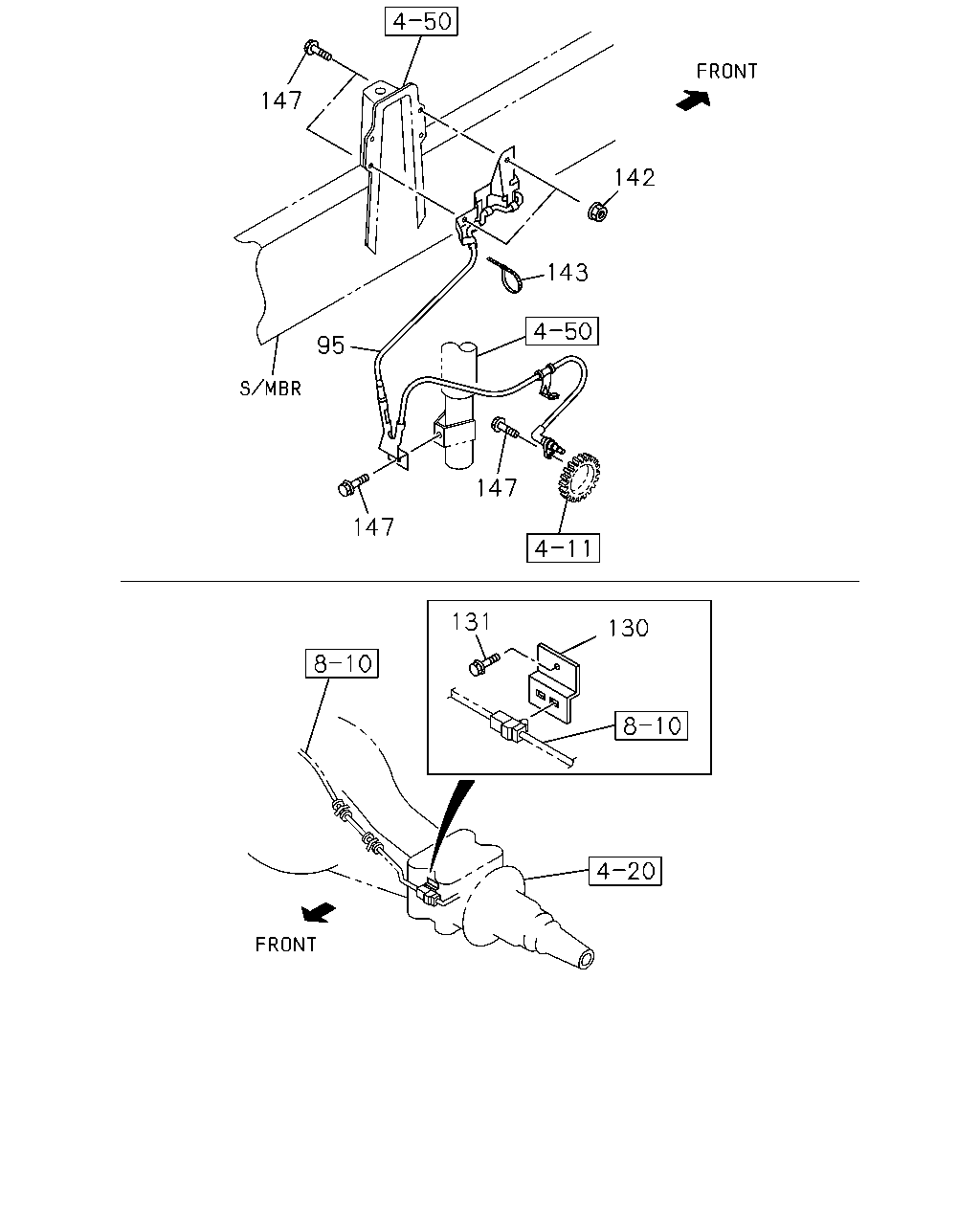

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-379-0	01	1	0911-
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-380-0	01	1	0911-
130	BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0911-
131	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	02	1	0911-
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	0911-
142	NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	0911-
143	CLIP; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> L=140	5-09707-031-1	01	1	0911-
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	04	1	0911-
147	BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28650-820-0	02	1	0911-
