3-45 — LOAD SENSING PROPORTIONING VALVE (#32855) — 12 parça

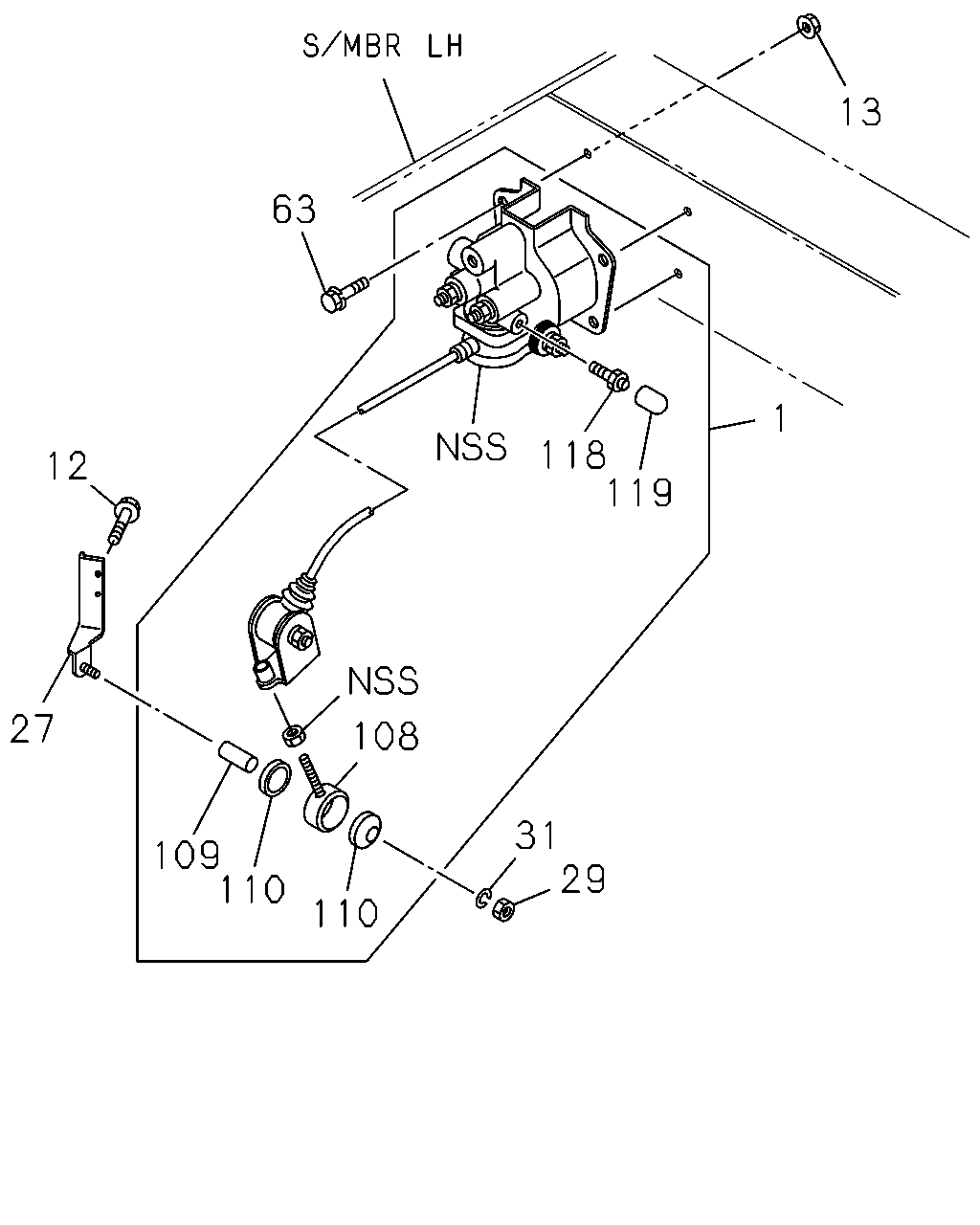

çizim 119641
13 63 1 118 119 12 27 108 31 29 109 110 110
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING
BRK WHL LK CONT LSPV<6PH> 		8-97070-721-0 01 1 0911-
12 BOLT; BRKT
BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE 		0-28050-816-0 02 1 0911-
13 NUT; LSPV TO BRKT
BRK WHL LK CONT LSPV<6PH> M8 FLANGE 		0-91180-108-0 04 1 0911-
27 BRACKET; SHACKLE TO AXLE
BRK WHL LK CONT LSPV<6PH> 		8-98029-821-0 01 1 0911-
29 NUT; SHACKLE
BRK WHL LK CONT LSPV<6PH> M8 FLANGE 		0-91180-108-0 01 1 0911-
31 WASHER; LK,SHACKLE
BRK WHL LK CONT LSPV<6PH> ID=8.4 OD=22 		0-91610-708-0 01 1 0911-
63 BOLT; LSPV
BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE 		0-28050-816-0 04 1 0911-
108 SHACKLE; LSPV
BRK WHL LK CONT LSPV<6PH> 		8-97173-366-0 01 1 0911-
109 COLLAR; LSPV
BRK WHL LK CONT LSPV<6PH> 		8-97139-186-0 01 1 0911-
110 BUSHING; LSPV
BRK WHL LK CONT LSPV<6PH> 		8-97145-631-0 02 1 0911-
118 SCREW; BLEEDER,LSPV
BRK WHL LK CONT LSPV<6PH> 		8-97093-663-0 01 1 0911-
119 CAP; BLEEDER SCREW,LSPV
BRK WHL LK CONT LSPV<6PH> 		8-97093-662-0 01 1 0911-
